Photoelectric
Omron

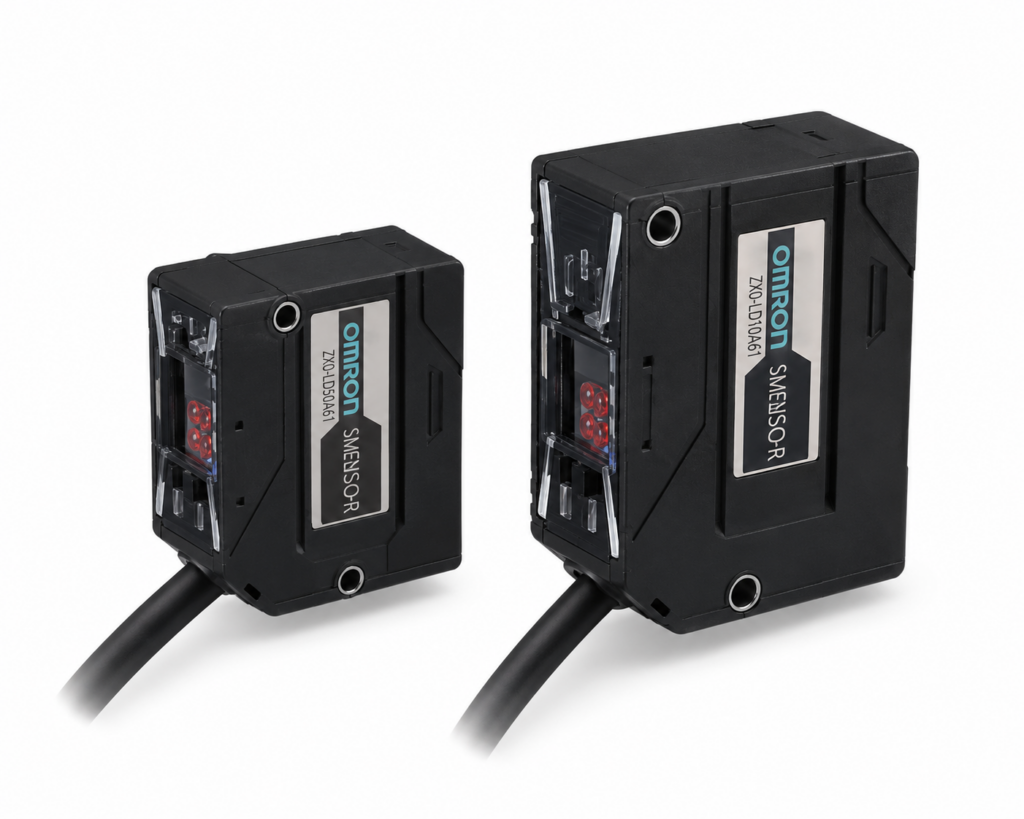

[OMRON] — ZX0-LD600A CMOS Laser Sensor with Built-in Amplifier (600 mm, NPN/PNP)
Family ID: OMRON-ZX0-LD600
OMRON ZX0 Series CMOS laser sensor with built-in amplifier. 600 mm sensing distance. Stable detection of level differences ~0.1 mm. Red laser. NPN and PNP. Pre-wired 2m/5m (Class 1 L suffix also available) and pre-wired connector 0.5m. Mounting bracket E39-L181 sold separately.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ZX0-LD600A61 2M | CMOS laser 600 mm NPN 2m | OMRON | Sensing Distance: 600 mm | Light Source: Red laser (CMOS) | Sensing Method: CMOS laser displacement / level detection | Note: Class 1 laser models available: add 'L' suffix to 2M/5M models (e.g. ZX0-LD50A61L 2M) | Output: NPN | Connection: Pre-wired 2 m | Laser Class: Class 2 (default) | ||
| ZX0-LD600A61L 2M | CMOS laser 600 mm NPN 2m Class1 | OMRON | Sensing Distance: 600 mm | Light Source: Red laser (CMOS) | Sensing Method: CMOS laser displacement / level detection | Note: Class 1 laser models available: add 'L' suffix to 2M/5M models (e.g. ZX0-LD50A61L 2M) | Output: NPN | Connection: Pre-wired 2 m | Laser Class: Class 1 (L suffix) | ||
| ZX0-LD600A61 5M | CMOS laser 600 mm NPN 5m | OMRON | Sensing Distance: 600 mm | Light Source: Red laser (CMOS) | Sensing Method: CMOS laser displacement / level detection | Note: Class 1 laser models available: add 'L' suffix to 2M/5M models (e.g. ZX0-LD50A61L 2M) | Output: NPN | Connection: Pre-wired 5 m | Laser Class: Class 2 (default) | ||
| ZX0-LD600A61L 5M | CMOS laser 600 mm NPN 5m Class1 | OMRON | Sensing Distance: 600 mm | Light Source: Red laser (CMOS) | Sensing Method: CMOS laser displacement / level detection | Note: Class 1 laser models available: add 'L' suffix to 2M/5M models (e.g. ZX0-LD50A61L 2M) | Output: NPN | Connection: Pre-wired 5 m | Laser Class: Class 1 (L suffix) | ||
| ZX0-LD600A66 0.5M | CMOS laser 600 mm NPN connector 0.5m | OMRON | Sensing Distance: 600 mm | Light Source: Red laser (CMOS) | Sensing Method: CMOS laser displacement / level detection | Note: Class 1 laser models available: add 'L' suffix to 2M/5M models (e.g. ZX0-LD50A61L 2M) | Output: NPN | Connection: Pre-wired Connector 0.5 m | Laser Class: Class 2 only | Extension Cable: Extension cables: ZX0-XC10R (10m) / ZX0-XC20R (20m) for pre-wired connector models (sold separately) | ||
| ZX0-LD600A81 2M | CMOS laser 600 mm PNP 2m | OMRON | Sensing Distance: 600 mm | Light Source: Red laser (CMOS) | Sensing Method: CMOS laser displacement / level detection | Note: Class 1 laser models available: add 'L' suffix to 2M/5M models (e.g. ZX0-LD50A61L 2M) | Output: PNP | Connection: Pre-wired 2 m | Laser Class: Class 2 (default) | ||
| ZX0-LD600A81L 2M | CMOS laser 600 mm PNP 2m Class1 | OMRON | Sensing Distance: 600 mm | Light Source: Red laser (CMOS) | Sensing Method: CMOS laser displacement / level detection | Note: Class 1 laser models available: add 'L' suffix to 2M/5M models (e.g. ZX0-LD50A61L 2M) | Output: PNP | Connection: Pre-wired 2 m | Laser Class: Class 1 (L suffix) | ||
| ZX0-LD600A81 5M | CMOS laser 600 mm PNP 5m | OMRON | Sensing Distance: 600 mm | Light Source: Red laser (CMOS) | Sensing Method: CMOS laser displacement / level detection | Note: Class 1 laser models available: add 'L' suffix to 2M/5M models (e.g. ZX0-LD50A61L 2M) | Output: PNP | Connection: Pre-wired 5 m | Laser Class: Class 2 (default) | ||
| ZX0-LD600A81L 5M | CMOS laser 600 mm PNP 5m Class1 | OMRON | Sensing Distance: 600 mm | Light Source: Red laser (CMOS) | Sensing Method: CMOS laser displacement / level detection | Note: Class 1 laser models available: add 'L' suffix to 2M/5M models (e.g. ZX0-LD50A61L 2M) | Output: PNP | Connection: Pre-wired 5 m | Laser Class: Class 1 (L suffix) | ||
| ZX0-LD600A86 0.5M | CMOS laser 600 mm PNP connector 0.5m | OMRON | Sensing Distance: 600 mm | Light Source: Red laser (CMOS) | Sensing Method: CMOS laser displacement / level detection | Note: Class 1 laser models available: add 'L' suffix to 2M/5M models (e.g. ZX0-LD50A61L 2M) | Output: PNP | Connection: Pre-wired Connector 0.5 m | Laser Class: Class 2 only | Extension Cable: Extension cables: ZX0-XC10R (10m) / ZX0-XC20R (20m) for pre-wired connector models (sold separately) |
