![[Smato] — 109-7641 Woodworking Drill Mortise Chisel Bit](https://img.prosourcemro.com/2026/05/3245491-1-1.jpg)
Woodworking Bits
SMATO

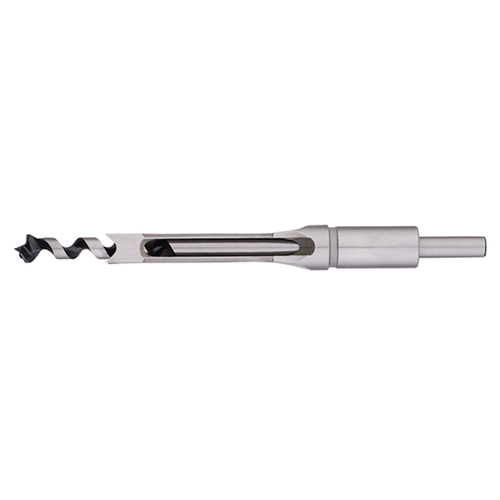

[Smato] — 109-7641 Woodworking Drill Mortise Chisel Bit
Family ID: 109-7641
The Smato 109-7641 Woodworking Drill Mortise Chisel Bit is a specialized woodworking cutting tool designed to bore clean, square-cornered mortise holes in timber, sourced direct from Korea. Mortise chisel bits are commonly used by furniture makers, cabinet builders, and carpenters when cutting mortise-and-tenon joinery, allowing the drill press to remove material while the chisel sleeve squares off the corners in a single pass. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 109-7641 | — | Smato | 6.4MM(135X210) | Spec: 6.4 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 6.4 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 6.4 | Drill Spec-Cutting Length: 70 | Drill Spec-Overall Length L: 210 | ||
| 109-7650 | — | Smato | 8.0MM(140X210) | Spec: 8.0 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 8.0 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 8.0 | Drill Spec-Cutting Length: 70 | Drill Spec-Overall Length L: 210 | ||
| 109-7669 | — | Smato | 9.5MM(140X210) | Spec: 9.5 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 9.5 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 9.5 | Drill Spec-Cutting Length: 80 | Drill Spec-Overall Length L: 210 | ||
| 109-7678 | — | Smato | 12.7MM(140X210) | Spec: 12.7 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 12.7 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 12.7 | Drill Spec-Cutting Length: 80 | Drill Spec-Overall Length L: 210 | ||
| 109-7687 | — | Smato | 16MM(160X218) | Spec: 16 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 16 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 160 | Drill Spec-Outer Diameter D: 16 | Drill Spec-Cutting Length: 100 | Drill Spec-Overall Length L: 218 | ||
| 109-7696 | — | Smato | 19MM(160X225) | Spec: 19 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 19 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 160 | Drill Spec-Outer Diameter D: 19 | Drill Spec-Cutting Length: 105 | Drill Spec-Overall Length L: 225 | ||
| 109-7702 | — | Smato | 22MM(160X225) | Spec: 22 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 22 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 160 | Drill Spec-Outer Diameter D: 22 | Drill Spec-Cutting Length: 105 | Drill Spec-Overall Length L: 225 |
