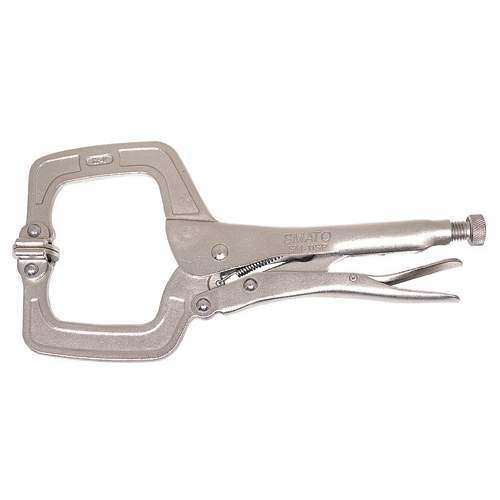

SMATO — Locking C-Clamp SM-SP Series (Swivel Pad)
Family ID: 109-4079
SMATO SM-SP series locking C-clamp with swivel pad. CR-V. C-type compact vise. Available: SM-4SP (4 in) / SM-6SP (6 in) / SM-9SP (9 in) / SM-11SP (11 in) / SM-14SP (14 in) / SM-18SP (18 in) / SM-24SP (24 in). Jaw range: 0–350mm. Origin: Korea.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 109-4079 | Locking C-clamp with swivel pad. CR-V. C-type compact vise. | SMATO | Model: SM-4SP | Size: 4 in | H: 35mm | L: 23mm | Jaw range: 0–38mm | ||
| 100-8090 | Locking C-clamp with swivel pad. CR-V. | SMATO | Model: SM-6SP | Size: 6 in | H: 50mm | L: 55mm | Jaw range: 0–50mm | ||
| 100-8106 | Locking C-clamp with swivel pad. CR-V. | SMATO | Model: SM-9SP | Size: 9 in | H: 76mm | L: 58mm | Jaw range: 0–78mm | ||
| 100-8115 | Locking C-clamp with swivel pad. CR-V. | SMATO | Model: SM-11SP | Size: 11 in | H: 90mm | L: 75mm | Jaw range: 0–95mm | ||
| 100-8124 | Locking C-clamp with swivel pad. CR-V. | SMATO | Model: SM-14SP | Size: 14 in | H: 95mm | L: 150mm | Jaw range: 0–150mm | ||
| 100-8133 | Locking C-clamp with swivel pad. CR-V. | SMATO | Model: SM-18SP | Size: 18 in | H: 100mm | L: 250mm | Jaw range: 0–205mm | ||
| 100-8142 | Locking C-clamp with swivel pad. CR-V. | SMATO | Model: SM-24SP | Size: 24 in | H: 100mm | L: 420mm | Jaw range: 0–350mm |
