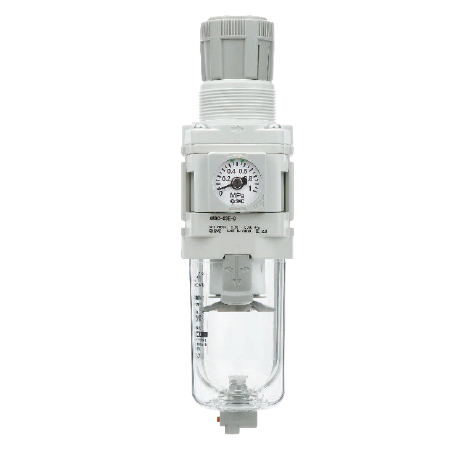

[SMC] — AW40K-06-D Modular Filter Regulator (3/4 Port, Reverse Flow)
Family ID: SMC-AW40K-06-D
SMC modular filter regulator with built-in 5μm filter element (clean/low-particle spec). Body size 40-06, port size: 3/4. Setting pressure 0.05–0.85 MPa, max working pressure 1.0 MPa. Drain capacity: 45 cm³. Mass: 0.69 kg. Threads: Rc / NPT / G. Drain options: manual or N.C. auto drain (N.O. drain available on request). Mounting: bracket. Pressure gauge option: square embedded gauge. Other options (set nut H, round gauge G, color zone gauge M, digital pressure switch E1–E4, N.O. auto drain, low-pressure spec 0.02–0.2 MPa, non-relief, reverse flow direction, alternative case materials, drain port variants, psi units) available on request.
24 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AW40K-06-D | Reverse flow, Rc 3/4, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-06E-D | Reverse flow, Rc 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-06C-D | Reverse flow, Rc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-06CE-D | Reverse flow, Rc 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-06B-D | Reverse flow, Rc 3/4, Bracket, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-06BE-D | Reverse flow, Rc 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-06BC-D | Reverse flow, Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-06BCE-D | Reverse flow, Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-N06-D | Reverse flow, NPT 3/4, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-N06E-D | Reverse flow, NPT 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-N06C-D | Reverse flow, NPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-N06CE-D | Reverse flow, NPT 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-N06B-D | Reverse flow, NPT 3/4, Bracket, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-N06BE-D | Reverse flow, NPT 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-N06BC-D | Reverse flow, NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-N06BCE-D | Reverse flow, NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-F06-D | Reverse flow, G 3/4, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-F06E-D | Reverse flow, G 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-F06C-D | Reverse flow, G 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-F06CE-D | Reverse flow, G 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-F06B-D | Reverse flow, G 3/4, Bracket, Manual drain, clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-F06BE-D | Reverse flow, G 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-F06BC-D | Reverse flow, G 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) | ||
| AW40K-F06BCE-D | Reverse flow, G 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | SMC | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D) |
