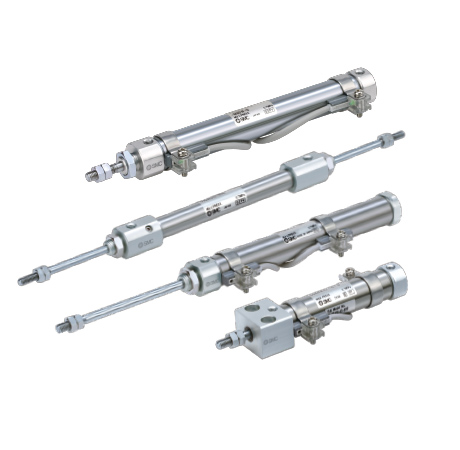

![[SMC] — CDJ2L6 Micro Air Cylinder (Magnet)](https://img.prosourcemro.com/2026/04/CJ2-Z.png)
Cylinders
SMC
[SMC] — CDJ2L6 Micro Air Cylinder (Magnet)
Family ID: SMC-CDJ2L6
SMC CJ2 Series micro air cylinder, double-acting single-rod, rubber cushion. Bore ø6 mm, single-side foot mount, with magnet for auto-switch. Standard strokes 15–60 mm. Port thread M5×0.8. Rod end male thread M3×0.5.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| CDJ2L6-15Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø6 mm bore, 15 mm stroke, single-side foot mount with magnet | SMC | Bore: ø6 mm | Stroke: 15 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: Yes | Rod thread: M3×0.5 (male) | Port: M5×0.8 | ||
| CDJ2L6-30Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø6 mm bore, 30 mm stroke, single-side foot mount with magnet | SMC | Bore: ø6 mm | Stroke: 30 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: Yes | Rod thread: M3×0.5 (male) | Port: M5×0.8 | ||
| CDJ2L6-45Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø6 mm bore, 45 mm stroke, single-side foot mount with magnet | SMC | Bore: ø6 mm | Stroke: 45 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: Yes | Rod thread: M3×0.5 (male) | Port: M5×0.8 | ||
| CDJ2L6-60Z | CJ2 series micro air cylinder, double-acting single-rod, rubber cushion, ø6 mm bore, 60 mm stroke, single-side foot mount with magnet | SMC | Bore: ø6 mm | Stroke: 60 mm | Mount: Single-side foot | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: Yes | Rod thread: M3×0.5 (male) | Port: M5×0.8 |
