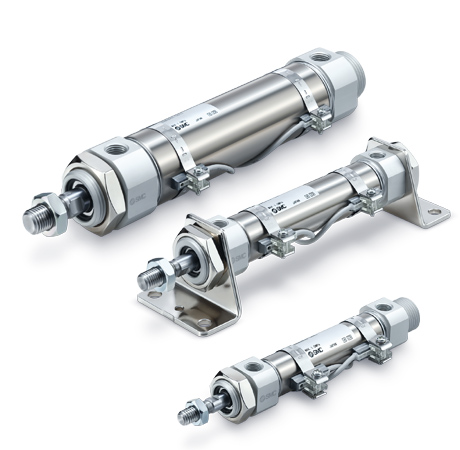

![[SMC] — CDM2F32 Standard Air Cylinder (Magnet)](https://prosourcemro.com/wp-content/uploads/2026/04/CM2-Z1.png)
Cylinders
SMC
[SMC] — CDM2F32 Standard Air Cylinder (Magnet)
Family ID: SMC-CDM2F32
SMC CM2 Series standard air cylinder, double-acting single-rod, rubber cushion. Bore ø32 mm, rod-side flange mount, with magnet for auto-switch. Standard strokes 25–200 mm. Port thread Rc 1/8. Rod end male thread M10×1.25.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| CDM2F32-25Z1 | CM2 series standard air cylinder, double-acting single-rod, rubber cushion, ø32 mm bore, 25 mm stroke, rod-side flange mount with magnet | SMC | Bore: ø32 mm | Stroke: 25 mm | Mount: Rod-side flange | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: Yes | Rod thread: M10×1.25 (male) | Port: Rc 1/8 | ||
| CDM2F32-50Z1 | CM2 series standard air cylinder, double-acting single-rod, rubber cushion, ø32 mm bore, 50 mm stroke, rod-side flange mount with magnet | SMC | Bore: ø32 mm | Stroke: 50 mm | Mount: Rod-side flange | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: Yes | Rod thread: M10×1.25 (male) | Port: Rc 1/8 | ||
| CDM2F32-75Z1 | CM2 series standard air cylinder, double-acting single-rod, rubber cushion, ø32 mm bore, 75 mm stroke, rod-side flange mount with magnet | SMC | Bore: ø32 mm | Stroke: 75 mm | Mount: Rod-side flange | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: Yes | Rod thread: M10×1.25 (male) | Port: Rc 1/8 | ||
| CDM2F32-100Z1 | CM2 series standard air cylinder, double-acting single-rod, rubber cushion, ø32 mm bore, 100 mm stroke, rod-side flange mount with magnet | SMC | Bore: ø32 mm | Stroke: 100 mm | Mount: Rod-side flange | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: Yes | Rod thread: M10×1.25 (male) | Port: Rc 1/8 | ||
| CDM2F32-125Z1 | CM2 series standard air cylinder, double-acting single-rod, rubber cushion, ø32 mm bore, 125 mm stroke, rod-side flange mount with magnet | SMC | Bore: ø32 mm | Stroke: 125 mm | Mount: Rod-side flange | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: Yes | Rod thread: M10×1.25 (male) | Port: Rc 1/8 | ||
| CDM2F32-150Z1 | CM2 series standard air cylinder, double-acting single-rod, rubber cushion, ø32 mm bore, 150 mm stroke, rod-side flange mount with magnet | SMC | Bore: ø32 mm | Stroke: 150 mm | Mount: Rod-side flange | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: Yes | Rod thread: M10×1.25 (male) | Port: Rc 1/8 | ||
| CDM2F32-200Z1 | CM2 series standard air cylinder, double-acting single-rod, rubber cushion, ø32 mm bore, 200 mm stroke, rod-side flange mount with magnet | SMC | Bore: ø32 mm | Stroke: 200 mm | Mount: Rod-side flange | Action: Double-acting, Single-rod | Cushion: Rubber | Magnet: Yes | Rod thread: M10×1.25 (male) | Port: Rc 1/8 |
