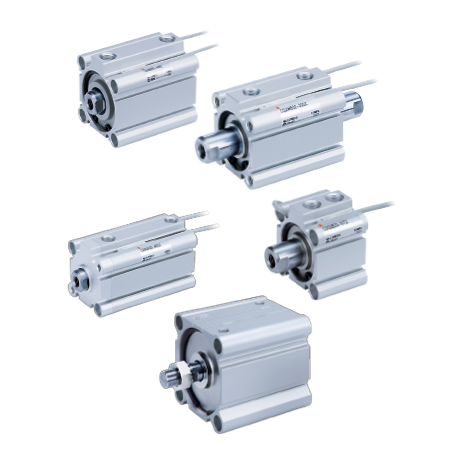

![[SMC] — CDQ2B100 Compact Cylinder](https://img.prosourcemro.com/2026/04/CDQ.png)
[SMC] — CDQ2B100 Compact Cylinder
Family ID: SMC-CDQ2B100
Compact pneumatic cylinder, ø100mm bore, double-acting single-rod, Through-hole mounting, Rc port, auto-switch ready with built-in magnet. Space-saving thin profile for automation applications.
11 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| CDQ2B100-10DZ | ø100mm bore × 10mm stroke, double-acting | SMC | Stroke: 10 mm | Bore: ø100 mm | Action: Double-acting | Port: Rc | ||
| CDQ2B100-15DZ | ø100mm bore × 15mm stroke, double-acting | SMC | Stroke: 15 mm | Bore: ø100 mm | Action: Double-acting | Port: Rc | ||
| CDQ2B100-20DZ | ø100mm bore × 20mm stroke, double-acting | SMC | Stroke: 20 mm | Bore: ø100 mm | Action: Double-acting | Port: Rc | ||
| CDQ2B100-25DZ | ø100mm bore × 25mm stroke, double-acting | SMC | Stroke: 25 mm | Bore: ø100 mm | Action: Double-acting | Port: Rc | ||
| CDQ2B100-30DZ | ø100mm bore × 30mm stroke, double-acting | SMC | Stroke: 30 mm | Bore: ø100 mm | Action: Double-acting | Port: Rc | ||
| CDQ2B100-35DZ | ø100mm bore × 35mm stroke, double-acting | SMC | Stroke: 35 mm | Bore: ø100 mm | Action: Double-acting | Port: Rc | ||
| CDQ2B100-40DZ | ø100mm bore × 40mm stroke, double-acting | SMC | Stroke: 40 mm | Bore: ø100 mm | Action: Double-acting | Port: Rc | ||
| CDQ2B100-45DZ | ø100mm bore × 45mm stroke, double-acting | SMC | Stroke: 45 mm | Bore: ø100 mm | Action: Double-acting | Port: Rc | ||
| CDQ2B100-50DZ | ø100mm bore × 50mm stroke, double-acting | SMC | Stroke: 50 mm | Bore: ø100 mm | Action: Double-acting | Port: Rc | ||
| CDQ2B100-75DZ | ø100mm bore × 75mm stroke, double-acting | SMC | Stroke: 75 mm | Bore: ø100 mm | Action: Double-acting | Port: Rc | ||
| CDQ2B100-100DZ | ø100mm bore × 100mm stroke, double-acting | SMC | Stroke: 100 mm | Bore: ø100 mm | Action: Double-acting | Port: Rc |
