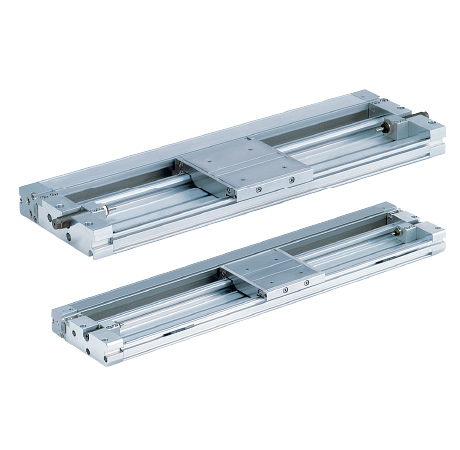

[SMC] — MY2HT16 Rodless Cylinder (Linear Guide, Dual Axis)
Family ID: SMC-MY2HT16
SMC MY2HT16 Mechanically Jointed Rodless Cylinder. Guide type: Linear Guide, Dual Axis. Bore: ø16 mm. Centralized piping (G) standard. Slim, low-profile design with 30% reduced height vs MY1 series. Air cushion built-in. Auto-switch mountable on top and side. Standard strokes per catalog. Stroke adjustment units (L/H) available on request.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MY2HT16G-50 | SMC MY2HT16 ø16-50 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 50 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion | ||
| MY2HT16G-100 | SMC MY2HT16 ø16-100 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 100 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion | ||
| MY2HT16G-150 | SMC MY2HT16 ø16-150 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 150 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion | ||
| MY2HT16G-200 | SMC MY2HT16 ø16-200 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 200 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion | ||
| MY2HT16G-250 | SMC MY2HT16 ø16-250 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 250 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion | ||
| MY2HT16G-300 | SMC MY2HT16 ø16-300 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 300 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion | ||
| MY2HT16G-350 | SMC MY2HT16 ø16-350 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 350 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion | ||
| MY2HT16G-400 | SMC MY2HT16 ø16-400 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 400 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion | ||
| MY2HT16G-450 | SMC MY2HT16 ø16-450 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 450 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion | ||
| MY2HT16G-500 | SMC MY2HT16 ø16-500 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 500 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion | ||
| MY2HT16G-550 | SMC MY2HT16 ø16-550 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 550 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion | ||
| MY2HT16G-600 | SMC MY2HT16 ø16-600 mm — Linear Guide 2-axis, port M5x0.8, centralized piping | SMC | Bore: ø16 mm | Stroke: 600 mm | Port: M5x0.8 | Piping: Centralized (G) | Guide: Linear Guide 2-axis | Cushion: Air cushion |
