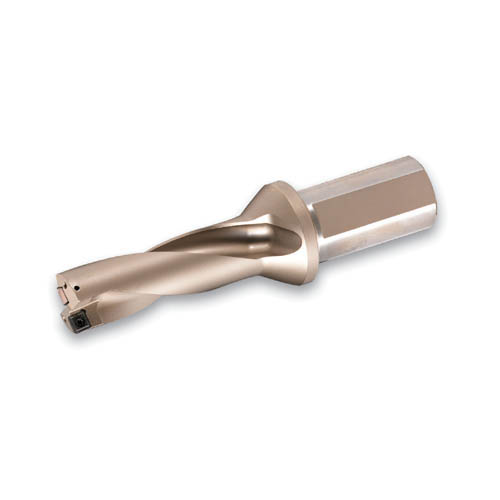

[TaeguTec] — 3201691 General Insert Drill (TDR)

Family ID: 374-7917

TaeguTec's General Insert Drill (TDR), model 3201691, is an indexable drilling tool designed for efficient hole-making in a range of workpiece materials, sourced direct from Korea. Insert drills of this type are commonly used in CNC machining centers and turning applications where replaceable carbide inserts reduce tooling downtime and lower cost-per-hole compared to solid drills. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.

14 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
374-7917	3201691	TaeguTec	TDR 5150-20T2-05 \| Spec: TDR5150-20T2-05 \| L: 144 \| 스크류: TS20043I/HG-P \| 인서트: SPMG 050204 DG \| D: 15 \| L1: 75 \| L2: 94 \| D1: 20 \| D2: 25 \| L3: 50 \| Torxkey: TD 6
374-7926	3201418	TaeguTec	TDR 5160-25T2-06 \| Spec: TDR5160-25T2-06 \| L: 156 \| 스크류: TS 22052 I \| 인서트: SPMG 060204 DG \| D: 16 \| L1: 80 \| L2: 100 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7935	3201523	TaeguTec	TDR 5170-25T2-06 \| Spec: TDR5170-25T2-06 \| L: 161 \| 스크류: TS 22052 I \| 인서트: SPMG 060204 DG \| D: 17 \| L1: 85 \| L2: 105 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7953	6180901	TaeguTec	TDR 5180-25T2-06 \| Spec: TDR5180-25T2-06 \| L: 167 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 18 \| L1: 90 \| L2: 111 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7962	3201524	TaeguTec	TDR 5190-25T2-06 \| Spec: TDR5190-25T2-06 \| L: 175 \| 스크류: TS 22052 I \| 인서트: SPMG 060204 DG \| D: 19 \| L1: 95 \| L2: 116 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7971	6180802	TaeguTec	TDR 5200-25T2-06 \| Spec: TDR5200-25T2-06 \| L: 179 \| 스크류: TS 22052 I \| 인서트: SPMG 060204 DG \| D: 20 \| L1: 100 \| L2: 123 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7980	3201525	TaeguTec	TDR 5210-25T2-06 \| Spec: TDR5210-25T2-06 \| L: 184 \| 스크류: TS 22052 I \| 인서트: SPMG 060204 DG \| D: 21 \| L1: 105 \| L2: 128 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7999	3201526	TaeguTec	TDR 5220-25T2-07 \| Spec: TDR5220-25T2-07 \| L: 189 \| 스크류: TS 25064 I \| 인서트: SPMG 07T308 DG \| D: 22 \| L1: 110 \| L2: 133 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 8
374-8004	3201527	TaeguTec	TDR 5230-32T2-07 \| Spec: TDR5230-32T2-07 \| L: 200 \| 스크류: TS 25064 I \| 인서트: SPMG 07T308 DG \| D: 23 \| L1: 115 \| L2: 140 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-8013	6180860	TaeguTec	TDR 5240-32T2-07 \| Spec: TDR5240-32T2-07 \| L: 206 \| 스크류: TS 25064 I \| 인서트: SPMG 07T308 DG \| D: 24 \| L1: 120 \| L2: 146 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-8022	6180949	TaeguTec	TDR 5250-32T2-07 \| Spec: TDR5250-32T2-07 \| L: 212 \| 스크류: TS 25064 I \| 인서트: SPMG 07T308 DG \| D: 25 \| L1: 125 \| L2: 152 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-8031	3201528	TaeguTec	TDR 5260-32T2-07 \| Spec: TDR5260-32T2-07 \| L: 217 \| 스크류: TS 25064 I \| 인서트: SPMG 07T308 DG \| D: 26 \| L1: 130 \| L2: 157 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-8059	3201441	TaeguTec	TDR 5270-32T2-07 \| Spec: TDR5270-32T2-07 \| L: 222 \| 스크류: TS 25064 I \| 인서트: SPMG 07T308 DG \| D: 27 \| L1: 135 \| L2: 162 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
376-5959	6181398	TaeguTec	TDR 5140-20T2-05 \| Spec: TDR5140-20T2-05 \| L: 138 \| 스크류: TS 20043I/HG-P \| 인서트: SPMG 050204 DG \| D: 14 \| L1: 70 \| L2: 88 \| D1: 20 \| D2: 25 \| L3: 50 \| Torxkey: TD 6
