Drills & Drill Sets
Taehwa

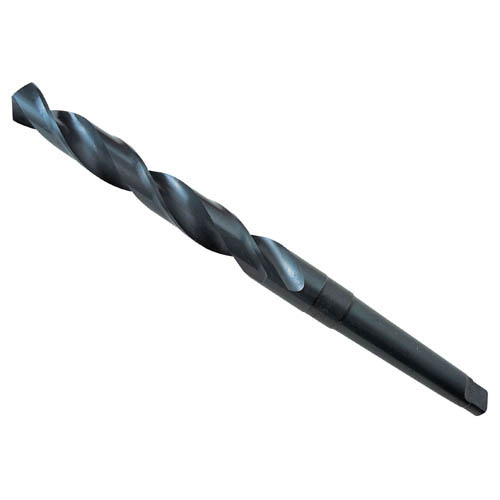

[Taehwa] — 315-1606 Taper Drill
Family ID: 315-1606
Taehwa 315-1606 Taper Drill is a precision taper drill designed for creating tapered holes and reamed fits in metal workpieces, sourced direct from Korea. Taper drills are commonly used in metalworking and machining operations where a conical bore profile is required for tapered pins, fittings, or mating components. Request a quote today for export-ready supply with competitive pricing, fulfilled by a KITA-registered Korean exporter.
33 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 315-1606 | — | Taehwa | 30.0MM | Spec: MT3 30.0 | Cutting Length: 185 | Overall Length: 305 | ||
| 315-1615 | — | Taehwa | 30.5MM | Spec: MT3 30.5 | Cutting Length: 190 | Overall Length: 310 | ||
| 315-1624 | — | Taehwa | 31.0MM | Spec: MT3 31.0 | Cutting Length: 190 | Overall Length: 310 | ||
| 315-1633 | — | Taehwa | 31.5MM | Spec: MT3 31.5 | Cutting Length: 195 | Overall Length: 315 | ||
| 315-1642 | — | Taehwa | 32.0MM | Spec: MT3 32.0 | Cutting Length: 195 | Overall Length: 315 | ||
| 315-1651 | — | Taehwa | 32.5MM | Spec: MT4 32.5 | Cutting Length: 200 | Overall Length: 345 | ||
| 315-1660 | — | Taehwa | 33.0MM | Spec: MT4 33.0 | Cutting Length: 200 | Overall Length: 345 | ||
| 315-1688 | — | Taehwa | 34.0MM | Spec: MT4 34.0 | Cutting Length: 205 | Overall Length: 350 | ||
| 315-1697 | — | Taehwa | 34.5MM | Spec: MT4 34.5 | Cutting Length: 205 | Overall Length: 350 | ||
| 315-1703 | — | Taehwa | 35.0MM | Spec: MT4 35.0 | Cutting Length: 205 | Overall Length: 350 | ||
| 315-1721 | — | Taehwa | 36.0MM | Spec: MT4 36.0 | Cutting Length: 210 | Overall Length: 355 | ||
| 315-1749 | — | Taehwa | 37.0MM | Spec: MT4 37.0 | Cutting Length: 210 | Overall Length: 355 | ||
| 315-1767 | — | Taehwa | 38.0MM | Spec: MT4 38.0 | Cutting Length: 215 | Overall Length: 360 | ||
| 315-1785 | — | Taehwa | 39.0MM | Spec: MT4 39.0 | Cutting Length: 215 | Overall Length: 360 | ||
| 315-1800 | — | Taehwa | 40.0MM | Spec: MT4 40.0 | Cutting Length: 220 | Overall Length: 365 | ||
| 315-1828 | — | Taehwa | 41.0MM | Spec: MT4 41.0 | Cutting Length: 220 | Overall Length: 365 | ||
| 315-1837 | — | Taehwa | 42.0MM | Spec: MT4 42.0 | Cutting Length: 225 | Overall Length: 370 | ||
| 315-1855 | — | Taehwa | 43.0MM | Spec: MT4 43.0 | Cutting Length: 225 | Overall Length: 370 | ||
| 315-1873 | — | Taehwa | 44.0MM | Spec: MT4 44.0 | Cutting Length: 230 | Overall Length: 375 | ||
| 315-1891 | — | Taehwa | 45.0MM | Spec: MT4 45.0 | Cutting Length: 230 | Overall Length: 375 | ||
| 315-1916 | — | Taehwa | 46.0MM | Spec: MT4 46.0 | Cutting Length: 235 | Overall Length: 380 | ||
| 315-1925 | — | Taehwa | 47.0MM | Spec: MT4 47.0 | Cutting Length: 235 | Overall Length: 380 | ||
| 315-1943 | — | Taehwa | 48.0MM | Spec: MT4 48.0 | Cutting Length: 240 | Overall Length: 385 | ||
| 315-1952 | — | Taehwa | 49.0MM | Spec: MT4 49.0 | Cutting Length: 240 | Overall Length: 385 | ||
| 315-1961 | — | Taehwa | 50.0MM | Spec: MT4 50.0 | Cutting Length: 245 | Overall Length: 390 | ||
| 315-1970 | — | Taehwa | 51.0MM | Spec: MT5 51.0 | Cutting Length: 245 | Overall Length: 425 | ||
| 315-1989 | — | Taehwa | 52.0MM | Spec: MT5 52.0 | Cutting Length: 250 | Overall Length: 430 | ||
| 315-2003 | — | Taehwa | 54.0MM | Spec: MT5 54.0 | Cutting Length: 255 | Overall Length: 435 | ||
| 315-2021 | — | Taehwa | 55.0MM | Spec: MT5 55.0 | Cutting Length: 255 | Overall Length: 435 | ||
| 315-2030 | — | Taehwa | 56.0MM | Spec: MT5 56.0 | Cutting Length: 260 | Overall Length: 440 | ||
| 315-2049 | — | Taehwa | 57.0MM | Spec: MT5 57.0 | Cutting Length: 260 | Overall Length: 440 | ||
| 315-2058 | — | Taehwa | 58.0MM | Spec: MT5 58.0 | Cutting Length: 265 | Overall Length: 445 | ||
| 315-2076 | — | Taehwa | 60.0MM | Spec: MT5 60.0 | Cutting Length: 270 | Overall Length: 450 |
