Ball Screws
THK

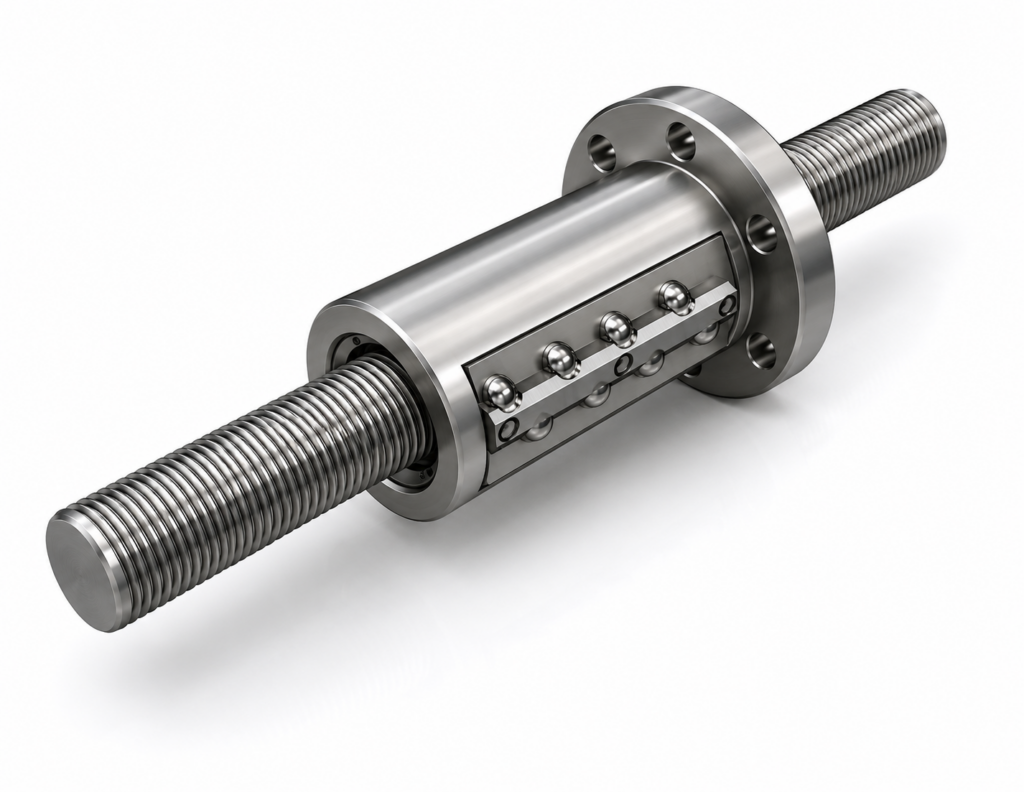

[THK] — BIF3610V-10 Ball Screw Nut Unit (Medium, Shaft φ36, Lead 10mm)
Family ID: THK-BIF3610V-10
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Medium type, preloaded). Shaft diameter φ36mm, lead 10mm. 2×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 130,000. Flanged nut, basic dynamic load rating Ca=50.1kN, static C0a=126.5kN, rigidity K=1350N/μm.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF3610V-10+930 | THK BIF3610V-10, φ36 Lead10, L=930mm | THK | Shaft Diameter: φ36mm | Lead: 10mm | Shaft Total Length L: 930mm | Nut Length L1: 171mm | Ball Circuit: 2×2.5 | Ca: 50.1kN | C0a: 126.5kN | K: 1350N/μm | Nut OD D: 75mm | Flange D1: 120mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3610V-10+1830 | THK BIF3610V-10, φ36 Lead10, L=1830mm | THK | Shaft Diameter: φ36mm | Lead: 10mm | Shaft Total Length L: 1830mm | Nut Length L1: 171mm | Ball Circuit: 2×2.5 | Ca: 50.1kN | C0a: 126.5kN | K: 1350N/μm | Nut OD D: 75mm | Flange D1: 120mm | Type: Preloaded, Unfinished Shaft End |
