Ball Screws
THK

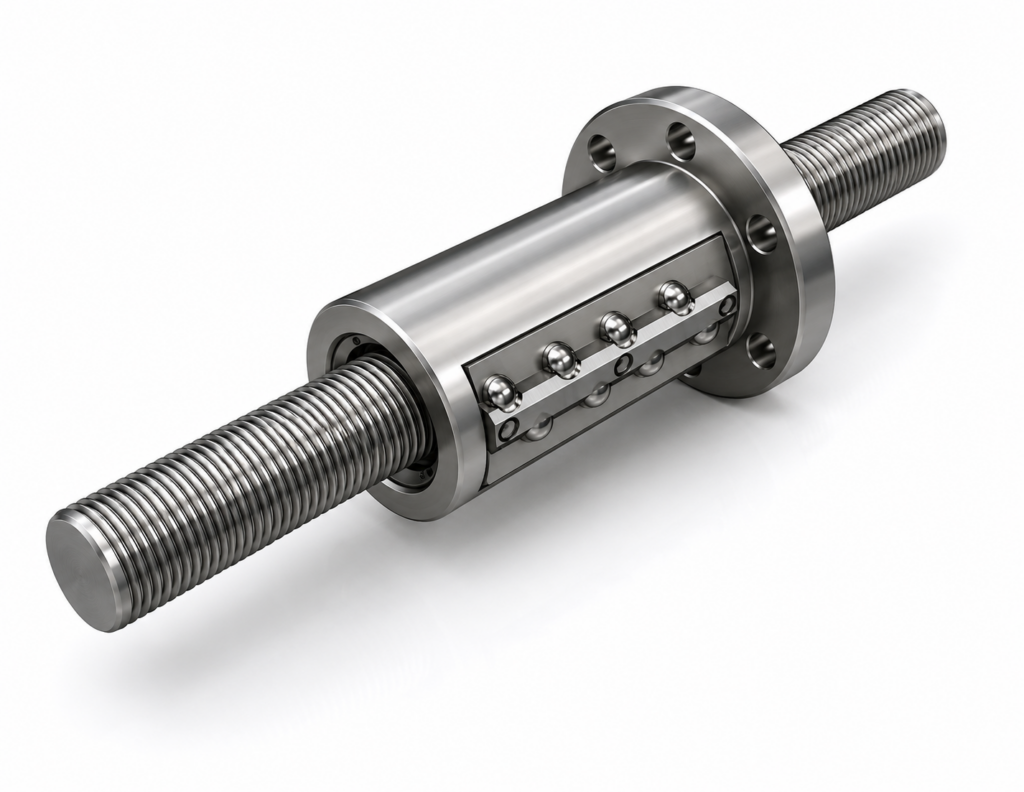

[THK] — BIF3610V-5 Ball Screw Nut Unit (Medium, Shaft φ36, Lead 10mm)
Family ID: THK-BIF3610V-5
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Medium type, preloaded). Shaft diameter φ36mm, lead 10mm. 1×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 130,000. Flanged nut, basic dynamic load rating Ca=27.6kN, static C0a=63.3kN, rigidity K=696N/μm.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF3610V-5+930 | THK BIF3610V-5, φ36 Lead10, L=930mm | THK | Shaft Diameter: φ36mm | Lead: 10mm | Shaft Total Length L: 930mm | Nut Length L1: 111mm | Ball Circuit: 1×2.5 | Ca: 27.6kN | C0a: 63.3kN | K: 696N/μm | Nut OD D: 75mm | Flange D1: 120mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3610V-5+1830 | THK BIF3610V-5, φ36 Lead10, L=1830mm | THK | Shaft Diameter: φ36mm | Lead: 10mm | Shaft Total Length L: 1830mm | Nut Length L1: 111mm | Ball Circuit: 1×2.5 | Ca: 27.6kN | C0a: 63.3kN | K: 696N/μm | Nut OD D: 75mm | Flange D1: 120mm | Type: Preloaded, Unfinished Shaft End |
