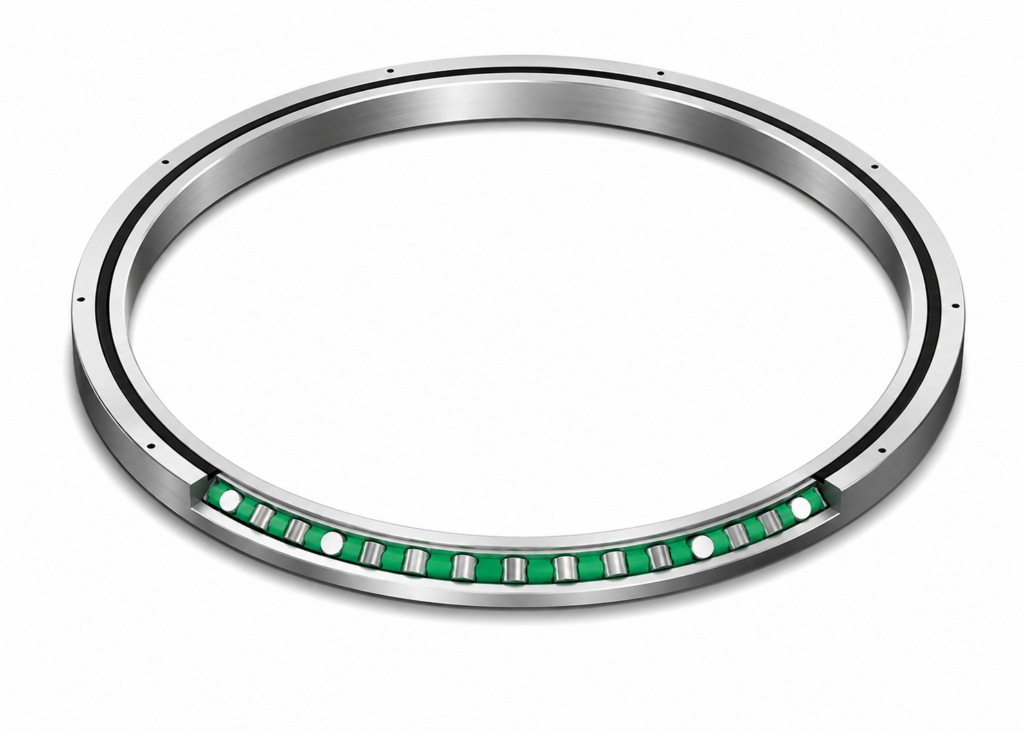

[THK] — RAU Cross Roller Ring (RA-Compatible, Integrated Inner/Outer Ring)
Family ID: THK-RAU-RA-COMPAT
THK RAU-type Cross Roller Ring — RA-compatible integrated inner/outer ring type. Small cross-sectional area for lightweight, compact design. Usable for both inner ring and outer ring rotation. Seal version: RAU...UU. Bore range: 50–200 mm.
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| RAU5008 | THK RAU5008, d=50mm D=66mm B=8mm RA-compatible | THK | Model: RAU5008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 50 mm | OD D: 66 mm | Roller PCD dp: 57 mm | Width B: 8 mm | Dynamic Load C: 5.1 kN | Static Load C0: 7.19 kN | Mass: 0.08 kg | Seal variant: RAU5008UU | ||
| RAU6008 | THK RAU6008, d=60mm D=76mm B=8mm RA-compatible | THK | Model: RAU6008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 60 mm | OD D: 76 mm | Roller PCD dp: 67 mm | Width B: 8 mm | Dynamic Load C: 5.68 kN | Static Load C0: 8.68 kN | Mass: 0.09 kg | Seal variant: RAU6008UU | ||
| RAU7008 | THK RAU7008, d=70mm D=86mm B=8mm RA-compatible | THK | Model: RAU7008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 70 mm | OD D: 86 mm | Roller PCD dp: 77 mm | Width B: 8 mm | Dynamic Load C: 5.98 kN | Static Load C0: 9.8 kN | Mass: 0.1 kg | Seal variant: RAU7008UU | ||
| RAU8008 | THK RAU8008, d=80mm D=96mm B=8mm RA-compatible | THK | Model: RAU8008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 80 mm | OD D: 96 mm | Roller PCD dp: 87 mm | Width B: 8 mm | Dynamic Load C: 6.37 kN | Static Load C0: 11.3 kN | Mass: 0.11 kg | Seal variant: RAU8008UU | ||
| RAU9008 | THK RAU9008, d=90mm D=106mm B=8mm RA-compatible | THK | Model: RAU9008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 90 mm | OD D: 106 mm | Roller PCD dp: 97 mm | Width B: 8 mm | Dynamic Load C: 6.76 kN | Static Load C0: 12.4 kN | Mass: 0.12 kg | Seal variant: RAU9008UU | ||
| RAU10008 | THK RAU10008, d=100mm D=116mm B=8mm RA-compatible | THK | Model: RAU10008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 100 mm | OD D: 116 mm | Roller PCD dp: 107 mm | Width B: 8 mm | Dynamic Load C: 7.15 kN | Static Load C0: 13.9 kN | Mass: 0.14 kg | Seal variant: RAU10008UU | ||
| RAU11008 | THK RAU11008, d=110mm D=126mm B=8mm RA-compatible | THK | Model: RAU11008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 110 mm | OD D: 126 mm | Roller PCD dp: 117 mm | Width B: 8 mm | Dynamic Load C: 7.45 kN | Static Load C0: 15.0 kN | Mass: 0.15 kg | Seal variant: RAU11008UU | ||
| RAU12008 | THK RAU12008, d=120mm D=136mm B=8mm RA-compatible | THK | Model: RAU12008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 120 mm | OD D: 136 mm | Roller PCD dp: 127 mm | Width B: 8 mm | Dynamic Load C: 7.84 kN | Static Load C0: 16.5 kN | Mass: 0.17 kg | Seal variant: RAU12008UU | ||
| RAU13008 | THK RAU13008, d=130mm D=146mm B=8mm RA-compatible | THK | Model: RAU13008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 130 mm | OD D: 146 mm | Roller PCD dp: 137 mm | Width B: 8 mm | Dynamic Load C: 7.94 kN | Static Load C0: 17.6 kN | Mass: 0.18 kg | Seal variant: RAU13008UU | ||
| RAU14008 | THK RAU14008, d=140mm D=156mm B=8mm RA-compatible | THK | Model: RAU14008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 140 mm | OD D: 156 mm | Roller PCD dp: 147 mm | Width B: 8 mm | Dynamic Load C: 8.33 kN | Static Load C0: 19.1 kN | Mass: 0.19 kg | Seal variant: RAU14008UU | ||
| RAU15008 | THK RAU15008, d=150mm D=166mm B=8mm RA-compatible | THK | Model: RAU15008 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 150 mm | OD D: 166 mm | Roller PCD dp: 157 mm | Width B: 8 mm | Dynamic Load C: 8.82 kN | Static Load C0: 20.6 kN | Mass: 0.2 kg | Seal variant: RAU15008UU | ||
| RAU16013 | THK RAU16013, d=160mm D=186mm B=13mm RA-compatible | THK | Model: RAU16013 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 160 mm | OD D: 186 mm | Roller PCD dp: 172 mm | Width B: 13 mm | Dynamic Load C: 23.3 kN | Static Load C0: 44.9 kN | Mass: 0.59 kg | Seal variant: RAU16013UU | ||
| RAU17013 | THK RAU17013, d=170mm D=196mm B=13mm RA-compatible | THK | Model: RAU17013 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 170 mm | OD D: 196 mm | Roller PCD dp: 182 mm | Width B: 13 mm | Dynamic Load C: 23.5 kN | Static Load C0: 46.5 kN | Mass: 0.64 kg | Seal variant: RAU17013UU | ||
| RAU18013 | THK RAU18013, d=180mm D=206mm B=13mm RA-compatible | THK | Model: RAU18013 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 180 mm | OD D: 206 mm | Roller PCD dp: 192 mm | Width B: 13 mm | Dynamic Load C: 24.5 kN | Static Load C0: 49.8 kN | Mass: 0.68 kg | Seal variant: RAU18013UU | ||
| RAU19013 | THK RAU19013, d=190mm D=216mm B=13mm RA-compatible | THK | Model: RAU19013 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 190 mm | OD D: 216 mm | Roller PCD dp: 202 mm | Width B: 13 mm | Dynamic Load C: 24.9 kN | Static Load C0: 51.5 kN | Mass: 0.69 kg | Seal variant: RAU19013UU | ||
| RAU20013 | THK RAU20013, d=200mm D=226mm B=13mm RA-compatible | THK | Model: RAU20013 | Type: RAU (RA-Compatible, Integrated Inner/Outer Ring) | Bore d: 200 mm | OD D: 226 mm | Roller PCD dp: 212 mm | Width B: 13 mm | Dynamic Load C: 25.8 kN | Static Load C0: 54.7 kN | Mass: 0.71 kg | Seal variant: RAU20013UU |
