Roller Chains
TSUBAKI

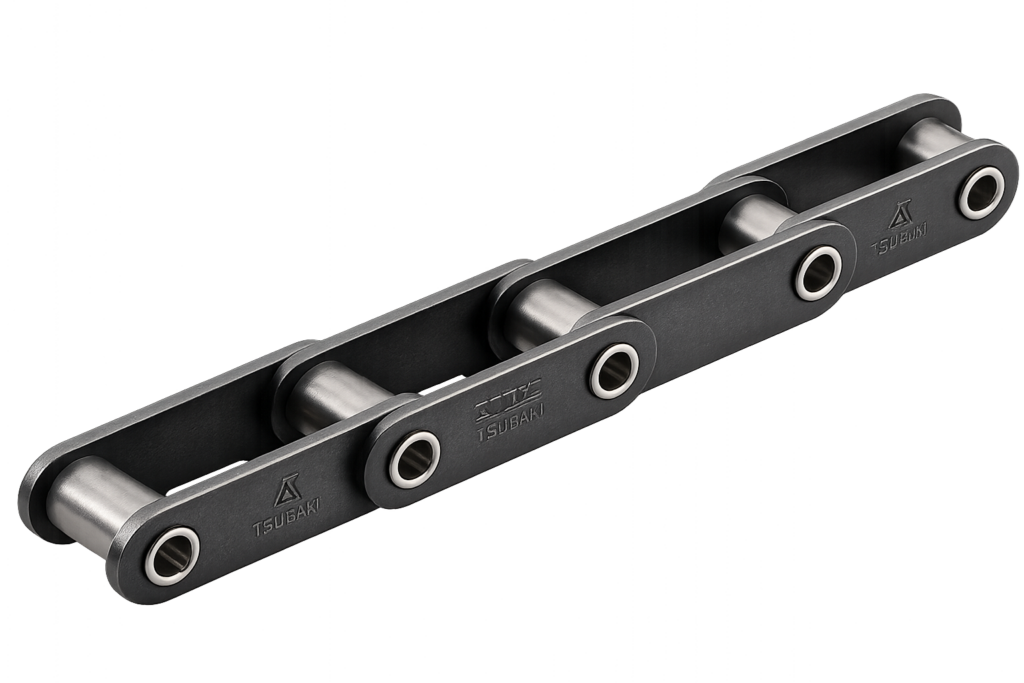

[Tsubaki] — RF2040-LMC-HP Lambda Hollow Pin Double Pitch Chain
Family ID: TSB-RF2040-LMC-HP
Tsubaki Lambda Hollow Pin Double Pitch Chain (LMC-HP) — double pitch chain with hollow pins for versatile attachment mounting through the pin bore. Special sintered bushings for oil-free, maintenance-free operation. Wear life 2x longer than standard double pitch chain. Hollow pin allows cross-rod, finger, or custom attachment mounting. Oil-free / long-life / clean operation.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| RF2040S-HP-U | Standard (Unit Link) — S-Roller (Small) | Tsubaki | Series: RF2040-LMC-HP | Pitch: 25.40 mm | Roller Diameter: 7.92 mm | Inner Width: 7.85 mm | Pin Type: Hollow Pin (attachment through-bore mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Standard: ISO 1275 / JIS B1803 | Application: Versatile attachment conveying, cross-rod mounting, oil-free clean environments | Roller Type: S-Roller (Small) | ||
| RF2040R-HP-U | Standard (Unit Link) — R-Roller (Standard) | Tsubaki | Series: RF2040-LMC-HP | Pitch: 25.40 mm | Roller Diameter: 7.92 mm | Inner Width: 7.85 mm | Pin Type: Hollow Pin (attachment through-bore mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Standard: ISO 1275 / JIS B1803 | Application: Versatile attachment conveying, cross-rod mounting, oil-free clean environments | Roller Type: R-Roller (Standard) |
