Roller Chains
TSUBAKI

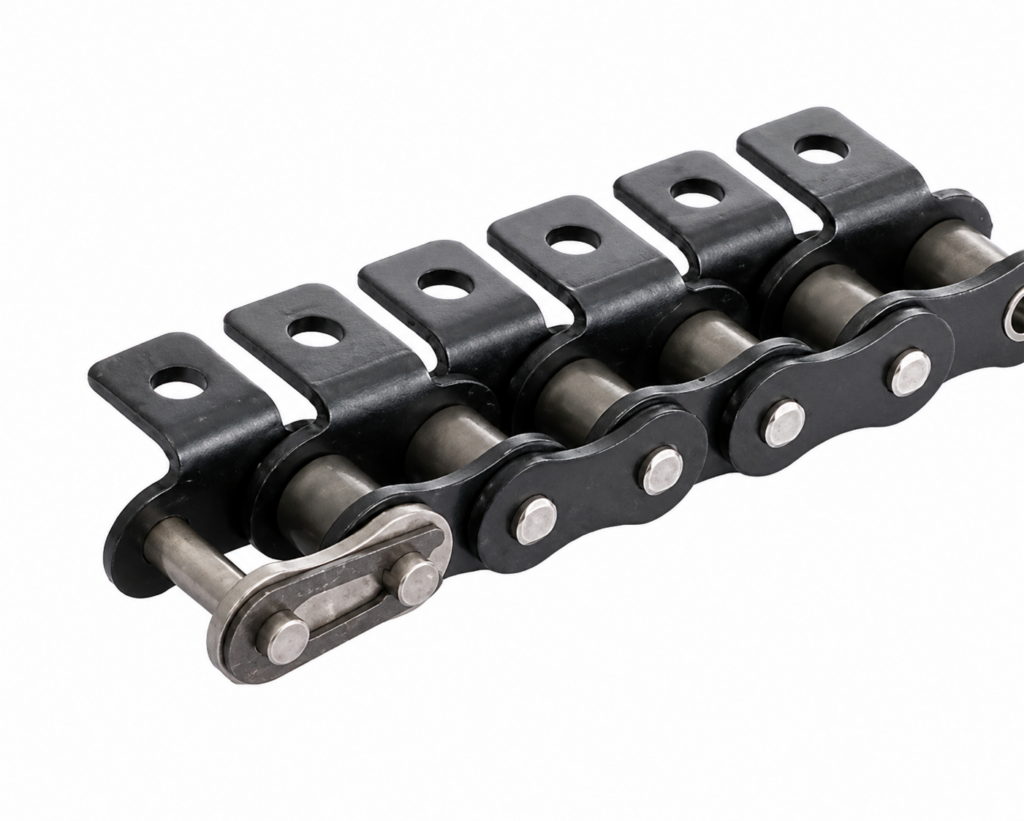

[Tsubaki] — RS60-LMC Lambda Attachment RS Conveyor Chain
Family ID: TSB-RS60-LMC
Tsubaki Lambda Attachment RS Chain (LMC) — RS-type attachment conveyor chain with special sintered bushings for oil-free, maintenance-free operation. Wear life 2x longer than standard RS attachment chain. RS roller chain (drive type) flat plates with Lambda attachment mounting. Suitable for clean, oil-free conveying environments requiring long service life.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| RS60-LMC-U | Standard (Unit Link) | Tsubaki | Series: RS60-LMC | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain with flat attachment plates | Standard: JIS B 1801 | Application: Oil-free long-life attachment conveying, clean rooms, food processing | Link Type: Standard (Unit Link) | ||
| RS60-LMC-JL | Connecting Link (Joint Link) | Tsubaki | Series: RS60-LMC | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain with flat attachment plates | Standard: JIS B 1801 | Application: Oil-free long-life attachment conveying, clean rooms, food processing | Link Type: Connecting Link (Joint Link) | ||
| RS60-LMC-OL | Offset Link | Tsubaki | Series: RS60-LMC | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain with flat attachment plates | Standard: JIS B 1801 | Application: Oil-free long-life attachment conveying, clean rooms, food processing | Link Type: Offset Link |
