Roller Chains
TSUBAKI

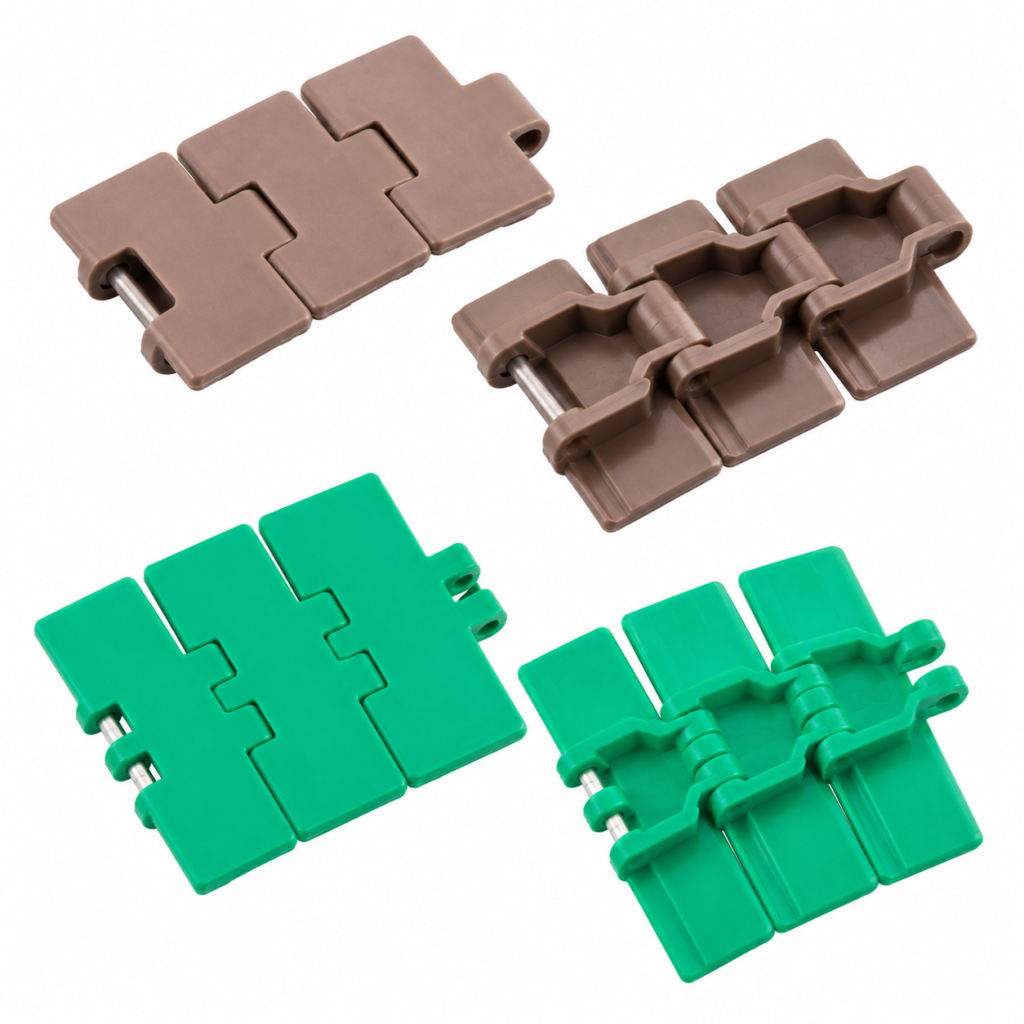

[Tsubaki] — TTUP1143 Plastic Top Chain TTUP Sideflex Series (114.3 mm Wide, Stainless Steel Pin)
Family ID: TSB-TTUP1143
Tsubaki Plastic Top Chain TTUP Series — standard type for curved conveying. Minimum sideflex radius: 600 mm. TTP series curved conveying version; multiple plastic material options available. TTUP: stainless steel pin type. TTUP-P: plastic pin type. Grades: Standard / Low Friction Wear (LFG/LFB) / Ultra Low Friction (ULF) / Wear Resistant (WR) / Impact Resistant (DIA/DIY) / High-Speed Inner Row (KV).
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| TTUP1143 | Standard | Tsubaki | Series: TTUP | Plate Width: 114.3 mm | Pin Type: Stainless Steel Pin | Type: Sideflex (Curved Conveying) | Min. Sideflex Radius: 600 mm | Material: Engineering Plastic (top plate) | Application: Curved conveyor lines, accumulation curves, food/beverage/packaging | Grade: Standard | ||
| TTUP1143-LFG | Low Friction Wear (LFG) | Tsubaki | Series: TTUP | Plate Width: 114.3 mm | Pin Type: Stainless Steel Pin | Type: Sideflex (Curved Conveying) | Min. Sideflex Radius: 600 mm | Material: Engineering Plastic (top plate) | Application: Curved conveyor lines, accumulation curves, food/beverage/packaging | Grade: Low Friction Wear (LFG) | ||
| TTUP1143-LFB | Low Friction Wear (LFB) | Tsubaki | Series: TTUP | Plate Width: 114.3 mm | Pin Type: Stainless Steel Pin | Type: Sideflex (Curved Conveying) | Min. Sideflex Radius: 600 mm | Material: Engineering Plastic (top plate) | Application: Curved conveyor lines, accumulation curves, food/beverage/packaging | Grade: Low Friction Wear (LFB) | ||
| TTUP1143-ULF | Ultra Low Friction (ULF) | Tsubaki | Series: TTUP | Plate Width: 114.3 mm | Pin Type: Stainless Steel Pin | Type: Sideflex (Curved Conveying) | Min. Sideflex Radius: 600 mm | Material: Engineering Plastic (top plate) | Application: Curved conveyor lines, accumulation curves, food/beverage/packaging | Grade: Ultra Low Friction (ULF) | ||
| TTUP1143-WR | Wear Resistant (WR) | Tsubaki | Series: TTUP | Plate Width: 114.3 mm | Pin Type: Stainless Steel Pin | Type: Sideflex (Curved Conveying) | Min. Sideflex Radius: 600 mm | Material: Engineering Plastic (top plate) | Application: Curved conveyor lines, accumulation curves, food/beverage/packaging | Grade: Wear Resistant (WR) |
