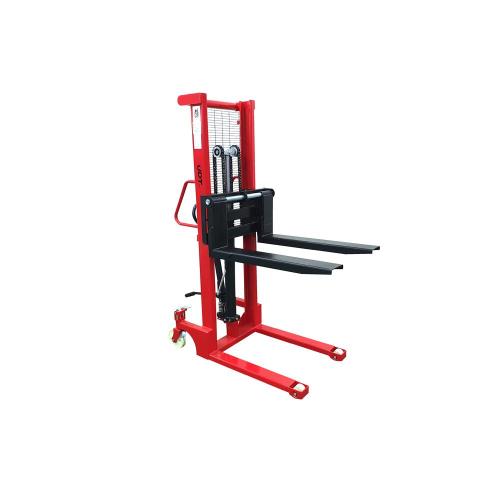

[UDT] — FSM-500 Lift Manual Lift (Hydraulic Type)
Family ID: 500-2474
The UDT FSM-500 is a manual hydraulic lift designed to raise and position heavy loads with controlled, smooth vertical movement, sourced direct from Korea. Workshops, warehouses, and maintenance facilities commonly rely on hydraulic manual lifts like this to elevate machinery, equipment, or heavy components safely during installation, servicing, or repositioning tasks. Request a quote today to access export-ready stock, competitive wholesale pricing, and reliable supply through a KITA-registered Korean exporter.
9 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 500-2474 | FSM-500 | UDT | FSM-500(=SFH-500) | Capacity: 0.5 | Weight: 155.0 | Fork Length: 900 | Fork Adjustment Range: 330~740 | Min Fork Height: 85 | Max Fork Height: 1/500 | Overall Width: 1/510 | Overall Length: 770 | Overall Height: 1/980 | ||
| 500-2483 | FSM-1000 | UDT | FSM-1000(=SFH-1016) | Capacity: 1.0 | Weight: 240.0 | Fork Length: 900 | Fork Adjustment Range: 330~740 | Min Fork Height: 85 | Max Fork Height: 1/600 | Overall Width: 1/510 | Overall Length: 770 | Overall Height: 1/980 | ||
| 500-2492 | FSM-1500 | UDT | FSM-1500(=SFH-1516) | Capacity: 1.5 | Weight: 260.0 | Fork Length: 900 | Fork Adjustment Range: 330~740 | Min Fork Height: 85 | Max Fork Height: 1/600 | Overall Width: 1/510 | Overall Length: 770 | Overall Height: 1/980 | ||
| 500-2508 | FSM-1000E | UDT | FSM-1000E(=MS-E1016) | Capacity: 1.0 | Weight: 185.0 | Fork Length: 900 | Fork Adjustment Range: 330~650 | Min Fork Height: 85 | Max Fork Height: 1/600 | Overall Width: 1/420 | Overall Length: 723 | Overall Height: 2/020 | ||
| 500-2517 | FS-1000Q | UDT | FS-1000Q(=FC-1016) | Capacity: 1.0 | Weight: 220.0 | Fork Length: 1/150 | Fork Adjustment Range: 520mm Fixed | Min Fork Height: 90 | Max Fork Height: 1/595 | Overall Width: 1/670 | Overall Length: 765 | Overall Height: 1/965 | ||
| 501-0747 | FSM-1025 | UDT | FSM-1025(=SFH-1025) | Capacity: 1.0 | Weight: 300.0 | Fork Length: 900 | Fork Adjustment Range: 330~740 | Min Fork Height: 85 | Max Fork Height: 2/500 | Overall Width: 1/510 | Overall Length: 770 | Overall Height: 1/830 | ||
| 519-9637 | FSM-1020E | UDT | FSM-1020E | Capacity: 1.0 | Weight: 230.0 | Fork Length: 900 | Fork Adjustment Range: 320~750 | Min Fork Height: 90 | Max Fork Height: 2/000 | Overall Width: 1/410 | Overall Length: 780 | Overall Height: 1/540 | ||
| 519-9646 | FSM-1025E | UDT | FSM-1025E | Capacity: 1.0 | Weight: 240.0 | Fork Length: 900 | Fork Adjustment Range: 320~750 | Min Fork Height: 90 | Max Fork Height: 2/500 | Overall Width: 1/410 | Overall Length: 780 | Overall Height: 1/790 | ||
| 519-9655 | FSM-1525E | UDT | FSM-1525E | Capacity: 1.5 | Weight: 270.0 | Fork Length: 900 | Fork Adjustment Range: 340~750 | Min Fork Height: 90 | Max Fork Height: 2/500 | Overall Width: 1/410 | Overall Length: 780 | Overall Height: 1/790 |
