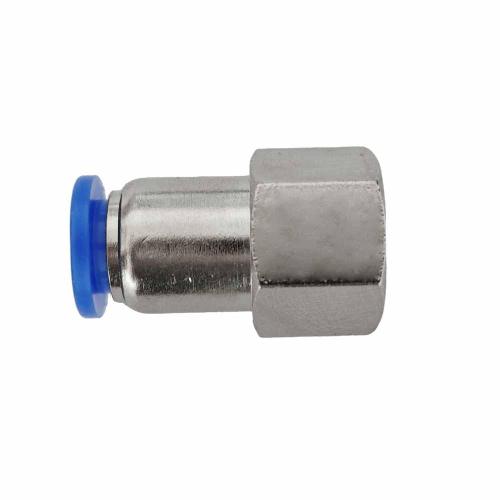

[UDT] — PCF4-01 Pneumatic Air One-Touch Fitting
Family ID: 121-5007
The UDT PCF4-01 Pneumatic Air One-Touch Fitting is a quick-connect pneumatic fitting designed for fast, tool-free hose connections in compressed air systems, sourced direct from Korea. One-touch fittings like this are widely used in factory automation, pneumatic control panels, and assembly line equipment where technicians need to connect or disconnect air lines quickly without interrupting workflow. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 121-5007 | PCF4-01 | UDT | PCF4-01(1/8) | Hose Outer Diameter: 4 | Thread Spec: 1/8 | ||
| 121-5016 | PCF4-02 | UDT | PCF4-02(1/4) | Hose Outer Diameter: 4 | Thread Spec: 1/4 | ||
| 121-5025 | PCF6-01 | UDT | PCF6-01(1/8) | Hose Outer Diameter: 6 | Thread Spec: 1/8 | ||
| 121-5034 | PCF6-02 | UDT | PCF6-02(1/4) | Hose Outer Diameter: 6 | Thread Spec: 1/4 | ||
| 121-5043 | PCF6-03 | UDT | PCF6-03(3/8) | Hose Outer Diameter: 6 | Thread Spec: 3/8 | ||
| 121-5052 | PCF8-01 | UDT | PCF8-01(1/8) | Hose Outer Diameter: 8 | Thread Spec: 1/8 | ||
| 121-5061 | PCF8-02 | UDT | PCF8-02(1/4) | Hose Outer Diameter: 8 | Thread Spec: 1/4 | ||
| 121-5070 | PCF8-03 | UDT | PCF8-03(3/8) | Hose Outer Diameter: 8 | Thread Spec: 3/8 | ||
| 121-5089 | PCF8-04 | UDT | PCF8-04(1/2) | Hose Outer Diameter: 8 | Thread Spec: 1/2 | ||
| 121-5098 | PCF10-01 | UDT | PCF10-01(1/8) | Hose Outer Diameter: 10 | Thread Spec: 1/8 | ||
| 121-5104 | PCF10-02 | UDT | PCF10-02(1/4) | Hose Outer Diameter: 10 | Thread Spec: 1/4 | ||
| 121-5113 | PCF10-03 | UDT | PCF10-03(3/8) | Hose Outer Diameter: 10 | Thread Spec: 3/8 | ||
| 121-5122 | PCF10-04 | UDT | PCF10-04(1/2) | Hose Outer Diameter: 10 | Thread Spec: 1/2 | ||
| 121-5131 | PCF12-02 | UDT | PCF12-02(1/4) | Hose Outer Diameter: 12 | Thread Spec: 1/4 | ||
| 121-5140 | PCF12-03 | UDT | PCF12-03(3/8) | Hose Outer Diameter: 12 | Thread Spec: 3/8 | ||
| 121-5159 | PCF12-04 | UDT | PCF12-04(1/2) | Hose Outer Diameter: 12 | Thread Spec: 1/2 |
