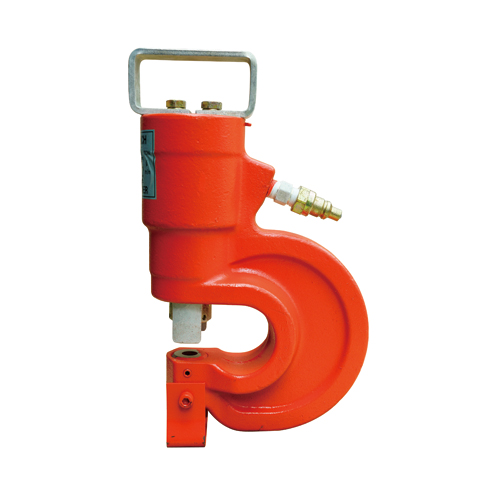

[UDT] — U075-1020.5 Hydraulic Hydraulic Punching Machine
Family ID: 501-9094
The UDT U075-1020.5 Hydraulic Punching Machine is a hydraulically powered hole-punching tool designed for clean, precise punching operations in metal sheet and structural materials, sourced direct from Korea. Hydraulic punching machines of this type are commonly used by fabricators, electricians, and construction crews to punch clean holes in steel panels, enclosures, and sheet metal without the distortion caused by drilling. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 501-9094 | U075-1020.5 | UDT | U075-1020.5 (Single Acting) | Height: 356 | Weight: 13 | Components: Punch Blade 10.5/13.5/17.5/20.5mm | Port Size: 20.5 | Shape: Single-Acting | Output: 23 | Compatible Pump: UMP-1A | Center Depth: 60 | ||
| 501-9100 | U075-1224 | UDT | U075-1224 (Double Acting) | Height: 300 | Weight: 14 | Components: Punch Blade 18/20/22/24mm | Port Size: 24 | Shape: Double-Acting | Output: 30 | Compatible Pump: UMP-1A | Center Depth: 60 | ||
| 501-9119 | U075-1624 | UDT | U075-1624 (Double Acting) | Height: 322 | Weight: 20 | Components: Punch Blade 18/20/22/24mm | Port Size: 24 | Shape: Double-Acting | Output: 44 | Compatible Pump: UMP-2A/ 3A | Center Depth: 65 | ||
| 501-9128 | U11-2024 | UDT | U11-2024 (Double Acting) | Height: 378 | Weight: 35 | Components: Punch Blade 18/20/22/24mm | Port Size: 24 | Shape: Double-Acting | Output: 60 | Compatible Pump: UMP-2A/ 3A | Center Depth: 110 | ||
| 591-8713 | U11-2031 | UDT | Custom Order/U11-2031 (Double Acting) | Height: 420 | Weight: 75 | Components: Punch Blade 22/24/26/31mm | Port Size: 31 | Shape: Double-Acting | Output: 75 | Compatible Pump: UMP-2A/ 3A | Center Depth: 150 |
