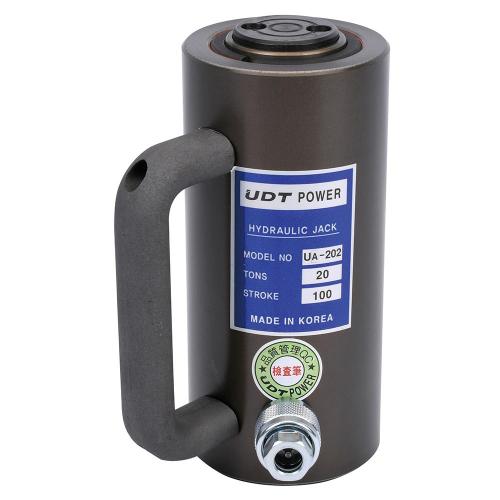

[UDT] — UA-202 Hydraulic Aluminum Ram
Family ID: 593-1927
The UDT UA-202 Hydraulic Aluminum Ram is a lightweight, high-force hydraulic tool designed for pushing, pressing, and positioning applications, sourced direct from Korea. Constructed with an aluminum body to reduce overall weight without sacrificing structural integrity, it is commonly used in maintenance, construction, and industrial assembly operations where portability and powerful linear force are both required. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 593-1927 | UA-202 | UDT | 20T * 100MM(UA-202) | Outer Diameter: 98 | Weight: 4 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 210 | Tonnage: 20 | ||
| 593-1936 | UA-302 | UDT | 30T * 100MM(UA-302) | Outer Diameter: 109 | Weight: 5.5 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 215 | Tonnage: 30 | ||
| 593-1945 | UA-502 | UDT | 50T * 100MM(UA-502) | Outer Diameter: 139 | Weight: 9 | Stroke: 100 | Compatible Pump: UP-2A | Self Height: 225 | Tonnage: 50 | ||
| 593-1954 | UA-1003 | UDT | 100T * 50MM(UA-1003) | Outer Diameter: 189 | Weight: 16 | Stroke: 50 | Compatible Pump: UP-2A | Self Height: 190 | Tonnage: 100 |
