Compressors
UDT

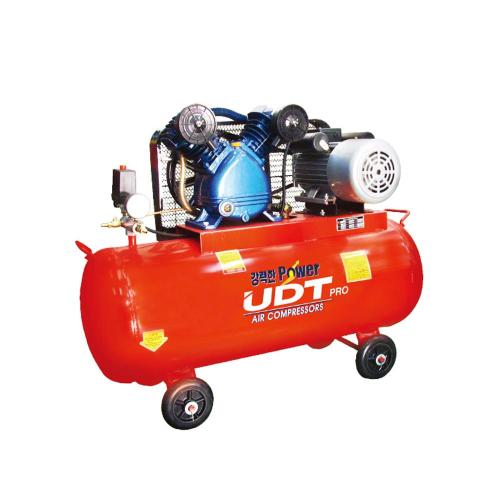

[UDT] — UDT-2060 Compressor Industrial Compressor
Family ID: 501-4424
The UDT UDT-2060 is an industrial compressor designed to deliver compressed air for sustained pneumatic operations, sourced direct from Korea. Compressors of this type are widely used in manufacturing plants, automotive workshops, and assembly lines to power air tools, spray equipment, and automated pneumatic systems. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 501-4424 | UDT-2060 | UDT | UDT-2060 (2HP Single-Phase) | Weight: 66 | L: 900 | Note: V-Type 2-Cylinder | Horsepower: 2kW (Single-Phase/220V) | Tank Capacity: 62 | Air Output: 170 | RPM: 1/750 | Belt Spec: A49 | H: 700 | W: 400 | ||
| 501-4433 | UDT-30100 | UDT | UDT-30100 (3HP Single Phase) | Weight: 84 | L: 1/060 | Note: V-Type 2-Cylinder | Horsepower: 3kW (Single-Phase/220V) | Tank Capacity: 96 | Air Output: 250 | RPM: 1/750 | Belt Spec: A49 | H: 780 | W: 430 | ||
| 501-4442 | UDT-E30100 | UDT | UDT-E30100 (3HP Three-Phase) | Weight: 84 | L: 1/060 | Note: V-Type 2-Cylinder | Horsepower: 3kW (3-Phase/380V) | Tank Capacity: 96 | Air Output: 250 | RPM: 1/750 | Belt Spec: A49 | H: 780 | W: 430 | ||
| 501-4451 | UDT-E55120 | UDT | UDT-E55120 (5.5HP Three-Phase) | Weight: 99 | L: 1/320 | Note: V-Type 2-Cylinder | Horsepower: 5.5kW (3-Phase/380V) | Tank Capacity: 120 | Air Output: 480 | RPM: 1/750 | Belt Spec: B70 | H: 800 | W: 460 | ||
| 501-4460 | UDT-E75120 | UDT | UDT-E75120 (7.5HP Three-Phase) | Weight: 176 | L: 1/330 | Note: V-Type 3-Cylinder | Horsepower: 7.5kW (3-Phase/380V) | Tank Capacity: 120 | Air Output: 670 | RPM: 1/750 | Belt Spec: B74 | H: 810 | W: 460 | ||
| 501-4479 | UDT-E10170 | UDT | UDT-E10170 (10HP Three-Phase) | Weight: 203 | L: 1/440 | Note: V-Type 3-Cylinder | Horsepower: 10kW (3-Phase/380V) | Tank Capacity: 172 | Air Output: 900 | RPM: 1/750 | Belt Spec: B74 | H: 940 | W: 500 | ||
| 590-7434 | UDT-E15270 | UDT | UDT-E15270 (15HP Three-Phase) | Weight: 324 | L: 1/800 | Note: V-Type 3-Cylinder | Horsepower: 15kW (3-Phase/380V) | Tank Capacity: 270 | Air Output: 1/400 | RPM: 1/450 | Belt Spec: B68 | H: 1/200 | W: 660 | ||
| 590-7443 | UDT-E20300 | UDT | UDT-E20300 (20HP Three-Phase) | Weight: 438 | L: 1/800 | Note: V-Type 3-Cylinder | Horsepower: 20kW (3-Phase/380V) | Tank Capacity: 295 | Air Output: 1/900 | RPM: 1/450 | Belt Spec: B80 | H: 1/200 | W: 700 |
