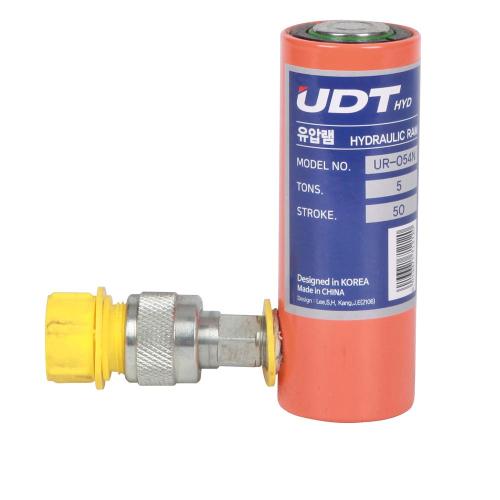

[UDT] — UR-054N Hydraulic Hydraulic Ram
Family ID: 516-3173
The UDT UR-054N Hydraulic Ram is a heavy-duty hydraulic pushing and pressing tool sourced direct from Korea. Hydraulic rams are commonly used in construction, civil engineering, and industrial maintenance applications to apply controlled linear force for tasks such as structural alignment, form stripping, and load bearing. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
18 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 516-3173 | UR-054N | UDT | ★5T * 50MM(UR-054N) | Outer Diameter: 45 | Weight: 1.3 | Stroke: 50 | Compatible Pump: UP-1BN | Self Height: 125 | Tonnage: 5 | ||
| 516-3182 | UR-055N | UDT | ★5T * 100MM(UR-055N) | Outer Diameter: 45 | Weight: 1.8 | Stroke: 100 | Compatible Pump: UP-1BN | Self Height: 184 | Tonnage: 5 | ||
| 516-3191 | UR-056N | UDT | ★5T * 150MM(UR-056N) | Outer Diameter: 45 | Weight: 2.3 | Stroke: 150 | Compatible Pump: UP-1BN | Self Height: 234 | Tonnage: 5 | ||
| 593-6931 | UR-103C | UDT | '★10T * 50MM(UR-103N=103C) | Outer Diameter: 62 | Weight: 3.1 | Stroke: 50 | Compatible Pump: UP-1BN | Self Height: 150 | Set Price: 0 | Tonnage: 10 | ||
| 593-6940 | UR-102C | UDT | '★10T * 100MM(UR-102N=102C) | Outer Diameter: 62 | Weight: 4.4 | Stroke: 100 | Compatible Pump: UP-1BN | Self Height: 200 | Set Price: 0 | Tonnage: 10 | ||
| 593-6959 | UR-101C | UDT | '★10T * 150MM(UR-101N=101C) | Outer Diameter: 62 | Weight: 5.3 | Stroke: 150 | Compatible Pump: UP-1BN | Self Height: 250 | Set Price: 0 | Tonnage: 10 | ||
| 593-6968 | UR-203C | UDT | '★20T * 50MM(UR-203N=203C) | Outer Diameter: 88 | Weight: 6.6 | Stroke: 50 | Compatible Pump: UP-1BN | Self Height: 157 | Set Price: 0 | Tonnage: 20 | ||
| 593-6977 | UR-202C | UDT | '★20T * 100MM(UR-202N=202C) | Outer Diameter: 88 | Weight: 8.7 | Stroke: 100 | Compatible Pump: UP-1BN | Self Height: 207 | Set Price: 0 | Tonnage: 20 | ||
| 593-6986 | UR-201C | UDT | '★20T * 150MM(UR-201N=201C) | Outer Diameter: 88 | Weight: 10.4 | Stroke: 150 | Compatible Pump: UP-1BN | Self Height: 257 | Set Price: 0 | Tonnage: 20 | ||
| 593-6995 | UR-303C | UDT | '★30T * 50MM(UR-303N=303C) | Outer Diameter: 103 | Weight: 9.9 | Stroke: 50 | Compatible Pump: UP-1BN | Self Height: 167 | Set Price: 0 | Tonnage: 30 | ||
| 593-7000 | UR-302C | UDT | '★30T * 100MM(UR-302N=302C) | Outer Diameter: 103 | Weight: 13.6 | Stroke: 100 | Compatible Pump: UP-1BN | Self Height: 217 | Set Price: 0 | Tonnage: 30 | ||
| 593-7019 | UR-301C | UDT | '★30T * 150MM(UR-301N=301C) | Outer Diameter: 103 | Weight: 14.5 | Stroke: 150 | Compatible Pump: UP-2AN | Self Height: 267 | Set Price: 0 | Tonnage: 30 | ||
| 593-7028 | UR-503C | UDT | '★50T * 50MM(UR-503N=503C) | Outer Diameter: 128 | Weight: 16.3 | Stroke: 50 | Compatible Pump: UP-2AN | Self Height: 177 | Set Price: 0 | Tonnage: 50 | ||
| 593-7037 | UR-502C | UDT | '★50T * 100MM(UR-502N=502C) | Outer Diameter: 128 | Weight: 19.9 | Stroke: 100 | Compatible Pump: UP-2AN | Self Height: 227 | Set Price: 0 | Tonnage: 50 | ||
| 593-7046 | UR-501C | UDT | '★50T * 150MM(UR-501N=501C) | Outer Diameter: 128 | Weight: 24.2 | Stroke: 150 | Compatible Pump: UP-2AN | Self Height: 277 | Set Price: 0 | Tonnage: 50 | ||
| 593-7055 | UR-1003C | UDT | '★100T * 50MM(UR-1003N=1003C) | Outer Diameter: 178 | Weight: 28.3 | Stroke: 50 | Compatible Pump: UP-2AN | Self Height: 160 | Set Price: 0 | Tonnage: 100 | ||
| 593-7064 | UR-1002C | UDT | '★100T * 100MM(UR-1002N=1002C) | Outer Diameter: 178 | Weight: 34 | Stroke: 100 | Compatible Pump: UP-3AN | Self Height: 252 | Set Price: 0 | Tonnage: 100 | ||
| 593-7073 | UR-1001C | UDT | '★100T * 150MM(UR-1001N=1001C) | Outer Diameter: 178 | Weight: 38 | Stroke: 150 | Compatible Pump: UP-3AN | Self Height: 302 | Set Price: 0 | Tonnage: 100 |
