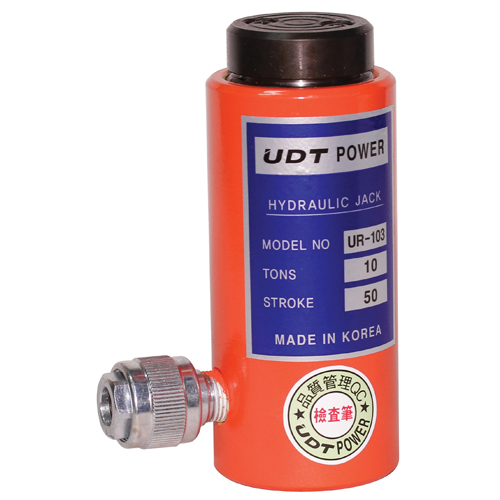

[UDT] — UR-103 Hydraulic Hydraulic Ram
Family ID: 501-8749
The UDT UR-103 Hydraulic Ram is a powerful hydraulic pushing and pressing tool sourced direct from Korea. Hydraulic rams of this type are commonly used in construction, maintenance, and fabrication work to apply controlled linear force for tasks such as straightening, aligning, or pressing structural components into position. Request a quote today to access export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
24 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 501-8749 | UR-103 | UDT | 10T * 50MM(UR-103) | Outer Diameter: 62 | Weight: 2.7 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 140 | Set Price: 234/000 | Tonnage: 10 | ||
| 501-8758 | UR-102 | UDT | 10T * 100MM(UR-102) | Outer Diameter: 62 | Weight: 3.7 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 190 | Set Price: 248/000 | Tonnage: 10 | ||
| 501-8767 | UR-101 | UDT | 10T * 150MM(UR-101) | Outer Diameter: 62 | Weight: 4.4 | Stroke: 150 | Compatible Pump: UP-1B | Self Height: 240 | Set Price: 267/000 | Tonnage: 10 | ||
| 501-8776 | UR-203 | UDT | 20T * 50MM(UR-203) | Outer Diameter: 88 | Weight: 5 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 142 | Set Price: 286/000 | Tonnage: 20 | ||
| 501-8785 | UR-202 | UDT | 20T * 100MM(UR-202) | Outer Diameter: 88 | Weight: 6.7 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 192 | Set Price: 317/000 | Tonnage: 20 | ||
| 501-8794 | UR-201 | UDT | 20T * 150MM(UR-201) | Outer Diameter: 88 | Weight: 9.1 | Stroke: 150 | Compatible Pump: UP-1B | Self Height: 242 | Set Price: 347/000 | Tonnage: 20 | ||
| 501-8800 | UR-303 | UDT | 30T * 50MM(UR-303) | Outer Diameter: 103 | Weight: 6.6 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 147 | Set Price: 314/000 | Tonnage: 30 | ||
| 501-8819 | UR-302 | UDT | 30T * 100MM(UR-302) | Outer Diameter: 103 | Weight: 11.6 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 197 | Set Price: 340/000 | Tonnage: 30 | ||
| 501-8828 | UR-301 | UDT | 30T * 150MM(UR-301) | Outer Diameter: 103 | Weight: 12.6 | Stroke: 150 | Compatible Pump: UP-2A | Self Height: 247 | Set Price: 395/000 | Tonnage: 30 | ||
| 501-8837 | UR-503 | UDT | 50T * 50MM(UR-503) | Outer Diameter: 128 | Weight: 11.4 | Stroke: 50 | Compatible Pump: UP-2A | Self Height: 151 | Set Price: 366/000 | Tonnage: 50 | ||
| 501-8846 | UR-502 | UDT | 50T * 100MM(UR-502) | Outer Diameter: 128 | Weight: 16.4 | Stroke: 100 | Compatible Pump: UP-2A | Self Height: 202 | Set Price: 388/000 | Tonnage: 50 | ||
| 501-8855 | UR-501 | UDT | 50T * 150MM(UR-501) | Outer Diameter: 128 | Weight: 19.4 | Stroke: 150 | Compatible Pump: UP-2A | Self Height: 252 | Set Price: 435/000 | Tonnage: 50 | ||
| 501-8864 | UR-1003 | UDT | 100T * 50MM(UR-1003) | Outer Diameter: 178 | Weight: 24 | Stroke: 50 | Compatible Pump: UP-2A | Self Height: 160 | Set Price: 544/000 | Tonnage: 100 | ||
| 501-8873 | UR-1002 | UDT | 100T * 100MM(UR-1002) | Outer Diameter: 178 | Weight: 35.7 | Stroke: 100 | Compatible Pump: UP-3A | Self Height: 225 | Set Price: 820/000 | Tonnage: 100 | ||
| 501-8882 | UR-1001 | UDT | 100T * 150MM(UR-1001) | Outer Diameter: 178 | Weight: 41.7 | Stroke: 150 | Compatible Pump: UP-3A | Self Height: 275 | Set Price: 869/000 | Tonnage: 100 | ||
| 501-9012 | UP-1B | UDT | UP-1B | Overall Length: 620 | Weight: 7 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 800 | Compatible Ram: 30T-100mm | ||
| 501-9021 | UP-2A | UDT | UP-2A | Overall Length: 656 | Weight: 9 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 2/000 | Compatible Ram: 100T-50mm | ||
| 501-9030 | UP-3A | UDT | UP-3A | Overall Length: 656 | Weight: 10.5 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 3/000 | Compatible Ram: 100T-150mm | ||
| 516-3243 | UP-3AN | UDT | ★UP-3AN | Overall Length: 675 | Weight: 16.2 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 3/000 | Compatible Ram: 100T-150mm | ||
| 592-9463 | UR-054 | UDT | 5T * 50MM(UR-054) | Outer Diameter: 46 | Weight: 1.1 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 145 | Set Price: 248/700 | Tonnage: 5 | ||
| 592-9472 | UR-055 | UDT | 5T * 100MM(UR-055) | Outer Diameter: 46 | Weight: 1.6 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 195 | Set Price: 262/000 | Tonnage: 5 | ||
| 592-9481 | UR-056 | UDT | 5T * 150MM(UR-056) | Outer Diameter: 46 | Weight: 2.1 | Stroke: 150 | Compatible Pump: UP-1B | Self Height: 245 | Set Price: 314/000 | Tonnage: 5 | ||
| 593-7143 | UP-1BC | UDT | ★UP-1BN | Overall Length: 600 | Weight: 10.6 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 700 | Compatible Ram: 30T-100mm | ||
| 593-7152 | UP-2AC | UDT | ★UP-2AN | Overall Length: 715 | Weight: 16 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 2/700 | Compatible Ram: 100T-50mm |
