Hex & Torx
VESSEL

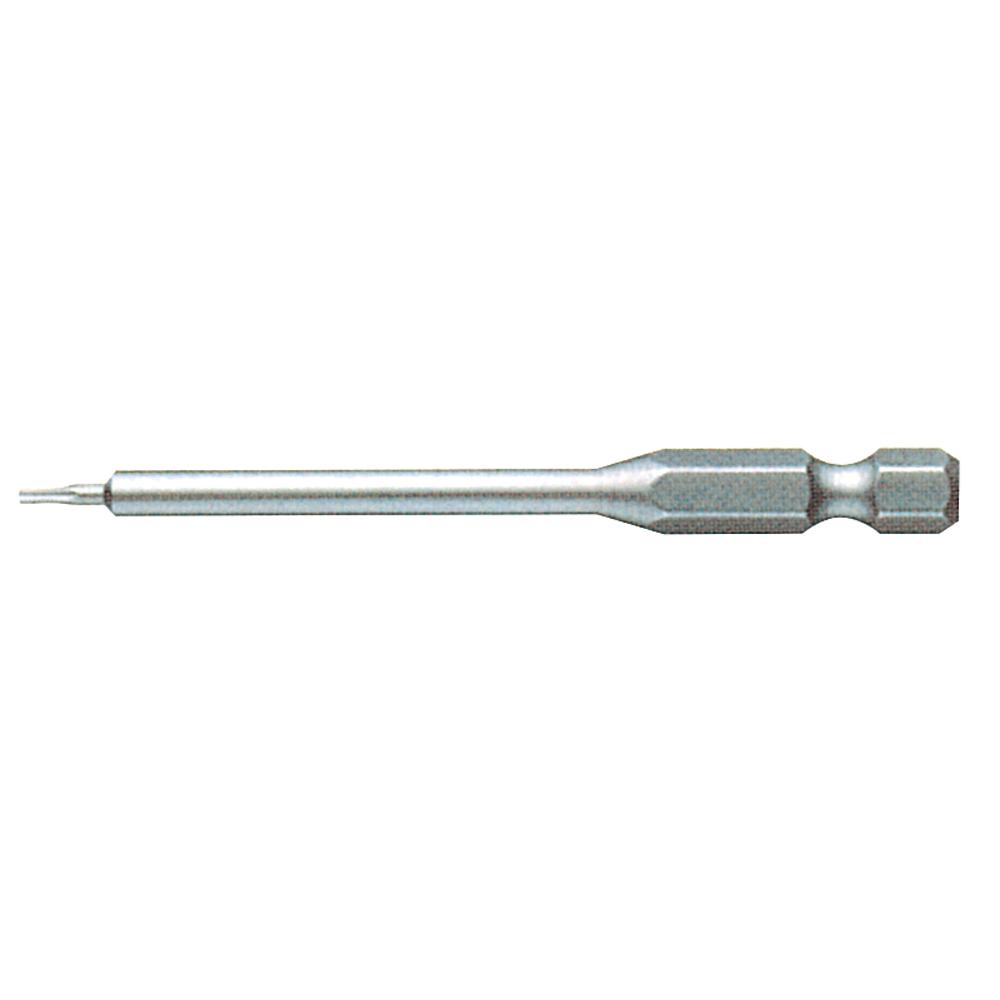

[VESSEL] — Torx Bit (Hole Type)
Family ID: VESSEL-JT-SERIES
Torx hole type bits with 6.35mm hex shank for power tools available in various sizes from T6H to T40H
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 263-3918 | Torx hole type bit T6H with 75mm length | VESSEL | Model: JT6H x 75, Size: T6H, d1: 1.95mm, L1: 6.5mm, d2: 4.0mm, L: 75mm | ||
| 263-3936 | Torx hole type bit T8H with 75mm length | VESSEL | Model: JT8H x 75, Size: T8H, d1: 2.60mm, L1: 7.0mm, d2: 4.0mm, L: 75mm | ||
| 263-3954 | Torx hole type bit T10H with 75mm length | VESSEL | Model: JT10H x 75, Size: T10H, d1: 3.02mm, L1: 7.0mm, d2: 4.5mm, L: 75mm | ||
| 263-3963 | Torx hole type bit T10H with 100mm length | VESSEL | Model: JT10H x 100, Size: T10H, d1: 3.02mm, L1: 7.0mm, d2: 4.5mm, L: 100mm | ||
| 263-3972 | Torx hole type bit T15H with 75mm length | VESSEL | Model: JT15H x 75, Size: T15H, d1: 3.56mm, L1: 7.5mm, d2: 4.5mm, L: 75mm | ||
| 263-3981 | Torx hole type bit T15H with 100mm length | VESSEL | Model: JT15H x 100, Size: T15H, d1: 3.56mm, L1: 7.5mm, d2: 4.5mm, L: 100mm | ||
| 263-3990 | Torx hole type bit T20H with 75mm length | VESSEL | Model: JT20H x 75, Size: T20H, d1: 4.14mm, L1: 7.5mm, d2: 5.0mm, L: 75mm | ||
| 263-4005 | Torx hole type bit T20H with 100mm length | VESSEL | Model: JT20H x 100, Size: T20H, d1: 4.14mm, L1: 7.5mm, d2: 5.0mm, L: 100mm | ||
| 263-4014 | Torx hole type bit T25H with 75mm length | VESSEL | Model: JT25H x 75, Size: T25H, d1: 4.70mm, L1: 8.0mm, d2: 5.0mm, L: 75mm | ||
| 263-4023 | Torx hole type bit T25H with 100mm length | VESSEL | Model: JT25H x 100, Size: T25H, d1: 4.70mm, L1: 8.0mm, d2: 5.0mm, L: 100mm | ||
| 263-4032 | Torx hole type bit T27H with 75mm length | VESSEL | Model: JT27H x 75, Size: T27H, d1: 5.26mm, L1: 8.0mm, d2: 5.5mm, L: 75mm | ||
| 263-4050 | Torx hole type bit T30H with 75mm length | VESSEL | Model: JT30H x 75, Size: T30H, d1: 5.79mm, L1: 8.5mm, d2: 6.0mm, L: 75mm | ||
| 263-4069 | Torx hole type bit T30H with 100mm length | VESSEL | Model: JT30H x 100, Size: T30H, d1: 5.79mm, L1: 8.5mm, d2: 6.0mm, L: 100mm | ||
| 263-4078 | Torx hole type bit T40H with 75mm length | VESSEL | Model: JT40H x 75, Size: T40H, d2: 7.0mm, L: 75mm |
