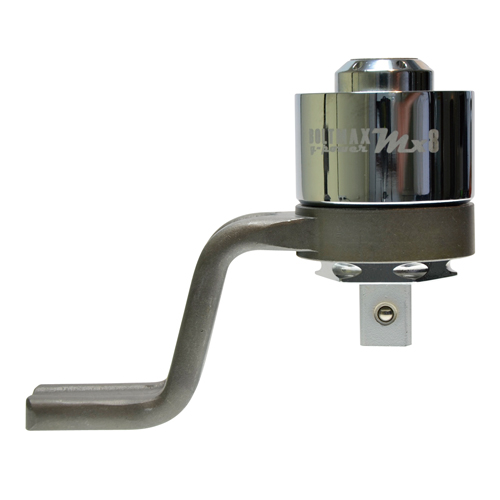

WALTER — Torque Multiplier
Family ID: 208-2336
Torque multiplier. Compact and lightweight for tight spaces. Manual — no power supply needed. Torque transmission accuracy ±5%. No calibration required. Warning: do not exceed rated capacity / fix reaction bar before use / no impact tools. Available ratios: 3.5×–75×. Lead time: order basis.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 208-2336 | Torque multiplier | WALTER | Model: 31010 / Ratio: 3.5× / Input: 12.5(1/2") / Output: 20(3/4") / Max torque: 800 N.m | ||
| 208-2345 | Torque multiplier | WALTER | Model: 31020 / Ratio: 3.6× / Input: 20(3/4") / Output: 25(1") / Max torque: 1800 N.m | ||
| 208-2354 | Torque multiplier | WALTER | Model: 31030 / Ratio: 13× / Input: 12.5(1/2") / Output: 25(1") / Max torque: 2800 N.m | ||
| 208-2363 | Torque multiplier | WALTER | Model: 31040 / Ratio: 13× / Input: 20(3/4") / Output: 25(1") / Max torque: 3800 N.m | ||
| 208-2372 | Torque multiplier | WALTER | Model: 31050 / Ratio: 17× / Input: 20(3/4") / Output: 40(1-1/2") / Max torque: 5000 N.m | ||
| 208-2381 | Torque multiplier | WALTER | Model: 31060 / Ratio: 49× / Input: 20(3/4") / Output: 40(1-1/2") / Max torque: 8000 N.m | ||
| 208-2390 | Torque multiplier | WALTER | Model: 31070 / Ratio: 58× / Input: 20(3/4") / Output: 40(1-1/2") / Max torque: 12000 N.m | ||
| 208-2406 | Torque multiplier | WALTER | Model: 31080 / Ratio: 75× / Input: 20(3/4") / Output: 63(2-1/2") / Max torque: 16000 N.m |
