Drill Bits
YG-1

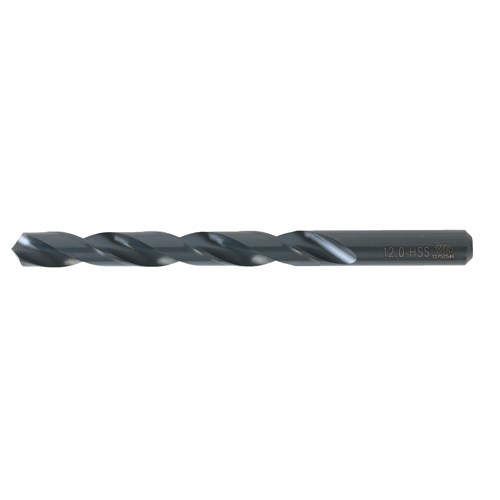

[YG-1] — D1101010K Drill HSS Drill
Family ID: 300-0010
HSS Drill from YG-1, sourced from Korea.
40 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 300-0010 | D1101010K | YG-1 | 1.0MM (D1101010K) | Spec: 1.0 | Flute Length: 18 | Overall Length: 40 | ||
| 300-0029 | D1101011K | YG-1 | 1.1MM (D1101011K) | Spec: 1.1 | Flute Length: 20 | Overall Length: 42 | ||
| 300-0038 | D1101012K | YG-1 | 1.2MM (D1101012K) | Spec: 1.2 | Flute Length: 20 | Overall Length: 42 | ||
| 300-0047 | D1101013K | YG-1 | 1.3MM (D1101013K) | Spec: 1.3 | Flute Length: 22 | Overall Length: 45 | ||
| 300-0056 | D1101014K | YG-1 | 1.4MM (D1101014K) | Spec: 1.4 | Flute Length: 23 | Overall Length: 48 | ||
| 300-0065 | D1101015K | YG-1 | 1.5MM (D1101015K) | Spec: 1.5 | Flute Length: 23 | Overall Length: 48 | ||
| 300-0074 | D1101016K | YG-1 | 1.6MM (D1101016K) | Spec: 1.6 | Flute Length: 25 | Overall Length: 50 | ||
| 300-0083 | D1101017K | YG-1 | 1.7MM (D1101017K) | Spec: 1.7 | Flute Length: 25 | Overall Length: 50 | ||
| 300-0092 | D1101018K | YG-1 | 1.8MM (D1101018K) | Spec: 1.8 | Flute Length: 28 | Overall Length: 52 | ||
| 300-0108 | D1101019K | YG-1 | 1.9MM (D1101019K) | Spec: 1.9 | Flute Length: 28 | Overall Length: 52 | ||
| 300-0117 | D1101020K | YG-1 | 2.0MM (D1101020K) | Spec: 2.0 | Flute Length: 29 | Overall Length: 55 | ||
| 300-0126 | D1101021K | YG-1 | 2.1MM (D1101021K) | Spec: 2.1 | Flute Length: 29 | Overall Length: 55 | ||
| 300-0135 | D1101022K | YG-1 | 2.2MM (D1101022K) | Spec: 2.2 | Flute Length: 33 | Overall Length: 58 | ||
| 300-0144 | D1101023K | YG-1 | 2.3MM (D1101023K) | Spec: 2.3 | Flute Length: 33 | Overall Length: 58 | ||
| 300-0153 | D1101024K | YG-1 | 2.4MM (D1101024K) | Spec: 2.4 | Flute Length: 35 | Overall Length: 61 | ||
| 300-0162 | D1101025K | YG-1 | 2.5MM (D1101025K) | Spec: 2.5 | Flute Length: 35 | Overall Length: 61 | ||
| 300-0171 | D1101026K | YG-1 | 2.6MM (D1101026K) | Spec: 2.6 | Flute Length: 37 | Overall Length: 64 | ||
| 300-0180 | D1101027K | YG-1 | 2.7MM (D1101027K) | Spec: 2.7 | Flute Length: 37 | Overall Length: 64 | ||
| 300-0199 | D1101028K | YG-1 | 2.8MM (D1101028K) | Spec: 2.8 | Flute Length: 39 | Overall Length: 67 | ||
| 300-0205 | D1101029K | YG-1 | 2.9MM (D1101029K) | Spec: 2.9 | Flute Length: 42 | Overall Length: 71 | ||
| 300-0214 | D1101030K | YG-1 | 3.0MM (D1101030K) | Spec: 3.0 | Flute Length: 42 | Overall Length: 71 | ||
| 300-0223 | D1101031K | YG-1 | 3.1MM (D1101031K) | Spec: 3.1 | Flute Length: 42 | Overall Length: 71 | ||
| 300-0232 | D1101032K | YG-1 | 3.2MM (D1101032K) | Spec: 3.2 | Flute Length: 42 | Overall Length: 71 | ||
| 300-0241 | D1101033K | YG-1 | 3.3MM (D1101033K) | Spec: 3.3 | Flute Length: 45 | Overall Length: 73 | ||
| 300-0250 | D1101034K | YG-1 | 3.4MM (D1101034K) | Spec: 3.4 | Flute Length: 45 | Overall Length: 73 | ||
| 300-0269 | D1101035K | YG-1 | 3.5MM (D1101035K) | Spec: 3.5 | Flute Length: 45 | Overall Length: 73 | ||
| 300-0278 | D1101036K | YG-1 | 3.6MM (D1101036K) | Spec: 3.6 | Flute Length: 48 | Overall Length: 76 | ||
| 300-0287 | D1101037K | YG-1 | 3.7MM (D1101037K) | Spec: 3.7 | Flute Length: 48 | Overall Length: 76 | ||
| 300-0296 | D1101038K | YG-1 | 3.8MM (D1101038K) | Spec: 3.8 | Flute Length: 48 | Overall Length: 76 | ||
| 300-0302 | D1101039K | YG-1 | 3.9MM (D1101039K) | Spec: 3.9 | Flute Length: 51 | Overall Length: 79 | ||
| 300-0311 | D1101040K | YG-1 | 4.0MM (D1101040K) | Spec: 4.0 | Flute Length: 54 | Overall Length: 83 | ||
| 300-0320 | D1101041K | YG-1 | 4.1MM (D1101041K) | Spec: 4.1 | Flute Length: 54 | Overall Length: 83 | ||
| 300-0339 | D1101042K | YG-1 | 4.2MM (D1101042K) | Spec: 4.2 | Flute Length: 54 | Overall Length: 83 | ||
| 300-0348 | D1101043K | YG-1 | 4.3MM (D1101043K) | Spec: 4.3 | Flute Length: 54 | Overall Length: 83 | ||
| 300-0357 | D1101044K | YG-1 | 4.4MM (D1101044K) | Spec: 4.4 | Flute Length: 56 | Overall Length: 86 | ||
| 300-0366 | D1101045K | YG-1 | 4.5MM (D1101045K) | Spec: 4.5 | Flute Length: 56 | Overall Length: 86 | ||
| 300-0375 | D1101046K | YG-1 | 4.6MM (D1101046K) | Spec: 4.6 | Flute Length: 56 | Overall Length: 86 | ||
| 300-0384 | D1101047K | YG-1 | 4.7MM (D1101047K) | Spec: 4.7 | Flute Length: 59 | Overall Length: 89 | ||
| 300-0393 | D1101048K | YG-1 | 4.8MM (D1101048K) | Spec: 4.8 | Flute Length: 59 | Overall Length: 89 | ||
| 300-0409 | D1101049K | YG-1 | 4.9MM (D1101049K) | Spec: 4.9 | Flute Length: 62 | Overall Length: 92 |
