Drill Bits
YG-1

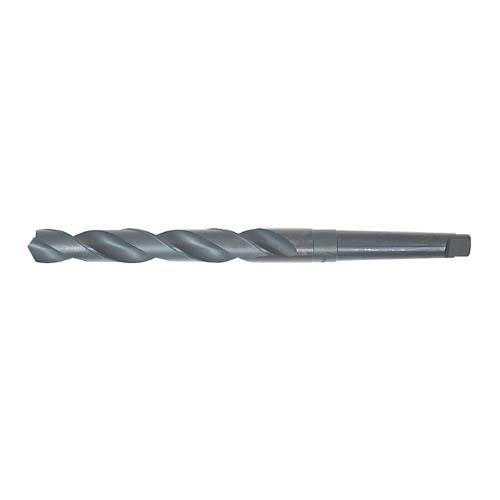

[YG-1] — D1201380 Drill Taper Drill
Family ID: 300-7305
Taper Drill from YG-1, sourced from Korea.
26 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 300-7305 | D1201380 | YG-1 | 38.0MM (D1201380) | Spec: 38.0 | Flute Length: 215 | Overall Length: 360 | Type: MT.4 | ||
| 300-7314 | D1201390 | YG-1 | 39.0MM (D1201390) | Spec: 39.0 | Flute Length: 215 | Overall Length: 360 | Type: MT.4 | ||
| 300-7323 | D1201400 | YG-1 | 40.0MM (D1201400) | Spec: 40.0 | Flute Length: 220 | Overall Length: 365 | Type: MT.4 | ||
| 300-7332 | D1201410 | YG-1 | 41.0MM (D1201410) | Spec: 41.0 | Flute Length: 220 | Overall Length: 365 | Type: MT.4 | ||
| 300-7341 | D1201420 | YG-1 | 42.0MM (D1201420) | Spec: 42.0 | Flute Length: 225 | Overall Length: 370 | Type: MT.4 | ||
| 300-7350 | D1201430 | YG-1 | 43.0MM (D1201430) | Spec: 43.0 | Flute Length: 225 | Overall Length: 370 | Type: MT.4 | ||
| 300-7369 | D1201440 | YG-1 | 44.0MM (D1201440) | Spec: 44.0 | Flute Length: 230 | Overall Length: 375 | Type: MT.4 | ||
| 300-7378 | D1201450 | YG-1 | 45.0MM (D1201450) | Spec: 45.0 | Flute Length: 230 | Overall Length: 375 | Type: MT.4 | ||
| 300-7387 | D1201460 | YG-1 | 46.0MM (D1201460) | Spec: 46.0 | Flute Length: 235 | Overall Length: 380 | Type: MT.4 | ||
| 300-7396 | D1201470 | YG-1 | 47.0MM (D1201470) | Spec: 47.0 | Flute Length: 235 | Overall Length: 380 | Type: MT.4 | ||
| 300-7402 | D1201480 | YG-1 | 48.0MM (D1201480) | Spec: 48.0 | Flute Length: 240 | Overall Length: 385 | Type: MT.4 | ||
| 300-7411 | D1201490 | YG-1 | 49.0MM (D1201490) | Spec: 49.0 | Flute Length: 240 | Overall Length: 385 | Type: MT.4 | ||
| 300-7420 | D1201500 | YG-1 | 50.0MM (D1201500) | Spec: 50.0 | Flute Length: 245 | Overall Length: 390 | Type: MT.4 | ||
| 300-7439 | D1201510 | YG-1 | 51.0MM (D1201510) | Spec: 51.0 | Flute Length: 245 | Overall Length: 425 | Type: MT.5 | ||
| 300-7448 | D1201520 | YG-1 | 52.0MM (D1201520) | Spec: 52.0 | Flute Length: 250 | Overall Length: 430 | Type: MT.5 | ||
| 300-7457 | D1201530 | YG-1 | 53.0MM (D1201530) | Spec: 53.0 | Flute Length: 250 | Overall Length: 430 | Type: MT.5 | ||
| 300-7466 | D1201540 | YG-1 | 54.0MM (D1201540) | Spec: 54.0 | Flute Length: 250 | Overall Length: 435 | Type: MT.5 | ||
| 300-7475 | D1201550 | YG-1 | 55.0MM (D1201550) | Spec: 55.0 | Flute Length: 255 | Overall Length: 435 | Type: MT.5 | ||
| 300-7484 | D1201560 | YG-1 | 56.0MM (D1201560) | Spec: 56.0 | Flute Length: 260 | Overall Length: 440 | Type: MT.5 | ||
| 300-7493 | D1201570 | YG-1 | 57.0MM (D1201570) | Spec: 57.0 | Flute Length: 260 | Overall Length: 440 | Type: MT.5 | ||
| 300-7509 | D1201580 | YG-1 | 58.0MM (D1201580) | Spec: 58.0 | Flute Length: 265 | Overall Length: 445 | Type: MT.5 | ||
| 300-7518 | D1201590 | YG-1 | 59.0MM (D1201590) | Spec: 59.0 | Flute Length: 265 | Overall Length: 445 | Type: MT.5 | ||
| 300-7527 | D1201600 | YG-1 | 60.0MM (D1201600) | Spec: 60.0 | Flute Length: 270 | Overall Length: 450 | Type: MT.5 | ||
| 300-7536 | D1201610 | YG-1 | 61.0MM (D1201610) | Spec: 61.0 | Flute Length: 270 | Overall Length: 450 | Type: MT.5 | ||
| 300-7545 | D1201620 | YG-1 | 62.0MM (D1201620) | Spec: 62.0 | Flute Length: 275 | Overall Length: 455 | Type: MT.5 | ||
| 300-7572 | D1201650 | YG-1 | 65.0MM (D1201650) | Spec: 65.0 | Flute Length: 280 | Overall Length: 460 | Type: MT.5 |
