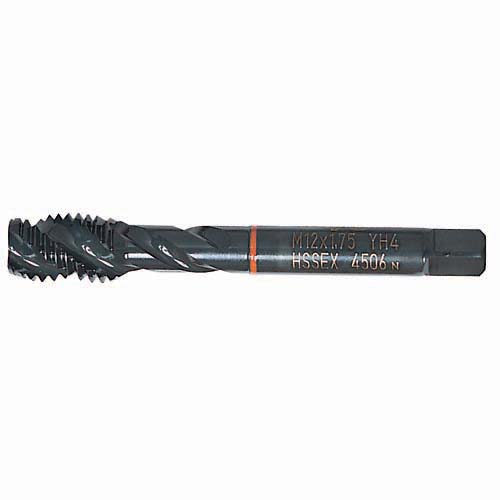

![[YG-1] — TQ371202 Tap Spiral Tap (Multi-One-Homo)](https://prosourcemro.com/wp-content/uploads/2026/05/1219024-1.jpg)
Taps
YG-1
[YG-1] — TQ371202 Tap Spiral Tap (Multi-One-Homo)
Family ID: 303-2301
Spiral Tap (Multi-One-Homo) from YG-1, sourced from Korea.
19 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 303-2301 | TQ371202 | YG-1 | 3-0.5 (TQ371202) | Spec: 3-0.5 | Flute Length: 5 | Overall Length: 46 | Shank d: 4 | Grade: YH2X | ||
| 303-2310 | TQ371243K | YG-1 | 4-0.7 (TQ371243K) | Spec: 4x0.7 | Flute Length: 7 | Overall Length: 52 | Shank Diameter: 5 | Grade: YH3 | ||
| 303-2329 | TQ371283 | YG-1 | 5-0.8 (TQ371283) | Spec: 5x0.8 | Flute Length: 8 | Overall Length: 60 | Shank Diameter: 5.5 | Grade: YH3 | ||
| 303-2338 | TQ371313K | YG-1 | 6-1.0 (TQ371313K) | Spec: 6x1.0 | Flute Length: 10 | Overall Length: 62 | Shank d: 6 | Grade: YH3 | ||
| 303-2347 | TQ371363 | YG-1 | 8-1.25 (TQ371363) | Spec: 8x1.25 | Flute Length: 12 | Overall Length: 70 | Shank d: 6.2 | Grade: YH3 | ||
| 303-2356 | TQ371433 | YG-1 | 10-1.25 (TQ371433) | Spec: 10x1.25 | Flute Length: 15 | Overall Length: 75 | Shank d: 7 | Grade: YH3 | ||
| 303-2365 | TQ371423K | YG-1 | 10-1.5 (TQ371423K) | Spec: 10x1.5 | Flute Length: 15 | Overall Length: 75 | Shank D: 7 | Grade: YH3 | ||
| 303-2374 | TQ371524 | YG-1 | 12-1.25 (TQ371524) | Spec: 12x1.25 | Flute Length: 17 | Overall Length: 82 | Pitch: 1.25 | Shank Diameter: 8.5 | Grade: YH4 | ||
| 303-2383 | TQ371514 | YG-1 | 12-1.5 (TQ371514) | Spec: 12x1.5 | Flute Length: 17 | Overall Length: 82 | Shank d: 8.5 | Grade: YH4 | ||
| 303-2392 | TQ371504 | YG-1 | 12-1.75 (TQ371504) | Spec: 12x1.75 | Flute Length: 17 | Overall Length: 82 | Shank Diameter: 8.5 | Grade: YH4 | ||
| 303-2408 | TQ371554 | YG-1 | 14-1.5 (TQ371554) | Spec: 14x1.5 | Flute Length: 20 | Overall Length: 88 | Shank Diameter: 10.5 | Grade: YH4 | ||
| 303-2417 | TQ371544 | YG-1 | 14-2.0 (TQ371544) | Spec: 14x2.0 | Flute Length: 20 | Overall Length: 88 | Shank d: 10.5 | Grade: YH4 | ||
| 303-2426 | TQ371614 | YG-1 | 16-1.5 (TQ371614) | Spec: 16x1.5 | Flute Length: 20 | Overall Length: 95 | Shank Diameter: 12.5 | Grade: YH4 | ||
| 303-2435 | TQ371604 | YG-1 | 16-2.0 (TQ371604) | Spec: 16x2.0 | Flute Length: 20 | Overall Length: 95 | Shank Diameter: 12.5 | Grade: YH4 | ||
| 303-2444 | TQ371674 | YG-1 | 18-1.5 (TQ371674) | Spec: 18x1.5 | Flute Length: 25 | Overall Length: 100 | Shank Diameter: 14 | Grade: YH4X | ||
| 303-2462 | TQ371654 | YG-1 | 18-2.5 (TQ371654) | Spec: 18x2.5 | Flute Length: 25 | Overall Length: 100 | Shank d: 14 | Grade: YH4 | ||
| 303-2471 | TQ371724 | YG-1 | 20-1.5 (TQ371724) | Spec: 20x1.5 | Flute Length: 25 | Overall Length: 105 | Shank Diameter: 15 | Grade: YH4X | ||
| 303-2480 | TQ371704K | YG-1 | 20-2.5 (TQ371704K) | Spec: 20x2.5 | Flute Length: 25 | Overall Length: 105 | Shank d: 15 | Grade: YH4 | ||
| 304-9620 | TQ371534 | YG-1 | 12-1.0 (TQ371534) | Spec: 12x1.0 | Flute Length: 17 | Overall Length: 82 | Shank D: 8.5 | Grade: YH4 |
