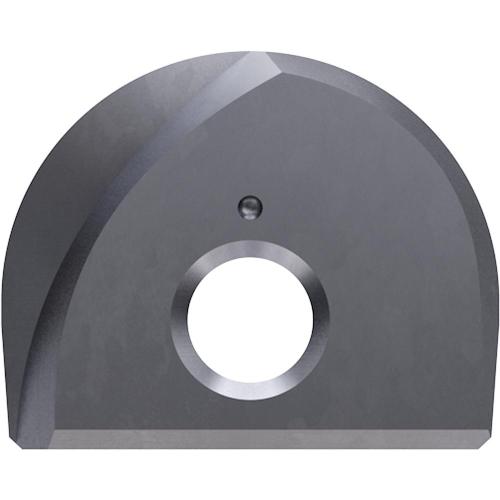

![[YG-1] — XMB120C210S Insert IX Mill Carbide Ball Insert](https://img.prosourcemro.com/2026/05/3324893-1-2.jpg)
[YG-1] — XMB120C210S Insert IX Mill Carbide Ball Insert
Family ID: 307-4194
IX Mill Carbide Ball Insert from YG-1, sourced from Korea.
13 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 307-4194 | XMB120C210S | YG-1 | 21.0*5.2*R10.5 General Purpose (XMB120C210S) | Height: 16.5 | Spec: 21.0 | Thickness: 5.2 | Corner Radius: 10.5 | ||
| 307-4945 | XMB120C170S | YG-1 | 17.0*4.2*R8.5 General Purpose (XMB120C170S) | Height: 13.5 | Spec: 17.0 | Thickness: 4.2 | Corner Radius: 8.5 | ||
| 307-6679 | XMB120C300S | YG-1 | 30.0*7.2*R15.0 General Purpose (XMB120C300S) | Height: 23.5 | Spec: 30.0 | Thickness: 7.2 | Corner Radius: 15.0 | ||
| 307-7872 | XMB120C200S | YG-1 | 20.0*5.2*R10.0 General Purpose (XMB120C200S) | Height: 16.0 | Spec: 20.0 | Thickness: 5.2 | Corner Radius: 10.0 | ||
| 308-0016 | XMB120C250S | YG-1 | 25.0*6.2*R12.5 General Purpose (XMB120C250S) | Height: 19.5 | Spec: 25.0 | Thickness: 6.2 | Corner R: 12.5 | ||
| 308-2175 | XMB120C130S | YG-1 | 13.0*3.2*R6.5 General Purpose (XMB120C130S) | Height: 11.5 | Spec: 13.0 | Thickness: 3.2 | Corner R: 6.5 | ||
| 308-2403 | XMB120C320S | YG-1 | 32.0*7.2*R6.0 General Purpose (XMB120C320S) | Height: 24.5 | Spec: 32.0 | Thickness: 7.2 | Corner R: 16.0 | ||
| 308-3086 | XMB120C260S | YG-1 | 26.0*6.2*R13 General Purpose (XMB120C260S) | Height: 20.0 | Spec: 26.0 | Thickness: 6.2 | Corner Radius: 13.0 | ||
| 308-4483 | XMB120C160S | YG-1 | 16.0*4.2*R8.0 General Purpose (XMB120C160S) | Height: 13.0 | Spec: 16.0 | Thickness: 4.2 | Corner Radius: 8.0 | ||
| 322-1127 | XMB120C120S | YG-1 | 12.0*3.2*R6.0 General Purpose (XMB120C120S) | Height: 11.0 | Spec: 12.0 | Thickness: 3.2 | Corner Radius: 6.0 | ||
| 322-1668 | XMB120C100S | YG-1 | 10.0*2.7*R5.0 General Purpose (XMB120C100S) | Height: 9.5 | Spec: 10.0 | Thickness: 2.7 | Corner R: 5.0 | ||
| 323-2460 | XMB120C330S | YG-1 | 33.0*7.2*R16.5 General Purpose (XMB120C330S) | Height: 25.0 | Spec: 33.0 | Thickness: 7.2 | Corner Radius: 16.5 | ||
| 323-5838 | XMB120C080S | YG-1 | 8.0*2.4*R4.0 General Purpose (XMB120C080S) | Height: 8.0 | Spec: 8.0 | Thickness: 2.4 | Corner Radius: 4.0 |
