![[Yuken] — F5 Port Flange Kit (for vane & piston pumps)](https://img.prosourcemro.com/2026/05/002-24-1024x1024.png)
Port Flange Kits
Yuken

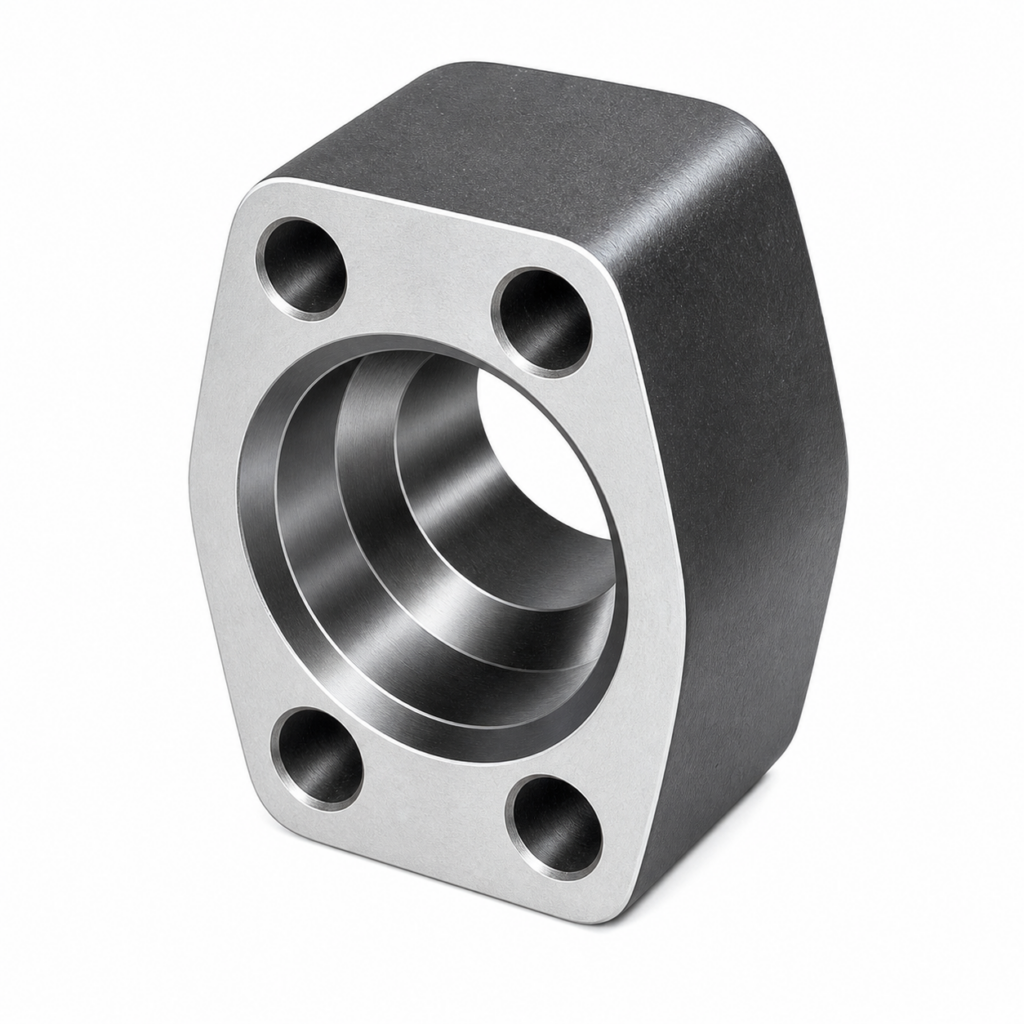

[Yuken] — F5 Port Flange Kit (for vane & piston pumps)
Family ID: YKN-F5-FLANGE-KIT
F5 Port Flange Kit. Pumps do not include port flanges; order separately per pump model and port. Available in Rc threaded (A), socket weld (B), and butt weld (C) types. Flange kit includes bolts and O-ring. For phosphate-ester fluid, prefix code with 'F-'.
20 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| F5-04-A-10 | F5 port flange kit 1/2", Rc threaded, 28 MPa | Yuken | Nominal Size: 1/2" | Flange Type: A = Rc threaded | Max Working Pressure: 28 MPa | Mass (approx): 0.25 kg | Typical Use: PV2R1 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-04-B-10 | F5 port flange kit 1/2", Socket weld, 28 MPa | Yuken | Nominal Size: 1/2" | Flange Type: B = Socket weld | Max Working Pressure: 28 MPa | Mass (approx): 0.25 kg | Typical Use: PV2R1 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-04-C-10 | F5 port flange kit 1/2", Butt weld, 28 MPa | Yuken | Nominal Size: 1/2" | Flange Type: C = Butt weld | Max Working Pressure: 28 MPa | Mass (approx): 0.25 kg | Typical Use: PV2R1 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-06-A-10 | F5 port flange kit 3/4", Rc threaded, 28 MPa | Yuken | Nominal Size: 3/4" | Flange Type: A = Rc threaded | Max Working Pressure: 28 MPa | Mass (approx): 0.35 kg | Typical Use: PV2R2 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-06-B-10 | F5 port flange kit 3/4", Socket weld, 28 MPa | Yuken | Nominal Size: 3/4" | Flange Type: B = Socket weld | Max Working Pressure: 28 MPa | Mass (approx): 0.35 kg | Typical Use: PV2R2 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-06-C-10 | F5 port flange kit 3/4", Butt weld, 28 MPa | Yuken | Nominal Size: 3/4" | Flange Type: C = Butt weld | Max Working Pressure: 28 MPa | Mass (approx): 0.35 kg | Typical Use: PV2R2 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-08-A-10 | F5 port flange kit 1", Rc threaded, 28 MPa | Yuken | Nominal Size: 1" | Flange Type: A = Rc threaded | Max Working Pressure: 28 MPa | Mass (approx): 0.45 kg | Typical Use: PV2R1 suction | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-08-B-10 | F5 port flange kit 1", Socket weld, 28 MPa | Yuken | Nominal Size: 1" | Flange Type: B = Socket weld | Max Working Pressure: 28 MPa | Mass (approx): 0.45 kg | Typical Use: PV2R1 suction | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-08-C-10 | F5 port flange kit 1", Butt weld, 28 MPa | Yuken | Nominal Size: 1" | Flange Type: C = Butt weld | Max Working Pressure: 28 MPa | Mass (approx): 0.45 kg | Typical Use: PV2R1 suction | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-10-A-10 | F5 port flange kit 1-1/4", Rc threaded, 28 MPa | Yuken | Nominal Size: 1-1/4" | Flange Type: A = Rc threaded | Max Working Pressure: 28 MPa | Mass (approx): 0.63 kg | Typical Use: PV2R2 suction / PV2R3 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-10-B-10 | F5 port flange kit 1-1/4", Socket weld, 28 MPa | Yuken | Nominal Size: 1-1/4" | Flange Type: B = Socket weld | Max Working Pressure: 28 MPa | Mass (approx): 0.63 kg | Typical Use: PV2R2 suction / PV2R3 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-10-C-10 | F5 port flange kit 1-1/4", Butt weld, 28 MPa | Yuken | Nominal Size: 1-1/4" | Flange Type: C = Butt weld | Max Working Pressure: 28 MPa | Mass (approx): 0.63 kg | Typical Use: PV2R2 suction / PV2R3 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-12-A-10 | F5 port flange kit 1-1/2", Rc threaded, 21 MPa | Yuken | Nominal Size: 1-1/2" | Flange Type: A = Rc threaded | Max Working Pressure: 21 MPa | Mass (approx): 1.3 kg | Typical Use: PV2R4 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-12-B-10 | F5 port flange kit 1-1/2", Socket weld, 21 MPa | Yuken | Nominal Size: 1-1/2" | Flange Type: B = Socket weld | Max Working Pressure: 21 MPa | Mass (approx): 1.3 kg | Typical Use: PV2R4 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-12-C-10 | F5 port flange kit 1-1/2", Butt weld, 21 MPa | Yuken | Nominal Size: 1-1/2" | Flange Type: C = Butt weld | Max Working Pressure: 21 MPa | Mass (approx): 1.3 kg | Typical Use: PV2R4 discharge | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-16-A-10 | F5 port flange kit 2", Rc threaded, 17.5 MPa | Yuken | Nominal Size: 2" | Flange Type: A = Rc threaded | Max Working Pressure: 17.5 MPa | Mass (approx): 1.3 kg | Typical Use: PV2R3 suction | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-16-B-10 | F5 port flange kit 2", Socket weld, 17.5 MPa | Yuken | Nominal Size: 2" | Flange Type: B = Socket weld | Max Working Pressure: 17.5 MPa | Mass (approx): 1.3 kg | Typical Use: PV2R3 suction | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-16-C-10 | F5 port flange kit 2", Butt weld, 17.5 MPa | Yuken | Nominal Size: 2" | Flange Type: C = Butt weld | Max Working Pressure: 17.5 MPa | Mass (approx): 1.3 kg | Typical Use: PV2R3 suction | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-24-A-10 | F5 port flange kit 3", Rc threaded, RFQ | Yuken | Nominal Size: 3" | Flange Type: A = Rc threaded | Max Working Pressure: RFQ | Mass (approx): RFQ | Typical Use: PV2R4 suction | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' | ||
| F5-24-B-10 | F5 port flange kit 3", Socket weld, RFQ | Yuken | Nominal Size: 3" | Flange Type: B = Socket weld | Max Working Pressure: RFQ | Mass (approx): RFQ | Typical Use: PV2R4 suction | Includes: Mounting bolts (hex socket) + O-ring (NBR-90) | Note: Ordered separately; for phosphate-ester fluid prefix 'F-' |
