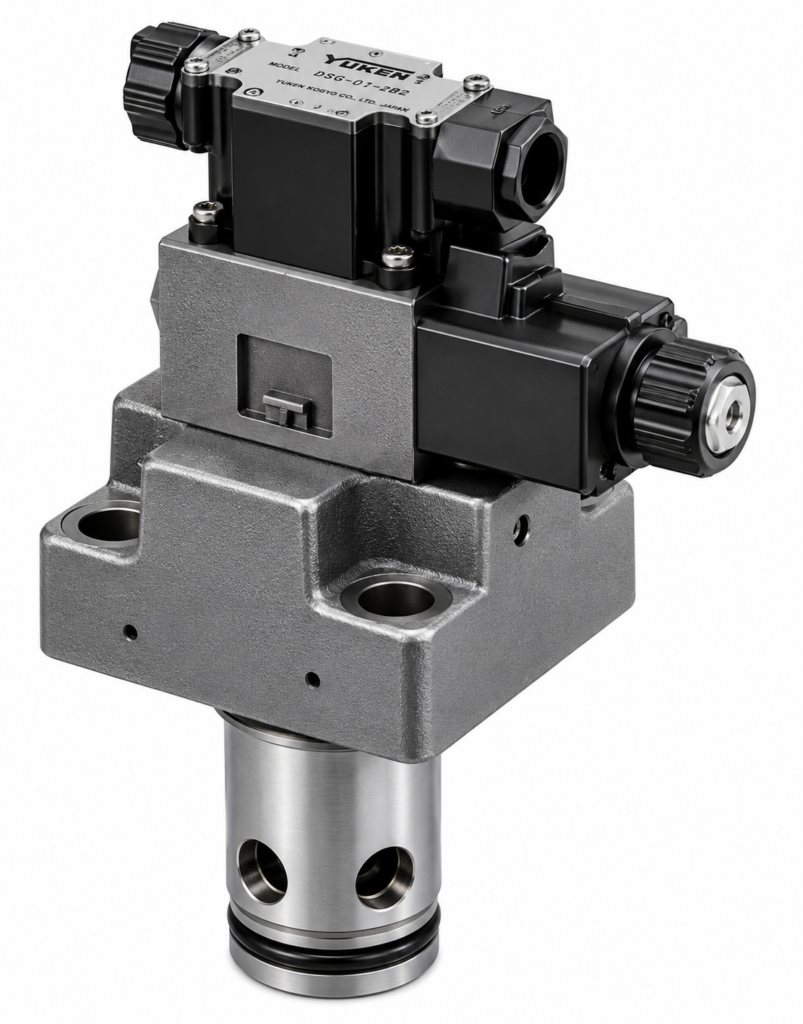

Yuken — LDS Series Solenoid Operated Directional Logic Valve (ISO 7368 Cartridge)
Family ID: YUK-GLOG-LDS
Solenoid Operated Directional Control Logic Valves (LDS). ISO 7368 cartridge with integral solenoid pilot. Sizes 25–63, max 31.5 MPa, rated 350–2100 L/min, area ratio 2:1. Cover forms 1–6 (normal closed/open, shuttle). Abbreviated catalog — details by inquiry.
30 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LDS-25-1 | Solenoid directional logic, cover 1 (Normal closed), size 25 | Yuken | Type: Solenoid directional logic (cover 1: Normal closed) | Size: 25 | Rated Flow: 350 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-32-1 | Solenoid directional logic, cover 1 (Normal closed), size 32 | Yuken | Type: Solenoid directional logic (cover 1: Normal closed) | Size: 32 | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-40-1 | Solenoid directional logic, cover 1 (Normal closed), size 40 | Yuken | Type: Solenoid directional logic (cover 1: Normal closed) | Size: 40 | Rated Flow: 850 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-50-1 | Solenoid directional logic, cover 1 (Normal closed), size 50 | Yuken | Type: Solenoid directional logic (cover 1: Normal closed) | Size: 50 | Rated Flow: 1400 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-63-1 | Solenoid directional logic, cover 1 (Normal closed), size 63 | Yuken | Type: Solenoid directional logic (cover 1: Normal closed) | Size: 63 | Rated Flow: 2100 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-25-2 | Solenoid directional logic, cover 2 (Normal open), size 25 | Yuken | Type: Solenoid directional logic (cover 2: Normal open) | Size: 25 | Rated Flow: 350 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-32-2 | Solenoid directional logic, cover 2 (Normal open), size 32 | Yuken | Type: Solenoid directional logic (cover 2: Normal open) | Size: 32 | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-40-2 | Solenoid directional logic, cover 2 (Normal open), size 40 | Yuken | Type: Solenoid directional logic (cover 2: Normal open) | Size: 40 | Rated Flow: 850 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-50-2 | Solenoid directional logic, cover 2 (Normal open), size 50 | Yuken | Type: Solenoid directional logic (cover 2: Normal open) | Size: 50 | Rated Flow: 1400 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-63-2 | Solenoid directional logic, cover 2 (Normal open), size 63 | Yuken | Type: Solenoid directional logic (cover 2: Normal open) | Size: 63 | Rated Flow: 2100 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-25-3 | Solenoid directional logic, cover 3 (Normal closed + shuttle valve), size 25 | Yuken | Type: Solenoid directional logic (cover 3: Normal closed + shuttle valve) | Size: 25 | Rated Flow: 350 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-32-3 | Solenoid directional logic, cover 3 (Normal closed + shuttle valve), size 32 | Yuken | Type: Solenoid directional logic (cover 3: Normal closed + shuttle valve) | Size: 32 | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-40-3 | Solenoid directional logic, cover 3 (Normal closed + shuttle valve), size 40 | Yuken | Type: Solenoid directional logic (cover 3: Normal closed + shuttle valve) | Size: 40 | Rated Flow: 850 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-50-3 | Solenoid directional logic, cover 3 (Normal closed + shuttle valve), size 50 | Yuken | Type: Solenoid directional logic (cover 3: Normal closed + shuttle valve) | Size: 50 | Rated Flow: 1400 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-63-3 | Solenoid directional logic, cover 3 (Normal closed + shuttle valve), size 63 | Yuken | Type: Solenoid directional logic (cover 3: Normal closed + shuttle valve) | Size: 63 | Rated Flow: 2100 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-25-4 | Solenoid directional logic, cover 4 (Normal open + shuttle valve), size 25 | Yuken | Type: Solenoid directional logic (cover 4: Normal open + shuttle valve) | Size: 25 | Rated Flow: 350 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-32-4 | Solenoid directional logic, cover 4 (Normal open + shuttle valve), size 32 | Yuken | Type: Solenoid directional logic (cover 4: Normal open + shuttle valve) | Size: 32 | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-40-4 | Solenoid directional logic, cover 4 (Normal open + shuttle valve), size 40 | Yuken | Type: Solenoid directional logic (cover 4: Normal open + shuttle valve) | Size: 40 | Rated Flow: 850 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-50-4 | Solenoid directional logic, cover 4 (Normal open + shuttle valve), size 50 | Yuken | Type: Solenoid directional logic (cover 4: Normal open + shuttle valve) | Size: 50 | Rated Flow: 1400 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-63-4 | Solenoid directional logic, cover 4 (Normal open + shuttle valve), size 63 | Yuken | Type: Solenoid directional logic (cover 4: Normal open + shuttle valve) | Size: 63 | Rated Flow: 2100 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-25-5 | Solenoid directional logic, cover 5 (Normal closed + shuttle valve (variant)), size 25 | Yuken | Type: Solenoid directional logic (cover 5: Normal closed + shuttle valve (variant)) | Size: 25 | Rated Flow: 350 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-32-5 | Solenoid directional logic, cover 5 (Normal closed + shuttle valve (variant)), size 32 | Yuken | Type: Solenoid directional logic (cover 5: Normal closed + shuttle valve (variant)) | Size: 32 | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-40-5 | Solenoid directional logic, cover 5 (Normal closed + shuttle valve (variant)), size 40 | Yuken | Type: Solenoid directional logic (cover 5: Normal closed + shuttle valve (variant)) | Size: 40 | Rated Flow: 850 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-50-5 | Solenoid directional logic, cover 5 (Normal closed + shuttle valve (variant)), size 50 | Yuken | Type: Solenoid directional logic (cover 5: Normal closed + shuttle valve (variant)) | Size: 50 | Rated Flow: 1400 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-63-5 | Solenoid directional logic, cover 5 (Normal closed + shuttle valve (variant)), size 63 | Yuken | Type: Solenoid directional logic (cover 5: Normal closed + shuttle valve (variant)) | Size: 63 | Rated Flow: 2100 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-25-6 | Solenoid directional logic, cover 6 (Normal open + shuttle valve (variant)), size 25 | Yuken | Type: Solenoid directional logic (cover 6: Normal open + shuttle valve (variant)) | Size: 25 | Rated Flow: 350 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-32-6 | Solenoid directional logic, cover 6 (Normal open + shuttle valve (variant)), size 32 | Yuken | Type: Solenoid directional logic (cover 6: Normal open + shuttle valve (variant)) | Size: 32 | Rated Flow: 500 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-40-6 | Solenoid directional logic, cover 6 (Normal open + shuttle valve (variant)), size 40 | Yuken | Type: Solenoid directional logic (cover 6: Normal open + shuttle valve (variant)) | Size: 40 | Rated Flow: 850 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -14 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-50-6 | Solenoid directional logic, cover 6 (Normal open + shuttle valve (variant)), size 50 | Yuken | Type: Solenoid directional logic (cover 6: Normal open + shuttle valve (variant)) | Size: 50 | Rated Flow: 1400 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry | ||
| LDS-63-6 | Solenoid directional logic, cover 6 (Normal open + shuttle valve (variant)), size 63 | Yuken | Type: Solenoid directional logic (cover 6: Normal open + shuttle valve (variant)) | Size: 63 | Rated Flow: 2100 L/min | Max Pressure: 31.5 MPa | Area Ratio: 2:1 | Design: -13 | Options (RFQ): Coil A※/D※/R※ · Connection(term-box/N DIN) · Manual(push-pin/C) · Orifice · Cracking · Poppet — specify | Note: Abbreviated catalog — detailed specs by inquiry |
