Double Vane Pumps
Yuken

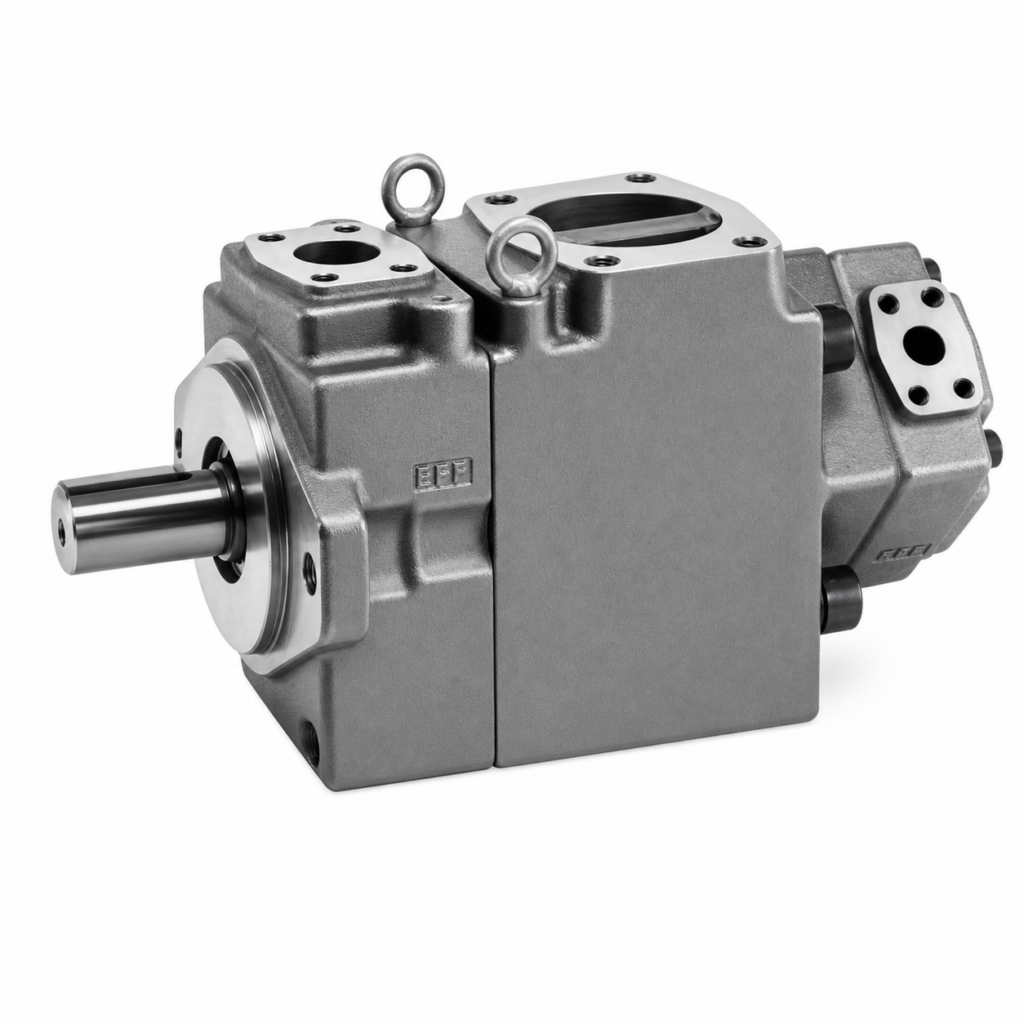

[Yuken] — PV2R24A Series Double Vane Pump (dual circuit, 21 MPa)
Family ID: YKN-PV2R24A-VANE
PV2R24A/34A Series Double Vane Pumps. A newly developed double pump using a large-capacity PV2R4A on the large-displacement side; discharged oil can be supplied to separate circuits. Foot and flange mounting types. Clockwise rotation standard. Small-side discharge port standard: left 45deg up (E); large-side discharge and suction ports top (A) standard.
30 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| PV2R24A-41-138-L-REAA-10 | PV2R24A double vane pump, small 41 / large 138 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 41 cm3/rev | Large-side Displacement: 138 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-41-138-F-REAA-10 | PV2R24A double vane pump, small 41 / large 138 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 41 cm3/rev | Large-side Displacement: 138 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-41-162-L-REAA-10 | PV2R24A double vane pump, small 41 / large 162 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 41 cm3/rev | Large-side Displacement: 162 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-41-162-F-REAA-10 | PV2R24A double vane pump, small 41 / large 162 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 41 cm3/rev | Large-side Displacement: 162 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-41-193-L-REAA-10 | PV2R24A double vane pump, small 41 / large 193 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 41 cm3/rev | Large-side Displacement: 193 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-41-193-F-REAA-10 | PV2R24A double vane pump, small 41 / large 193 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 41 cm3/rev | Large-side Displacement: 193 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-47-138-L-REAA-10 | PV2R24A double vane pump, small 47 / large 138 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 47 cm3/rev | Large-side Displacement: 138 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-47-138-F-REAA-10 | PV2R24A double vane pump, small 47 / large 138 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 47 cm3/rev | Large-side Displacement: 138 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-47-162-L-REAA-10 | PV2R24A double vane pump, small 47 / large 162 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 47 cm3/rev | Large-side Displacement: 162 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-47-162-F-REAA-10 | PV2R24A double vane pump, small 47 / large 162 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 47 cm3/rev | Large-side Displacement: 162 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-47-193-L-REAA-10 | PV2R24A double vane pump, small 47 / large 193 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 47 cm3/rev | Large-side Displacement: 193 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-47-193-F-REAA-10 | PV2R24A double vane pump, small 47 / large 193 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 47 cm3/rev | Large-side Displacement: 193 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-53-138-L-REAA-10 | PV2R24A double vane pump, small 53 / large 138 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 53 cm3/rev | Large-side Displacement: 138 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-53-138-F-REAA-10 | PV2R24A double vane pump, small 53 / large 138 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 53 cm3/rev | Large-side Displacement: 138 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-53-162-L-REAA-10 | PV2R24A double vane pump, small 53 / large 162 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 53 cm3/rev | Large-side Displacement: 162 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-53-162-F-REAA-10 | PV2R24A double vane pump, small 53 / large 162 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 53 cm3/rev | Large-side Displacement: 162 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-53-193-L-REAA-10 | PV2R24A double vane pump, small 53 / large 193 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 53 cm3/rev | Large-side Displacement: 193 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-53-193-F-REAA-10 | PV2R24A double vane pump, small 53 / large 193 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 53 cm3/rev | Large-side Displacement: 193 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-59-138-L-REAA-10 | PV2R24A double vane pump, small 59 / large 138 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 59 cm3/rev | Large-side Displacement: 138 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-59-138-F-REAA-10 | PV2R24A double vane pump, small 59 / large 138 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 59 cm3/rev | Large-side Displacement: 138 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-59-162-L-REAA-10 | PV2R24A double vane pump, small 59 / large 162 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 59 cm3/rev | Large-side Displacement: 162 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-59-162-F-REAA-10 | PV2R24A double vane pump, small 59 / large 162 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 59 cm3/rev | Large-side Displacement: 162 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-59-193-L-REAA-10 | PV2R24A double vane pump, small 59 / large 193 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 59 cm3/rev | Large-side Displacement: 193 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-59-193-F-REAA-10 | PV2R24A double vane pump, small 59 / large 193 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 59 cm3/rev | Large-side Displacement: 193 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-65-138-L-REAA-10 | PV2R24A double vane pump, small 65 / large 138 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 65 cm3/rev | Large-side Displacement: 138 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-65-138-F-REAA-10 | PV2R24A double vane pump, small 65 / large 138 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 65 cm3/rev | Large-side Displacement: 138 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-65-162-L-REAA-10 | PV2R24A double vane pump, small 65 / large 162 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 65 cm3/rev | Large-side Displacement: 162 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-65-162-F-REAA-10 | PV2R24A double vane pump, small 65 / large 162 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 65 cm3/rev | Large-side Displacement: 162 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-65-193-L-REAA-10 | PV2R24A double vane pump, small 65 / large 193 cm3/rev, Foot mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 65 cm3/rev | Large-side Displacement: 193 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: L = Foot type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R24A-65-193-F-REAA-10 | PV2R24A double vane pump, small 65 / large 193 cm3/rev, Flange mount | Yuken | Series: PV2R24A | Type: Double Vane Pump (dual circuit) | Small-side Displacement: 65 cm3/rev | Large-side Displacement: 193 cm3/rev | Max Working Pressure: 21 MPa (small) / 17.2 MPa (large) | Mounting: F = Flange type | Rotation: R = Clockwise (standard) | Small-side Discharge Port: E = Left 45deg up (standard) | Large-side Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 10 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) |
