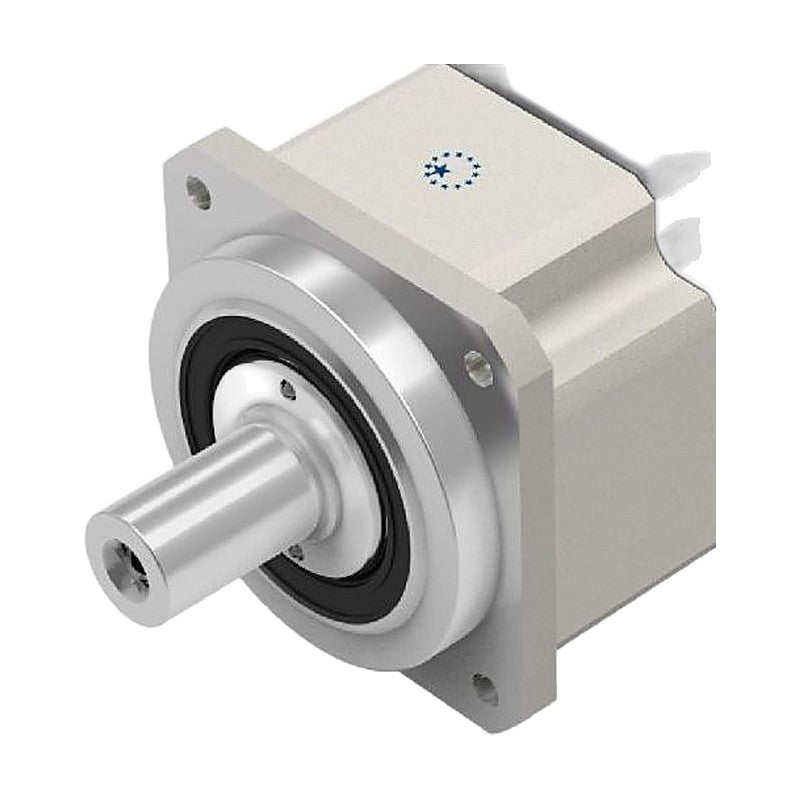

Apex Dynamics AB Precision Planetary Gearboxes (Frames 142-220)

Apex Dynamics AB Precision Planetary Gearboxes (Frames 142-220)

APEX Dynamics AB high-precision inline helical planetary gearboxes for servo motors, frames 142 to 220, in 1- and 2-stage ratios from 3 to 100.

Key features

  • Order code AB<frame>-<ratio>-<shaft>-<backlash> / motor, e.g. AB090-010-S1-P1 / SIEMENS 1FT6 041-4AF71
  • Backlash: P0 micro <=1 arcmin (1-stage) / <=3 (2-stage); P1 reduced <=3/<=5; P2 standard <=5/<=7 arcmin
  • Output shafts: S1 smooth, S2 with key, S3 DIN 5480 spline (S3 not offered on AB042)
  • A frames (060A, 090A, 115A, 142A) are 2-stage versions accepting a larger motor flange
  • Nominal input speed 5,000 rpm (042-060A) to 2,000 rpm (220); max. input 10,000 to 4,000 rpm
  • Torsional rigidity 3 to 225 Nm/arcmin; max. radial load 780 to 50,000 N at output shaft center

Specifications

Gear type Helical planetary, inline
Stages / ratios 1-stage i=3-10, 2-stage i=12-100
Efficiency >=97% (1-stage), >=94% (2-stage)
Emergency stop torque T2NOT 3 x nominal output torque
Protection / lubrication IP65, synthetic lubrication oil
Operating temperature -10 to +90 C
Mounting position All directions
Motor adapter Specify motor make and model when ordering
Frame sizes 142, 142A, 180, 220
Source APEX Dynamics AB catalog, p. 3-7
AB142-003-S1-P0 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-003-S1-P1 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-003-S1-P2 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-003-S2-P0 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-003-S2-P1 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-003-S2-P2 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-003-S3-P0 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-003-S3-P1 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-003-S3-P2 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-004-S1-P0 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-004-S1-P1 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-004-S1-P2 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-004-S2-P0 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-004-S2-P1 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-004-S2-P2 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-004-S3-P0 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-004-S3-P1 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-004-S3-P2 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-005-S1-P0 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-005-S1-P1 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-005-S1-P2 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-005-S2-P0 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-005-S2-P1 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-005-S2-P2 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-005-S3-P0 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-005-S3-P1 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-005-S3-P2 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-006-S1-P0 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-006-S1-P1 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-006-S1-P2 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-006-S2-P0 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-006-S2-P1 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-006-S2-P2 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-006-S3-P0 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-006-S3-P1 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-006-S3-P2 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-007-S1-P0 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-007-S1-P1 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-007-S1-P2 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-007-S2-P0 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-007-S2-P1 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-007-S2-P2 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-007-S3-P0 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-007-S3-P1 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-007-S3-P2 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-008-S1-P0 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-008-S1-P1 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-008-S1-P2 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-008-S2-P0 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-008-S2-P1 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-008-S2-P2 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-008-S3-P0 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-008-S3-P1 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-008-S3-P2 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-009-S1-P0 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-009-S1-P1 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-009-S1-P2 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-009-S2-P0 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-009-S2-P1 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-009-S2-P2 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-009-S3-P0 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-009-S3-P1 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-009-S3-P2 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-010-S1-P0 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-010-S1-P1 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-010-S1-P2 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-010-S2-P0 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-010-S2-P1 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-010-S2-P2 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-010-S3-P0 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-010-S3-P1 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-010-S3-P2 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-012-S1-P0 Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-012-S1-P1 Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-012-S1-P2 Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-012-S2-P0 Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-012-S2-P1 Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-012-S2-P2 Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-012-S3-P0 Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-012-S3-P1 Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-012-S3-P2 Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-015-S1-P0 Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-015-S1-P1 Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-015-S1-P2 Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-015-S2-P0 Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-015-S2-P1 Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-015-S2-P2 Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-015-S3-P0 Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-015-S3-P1 Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-015-S3-P2 Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-016-S1-P0 Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-016-S1-P1 Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-016-S1-P2 Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-016-S2-P0 Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-016-S2-P1 Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-016-S2-P2 Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-016-S3-P0 Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-016-S3-P1 Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-016-S3-P2 Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-020-S1-P0 Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-020-S1-P1 Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-020-S1-P2 Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-020-S2-P0 Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-020-S2-P1 Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-020-S2-P2 Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-020-S3-P0 Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-020-S3-P1 Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-020-S3-P2 Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-025-S1-P0 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-025-S1-P1 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-025-S1-P2 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-025-S2-P0 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-025-S2-P1 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-025-S2-P2 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-025-S3-P0 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-025-S3-P1 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-025-S3-P2 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-028-S1-P0 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-028-S1-P1 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-028-S1-P2 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-028-S2-P0 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-028-S2-P1 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-028-S2-P2 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-028-S3-P0 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-028-S3-P1 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-028-S3-P2 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-030-S1-P0 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-030-S1-P1 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-030-S1-P2 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-030-S2-P0 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-030-S2-P1 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-030-S2-P2 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-030-S3-P0 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-030-S3-P1 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-030-S3-P2 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-032-S1-P0 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-032-S1-P1 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-032-S1-P2 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-032-S2-P0 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-032-S2-P1 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-032-S2-P2 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-032-S3-P0 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-032-S3-P1 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-032-S3-P2 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-035-S1-P0 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-035-S1-P1 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-035-S1-P2 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-035-S2-P0 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-035-S2-P1 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-035-S2-P2 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-035-S3-P0 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-035-S3-P1 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-035-S3-P2 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-040-S1-P0 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-040-S1-P1 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-040-S1-P2 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-040-S2-P0 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-040-S2-P1 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-040-S2-P2 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-040-S3-P0 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-040-S3-P1 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-040-S3-P2 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-045-S1-P0 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-045-S1-P1 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-045-S1-P2 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-045-S2-P0 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-045-S2-P1 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-045-S2-P2 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-045-S3-P0 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-045-S3-P1 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-045-S3-P2 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-050-S1-P0 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-050-S1-P1 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-050-S1-P2 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-050-S2-P0 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-050-S2-P1 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-050-S2-P2 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-050-S3-P0 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-050-S3-P1 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-050-S3-P2 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-060-S1-P0 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-060-S1-P1 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-060-S1-P2 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-060-S2-P0 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-060-S2-P1 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-060-S2-P2 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-060-S3-P0 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-060-S3-P1 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-060-S3-P2 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-070-S1-P0 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-070-S1-P1 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-070-S1-P2 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-070-S2-P0 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-070-S2-P1 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-070-S2-P2 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-070-S3-P0 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-070-S3-P1 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-070-S3-P2 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-080-S1-P0 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-080-S1-P1 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-080-S1-P2 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-080-S2-P0 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-080-S2-P1 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-080-S2-P2 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-080-S3-P0 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-080-S3-P1 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-080-S3-P2 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-090-S1-P0 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-090-S1-P1 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-090-S1-P2 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-090-S2-P0 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-090-S2-P1 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-090-S2-P2 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-090-S3-P0 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-090-S3-P1 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-090-S3-P2 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-100-S1-P0 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-100-S1-P1 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-100-S1-P2 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-100-S2-P0 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-100-S2-P1 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-100-S2-P2 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-100-S3-P0 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-100-S3-P1 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-100-S3-P2 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-012-S1-P0 Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-012-S1-P1 Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-012-S1-P2 Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-012-S2-P0 Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-012-S2-P1 Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-012-S2-P2 Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-012-S3-P0 Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-012-S3-P1 Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-012-S3-P2 Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-015-S1-P0 Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142A-015-S1-P1 Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142A-015-S1-P2 Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142A-015-S2-P0 Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142A-015-S2-P1 Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142A-015-S2-P2 Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142A-015-S3-P0 Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142A-015-S3-P1 Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142A-015-S3-P2 Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142A-016-S1-P0 Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-016-S1-P1 Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-016-S1-P2 Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-016-S2-P0 Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-016-S2-P1 Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-016-S2-P2 Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-016-S3-P0 Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-016-S3-P1 Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-016-S3-P2 Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-020-S1-P0 Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-020-S1-P1 Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-020-S1-P2 Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-020-S2-P0 Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-020-S2-P1 Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-020-S2-P2 Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-020-S3-P0 Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-020-S3-P1 Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-020-S3-P2 Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-025-S1-P0 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-025-S1-P1 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-025-S1-P2 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-025-S2-P0 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-025-S2-P1 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-025-S2-P2 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-025-S3-P0 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-025-S3-P1 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-025-S3-P2 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-028-S1-P0 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-028-S1-P1 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-028-S1-P2 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-028-S2-P0 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-028-S2-P1 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-028-S2-P2 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-028-S3-P0 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-028-S3-P1 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-028-S3-P2 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-030-S1-P0 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-030-S1-P1 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-030-S1-P2 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-030-S2-P0 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-030-S2-P1 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-030-S2-P2 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-030-S3-P0 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-030-S3-P1 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-030-S3-P2 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-032-S1-P0 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-032-S1-P1 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-032-S1-P2 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-032-S2-P0 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-032-S2-P1 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-032-S2-P2 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-032-S3-P0 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-032-S3-P1 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-032-S3-P2 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-035-S1-P0 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-035-S1-P1 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-035-S1-P2 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-035-S2-P0 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-035-S2-P1 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-035-S2-P2 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-035-S3-P0 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-035-S3-P1 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-035-S3-P2 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-040-S1-P0 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-040-S1-P1 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-040-S1-P2 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-040-S2-P0 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-040-S2-P1 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-040-S2-P2 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-040-S3-P0 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-040-S3-P1 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-040-S3-P2 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-045-S1-P0 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-045-S1-P1 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-045-S1-P2 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-045-S2-P0 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-045-S2-P1 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-045-S2-P2 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-045-S3-P0 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-045-S3-P1 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-045-S3-P2 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-050-S1-P0 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-050-S1-P1 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-050-S1-P2 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-050-S2-P0 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-050-S2-P1 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-050-S2-P2 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-050-S3-P0 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-050-S3-P1 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-050-S3-P2 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-060-S1-P0 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-060-S1-P1 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-060-S1-P2 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-060-S2-P0 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-060-S2-P1 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-060-S2-P2 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-060-S3-P0 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-060-S3-P1 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-060-S3-P2 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-070-S1-P0 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-070-S1-P1 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-070-S1-P2 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-070-S2-P0 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-070-S2-P1 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-070-S2-P2 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-070-S3-P0 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-070-S3-P1 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-070-S3-P2 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-080-S1-P0 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-080-S1-P1 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-080-S1-P2 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-080-S2-P0 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-080-S2-P1 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-080-S2-P2 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-080-S3-P0 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-080-S3-P1 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-080-S3-P2 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-090-S1-P0 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-090-S1-P1 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-090-S1-P2 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-090-S2-P0 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-090-S2-P1 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-090-S2-P2 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-090-S3-P0 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-090-S3-P1 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-090-S3-P2 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-100-S1-P0 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-100-S1-P1 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-100-S1-P2 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-100-S2-P0 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-100-S2-P1 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-100-S2-P2 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-100-S3-P0 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-100-S3-P1 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-100-S3-P2 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB180-003-S1-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-003-S1-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-003-S1-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-003-S2-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-003-S2-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-003-S2-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-003-S3-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-003-S3-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-003-S3-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-004-S1-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-004-S1-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-004-S1-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-004-S2-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-004-S2-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-004-S2-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-004-S3-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-004-S3-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-004-S3-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-005-S1-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-005-S1-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-005-S1-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-005-S2-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-005-S2-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-005-S2-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-005-S3-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-005-S3-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-005-S3-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-006-S1-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-006-S1-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-006-S1-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-006-S2-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-006-S2-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-006-S2-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-006-S3-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-006-S3-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-006-S3-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-007-S1-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-007-S1-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-007-S1-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-007-S2-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-007-S2-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-007-S2-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-007-S3-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-007-S3-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-007-S3-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-008-S1-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-008-S1-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-008-S1-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-008-S2-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-008-S2-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-008-S2-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-008-S3-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-008-S3-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-008-S3-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-009-S1-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-009-S1-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-009-S1-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-009-S2-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-009-S2-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-009-S2-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-009-S3-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-009-S3-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-009-S3-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-010-S1-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-010-S1-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-010-S1-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-010-S2-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-010-S2-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-010-S2-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-010-S3-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-010-S3-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-010-S3-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-012-S1-P0 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-012-S1-P1 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-012-S1-P2 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-012-S2-P0 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-012-S2-P1 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-012-S2-P2 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-012-S3-P0 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-012-S3-P1 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-012-S3-P2 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-015-S1-P0 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-015-S1-P1 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-015-S1-P2 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-015-S2-P0 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-015-S2-P1 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-015-S2-P2 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-015-S3-P0 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-015-S3-P1 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-015-S3-P2 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-016-S1-P0 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-016-S1-P1 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-016-S1-P2 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-016-S2-P0 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-016-S2-P1 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-016-S2-P2 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-016-S3-P0 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-016-S3-P1 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-016-S3-P2 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-020-S1-P0 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-020-S1-P1 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-020-S1-P2 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-020-S2-P0 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-020-S2-P1 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-020-S2-P2 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-020-S3-P0 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-020-S3-P1 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-020-S3-P2 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-025-S1-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-025-S1-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-025-S1-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-025-S2-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-025-S2-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-025-S2-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-025-S3-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-025-S3-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-025-S3-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-028-S1-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-028-S1-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-028-S1-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-028-S2-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-028-S2-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-028-S2-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-028-S3-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-028-S3-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-028-S3-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-030-S1-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-030-S1-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-030-S1-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-030-S2-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-030-S2-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-030-S2-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-030-S3-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-030-S3-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-030-S3-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-032-S1-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-032-S1-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-032-S1-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-032-S2-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-032-S2-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-032-S2-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-032-S3-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-032-S3-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-032-S3-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-035-S1-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-035-S1-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-035-S1-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-035-S2-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-035-S2-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-035-S2-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-035-S3-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-035-S3-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-035-S3-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-040-S1-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-040-S1-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-040-S1-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-040-S2-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-040-S2-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-040-S2-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-040-S3-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-040-S3-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-040-S3-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-045-S1-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-045-S1-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-045-S1-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-045-S2-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-045-S2-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-045-S2-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-045-S3-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-045-S3-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-045-S3-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-050-S1-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-050-S1-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-050-S1-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-050-S2-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-050-S2-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-050-S2-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-050-S3-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-050-S3-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-050-S3-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-060-S1-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-060-S1-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-060-S1-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-060-S2-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-060-S2-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-060-S2-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-060-S3-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-060-S3-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-060-S3-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-070-S1-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-070-S1-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-070-S1-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-070-S2-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-070-S2-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-070-S2-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-070-S3-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-070-S3-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-070-S3-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-080-S1-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-080-S1-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-080-S1-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-080-S2-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-080-S2-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-080-S2-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-080-S3-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-080-S3-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-080-S3-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-090-S1-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-090-S1-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-090-S1-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-090-S2-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-090-S2-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-090-S2-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-090-S3-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-090-S3-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-090-S3-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-100-S1-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-100-S1-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-100-S1-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-100-S2-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-100-S2-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-100-S2-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-100-S3-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-100-S3-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-100-S3-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB220-003-S1-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-003-S1-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-003-S1-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-003-S2-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-003-S2-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-003-S2-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-003-S3-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-003-S3-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-003-S3-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-004-S1-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-004-S1-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-004-S1-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-004-S2-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-004-S2-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-004-S2-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-004-S3-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-004-S3-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-004-S3-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-005-S1-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-005-S1-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-005-S1-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-005-S2-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-005-S2-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-005-S2-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-005-S3-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-005-S3-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-005-S3-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-006-S1-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-006-S1-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-006-S1-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-006-S2-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-006-S2-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-006-S2-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-006-S3-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-006-S3-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-006-S3-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-007-S1-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-007-S1-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-007-S1-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-007-S2-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-007-S2-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-007-S2-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-007-S3-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-007-S3-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-007-S3-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-008-S1-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-008-S1-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-008-S1-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-008-S2-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-008-S2-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-008-S2-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-008-S3-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-008-S3-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-008-S3-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-009-S1-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-009-S1-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-009-S1-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-009-S2-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-009-S2-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-009-S2-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-009-S3-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-009-S3-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-009-S3-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-010-S1-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-010-S1-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-010-S1-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-010-S2-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-010-S2-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-010-S2-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-010-S3-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-010-S3-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-010-S3-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-012-S1-P0 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-012-S1-P1 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-012-S1-P2 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-012-S2-P0 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-012-S2-P1 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-012-S2-P2 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-012-S3-P0 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-012-S3-P1 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-012-S3-P2 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-015-S1-P0 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-015-S1-P1 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-015-S1-P2 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-015-S2-P0 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-015-S2-P1 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-015-S2-P2 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-015-S3-P0 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-015-S3-P1 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-015-S3-P2 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-016-S1-P0 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-016-S1-P1 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-016-S1-P2 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-016-S2-P0 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-016-S2-P1 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-016-S2-P2 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-016-S3-P0 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-016-S3-P1 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-016-S3-P2 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-020-S1-P0 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-020-S1-P1 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-020-S1-P2 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-020-S2-P0 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-020-S2-P1 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-020-S2-P2 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-020-S3-P0 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-020-S3-P1 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-020-S3-P2 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-025-S1-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-025-S1-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-025-S1-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-025-S2-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-025-S2-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-025-S2-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-025-S3-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-025-S3-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-025-S3-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-028-S1-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-028-S1-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-028-S1-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-028-S2-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-028-S2-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-028-S2-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-028-S3-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-028-S3-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-028-S3-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-030-S1-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-030-S1-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-030-S1-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-030-S2-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-030-S2-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-030-S2-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-030-S3-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-030-S3-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-030-S3-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-032-S1-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-032-S1-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-032-S1-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-032-S2-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-032-S2-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-032-S2-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-032-S3-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-032-S3-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-032-S3-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-035-S1-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-035-S1-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-035-S1-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-035-S2-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-035-S2-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-035-S2-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-035-S3-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-035-S3-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-035-S3-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-040-S1-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-040-S1-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-040-S1-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-040-S2-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-040-S2-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-040-S2-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-040-S3-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-040-S3-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-040-S3-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-045-S1-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-045-S1-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-045-S1-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-045-S2-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-045-S2-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-045-S2-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-045-S3-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-045-S3-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-045-S3-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-050-S1-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-050-S1-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-050-S1-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-050-S2-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-050-S2-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-050-S2-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-050-S3-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-050-S3-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-050-S3-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-060-S1-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-060-S1-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-060-S1-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-060-S2-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-060-S2-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-060-S2-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-060-S3-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-060-S3-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-060-S3-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-070-S1-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-070-S1-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-070-S1-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-070-S2-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-070-S2-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-070-S2-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-070-S3-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-070-S3-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-070-S3-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-080-S1-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-080-S1-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-080-S1-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-080-S2-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-080-S2-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-080-S2-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-080-S3-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-080-S3-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-080-S3-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-090-S1-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-090-S1-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-090-S1-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-090-S2-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-090-S2-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-090-S2-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-090-S3-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-090-S3-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-090-S3-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-100-S1-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-100-S1-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-100-S1-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-100-S2-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-100-S2-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-100-S2-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-100-S3-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-100-S3-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-100-S3-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB142 Legacy code: frame-level listing, order full code | Frame: 142 | Ratio i: 3-100 | Stages: 1/2 | Output shaft: specify S1/S2/S3
AB180 Legacy code: frame-level listing, order full code | Frame: 180 | Ratio i: 3-100 | Stages: 1/2 | Output shaft: specify S1/S2/S3
AB220 Legacy code: frame-level listing, order full code | Frame: 220 | Ratio i: 3-100 | Stages: 1/2 | Output shaft: specify S1/S2/S3
Planetary GearboxesApex Dynamics
831 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics AB Precision Planetary Gearboxes (Frames 142-220)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (831)

AB142-003-S1-P0, AB142-003-S1-P1, AB142-003-S1-P2, AB142-003-S2-P0, AB142-003-S2-P1, AB142-003-S2-P2, AB142-003-S3-P0, AB142-003-S3-P1, AB142-003-S3-P2, AB142-004-S1-P0 + 821 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AB142-003-S1-P0Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-003-S1-P1Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-003-S1-P2Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-003-S2-P0Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-003-S2-P1Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-003-S2-P2Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-003-S3-P0Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-003-S3-P1Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-003-S3-P2Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-004-S1-P0Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-004-S1-P1Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-004-S1-P2Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-004-S2-P0Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-004-S2-P1Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-004-S2-P2Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-004-S3-P0Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-004-S3-P1Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-004-S3-P2Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-005-S1-P0Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-005-S1-P1Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-005-S1-P2Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-005-S2-P0Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-005-S2-P1Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-005-S2-P2Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-005-S3-P0Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-005-S3-P1Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-005-S3-P2Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-006-S1-P0Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-006-S1-P1Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-006-S1-P2Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-006-S2-P0Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-006-S2-P1Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-006-S2-P2Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-006-S3-P0Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-006-S3-P1Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-006-S3-P2Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-007-S1-P0Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-007-S1-P1Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-007-S1-P2Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-007-S2-P0Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-007-S2-P1Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-007-S2-P2Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-007-S3-P0Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-007-S3-P1Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-007-S3-P2Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-008-S1-P0Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-008-S1-P1Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-008-S1-P2Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-008-S2-P0Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-008-S2-P1Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-008-S2-P2Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-008-S3-P0Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-008-S3-P1Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-008-S3-P2Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-009-S1-P0Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-009-S1-P1Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-009-S1-P2Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-009-S2-P0Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-009-S2-P1Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-009-S2-P2Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-009-S3-P0Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-009-S3-P1Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-009-S3-P2Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-010-S1-P0Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-010-S1-P1Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-010-S1-P2Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-010-S2-P0Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-010-S2-P1Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-010-S2-P2Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-010-S3-P0Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-010-S3-P1Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-010-S3-P2Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-012-S1-P0Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-012-S1-P1Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-012-S1-P2Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-012-S2-P0Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-012-S2-P1Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-012-S2-P2Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-012-S3-P0Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-012-S3-P1Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-012-S3-P2Frame: 142 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-015-S1-P0Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-015-S1-P1Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-015-S1-P2Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142-015-S2-P0Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-015-S2-P1Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-015-S2-P2Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142-015-S3-P0Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-015-S3-P1Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-015-S3-P2Frame: 142 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142-016-S1-P0Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-016-S1-P1Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-016-S1-P2Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-016-S2-P0Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-016-S2-P1Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-016-S2-P2Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-016-S3-P0Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-016-S3-P1Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-016-S3-P2Frame: 142 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-020-S1-P0Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-020-S1-P1Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-020-S1-P2Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142-020-S2-P0Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-020-S2-P1Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-020-S2-P2Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142-020-S3-P0Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-020-S3-P1Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-020-S3-P2Frame: 142 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142-025-S1-P0Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-025-S1-P1Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-025-S1-P2Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-025-S2-P0Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-025-S2-P1Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-025-S2-P2Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-025-S3-P0Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-025-S3-P1Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-025-S3-P2Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-028-S1-P0Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-028-S1-P1Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-028-S1-P2Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-028-S2-P0Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-028-S2-P1Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-028-S2-P2Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-028-S3-P0Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-028-S3-P1Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-028-S3-P2Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-030-S1-P0Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-030-S1-P1Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-030-S1-P2Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-030-S2-P0Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-030-S2-P1Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-030-S2-P2Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-030-S3-P0Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-030-S3-P1Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-030-S3-P2Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-032-S1-P0Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-032-S1-P1Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-032-S1-P2Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-032-S2-P0Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-032-S2-P1Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-032-S2-P2Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-032-S3-P0Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-032-S3-P1Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-032-S3-P2Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-035-S1-P0Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-035-S1-P1Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-035-S1-P2Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-035-S2-P0Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-035-S2-P1Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-035-S2-P2Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-035-S3-P0Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-035-S3-P1Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-035-S3-P2Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-040-S1-P0Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-040-S1-P1Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-040-S1-P2Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-040-S2-P0Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-040-S2-P1Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-040-S2-P2Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-040-S3-P0Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-040-S3-P1Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-040-S3-P2Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-045-S1-P0Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-045-S1-P1Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-045-S1-P2Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-045-S2-P0Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-045-S2-P1Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-045-S2-P2Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-045-S3-P0Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-045-S3-P1Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-045-S3-P2Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-050-S1-P0Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-050-S1-P1Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-050-S1-P2Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142-050-S2-P0Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-050-S2-P1Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-050-S2-P2Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142-050-S3-P0Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-050-S3-P1Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-050-S3-P2Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142-060-S1-P0Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-060-S1-P1Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-060-S1-P2Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142-060-S2-P0Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-060-S2-P1Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-060-S2-P2Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142-060-S3-P0Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-060-S3-P1Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-060-S3-P2Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142-070-S1-P0Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-070-S1-P1Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-070-S1-P2Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142-070-S2-P0Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-070-S2-P1Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-070-S2-P2Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142-070-S3-P0Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-070-S3-P1Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-070-S3-P2Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142-080-S1-P0Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-080-S1-P1Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-080-S1-P2Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142-080-S2-P0Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-080-S2-P1Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-080-S2-P2Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142-080-S3-P0Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-080-S3-P1Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-080-S3-P2Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142-090-S1-P0Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-090-S1-P1Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-090-S1-P2Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-090-S2-P0Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-090-S2-P1Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-090-S2-P2Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-090-S3-P0Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-090-S3-P1Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-090-S3-P2Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-100-S1-P0Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-100-S1-P1Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-100-S1-P2Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142-100-S2-P0Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-100-S2-P1Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-100-S2-P2Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142-100-S3-P0Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-100-S3-P1Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142-100-S3-P2Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-012-S1-P0Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-012-S1-P1Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-012-S1-P2Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-012-S2-P0Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-012-S2-P1Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-012-S2-P2Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-012-S3-P0Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-012-S3-P1Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-012-S3-P2Frame: 142A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-015-S1-P0Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142A-015-S1-P1Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142A-015-S1-P2Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AB142A-015-S2-P0Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142A-015-S2-P1Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142A-015-S2-P2Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AB142A-015-S3-P0Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142A-015-S3-P1Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142A-015-S3-P2Frame: 142A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AB142A-016-S1-P0Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-016-S1-P1Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-016-S1-P2Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-016-S2-P0Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-016-S2-P1Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-016-S2-P2Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-016-S3-P0Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-016-S3-P1Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-016-S3-P2Frame: 142A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-020-S1-P0Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-020-S1-P1Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-020-S1-P2Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AB142A-020-S2-P0Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-020-S2-P1Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-020-S2-P2Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AB142A-020-S3-P0Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-020-S3-P1Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-020-S3-P2Frame: 142A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AB142A-025-S1-P0Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-025-S1-P1Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-025-S1-P2Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-025-S2-P0Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-025-S2-P1Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-025-S2-P2Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-025-S3-P0Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-025-S3-P1Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-025-S3-P2Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-028-S1-P0Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-028-S1-P1Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-028-S1-P2Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-028-S2-P0Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-028-S2-P1Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-028-S2-P2Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-028-S3-P0Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-028-S3-P1Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-028-S3-P2Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-030-S1-P0Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-030-S1-P1Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-030-S1-P2Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-030-S2-P0Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-030-S2-P1Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-030-S2-P2Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-030-S3-P0Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-030-S3-P1Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-030-S3-P2Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-032-S1-P0Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-032-S1-P1Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-032-S1-P2Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-032-S2-P0Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-032-S2-P1Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-032-S2-P2Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-032-S3-P0Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-032-S3-P1Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-032-S3-P2Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-035-S1-P0Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-035-S1-P1Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-035-S1-P2Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-035-S2-P0Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-035-S2-P1Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-035-S2-P2Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-035-S3-P0Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-035-S3-P1Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-035-S3-P2Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-040-S1-P0Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-040-S1-P1Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-040-S1-P2Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-040-S2-P0Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-040-S2-P1Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-040-S2-P2Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-040-S3-P0Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-040-S3-P1Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-040-S3-P2Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-045-S1-P0Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-045-S1-P1Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-045-S1-P2Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-045-S2-P0Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-045-S2-P1Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-045-S2-P2Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-045-S3-P0Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-045-S3-P1Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-045-S3-P2Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-050-S1-P0Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-050-S1-P1Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-050-S1-P2Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AB142A-050-S2-P0Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-050-S2-P1Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-050-S2-P2Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AB142A-050-S3-P0Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-050-S3-P1Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-050-S3-P2Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AB142A-060-S1-P0Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-060-S1-P1Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-060-S1-P2Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AB142A-060-S2-P0Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-060-S2-P1Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-060-S2-P2Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AB142A-060-S3-P0Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-060-S3-P1Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-060-S3-P2Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AB142A-070-S1-P0Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-070-S1-P1Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-070-S1-P2Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AB142A-070-S2-P0Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-070-S2-P1Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-070-S2-P2Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AB142A-070-S3-P0Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-070-S3-P1Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-070-S3-P2Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AB142A-080-S1-P0Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-080-S1-P1Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-080-S1-P2Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AB142A-080-S2-P0Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-080-S2-P1Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-080-S2-P2Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AB142A-080-S3-P0Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-080-S3-P1Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-080-S3-P2Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AB142A-090-S1-P0Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-090-S1-P1Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-090-S1-P2Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-090-S2-P0Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-090-S2-P1Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-090-S2-P2Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-090-S3-P0Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-090-S3-P1Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-090-S3-P2Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-100-S1-P0Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-100-S1-P1Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-100-S1-P2Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AB142A-100-S2-P0Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-100-S2-P1Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-100-S2-P2Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AB142A-100-S3-P0Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-100-S3-P1Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB142A-100-S3-P2Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AB180-003-S1-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-003-S1-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-003-S1-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-003-S2-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-003-S2-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-003-S2-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-003-S3-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-003-S3-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-003-S3-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-004-S1-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-004-S1-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-004-S1-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-004-S2-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-004-S2-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-004-S2-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-004-S3-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-004-S3-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-004-S3-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-005-S1-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-005-S1-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-005-S1-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-005-S2-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-005-S2-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-005-S2-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-005-S3-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-005-S3-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-005-S3-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-006-S1-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-006-S1-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-006-S1-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-006-S2-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-006-S2-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-006-S2-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-006-S3-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-006-S3-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-006-S3-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-007-S1-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-007-S1-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-007-S1-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-007-S2-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-007-S2-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-007-S2-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-007-S3-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-007-S3-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-007-S3-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-008-S1-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-008-S1-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-008-S1-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-008-S2-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-008-S2-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-008-S2-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-008-S3-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-008-S3-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-008-S3-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-009-S1-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-009-S1-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-009-S1-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-009-S2-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-009-S2-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-009-S2-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-009-S3-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-009-S3-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-009-S3-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-010-S1-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-010-S1-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-010-S1-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-010-S2-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-010-S2-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-010-S2-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-010-S3-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-010-S3-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-010-S3-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-012-S1-P0Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-012-S1-P1Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-012-S1-P2Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-012-S2-P0Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-012-S2-P1Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-012-S2-P2Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-012-S3-P0Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-012-S3-P1Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-012-S3-P2Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-015-S1-P0Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-015-S1-P1Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-015-S1-P2Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AB180-015-S2-P0Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-015-S2-P1Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-015-S2-P2Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AB180-015-S3-P0Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-015-S3-P1Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-015-S3-P2Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AB180-016-S1-P0Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-016-S1-P1Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-016-S1-P2Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-016-S2-P0Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-016-S2-P1Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-016-S2-P2Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-016-S3-P0Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-016-S3-P1Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-016-S3-P2Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-020-S1-P0Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-020-S1-P1Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-020-S1-P2Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AB180-020-S2-P0Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-020-S2-P1Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-020-S2-P2Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AB180-020-S3-P0Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-020-S3-P1Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-020-S3-P2Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AB180-025-S1-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-025-S1-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-025-S1-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-025-S2-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-025-S2-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-025-S2-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-025-S3-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-025-S3-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-025-S3-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-028-S1-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-028-S1-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-028-S1-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-028-S2-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-028-S2-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-028-S2-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-028-S3-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-028-S3-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-028-S3-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-030-S1-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-030-S1-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-030-S1-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-030-S2-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-030-S2-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-030-S2-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-030-S3-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-030-S3-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-030-S3-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-032-S1-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-032-S1-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-032-S1-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-032-S2-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-032-S2-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-032-S2-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-032-S3-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-032-S3-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-032-S3-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-035-S1-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-035-S1-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-035-S1-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-035-S2-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-035-S2-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-035-S2-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-035-S3-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-035-S3-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-035-S3-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-040-S1-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-040-S1-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-040-S1-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-040-S2-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-040-S2-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-040-S2-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-040-S3-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-040-S3-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-040-S3-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-045-S1-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-045-S1-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-045-S1-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-045-S2-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-045-S2-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-045-S2-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-045-S3-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-045-S3-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-045-S3-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-050-S1-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-050-S1-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-050-S1-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AB180-050-S2-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-050-S2-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-050-S2-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AB180-050-S3-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-050-S3-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-050-S3-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AB180-060-S1-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-060-S1-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-060-S1-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-060-S2-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-060-S2-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-060-S2-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-060-S3-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-060-S3-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-060-S3-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-070-S1-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-070-S1-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-070-S1-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AB180-070-S2-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-070-S2-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-070-S2-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AB180-070-S3-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-070-S3-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-070-S3-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AB180-080-S1-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-080-S1-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-080-S1-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AB180-080-S2-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-080-S2-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-080-S2-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AB180-080-S3-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-080-S3-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-080-S3-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AB180-090-S1-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-090-S1-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-090-S1-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-090-S2-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-090-S2-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-090-S2-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-090-S3-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-090-S3-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-090-S3-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-100-S1-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-100-S1-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-100-S1-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AB180-100-S2-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-100-S2-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-100-S2-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AB180-100-S3-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-100-S3-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB180-100-S3-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AB220-003-S1-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-003-S1-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-003-S1-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-003-S2-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-003-S2-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-003-S2-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-003-S3-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-003-S3-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-003-S3-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-004-S1-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-004-S1-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-004-S1-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-004-S2-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-004-S2-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-004-S2-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-004-S3-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-004-S3-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-004-S3-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-005-S1-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-005-S1-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-005-S1-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-005-S2-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-005-S2-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-005-S2-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-005-S3-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-005-S3-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-005-S3-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-006-S1-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-006-S1-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-006-S1-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-006-S2-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-006-S2-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-006-S2-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-006-S3-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-006-S3-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-006-S3-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-007-S1-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-007-S1-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-007-S1-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-007-S2-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-007-S2-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-007-S2-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-007-S3-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-007-S3-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-007-S3-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-008-S1-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-008-S1-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-008-S1-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-008-S2-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-008-S2-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-008-S2-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-008-S3-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-008-S3-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-008-S3-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-009-S1-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-009-S1-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-009-S1-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-009-S2-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-009-S2-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-009-S2-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-009-S3-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-009-S3-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-009-S3-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-010-S1-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-010-S1-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-010-S1-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-010-S2-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-010-S2-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-010-S2-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-010-S3-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-010-S3-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-010-S3-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-012-S1-P0Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-012-S1-P1Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-012-S1-P2Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-012-S2-P0Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-012-S2-P1Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-012-S2-P2Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-012-S3-P0Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-012-S3-P1Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-012-S3-P2Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-015-S1-P0Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-015-S1-P1Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-015-S1-P2Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AB220-015-S2-P0Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-015-S2-P1Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-015-S2-P2Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AB220-015-S3-P0Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-015-S3-P1Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-015-S3-P2Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AB220-016-S1-P0Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-016-S1-P1Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-016-S1-P2Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-016-S2-P0Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-016-S2-P1Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-016-S2-P2Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-016-S3-P0Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-016-S3-P1Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-016-S3-P2Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-020-S1-P0Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-020-S1-P1Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-020-S1-P2Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AB220-020-S2-P0Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-020-S2-P1Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-020-S2-P2Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AB220-020-S3-P0Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-020-S3-P1Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-020-S3-P2Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AB220-025-S1-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-025-S1-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-025-S1-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-025-S2-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-025-S2-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-025-S2-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-025-S3-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-025-S3-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-025-S3-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-028-S1-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-028-S1-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-028-S1-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-028-S2-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-028-S2-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-028-S2-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-028-S3-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-028-S3-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-028-S3-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-030-S1-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-030-S1-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-030-S1-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-030-S2-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-030-S2-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-030-S2-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-030-S3-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-030-S3-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-030-S3-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-032-S1-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-032-S1-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-032-S1-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-032-S2-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-032-S2-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-032-S2-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-032-S3-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-032-S3-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-032-S3-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-035-S1-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-035-S1-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-035-S1-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-035-S2-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-035-S2-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-035-S2-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-035-S3-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-035-S3-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-035-S3-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-040-S1-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-040-S1-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-040-S1-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-040-S2-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-040-S2-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-040-S2-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-040-S3-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-040-S3-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-040-S3-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-045-S1-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-045-S1-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-045-S1-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-045-S2-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-045-S2-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-045-S2-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-045-S3-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-045-S3-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-045-S3-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-050-S1-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-050-S1-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-050-S1-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AB220-050-S2-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-050-S2-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-050-S2-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AB220-050-S3-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-050-S3-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-050-S3-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AB220-060-S1-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-060-S1-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-060-S1-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AB220-060-S2-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-060-S2-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-060-S2-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AB220-060-S3-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-060-S3-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-060-S3-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AB220-070-S1-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-070-S1-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-070-S1-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AB220-070-S2-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-070-S2-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-070-S2-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AB220-070-S3-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-070-S3-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-070-S3-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AB220-080-S1-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-080-S1-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-080-S1-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AB220-080-S2-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-080-S2-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-080-S2-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AB220-080-S3-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-080-S3-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-080-S3-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AB220-090-S1-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-090-S1-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-090-S1-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-090-S2-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-090-S2-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-090-S2-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-090-S3-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-090-S3-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-090-S3-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-100-S1-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-100-S1-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-100-S1-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AB220-100-S2-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-100-S2-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-100-S2-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AB220-100-S3-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-100-S3-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB220-100-S3-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AB142Legacy code: frame-level listing, order full code | Frame: 142 | Ratio i: 3-100 | Stages: 1/2 | Output shaft: specify S1/S2/S3
AB180Legacy code: frame-level listing, order full code | Frame: 180 | Ratio i: 3-100 | Stages: 1/2 | Output shaft: specify S1/S2/S3
AB220Legacy code: frame-level listing, order full code | Frame: 220 | Ratio i: 3-100 | Stages: 1/2 | Output shaft: specify S1/S2/S3

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
