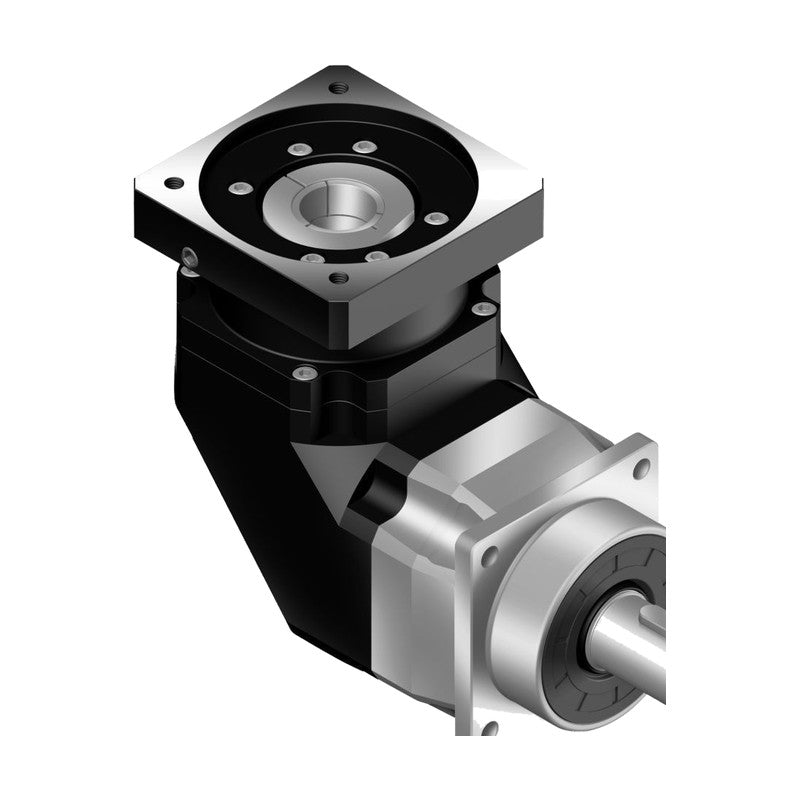

Apex Dynamics ABR Right-Angle Planetary Gearboxes (Frames 142-220)

Apex Dynamics ABR Right-Angle Planetary Gearboxes (Frames 142-220)

APEX Dynamics ABR high-precision right-angle planetary gearboxes with spiral bevel input stage, frames 142 to 220, ratios 3 to 200.

Key features

  • Order code ABR<frame>-<ratio>-<shaft>-<backlash> / motor, e.g. ABR090-010-S1-P1 / SIEMENS 1FT6 041-4AF71
  • Spiral bevel right-angle stage combined with helical planetary output for compact installation length
  • Backlash: P0 micro <=2 arcmin (1-stage) / <=4 (2-stage); P1 reduced <=4/<=7; P2 standard <=6/<=9 arcmin
  • Output shafts: S1 smooth, S2 with key, S3 DIN 5480 spline (S3 not offered on ABR042)
  • A frames (060A, 090A, 115A, 142A) are 2-stage versions accepting a larger motor flange
  • Nominal input speed 5,000 rpm (042-060A) to 2,000 rpm (220); torsional rigidity 3 to 225 Nm/arcmin

Specifications

Gear type Helical planetary + spiral bevel, right-angle
Stages / ratios 1-stage i=3-20, 2-stage i=12-200
Efficiency >=95% (1-stage), >=92% (2-stage)
Emergency stop torque T2NOT 3 x nominal output torque
Protection / lubrication IP65, synthetic lubrication oil
Operating temperature -10 to +90 C
Mounting position All directions
Motor adapter Specify motor make and model when ordering
Frame sizes 142, 142A, 180, 220
Source APEX Dynamics ABR catalog, p. 3-11
ABR142-003-S1-P0 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
ABR142-003-S1-P1 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
ABR142-003-S1-P2 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
ABR142-003-S2-P0 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
ABR142-003-S2-P1 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
ABR142-003-S2-P2 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
ABR142-003-S3-P0 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
ABR142-003-S3-P1 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
ABR142-003-S3-P2 Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
ABR142-004-S1-P0 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 520 Nm
ABR142-004-S1-P1 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 520 Nm
ABR142-004-S1-P2 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 520 Nm
ABR142-004-S2-P0 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 520 Nm
ABR142-004-S2-P1 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 520 Nm
ABR142-004-S2-P2 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 520 Nm
ABR142-004-S3-P0 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 520 Nm
ABR142-004-S3-P1 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 520 Nm
ABR142-004-S3-P2 Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 520 Nm
ABR142-005-S1-P0 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-005-S1-P1 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-005-S1-P2 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-005-S2-P0 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-005-S2-P1 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-005-S2-P2 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-005-S3-P0 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-005-S3-P1 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-005-S3-P2 Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-006-S1-P0 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-006-S1-P1 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-006-S1-P2 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-006-S2-P0 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-006-S2-P1 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-006-S2-P2 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-006-S3-P0 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-006-S3-P1 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-006-S3-P2 Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-007-S1-P0 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-007-S1-P1 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-007-S1-P2 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-007-S2-P0 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-007-S2-P1 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-007-S2-P2 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-007-S3-P0 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-007-S3-P1 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-007-S3-P2 Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-008-S1-P0 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-008-S1-P1 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-008-S1-P2 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-008-S2-P0 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-008-S2-P1 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-008-S2-P2 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-008-S3-P0 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-008-S3-P1 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-008-S3-P2 Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-009-S1-P0 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-009-S1-P1 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-009-S1-P2 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-009-S2-P0 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-009-S2-P1 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-009-S2-P2 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-009-S3-P0 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-009-S3-P1 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-009-S3-P2 Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-010-S1-P0 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-010-S1-P1 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-010-S1-P2 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-010-S2-P0 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-010-S2-P1 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-010-S2-P2 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-010-S3-P0 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-010-S3-P1 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-010-S3-P2 Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-012-S1-P0 Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-012-S1-P1 Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-012-S1-P2 Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-012-S2-P0 Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-012-S2-P1 Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-012-S2-P2 Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-012-S3-P0 Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-012-S3-P1 Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-012-S3-P2 Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-014-S1-P0 Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-014-S1-P1 Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-014-S1-P2 Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-014-S2-P0 Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-014-S2-P1 Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-014-S2-P2 Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-014-S3-P0 Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-014-S3-P1 Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-014-S3-P2 Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-016-S1-P0 Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-016-S1-P1 Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-016-S1-P2 Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-016-S2-P0 Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-016-S2-P1 Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-016-S2-P2 Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-016-S3-P0 Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-016-S3-P1 Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-016-S3-P2 Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-020-S1-P0 Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-020-S1-P1 Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-020-S1-P2 Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-020-S2-P0 Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-020-S2-P1 Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-020-S2-P2 Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-020-S3-P0 Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-020-S3-P1 Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-020-S3-P2 Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-025-S1-P0 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-025-S1-P1 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-025-S1-P2 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-025-S2-P0 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-025-S2-P1 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-025-S2-P2 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-025-S3-P0 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-025-S3-P1 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-025-S3-P2 Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-028-S1-P0 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-028-S1-P1 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-028-S1-P2 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-028-S2-P0 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-028-S2-P1 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-028-S2-P2 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-028-S3-P0 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-028-S3-P1 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-028-S3-P2 Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-030-S1-P0 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-030-S1-P1 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-030-S1-P2 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-030-S2-P0 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-030-S2-P1 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-030-S2-P2 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-030-S3-P0 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-030-S3-P1 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-030-S3-P2 Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-032-S1-P0 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-032-S1-P1 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-032-S1-P2 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-032-S2-P0 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-032-S2-P1 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-032-S2-P2 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-032-S3-P0 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-032-S3-P1 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-032-S3-P2 Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-035-S1-P0 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-035-S1-P1 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-035-S1-P2 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-035-S2-P0 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-035-S2-P1 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-035-S2-P2 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-035-S3-P0 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-035-S3-P1 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-035-S3-P2 Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-040-S1-P0 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-040-S1-P1 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-040-S1-P2 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-040-S2-P0 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-040-S2-P1 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-040-S2-P2 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-040-S3-P0 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-040-S3-P1 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-040-S3-P2 Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-045-S1-P0 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-045-S1-P1 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-045-S1-P2 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-045-S2-P0 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-045-S2-P1 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-045-S2-P2 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-045-S3-P0 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-045-S3-P1 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-045-S3-P2 Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-048-S1-P0 Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-048-S1-P1 Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-048-S1-P2 Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-048-S2-P0 Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-048-S2-P1 Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-048-S2-P2 Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-048-S3-P0 Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-048-S3-P1 Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-048-S3-P2 Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-050-S1-P0 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-050-S1-P1 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-050-S1-P2 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-050-S2-P0 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-050-S2-P1 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-050-S2-P2 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-050-S3-P0 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-050-S3-P1 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-050-S3-P2 Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-060-S1-P0 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-060-S1-P1 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-060-S1-P2 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-060-S2-P0 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-060-S2-P1 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-060-S2-P2 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-060-S3-P0 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-060-S3-P1 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-060-S3-P2 Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-064-S1-P0 Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-064-S1-P1 Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-064-S1-P2 Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-064-S2-P0 Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-064-S2-P1 Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-064-S2-P2 Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-064-S3-P0 Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-064-S3-P1 Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-064-S3-P2 Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-070-S1-P0 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-070-S1-P1 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-070-S1-P2 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-070-S2-P0 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-070-S2-P1 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-070-S2-P2 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-070-S3-P0 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-070-S3-P1 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-070-S3-P2 Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-080-S1-P0 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-080-S1-P1 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-080-S1-P2 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-080-S2-P0 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-080-S2-P1 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-080-S2-P2 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-080-S3-P0 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-080-S3-P1 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-080-S3-P2 Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-090-S1-P0 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-090-S1-P1 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-090-S1-P2 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-090-S2-P0 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-090-S2-P1 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-090-S2-P2 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-090-S3-P0 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-090-S3-P1 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-090-S3-P2 Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-100-S1-P0 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-100-S1-P1 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-100-S1-P2 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-100-S2-P0 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-100-S2-P1 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-100-S2-P2 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-100-S3-P0 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-100-S3-P1 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-100-S3-P2 Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-120-S1-P0 Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-120-S1-P1 Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-120-S1-P2 Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-120-S2-P0 Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-120-S2-P1 Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-120-S2-P2 Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-120-S3-P0 Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-120-S3-P1 Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-120-S3-P2 Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-140-S1-P0 Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-140-S1-P1 Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-140-S1-P2 Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-140-S2-P0 Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-140-S2-P1 Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-140-S2-P2 Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-140-S3-P0 Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-140-S3-P1 Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-140-S3-P2 Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-160-S1-P0 Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-160-S1-P1 Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-160-S1-P2 Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-160-S2-P0 Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-160-S2-P1 Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-160-S2-P2 Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-160-S3-P0 Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-160-S3-P1 Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-160-S3-P2 Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-180-S1-P0 Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-180-S1-P1 Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-180-S1-P2 Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-180-S2-P0 Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-180-S2-P1 Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-180-S2-P2 Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-180-S3-P0 Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-180-S3-P1 Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-180-S3-P2 Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-200-S1-P0 Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-200-S1-P1 Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-200-S1-P2 Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-200-S2-P0 Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-200-S2-P1 Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-200-S2-P2 Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-200-S3-P0 Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-200-S3-P1 Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-200-S3-P2 Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-025-S1-P0 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-025-S1-P1 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-025-S1-P2 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-025-S2-P0 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-025-S2-P1 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-025-S2-P2 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-025-S3-P0 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-025-S3-P1 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-025-S3-P2 Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-028-S1-P0 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-028-S1-P1 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-028-S1-P2 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-028-S2-P0 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-028-S2-P1 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-028-S2-P2 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-028-S3-P0 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-028-S3-P1 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-028-S3-P2 Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-030-S1-P0 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-030-S1-P1 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-030-S1-P2 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-030-S2-P0 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-030-S2-P1 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-030-S2-P2 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-030-S3-P0 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-030-S3-P1 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-030-S3-P2 Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-032-S1-P0 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-032-S1-P1 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-032-S1-P2 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-032-S2-P0 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-032-S2-P1 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-032-S2-P2 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-032-S3-P0 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-032-S3-P1 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-032-S3-P2 Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-035-S1-P0 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-035-S1-P1 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-035-S1-P2 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-035-S2-P0 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-035-S2-P1 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-035-S2-P2 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-035-S3-P0 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-035-S3-P1 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-035-S3-P2 Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-040-S1-P0 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-040-S1-P1 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-040-S1-P2 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-040-S2-P0 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-040-S2-P1 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-040-S2-P2 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-040-S3-P0 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-040-S3-P1 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-040-S3-P2 Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-045-S1-P0 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-045-S1-P1 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-045-S1-P2 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-045-S2-P0 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-045-S2-P1 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-045-S2-P2 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-045-S3-P0 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-045-S3-P1 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-045-S3-P2 Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-048-S1-P0 Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-048-S1-P1 Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-048-S1-P2 Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-048-S2-P0 Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-048-S2-P1 Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-048-S2-P2 Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-048-S3-P0 Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-048-S3-P1 Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-048-S3-P2 Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-050-S1-P0 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-050-S1-P1 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-050-S1-P2 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-050-S2-P0 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-050-S2-P1 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-050-S2-P2 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-050-S3-P0 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-050-S3-P1 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-050-S3-P2 Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-060-S1-P0 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-060-S1-P1 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-060-S1-P2 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-060-S2-P0 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-060-S2-P1 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-060-S2-P2 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-060-S3-P0 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-060-S3-P1 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-060-S3-P2 Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-064-S1-P0 Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-064-S1-P1 Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-064-S1-P2 Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-064-S2-P0 Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-064-S2-P1 Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-064-S2-P2 Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-064-S3-P0 Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-064-S3-P1 Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-064-S3-P2 Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-070-S1-P0 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-070-S1-P1 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-070-S1-P2 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-070-S2-P0 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-070-S2-P1 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-070-S2-P2 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-070-S3-P0 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-070-S3-P1 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-070-S3-P2 Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-080-S1-P0 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-080-S1-P1 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-080-S1-P2 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-080-S2-P0 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-080-S2-P1 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-080-S2-P2 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-080-S3-P0 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-080-S3-P1 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-080-S3-P2 Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-090-S1-P0 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-090-S1-P1 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-090-S1-P2 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-090-S2-P0 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-090-S2-P1 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-090-S2-P2 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-090-S3-P0 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-090-S3-P1 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-090-S3-P2 Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-100-S1-P0 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-100-S1-P1 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-100-S1-P2 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-100-S2-P0 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-100-S2-P1 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-100-S2-P2 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-100-S3-P0 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-100-S3-P1 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-100-S3-P2 Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-120-S1-P0 Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-120-S1-P1 Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-120-S1-P2 Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-120-S2-P0 Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-120-S2-P1 Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-120-S2-P2 Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-120-S3-P0 Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-120-S3-P1 Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-120-S3-P2 Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-140-S1-P0 Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-140-S1-P1 Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-140-S1-P2 Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-140-S2-P0 Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-140-S2-P1 Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-140-S2-P2 Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-140-S3-P0 Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-140-S3-P1 Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-140-S3-P2 Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-160-S1-P0 Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-160-S1-P1 Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-160-S1-P2 Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-160-S2-P0 Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-160-S2-P1 Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-160-S2-P2 Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-160-S3-P0 Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-160-S3-P1 Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-160-S3-P2 Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-180-S1-P0 Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-180-S1-P1 Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-180-S1-P2 Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-180-S2-P0 Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-180-S2-P1 Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-180-S2-P2 Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-180-S3-P0 Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-180-S3-P1 Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-180-S3-P2 Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-200-S1-P0 Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-200-S1-P1 Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-200-S1-P2 Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-200-S2-P0 Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-200-S2-P1 Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-200-S2-P2 Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-200-S3-P0 Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-200-S3-P1 Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-200-S3-P2 Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR180-003-S1-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
ABR180-003-S1-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
ABR180-003-S1-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
ABR180-003-S2-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
ABR180-003-S2-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
ABR180-003-S2-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
ABR180-003-S3-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
ABR180-003-S3-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
ABR180-003-S3-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
ABR180-004-S1-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
ABR180-004-S1-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
ABR180-004-S1-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
ABR180-004-S2-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
ABR180-004-S2-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
ABR180-004-S2-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
ABR180-004-S3-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
ABR180-004-S3-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
ABR180-004-S3-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
ABR180-005-S1-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-005-S1-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-005-S1-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-005-S2-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-005-S2-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-005-S2-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-005-S3-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-005-S3-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-005-S3-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-006-S1-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-006-S1-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-006-S1-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-006-S2-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-006-S2-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-006-S2-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-006-S3-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-006-S3-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-006-S3-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-007-S1-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-007-S1-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-007-S1-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-007-S2-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-007-S2-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-007-S2-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-007-S3-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-007-S3-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-007-S3-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-008-S1-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-008-S1-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-008-S1-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-008-S2-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-008-S2-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-008-S2-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-008-S3-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-008-S3-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-008-S3-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-009-S1-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-009-S1-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-009-S1-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-009-S2-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-009-S2-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-009-S2-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-009-S3-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-009-S3-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-009-S3-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-010-S1-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-010-S1-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-010-S1-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-010-S2-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-010-S2-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-010-S2-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-010-S3-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-010-S3-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-010-S3-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-012-S1-P0 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-012-S1-P1 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-012-S1-P2 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-012-S2-P0 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-012-S2-P1 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-012-S2-P2 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-012-S3-P0 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-012-S3-P1 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-012-S3-P2 Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-014-S1-P0 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-014-S1-P1 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-014-S1-P2 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-014-S2-P0 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-014-S2-P1 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-014-S2-P2 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-014-S3-P0 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-014-S3-P1 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-014-S3-P2 Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-016-S1-P0 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-016-S1-P1 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-016-S1-P2 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-016-S2-P0 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-016-S2-P1 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-016-S2-P2 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-016-S3-P0 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-016-S3-P1 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-016-S3-P2 Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-020-S1-P0 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-020-S1-P1 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-020-S1-P2 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-020-S2-P0 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-020-S2-P1 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-020-S2-P2 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-020-S3-P0 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-020-S3-P1 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-020-S3-P2 Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-025-S1-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-025-S1-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-025-S1-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-025-S2-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-025-S2-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-025-S2-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-025-S3-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-025-S3-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-025-S3-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-028-S1-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-028-S1-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-028-S1-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-028-S2-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-028-S2-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-028-S2-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-028-S3-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-028-S3-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-028-S3-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-030-S1-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-030-S1-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-030-S1-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-030-S2-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-030-S2-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-030-S2-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-030-S3-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-030-S3-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-030-S3-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-032-S1-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-032-S1-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-032-S1-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-032-S2-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-032-S2-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-032-S2-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-032-S3-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-032-S3-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-032-S3-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-035-S1-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-035-S1-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-035-S1-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-035-S2-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-035-S2-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-035-S2-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-035-S3-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-035-S3-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-035-S3-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-040-S1-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-040-S1-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-040-S1-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-040-S2-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-040-S2-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-040-S2-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-040-S3-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-040-S3-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-040-S3-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-045-S1-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-045-S1-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-045-S1-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-045-S2-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-045-S2-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-045-S2-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-045-S3-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-045-S3-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-045-S3-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-048-S1-P0 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-048-S1-P1 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-048-S1-P2 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-048-S2-P0 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-048-S2-P1 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-048-S2-P2 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-048-S3-P0 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-048-S3-P1 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-048-S3-P2 Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-050-S1-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-050-S1-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-050-S1-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-050-S2-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-050-S2-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-050-S2-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-050-S3-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-050-S3-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-050-S3-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-060-S1-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-060-S1-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-060-S1-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-060-S2-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-060-S2-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-060-S2-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-060-S3-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-060-S3-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-060-S3-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-064-S1-P0 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-064-S1-P1 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-064-S1-P2 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-064-S2-P0 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-064-S2-P1 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-064-S2-P2 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-064-S3-P0 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-064-S3-P1 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-064-S3-P2 Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-070-S1-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-070-S1-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-070-S1-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-070-S2-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-070-S2-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-070-S2-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-070-S3-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-070-S3-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-070-S3-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-080-S1-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-080-S1-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-080-S1-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-080-S2-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-080-S2-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-080-S2-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-080-S3-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-080-S3-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-080-S3-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-090-S1-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-090-S1-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-090-S1-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-090-S2-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-090-S2-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-090-S2-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-090-S3-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-090-S3-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-090-S3-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-100-S1-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-100-S1-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-100-S1-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-100-S2-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-100-S2-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-100-S2-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-100-S3-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-100-S3-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-100-S3-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-120-S1-P0 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-120-S1-P1 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-120-S1-P2 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-120-S2-P0 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-120-S2-P1 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-120-S2-P2 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-120-S3-P0 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-120-S3-P1 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-120-S3-P2 Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-140-S1-P0 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-140-S1-P1 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-140-S1-P2 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-140-S2-P0 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-140-S2-P1 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-140-S2-P2 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-140-S3-P0 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-140-S3-P1 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-140-S3-P2 Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-160-S1-P0 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-160-S1-P1 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-160-S1-P2 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-160-S2-P0 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-160-S2-P1 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-160-S2-P2 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-160-S3-P0 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-160-S3-P1 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-160-S3-P2 Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-180-S1-P0 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-180-S1-P1 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-180-S1-P2 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-180-S2-P0 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-180-S2-P1 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-180-S2-P2 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-180-S3-P0 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-180-S3-P1 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-180-S3-P2 Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-200-S1-P0 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-200-S1-P1 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-200-S1-P2 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-200-S2-P0 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-200-S2-P1 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-200-S2-P2 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-200-S3-P0 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-200-S3-P1 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-200-S3-P2 Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR220-003-S1-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
ABR220-003-S1-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
ABR220-003-S1-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
ABR220-003-S2-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
ABR220-003-S2-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
ABR220-003-S2-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
ABR220-003-S3-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
ABR220-003-S3-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
ABR220-003-S3-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
ABR220-004-S1-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
ABR220-004-S1-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
ABR220-004-S1-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
ABR220-004-S2-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
ABR220-004-S2-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
ABR220-004-S2-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
ABR220-004-S3-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
ABR220-004-S3-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
ABR220-004-S3-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
ABR220-005-S1-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-005-S1-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-005-S1-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-005-S2-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-005-S2-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-005-S2-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-005-S3-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-005-S3-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-005-S3-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-006-S1-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-006-S1-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-006-S1-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-006-S2-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-006-S2-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-006-S2-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-006-S3-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-006-S3-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-006-S3-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-007-S1-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-007-S1-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-007-S1-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-007-S2-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-007-S2-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-007-S2-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-007-S3-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-007-S3-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-007-S3-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-008-S1-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-008-S1-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-008-S1-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-008-S2-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-008-S2-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-008-S2-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-008-S3-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-008-S3-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-008-S3-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-009-S1-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-009-S1-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-009-S1-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-009-S2-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-009-S2-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-009-S2-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-009-S3-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-009-S3-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-009-S3-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-010-S1-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-010-S1-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-010-S1-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-010-S2-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-010-S2-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-010-S2-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-010-S3-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-010-S3-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-010-S3-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-012-S1-P0 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-012-S1-P1 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-012-S1-P2 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-012-S2-P0 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-012-S2-P1 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-012-S2-P2 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-012-S3-P0 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-012-S3-P1 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-012-S3-P2 Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-014-S1-P0 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-014-S1-P1 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-014-S1-P2 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-014-S2-P0 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-014-S2-P1 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-014-S2-P2 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-014-S3-P0 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-014-S3-P1 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-014-S3-P2 Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-016-S1-P0 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-016-S1-P1 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-016-S1-P2 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-016-S2-P0 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-016-S2-P1 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-016-S2-P2 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-016-S3-P0 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-016-S3-P1 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-016-S3-P2 Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-020-S1-P0 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-020-S1-P1 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-020-S1-P2 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-020-S2-P0 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-020-S2-P1 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-020-S2-P2 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-020-S3-P0 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-020-S3-P1 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-020-S3-P2 Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-025-S1-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-025-S1-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-025-S1-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-025-S2-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-025-S2-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-025-S2-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-025-S3-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-025-S3-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-025-S3-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-028-S1-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-028-S1-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-028-S1-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-028-S2-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-028-S2-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-028-S2-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-028-S3-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-028-S3-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-028-S3-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-030-S1-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-030-S1-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-030-S1-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-030-S2-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-030-S2-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-030-S2-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-030-S3-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-030-S3-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-030-S3-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-032-S1-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-032-S1-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-032-S1-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-032-S2-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-032-S2-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-032-S2-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-032-S3-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-032-S3-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-032-S3-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-035-S1-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-035-S1-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-035-S1-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-035-S2-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-035-S2-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-035-S2-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-035-S3-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-035-S3-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-035-S3-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-040-S1-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-040-S1-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-040-S1-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-040-S2-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-040-S2-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-040-S2-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-040-S3-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-040-S3-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-040-S3-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-045-S1-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-045-S1-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-045-S1-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-045-S2-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-045-S2-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-045-S2-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-045-S3-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-045-S3-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-045-S3-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-048-S1-P0 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-048-S1-P1 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-048-S1-P2 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-048-S2-P0 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-048-S2-P1 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-048-S2-P2 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-048-S3-P0 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-048-S3-P1 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-048-S3-P2 Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-050-S1-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-050-S1-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-050-S1-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-050-S2-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-050-S2-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-050-S2-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-050-S3-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-050-S3-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-050-S3-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-060-S1-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-060-S1-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-060-S1-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-060-S2-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-060-S2-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-060-S2-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-060-S3-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-060-S3-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-060-S3-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-064-S1-P0 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-064-S1-P1 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-064-S1-P2 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-064-S2-P0 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-064-S2-P1 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-064-S2-P2 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-064-S3-P0 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-064-S3-P1 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-064-S3-P2 Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-070-S1-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-070-S1-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-070-S1-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-070-S2-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-070-S2-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-070-S2-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-070-S3-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-070-S3-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-070-S3-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-080-S1-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-080-S1-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-080-S1-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-080-S2-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-080-S2-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-080-S2-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-080-S3-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-080-S3-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-080-S3-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-090-S1-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-090-S1-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-090-S1-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-090-S2-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-090-S2-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-090-S2-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-090-S3-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-090-S3-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-090-S3-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-100-S1-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-100-S1-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-100-S1-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-100-S2-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-100-S2-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-100-S2-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-100-S3-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-100-S3-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-100-S3-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-120-S1-P0 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-120-S1-P1 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-120-S1-P2 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-120-S2-P0 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-120-S2-P1 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-120-S2-P2 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-120-S3-P0 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-120-S3-P1 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-120-S3-P2 Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-140-S1-P0 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-140-S1-P1 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-140-S1-P2 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-140-S2-P0 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-140-S2-P1 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-140-S2-P2 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-140-S3-P0 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-140-S3-P1 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-140-S3-P2 Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-160-S1-P0 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-160-S1-P1 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-160-S1-P2 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-160-S2-P0 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-160-S2-P1 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-160-S2-P2 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-160-S3-P0 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-160-S3-P1 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-160-S3-P2 Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-180-S1-P0 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-180-S1-P1 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-180-S1-P2 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-180-S2-P0 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-180-S2-P1 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-180-S2-P2 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-180-S3-P0 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-180-S3-P1 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-180-S3-P2 Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-200-S1-P0 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-200-S1-P1 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-200-S1-P2 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-200-S2-P0 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-200-S2-P1 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-200-S2-P2 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-200-S3-P0 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-200-S3-P1 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-200-S3-P2 Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR142 Legacy code: frame-level listing, order full code | Frame: 142 | Ratio i: 3-200 | Stages: 1/2 | Output shaft: specify S1/S2/S3
ABR180 Legacy code: frame-level listing, order full code | Frame: 180 | Ratio i: 3-200 | Stages: 1/2 | Output shaft: specify S1/S2/S3
ABR220 Legacy code: frame-level listing, order full code | Frame: 220 | Ratio i: 3-200 | Stages: 1/2 | Output shaft: specify S1/S2/S3
Planetary GearboxesApex Dynamics
1047 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics ABR Right-Angle Planetary Gearboxes (Frames 142-220)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (1047)

ABR142-003-S1-P0, ABR142-003-S1-P1, ABR142-003-S1-P2, ABR142-003-S2-P0, ABR142-003-S2-P1, ABR142-003-S2-P2, ABR142-003-S3-P0, ABR142-003-S3-P1, ABR142-003-S3-P2, ABR142-004-S1-P0 + 1037 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABR142-003-S1-P0Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
ABR142-003-S1-P1Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
ABR142-003-S1-P2Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
ABR142-003-S2-P0Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
ABR142-003-S2-P1Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
ABR142-003-S2-P2Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
ABR142-003-S3-P0Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
ABR142-003-S3-P1Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
ABR142-003-S3-P2Frame: 142 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
ABR142-004-S1-P0Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 520 Nm
ABR142-004-S1-P1Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 520 Nm
ABR142-004-S1-P2Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 520 Nm
ABR142-004-S2-P0Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 520 Nm
ABR142-004-S2-P1Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 520 Nm
ABR142-004-S2-P2Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 520 Nm
ABR142-004-S3-P0Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 520 Nm
ABR142-004-S3-P1Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 520 Nm
ABR142-004-S3-P2Frame: 142 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 520 Nm
ABR142-005-S1-P0Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-005-S1-P1Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-005-S1-P2Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-005-S2-P0Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-005-S2-P1Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-005-S2-P2Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-005-S3-P0Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-005-S3-P1Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-005-S3-P2Frame: 142 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-006-S1-P0Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-006-S1-P1Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-006-S1-P2Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-006-S2-P0Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-006-S2-P1Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-006-S2-P2Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-006-S3-P0Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-006-S3-P1Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-006-S3-P2Frame: 142 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-007-S1-P0Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-007-S1-P1Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-007-S1-P2Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-007-S2-P0Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-007-S2-P1Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-007-S2-P2Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-007-S3-P0Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-007-S3-P1Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-007-S3-P2Frame: 142 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-008-S1-P0Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-008-S1-P1Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-008-S1-P2Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-008-S2-P0Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-008-S2-P1Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-008-S2-P2Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-008-S3-P0Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-008-S3-P1Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-008-S3-P2Frame: 142 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-009-S1-P0Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-009-S1-P1Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-009-S1-P2Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-009-S2-P0Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-009-S2-P1Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-009-S2-P2Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-009-S3-P0Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-009-S3-P1Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-009-S3-P2Frame: 142 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-010-S1-P0Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-010-S1-P1Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-010-S1-P2Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-010-S2-P0Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-010-S2-P1Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-010-S2-P2Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-010-S3-P0Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-010-S3-P1Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-010-S3-P2Frame: 142 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-012-S1-P0Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-012-S1-P1Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-012-S1-P2Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-012-S2-P0Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-012-S2-P1Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-012-S2-P2Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-012-S3-P0Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-012-S3-P1Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-012-S3-P2Frame: 142 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-014-S1-P0Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-014-S1-P1Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-014-S1-P2Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-014-S2-P0Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-014-S2-P1Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-014-S2-P2Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-014-S3-P0Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-014-S3-P1Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-014-S3-P2Frame: 142 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-016-S1-P0Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-016-S1-P1Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-016-S1-P2Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-016-S2-P0Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-016-S2-P1Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-016-S2-P2Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-016-S3-P0Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-016-S3-P1Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-016-S3-P2Frame: 142 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-020-S1-P0Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-020-S1-P1Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-020-S1-P2Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-020-S2-P0Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-020-S2-P1Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-020-S2-P2Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-020-S3-P0Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-020-S3-P1Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-020-S3-P2Frame: 142 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-025-S1-P0Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-025-S1-P1Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-025-S1-P2Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-025-S2-P0Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-025-S2-P1Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-025-S2-P2Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-025-S3-P0Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-025-S3-P1Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-025-S3-P2Frame: 142 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-028-S1-P0Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-028-S1-P1Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-028-S1-P2Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-028-S2-P0Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-028-S2-P1Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-028-S2-P2Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-028-S3-P0Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-028-S3-P1Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-028-S3-P2Frame: 142 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-030-S1-P0Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-030-S1-P1Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-030-S1-P2Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-030-S2-P0Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-030-S2-P1Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-030-S2-P2Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-030-S3-P0Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-030-S3-P1Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-030-S3-P2Frame: 142 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-032-S1-P0Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-032-S1-P1Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-032-S1-P2Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-032-S2-P0Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-032-S2-P1Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-032-S2-P2Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-032-S3-P0Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-032-S3-P1Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-032-S3-P2Frame: 142 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-035-S1-P0Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-035-S1-P1Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-035-S1-P2Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-035-S2-P0Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-035-S2-P1Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-035-S2-P2Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-035-S3-P0Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-035-S3-P1Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-035-S3-P2Frame: 142 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-040-S1-P0Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-040-S1-P1Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-040-S1-P2Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-040-S2-P0Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-040-S2-P1Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-040-S2-P2Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-040-S3-P0Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-040-S3-P1Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-040-S3-P2Frame: 142 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-045-S1-P0Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-045-S1-P1Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-045-S1-P2Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-045-S2-P0Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-045-S2-P1Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-045-S2-P2Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-045-S3-P0Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-045-S3-P1Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-045-S3-P2Frame: 142 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-048-S1-P0Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-048-S1-P1Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-048-S1-P2Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-048-S2-P0Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-048-S2-P1Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-048-S2-P2Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-048-S3-P0Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-048-S3-P1Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-048-S3-P2Frame: 142 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-050-S1-P0Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-050-S1-P1Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-050-S1-P2Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-050-S2-P0Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-050-S2-P1Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-050-S2-P2Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-050-S3-P0Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-050-S3-P1Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-050-S3-P2Frame: 142 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-060-S1-P0Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-060-S1-P1Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-060-S1-P2Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-060-S2-P0Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-060-S2-P1Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-060-S2-P2Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-060-S3-P0Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-060-S3-P1Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-060-S3-P2Frame: 142 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-064-S1-P0Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-064-S1-P1Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-064-S1-P2Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-064-S2-P0Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-064-S2-P1Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-064-S2-P2Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-064-S3-P0Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-064-S3-P1Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-064-S3-P2Frame: 142 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-070-S1-P0Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-070-S1-P1Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-070-S1-P2Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-070-S2-P0Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-070-S2-P1Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-070-S2-P2Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-070-S3-P0Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-070-S3-P1Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-070-S3-P2Frame: 142 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-080-S1-P0Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-080-S1-P1Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-080-S1-P2Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142-080-S2-P0Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-080-S2-P1Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-080-S2-P2Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142-080-S3-P0Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-080-S3-P1Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-080-S3-P2Frame: 142 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142-090-S1-P0Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-090-S1-P1Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-090-S1-P2Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-090-S2-P0Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-090-S2-P1Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-090-S2-P2Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-090-S3-P0Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-090-S3-P1Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-090-S3-P2Frame: 142 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-100-S1-P0Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-100-S1-P1Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-100-S1-P2Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142-100-S2-P0Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-100-S2-P1Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-100-S2-P2Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142-100-S3-P0Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-100-S3-P1Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-100-S3-P2Frame: 142 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142-120-S1-P0Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-120-S1-P1Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-120-S1-P2Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142-120-S2-P0Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-120-S2-P1Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-120-S2-P2Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142-120-S3-P0Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-120-S3-P1Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-120-S3-P2Frame: 142 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142-140-S1-P0Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-140-S1-P1Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-140-S1-P2Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-140-S2-P0Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-140-S2-P1Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-140-S2-P2Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-140-S3-P0Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-140-S3-P1Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-140-S3-P2Frame: 142 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-160-S1-P0Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-160-S1-P1Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-160-S1-P2Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142-160-S2-P0Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-160-S2-P1Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-160-S2-P2Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142-160-S3-P0Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-160-S3-P1Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-160-S3-P2Frame: 142 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142-180-S1-P0Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-180-S1-P1Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-180-S1-P2Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-180-S2-P0Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-180-S2-P1Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-180-S2-P2Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-180-S3-P0Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-180-S3-P1Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-180-S3-P2Frame: 142 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-200-S1-P0Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-200-S1-P1Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-200-S1-P2Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142-200-S2-P0Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-200-S2-P1Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-200-S2-P2Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142-200-S3-P0Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-200-S3-P1Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142-200-S3-P2Frame: 142 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-025-S1-P0Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-025-S1-P1Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-025-S1-P2Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-025-S2-P0Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-025-S2-P1Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-025-S2-P2Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-025-S3-P0Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-025-S3-P1Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-025-S3-P2Frame: 142A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-028-S1-P0Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-028-S1-P1Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-028-S1-P2Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-028-S2-P0Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-028-S2-P1Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-028-S2-P2Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-028-S3-P0Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-028-S3-P1Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-028-S3-P2Frame: 142A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-030-S1-P0Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-030-S1-P1Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-030-S1-P2Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-030-S2-P0Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-030-S2-P1Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-030-S2-P2Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-030-S3-P0Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-030-S3-P1Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-030-S3-P2Frame: 142A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-032-S1-P0Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-032-S1-P1Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-032-S1-P2Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-032-S2-P0Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-032-S2-P1Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-032-S2-P2Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-032-S3-P0Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-032-S3-P1Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-032-S3-P2Frame: 142A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-035-S1-P0Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-035-S1-P1Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-035-S1-P2Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-035-S2-P0Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-035-S2-P1Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-035-S2-P2Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-035-S3-P0Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-035-S3-P1Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-035-S3-P2Frame: 142A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-040-S1-P0Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-040-S1-P1Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-040-S1-P2Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-040-S2-P0Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-040-S2-P1Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-040-S2-P2Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-040-S3-P0Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-040-S3-P1Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-040-S3-P2Frame: 142A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-045-S1-P0Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-045-S1-P1Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-045-S1-P2Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-045-S2-P0Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-045-S2-P1Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-045-S2-P2Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-045-S3-P0Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-045-S3-P1Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-045-S3-P2Frame: 142A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-048-S1-P0Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-048-S1-P1Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-048-S1-P2Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-048-S2-P0Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-048-S2-P1Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-048-S2-P2Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-048-S3-P0Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-048-S3-P1Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-048-S3-P2Frame: 142A | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-050-S1-P0Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-050-S1-P1Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-050-S1-P2Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-050-S2-P0Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-050-S2-P1Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-050-S2-P2Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-050-S3-P0Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-050-S3-P1Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-050-S3-P2Frame: 142A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-060-S1-P0Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-060-S1-P1Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-060-S1-P2Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-060-S2-P0Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-060-S2-P1Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-060-S2-P2Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-060-S3-P0Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-060-S3-P1Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-060-S3-P2Frame: 142A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-064-S1-P0Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-064-S1-P1Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-064-S1-P2Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-064-S2-P0Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-064-S2-P1Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-064-S2-P2Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-064-S3-P0Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-064-S3-P1Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-064-S3-P2Frame: 142A | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-070-S1-P0Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-070-S1-P1Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-070-S1-P2Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-070-S2-P0Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-070-S2-P1Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-070-S2-P2Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-070-S3-P0Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-070-S3-P1Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-070-S3-P2Frame: 142A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-080-S1-P0Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-080-S1-P1Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-080-S1-P2Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
ABR142A-080-S2-P0Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-080-S2-P1Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-080-S2-P2Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
ABR142A-080-S3-P0Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-080-S3-P1Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-080-S3-P2Frame: 142A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
ABR142A-090-S1-P0Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-090-S1-P1Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-090-S1-P2Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-090-S2-P0Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-090-S2-P1Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-090-S2-P2Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-090-S3-P0Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-090-S3-P1Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-090-S3-P2Frame: 142A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-100-S1-P0Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-100-S1-P1Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-100-S1-P2Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
ABR142A-100-S2-P0Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-100-S2-P1Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-100-S2-P2Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
ABR142A-100-S3-P0Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-100-S3-P1Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-100-S3-P2Frame: 142A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
ABR142A-120-S1-P0Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-120-S1-P1Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-120-S1-P2Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
ABR142A-120-S2-P0Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-120-S2-P1Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-120-S2-P2Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
ABR142A-120-S3-P0Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-120-S3-P1Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-120-S3-P2Frame: 142A | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
ABR142A-140-S1-P0Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-140-S1-P1Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-140-S1-P2Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-140-S2-P0Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-140-S2-P1Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-140-S2-P2Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-140-S3-P0Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-140-S3-P1Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-140-S3-P2Frame: 142A | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-160-S1-P0Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-160-S1-P1Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-160-S1-P2Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
ABR142A-160-S2-P0Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-160-S2-P1Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-160-S2-P2Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
ABR142A-160-S3-P0Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-160-S3-P1Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-160-S3-P2Frame: 142A | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
ABR142A-180-S1-P0Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-180-S1-P1Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-180-S1-P2Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-180-S2-P0Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-180-S2-P1Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-180-S2-P2Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-180-S3-P0Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-180-S3-P1Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-180-S3-P2Frame: 142A | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-200-S1-P0Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-200-S1-P1Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-200-S1-P2Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
ABR142A-200-S2-P0Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-200-S2-P1Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-200-S2-P2Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
ABR142A-200-S3-P0Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-200-S3-P1Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR142A-200-S3-P2Frame: 142A | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
ABR180-003-S1-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
ABR180-003-S1-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
ABR180-003-S1-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
ABR180-003-S2-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
ABR180-003-S2-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
ABR180-003-S2-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
ABR180-003-S3-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
ABR180-003-S3-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
ABR180-003-S3-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
ABR180-004-S1-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
ABR180-004-S1-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
ABR180-004-S1-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,040 Nm
ABR180-004-S2-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
ABR180-004-S2-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
ABR180-004-S2-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,040 Nm
ABR180-004-S3-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
ABR180-004-S3-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
ABR180-004-S3-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,040 Nm
ABR180-005-S1-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-005-S1-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-005-S1-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-005-S2-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-005-S2-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-005-S2-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-005-S3-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-005-S3-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-005-S3-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-006-S1-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-006-S1-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-006-S1-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-006-S2-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-006-S2-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-006-S2-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-006-S3-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-006-S3-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-006-S3-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-007-S1-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-007-S1-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-007-S1-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-007-S2-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-007-S2-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-007-S2-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-007-S3-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-007-S3-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-007-S3-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-008-S1-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-008-S1-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-008-S1-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-008-S2-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-008-S2-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-008-S2-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-008-S3-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-008-S3-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-008-S3-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-009-S1-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-009-S1-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-009-S1-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-009-S2-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-009-S2-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-009-S2-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-009-S3-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-009-S3-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-009-S3-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-010-S1-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-010-S1-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-010-S1-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-010-S2-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-010-S2-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-010-S2-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-010-S3-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-010-S3-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-010-S3-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-012-S1-P0Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-012-S1-P1Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-012-S1-P2Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-012-S2-P0Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-012-S2-P1Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-012-S2-P2Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-012-S3-P0Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-012-S3-P1Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-012-S3-P2Frame: 180 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-014-S1-P0Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-014-S1-P1Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-014-S1-P2Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-014-S2-P0Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-014-S2-P1Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-014-S2-P2Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-014-S3-P0Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-014-S3-P1Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-014-S3-P2Frame: 180 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-016-S1-P0Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-016-S1-P1Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-016-S1-P2Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-016-S2-P0Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-016-S2-P1Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-016-S2-P2Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-016-S3-P0Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-016-S3-P1Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-016-S3-P2Frame: 180 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-020-S1-P0Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-020-S1-P1Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-020-S1-P2Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-020-S2-P0Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-020-S2-P1Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-020-S2-P2Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-020-S3-P0Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-020-S3-P1Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-020-S3-P2Frame: 180 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-025-S1-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-025-S1-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-025-S1-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-025-S2-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-025-S2-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-025-S2-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-025-S3-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-025-S3-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-025-S3-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-028-S1-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-028-S1-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-028-S1-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-028-S2-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-028-S2-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-028-S2-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-028-S3-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-028-S3-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-028-S3-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-030-S1-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-030-S1-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-030-S1-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-030-S2-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-030-S2-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-030-S2-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-030-S3-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-030-S3-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-030-S3-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-032-S1-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-032-S1-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-032-S1-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-032-S2-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-032-S2-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-032-S2-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-032-S3-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-032-S3-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-032-S3-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-035-S1-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-035-S1-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-035-S1-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-035-S2-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-035-S2-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-035-S2-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-035-S3-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-035-S3-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-035-S3-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-040-S1-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-040-S1-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-040-S1-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-040-S2-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-040-S2-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-040-S2-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-040-S3-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-040-S3-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-040-S3-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-045-S1-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-045-S1-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-045-S1-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-045-S2-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-045-S2-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-045-S2-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-045-S3-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-045-S3-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-045-S3-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-048-S1-P0Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-048-S1-P1Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-048-S1-P2Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-048-S2-P0Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-048-S2-P1Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-048-S2-P2Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-048-S3-P0Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-048-S3-P1Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-048-S3-P2Frame: 180 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-050-S1-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-050-S1-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-050-S1-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-050-S2-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-050-S2-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-050-S2-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-050-S3-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-050-S3-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-050-S3-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-060-S1-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-060-S1-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-060-S1-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-060-S2-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-060-S2-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-060-S2-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-060-S3-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-060-S3-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-060-S3-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-064-S1-P0Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-064-S1-P1Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-064-S1-P2Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-064-S2-P0Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-064-S2-P1Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-064-S2-P2Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-064-S3-P0Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-064-S3-P1Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-064-S3-P2Frame: 180 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-070-S1-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-070-S1-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-070-S1-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-070-S2-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-070-S2-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-070-S2-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-070-S3-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-070-S3-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-070-S3-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-080-S1-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-080-S1-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-080-S1-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-080-S2-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-080-S2-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-080-S2-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-080-S3-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-080-S3-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-080-S3-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-090-S1-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-090-S1-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-090-S1-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-090-S2-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-090-S2-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-090-S2-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-090-S3-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-090-S3-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-090-S3-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-100-S1-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-100-S1-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-100-S1-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
ABR180-100-S2-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-100-S2-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-100-S2-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
ABR180-100-S3-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-100-S3-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-100-S3-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
ABR180-120-S1-P0Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-120-S1-P1Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-120-S1-P2Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-120-S2-P0Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-120-S2-P1Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-120-S2-P2Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-120-S3-P0Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-120-S3-P1Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-120-S3-P2Frame: 180 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-140-S1-P0Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-140-S1-P1Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-140-S1-P2Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
ABR180-140-S2-P0Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-140-S2-P1Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-140-S2-P2Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
ABR180-140-S3-P0Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-140-S3-P1Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-140-S3-P2Frame: 180 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
ABR180-160-S1-P0Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-160-S1-P1Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-160-S1-P2Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
ABR180-160-S2-P0Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-160-S2-P1Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-160-S2-P2Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
ABR180-160-S3-P0Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-160-S3-P1Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-160-S3-P2Frame: 180 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
ABR180-180-S1-P0Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-180-S1-P1Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-180-S1-P2Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-180-S2-P0Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-180-S2-P1Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-180-S2-P2Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-180-S3-P0Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-180-S3-P1Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-180-S3-P2Frame: 180 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-200-S1-P0Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-200-S1-P1Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-200-S1-P2Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
ABR180-200-S2-P0Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-200-S2-P1Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-200-S2-P2Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
ABR180-200-S3-P0Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-200-S3-P1Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR180-200-S3-P2Frame: 180 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
ABR220-003-S1-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
ABR220-003-S1-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
ABR220-003-S1-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
ABR220-003-S2-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
ABR220-003-S2-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
ABR220-003-S2-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
ABR220-003-S3-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
ABR220-003-S3-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
ABR220-003-S3-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
ABR220-004-S1-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
ABR220-004-S1-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
ABR220-004-S1-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,680 Nm
ABR220-004-S2-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
ABR220-004-S2-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
ABR220-004-S2-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,680 Nm
ABR220-004-S3-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
ABR220-004-S3-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
ABR220-004-S3-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,680 Nm
ABR220-005-S1-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-005-S1-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-005-S1-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-005-S2-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-005-S2-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-005-S2-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-005-S3-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-005-S3-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-005-S3-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-006-S1-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-006-S1-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-006-S1-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-006-S2-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-006-S2-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-006-S2-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-006-S3-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-006-S3-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-006-S3-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-007-S1-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-007-S1-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-007-S1-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-007-S2-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-007-S2-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-007-S2-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-007-S3-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-007-S3-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-007-S3-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-008-S1-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-008-S1-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-008-S1-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-008-S2-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-008-S2-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-008-S2-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-008-S3-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-008-S3-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-008-S3-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-009-S1-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-009-S1-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-009-S1-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-009-S2-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-009-S2-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-009-S2-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-009-S3-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-009-S3-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-009-S3-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-010-S1-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-010-S1-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-010-S1-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-010-S2-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-010-S2-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-010-S2-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-010-S3-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-010-S3-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-010-S3-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-012-S1-P0Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-012-S1-P1Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-012-S1-P2Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-012-S2-P0Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-012-S2-P1Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-012-S2-P2Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-012-S3-P0Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-012-S3-P1Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-012-S3-P2Frame: 220 | Ratio i: 12 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-014-S1-P0Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-014-S1-P1Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-014-S1-P2Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-014-S2-P0Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-014-S2-P1Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-014-S2-P2Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-014-S3-P0Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-014-S3-P1Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-014-S3-P2Frame: 220 | Ratio i: 14 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-016-S1-P0Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-016-S1-P1Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-016-S1-P2Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-016-S2-P0Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-016-S2-P1Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-016-S2-P2Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-016-S3-P0Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-016-S3-P1Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-016-S3-P2Frame: 220 | Ratio i: 16 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-020-S1-P0Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-020-S1-P1Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-020-S1-P2Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-020-S2-P0Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-020-S2-P1Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-020-S2-P2Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-020-S3-P0Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P0 <=2 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-020-S3-P1Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P1 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-020-S3-P2Frame: 220 | Ratio i: 20 | Stages: 1 | Backlash: P2 <=6 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-025-S1-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-025-S1-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-025-S1-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-025-S2-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-025-S2-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-025-S2-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-025-S3-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-025-S3-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-025-S3-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-028-S1-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-028-S1-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-028-S1-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-028-S2-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-028-S2-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-028-S2-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-028-S3-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-028-S3-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-028-S3-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-030-S1-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-030-S1-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-030-S1-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-030-S2-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-030-S2-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-030-S2-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-030-S3-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-030-S3-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-030-S3-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-032-S1-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-032-S1-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-032-S1-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-032-S2-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-032-S2-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-032-S2-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-032-S3-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-032-S3-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-032-S3-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-035-S1-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-035-S1-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-035-S1-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-035-S2-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-035-S2-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-035-S2-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-035-S3-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-035-S3-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-035-S3-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-040-S1-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-040-S1-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-040-S1-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-040-S2-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-040-S2-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-040-S2-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-040-S3-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-040-S3-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-040-S3-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-045-S1-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-045-S1-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-045-S1-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-045-S2-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-045-S2-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-045-S2-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-045-S3-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-045-S3-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-045-S3-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-048-S1-P0Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-048-S1-P1Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-048-S1-P2Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-048-S2-P0Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-048-S2-P1Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-048-S2-P2Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-048-S3-P0Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-048-S3-P1Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-048-S3-P2Frame: 220 | Ratio i: 48 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-050-S1-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-050-S1-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-050-S1-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-050-S2-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-050-S2-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-050-S2-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-050-S3-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-050-S3-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-050-S3-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-060-S1-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-060-S1-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-060-S1-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-060-S2-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-060-S2-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-060-S2-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-060-S3-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-060-S3-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-060-S3-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-064-S1-P0Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-064-S1-P1Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-064-S1-P2Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-064-S2-P0Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-064-S2-P1Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-064-S2-P2Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-064-S3-P0Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-064-S3-P1Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-064-S3-P2Frame: 220 | Ratio i: 64 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-070-S1-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-070-S1-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-070-S1-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-070-S2-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-070-S2-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-070-S2-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-070-S3-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-070-S3-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-070-S3-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-080-S1-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-080-S1-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-080-S1-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-080-S2-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-080-S2-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-080-S2-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-080-S3-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-080-S3-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-080-S3-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-090-S1-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-090-S1-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-090-S1-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-090-S2-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-090-S2-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-090-S2-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-090-S3-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-090-S3-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-090-S3-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-100-S1-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-100-S1-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-100-S1-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
ABR220-100-S2-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-100-S2-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-100-S2-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
ABR220-100-S3-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-100-S3-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-100-S3-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
ABR220-120-S1-P0Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-120-S1-P1Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-120-S1-P2Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
ABR220-120-S2-P0Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-120-S2-P1Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-120-S2-P2Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
ABR220-120-S3-P0Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-120-S3-P1Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-120-S3-P2Frame: 220 | Ratio i: 120 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
ABR220-140-S1-P0Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-140-S1-P1Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-140-S1-P2Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
ABR220-140-S2-P0Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-140-S2-P1Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-140-S2-P2Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
ABR220-140-S3-P0Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-140-S3-P1Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-140-S3-P2Frame: 220 | Ratio i: 140 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
ABR220-160-S1-P0Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-160-S1-P1Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-160-S1-P2Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
ABR220-160-S2-P0Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-160-S2-P1Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-160-S2-P2Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
ABR220-160-S3-P0Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-160-S3-P1Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-160-S3-P2Frame: 220 | Ratio i: 160 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
ABR220-180-S1-P0Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-180-S1-P1Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-180-S1-P2Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-180-S2-P0Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-180-S2-P1Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-180-S2-P2Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-180-S3-P0Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-180-S3-P1Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-180-S3-P2Frame: 220 | Ratio i: 180 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-200-S1-P0Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-200-S1-P1Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-200-S1-P2Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
ABR220-200-S2-P0Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-200-S2-P1Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-200-S2-P2Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
ABR220-200-S3-P0Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P0 <=4 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-200-S3-P1Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P1 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR220-200-S3-P2Frame: 220 | Ratio i: 200 | Stages: 2 | Backlash: P2 <=9 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
ABR142Legacy code: frame-level listing, order full code | Frame: 142 | Ratio i: 3-200 | Stages: 1/2 | Output shaft: specify S1/S2/S3
ABR180Legacy code: frame-level listing, order full code | Frame: 180 | Ratio i: 3-200 | Stages: 1/2 | Output shaft: specify S1/S2/S3
ABR220Legacy code: frame-level listing, order full code | Frame: 220 | Ratio i: 3-200 | Stages: 1/2 | Output shaft: specify S1/S2/S3

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
