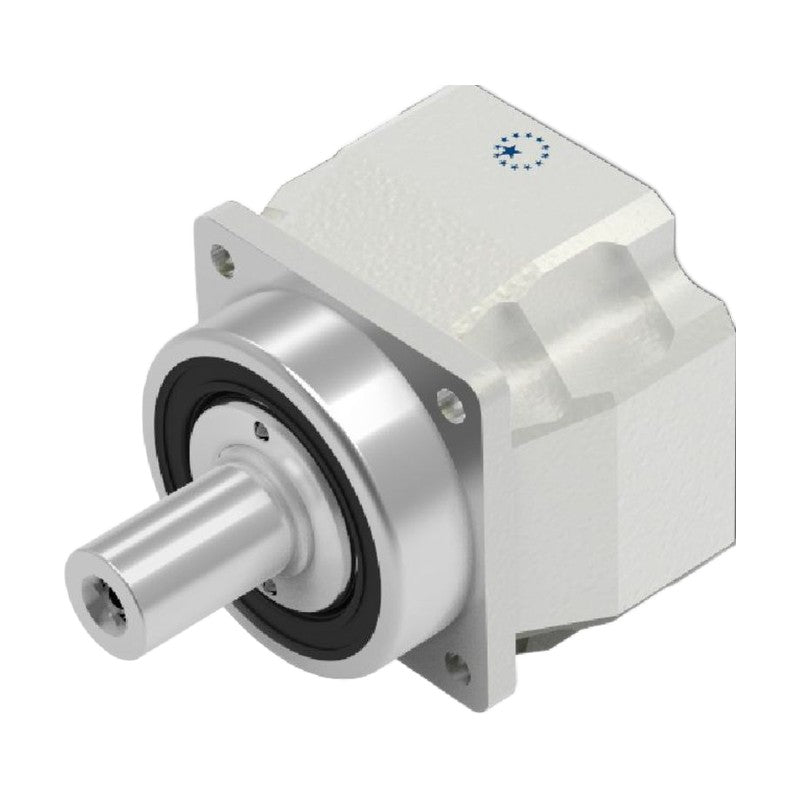

Apex Dynamics AF Precision Planetary Gearboxes (Frame 100-220)

Apex Dynamics AF Precision Planetary Gearboxes (Frame 100-220)

APEX Dynamics AF series high precision, high speed inline planetary gearboxes for servo motors, frame sizes 100 to 220.

Key features

  • Full order code: size - 3-digit ratio - output shaft S1/S2/S3 - backlash P0/P1/P2, then / motor make and model
  • Ordering example AF075-010-S1-P1 / SIEMENS 1FT6 041-4AF71; motor adapter is specified by motor model, not by code
  • Single-stage ratios 3-10 and two-stage ratios 12-100; A frames (060A, 075A, 100A, 140A) are two-stage only
  • Micro backlash P0 down to <=1 arcmin (1-stage, frames 075-220); P1 <=3/5 and P2 <=5/7 arcmin (1/2-stage)
  • Output shafts: S1 smooth, S2 with key, S3 DIN 5480 spline (S3 not offered on AF042)
  • IP67 protection, lubricated for life, any mounting position, emergency stop torque 3x nominal

Specifications

Gearbox type Inline planetary, square flange output
Efficiency 1-stage >=97%, 2-stage >=94%
Max. acceleration torque T2B 60% of emergency stop torque T2NOT
Emergency stop torque T2NOT 3x nominal output torque
Protection IP67
Operating temperature -10 to +90 C
Lubrication Lubricant, lubricated for life
Mounting position All directions
Motor input Specify motor make and model when ordering
Nominal input speed n1N 4,000 (100), 3,000 (140-180), 2,000 rpm (220)
Torsional rigidity 25-225 Nm/arcmin
Source APEX Dynamics AF/AFR catalog, p. 2-6, 11-12
AF100-003-S1-P0 Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-003-S1-P1 Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-003-S1-P2 Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-003-S2-P0 Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-003-S2-P1 Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-003-S2-P2 Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-003-S3-P0 Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-003-S3-P1 Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-003-S3-P2 Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-004-S1-P0 Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-004-S1-P1 Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-004-S1-P2 Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-004-S2-P0 Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-004-S2-P1 Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-004-S2-P2 Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-004-S3-P0 Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-004-S3-P1 Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-004-S3-P2 Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-005-S1-P0 Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-005-S1-P1 Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-005-S1-P2 Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-005-S2-P0 Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-005-S2-P1 Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-005-S2-P2 Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-005-S3-P0 Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-005-S3-P1 Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-005-S3-P2 Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-006-S1-P0 Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-006-S1-P1 Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-006-S1-P2 Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-006-S2-P0 Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-006-S2-P1 Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-006-S2-P2 Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-006-S3-P0 Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-006-S3-P1 Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-006-S3-P2 Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-007-S1-P0 Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-007-S1-P1 Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-007-S1-P2 Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-007-S2-P0 Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-007-S2-P1 Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-007-S2-P2 Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-007-S3-P0 Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-007-S3-P1 Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-007-S3-P2 Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-008-S1-P0 Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-008-S1-P1 Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-008-S1-P2 Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-008-S2-P0 Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-008-S2-P1 Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-008-S2-P2 Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-008-S3-P0 Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-008-S3-P1 Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-008-S3-P2 Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-009-S1-P0 Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-009-S1-P1 Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-009-S1-P2 Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-009-S2-P0 Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-009-S2-P1 Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-009-S2-P2 Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-009-S3-P0 Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-009-S3-P1 Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-009-S3-P2 Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-010-S1-P0 Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-010-S1-P1 Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-010-S1-P2 Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-010-S2-P0 Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-010-S2-P1 Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-010-S2-P2 Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-010-S3-P0 Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-010-S3-P1 Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-010-S3-P2 Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-012-S1-P0 Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-012-S1-P1 Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-012-S1-P2 Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-012-S2-P0 Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-012-S2-P1 Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-012-S2-P2 Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-012-S3-P0 Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-012-S3-P1 Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-012-S3-P2 Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-015-S1-P0 Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-015-S1-P1 Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-015-S1-P2 Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-015-S2-P0 Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-015-S2-P1 Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-015-S2-P2 Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-015-S3-P0 Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-015-S3-P1 Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-015-S3-P2 Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-016-S1-P0 Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-016-S1-P1 Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-016-S1-P2 Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-016-S2-P0 Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-016-S2-P1 Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-016-S2-P2 Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-016-S3-P0 Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-016-S3-P1 Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-016-S3-P2 Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-020-S1-P0 Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-020-S1-P1 Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-020-S1-P2 Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-020-S2-P0 Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-020-S2-P1 Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-020-S2-P2 Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-020-S3-P0 Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-020-S3-P1 Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-020-S3-P2 Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-025-S1-P0 Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-025-S1-P1 Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-025-S1-P2 Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-025-S2-P0 Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-025-S2-P1 Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-025-S2-P2 Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-025-S3-P0 Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-025-S3-P1 Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-025-S3-P2 Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-028-S1-P0 Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-028-S1-P1 Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-028-S1-P2 Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-028-S2-P0 Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-028-S2-P1 Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-028-S2-P2 Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-028-S3-P0 Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-028-S3-P1 Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-028-S3-P2 Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-030-S1-P0 Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-030-S1-P1 Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-030-S1-P2 Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-030-S2-P0 Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-030-S2-P1 Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-030-S2-P2 Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-030-S3-P0 Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-030-S3-P1 Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-030-S3-P2 Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-032-S1-P0 Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-032-S1-P1 Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-032-S1-P2 Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-032-S2-P0 Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-032-S2-P1 Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-032-S2-P2 Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-032-S3-P0 Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-032-S3-P1 Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-032-S3-P2 Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-035-S1-P0 Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-035-S1-P1 Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-035-S1-P2 Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-035-S2-P0 Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-035-S2-P1 Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-035-S2-P2 Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-035-S3-P0 Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-035-S3-P1 Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-035-S3-P2 Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-040-S1-P0 Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-040-S1-P1 Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-040-S1-P2 Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-040-S2-P0 Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-040-S2-P1 Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-040-S2-P2 Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-040-S3-P0 Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-040-S3-P1 Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-040-S3-P2 Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-045-S1-P0 Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-045-S1-P1 Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-045-S1-P2 Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-045-S2-P0 Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-045-S2-P1 Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-045-S2-P2 Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-045-S3-P0 Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-045-S3-P1 Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-045-S3-P2 Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-050-S1-P0 Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-050-S1-P1 Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-050-S1-P2 Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-050-S2-P0 Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-050-S2-P1 Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-050-S2-P2 Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-050-S3-P0 Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-050-S3-P1 Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-050-S3-P2 Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-060-S1-P0 Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-060-S1-P1 Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-060-S1-P2 Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-060-S2-P0 Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-060-S2-P1 Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-060-S2-P2 Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-060-S3-P0 Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-060-S3-P1 Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-060-S3-P2 Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-070-S1-P0 Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-070-S1-P1 Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-070-S1-P2 Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-070-S2-P0 Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-070-S2-P1 Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-070-S2-P2 Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-070-S3-P0 Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-070-S3-P1 Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-070-S3-P2 Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-080-S1-P0 Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-080-S1-P1 Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-080-S1-P2 Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-080-S2-P0 Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-080-S2-P1 Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-080-S2-P2 Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-080-S3-P0 Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-080-S3-P1 Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-080-S3-P2 Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-090-S1-P0 Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-090-S1-P1 Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-090-S1-P2 Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-090-S2-P0 Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-090-S2-P1 Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-090-S2-P2 Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-090-S3-P0 Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-090-S3-P1 Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-090-S3-P2 Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-100-S1-P0 Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-100-S1-P1 Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-100-S1-P2 Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-100-S2-P0 Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-100-S2-P1 Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-100-S2-P2 Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-100-S3-P0 Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-100-S3-P1 Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-100-S3-P2 Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-012-S1-P0 Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-012-S1-P1 Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-012-S1-P2 Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-012-S2-P0 Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-012-S2-P1 Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-012-S2-P2 Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-012-S3-P0 Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-012-S3-P1 Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-012-S3-P2 Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-015-S1-P0 Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100A-015-S1-P1 Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100A-015-S1-P2 Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100A-015-S2-P0 Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100A-015-S2-P1 Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100A-015-S2-P2 Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100A-015-S3-P0 Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100A-015-S3-P1 Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100A-015-S3-P2 Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100A-016-S1-P0 Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-016-S1-P1 Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-016-S1-P2 Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-016-S2-P0 Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-016-S2-P1 Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-016-S2-P2 Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-016-S3-P0 Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-016-S3-P1 Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-016-S3-P2 Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-020-S1-P0 Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-020-S1-P1 Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-020-S1-P2 Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-020-S2-P0 Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-020-S2-P1 Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-020-S2-P2 Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-020-S3-P0 Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-020-S3-P1 Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-020-S3-P2 Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-025-S1-P0 Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-025-S1-P1 Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-025-S1-P2 Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-025-S2-P0 Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-025-S2-P1 Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-025-S2-P2 Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-025-S3-P0 Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-025-S3-P1 Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-025-S3-P2 Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-028-S1-P0 Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-028-S1-P1 Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-028-S1-P2 Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-028-S2-P0 Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-028-S2-P1 Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-028-S2-P2 Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-028-S3-P0 Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-028-S3-P1 Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-028-S3-P2 Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-030-S1-P0 Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-030-S1-P1 Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-030-S1-P2 Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-030-S2-P0 Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-030-S2-P1 Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-030-S2-P2 Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-030-S3-P0 Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-030-S3-P1 Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-030-S3-P2 Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-032-S1-P0 Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-032-S1-P1 Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-032-S1-P2 Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-032-S2-P0 Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-032-S2-P1 Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-032-S2-P2 Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-032-S3-P0 Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-032-S3-P1 Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-032-S3-P2 Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-035-S1-P0 Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-035-S1-P1 Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-035-S1-P2 Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-035-S2-P0 Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-035-S2-P1 Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-035-S2-P2 Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-035-S3-P0 Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-035-S3-P1 Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-035-S3-P2 Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-040-S1-P0 Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-040-S1-P1 Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-040-S1-P2 Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-040-S2-P0 Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-040-S2-P1 Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-040-S2-P2 Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-040-S3-P0 Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-040-S3-P1 Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-040-S3-P2 Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-045-S1-P0 Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-045-S1-P1 Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-045-S1-P2 Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-045-S2-P0 Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-045-S2-P1 Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-045-S2-P2 Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-045-S3-P0 Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-045-S3-P1 Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-045-S3-P2 Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-050-S1-P0 Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-050-S1-P1 Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-050-S1-P2 Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-050-S2-P0 Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-050-S2-P1 Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-050-S2-P2 Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-050-S3-P0 Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-050-S3-P1 Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-050-S3-P2 Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-060-S1-P0 Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-060-S1-P1 Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-060-S1-P2 Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-060-S2-P0 Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-060-S2-P1 Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-060-S2-P2 Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-060-S3-P0 Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-060-S3-P1 Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-060-S3-P2 Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-070-S1-P0 Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-070-S1-P1 Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-070-S1-P2 Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-070-S2-P0 Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-070-S2-P1 Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-070-S2-P2 Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-070-S3-P0 Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-070-S3-P1 Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-070-S3-P2 Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-080-S1-P0 Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-080-S1-P1 Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-080-S1-P2 Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-080-S2-P0 Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-080-S2-P1 Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-080-S2-P2 Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-080-S3-P0 Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-080-S3-P1 Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-080-S3-P2 Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-090-S1-P0 Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-090-S1-P1 Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-090-S1-P2 Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-090-S2-P0 Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-090-S2-P1 Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-090-S2-P2 Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-090-S3-P0 Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-090-S3-P1 Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-090-S3-P2 Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-100-S1-P0 Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-100-S1-P1 Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-100-S1-P2 Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-100-S2-P0 Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-100-S2-P1 Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-100-S2-P2 Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-100-S3-P0 Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-100-S3-P1 Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-100-S3-P2 Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF140-003-S1-P0 Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-003-S1-P1 Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-003-S1-P2 Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-003-S2-P0 Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-003-S2-P1 Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-003-S2-P2 Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-003-S3-P0 Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-003-S3-P1 Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-003-S3-P2 Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-004-S1-P0 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-004-S1-P1 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-004-S1-P2 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-004-S2-P0 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-004-S2-P1 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-004-S2-P2 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-004-S3-P0 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-004-S3-P1 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-004-S3-P2 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-005-S1-P0 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-005-S1-P1 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-005-S1-P2 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-005-S2-P0 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-005-S2-P1 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-005-S2-P2 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-005-S3-P0 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-005-S3-P1 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-005-S3-P2 Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-006-S1-P0 Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-006-S1-P1 Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-006-S1-P2 Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-006-S2-P0 Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-006-S2-P1 Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-006-S2-P2 Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-006-S3-P0 Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-006-S3-P1 Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-006-S3-P2 Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-007-S1-P0 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-007-S1-P1 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-007-S1-P2 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-007-S2-P0 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-007-S2-P1 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-007-S2-P2 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-007-S3-P0 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-007-S3-P1 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-007-S3-P2 Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-008-S1-P0 Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-008-S1-P1 Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-008-S1-P2 Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-008-S2-P0 Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-008-S2-P1 Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-008-S2-P2 Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-008-S3-P0 Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-008-S3-P1 Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-008-S3-P2 Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-009-S1-P0 Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-009-S1-P1 Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-009-S1-P2 Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-009-S2-P0 Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-009-S2-P1 Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-009-S2-P2 Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-009-S3-P0 Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-009-S3-P1 Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-009-S3-P2 Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-010-S1-P0 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-010-S1-P1 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-010-S1-P2 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-010-S2-P0 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-010-S2-P1 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-010-S2-P2 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-010-S3-P0 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-010-S3-P1 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-010-S3-P2 Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-012-S1-P0 Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-012-S1-P1 Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-012-S1-P2 Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-012-S2-P0 Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-012-S2-P1 Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-012-S2-P2 Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-012-S3-P0 Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-012-S3-P1 Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-012-S3-P2 Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-015-S1-P0 Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-015-S1-P1 Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-015-S1-P2 Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-015-S2-P0 Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-015-S2-P1 Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-015-S2-P2 Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-015-S3-P0 Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-015-S3-P1 Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-015-S3-P2 Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-016-S1-P0 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-016-S1-P1 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-016-S1-P2 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-016-S2-P0 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-016-S2-P1 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-016-S2-P2 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-016-S3-P0 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-016-S3-P1 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-016-S3-P2 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-020-S1-P0 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-020-S1-P1 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-020-S1-P2 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-020-S2-P0 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-020-S2-P1 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-020-S2-P2 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-020-S3-P0 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-020-S3-P1 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-020-S3-P2 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-025-S1-P0 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-025-S1-P1 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-025-S1-P2 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-025-S2-P0 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-025-S2-P1 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-025-S2-P2 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-025-S3-P0 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-025-S3-P1 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-025-S3-P2 Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-028-S1-P0 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-028-S1-P1 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-028-S1-P2 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-028-S2-P0 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-028-S2-P1 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-028-S2-P2 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-028-S3-P0 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-028-S3-P1 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-028-S3-P2 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-030-S1-P0 Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-030-S1-P1 Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-030-S1-P2 Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-030-S2-P0 Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-030-S2-P1 Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-030-S2-P2 Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-030-S3-P0 Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-030-S3-P1 Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-030-S3-P2 Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-032-S1-P0 Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-032-S1-P1 Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-032-S1-P2 Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-032-S2-P0 Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-032-S2-P1 Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-032-S2-P2 Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-032-S3-P0 Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-032-S3-P1 Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-032-S3-P2 Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-035-S1-P0 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-035-S1-P1 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-035-S1-P2 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-035-S2-P0 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-035-S2-P1 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-035-S2-P2 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-035-S3-P0 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-035-S3-P1 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-035-S3-P2 Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-040-S1-P0 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-040-S1-P1 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-040-S1-P2 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-040-S2-P0 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-040-S2-P1 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-040-S2-P2 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-040-S3-P0 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-040-S3-P1 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-040-S3-P2 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-045-S1-P0 Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-045-S1-P1 Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-045-S1-P2 Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-045-S2-P0 Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-045-S2-P1 Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-045-S2-P2 Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-045-S3-P0 Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-045-S3-P1 Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-045-S3-P2 Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-050-S1-P0 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-050-S1-P1 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-050-S1-P2 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-050-S2-P0 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-050-S2-P1 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-050-S2-P2 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-050-S3-P0 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-050-S3-P1 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-050-S3-P2 Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-060-S1-P0 Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-060-S1-P1 Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-060-S1-P2 Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-060-S2-P0 Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-060-S2-P1 Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-060-S2-P2 Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-060-S3-P0 Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-060-S3-P1 Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-060-S3-P2 Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-070-S1-P0 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-070-S1-P1 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-070-S1-P2 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-070-S2-P0 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-070-S2-P1 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-070-S2-P2 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-070-S3-P0 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-070-S3-P1 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-070-S3-P2 Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-080-S1-P0 Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-080-S1-P1 Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-080-S1-P2 Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-080-S2-P0 Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-080-S2-P1 Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-080-S2-P2 Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-080-S3-P0 Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-080-S3-P1 Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-080-S3-P2 Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-090-S1-P0 Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-090-S1-P1 Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-090-S1-P2 Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-090-S2-P0 Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-090-S2-P1 Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-090-S2-P2 Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-090-S3-P0 Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-090-S3-P1 Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-090-S3-P2 Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-100-S1-P0 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-100-S1-P1 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-100-S1-P2 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-100-S2-P0 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-100-S2-P1 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-100-S2-P2 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-100-S3-P0 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-100-S3-P1 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-100-S3-P2 Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-012-S1-P0 Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-012-S1-P1 Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-012-S1-P2 Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-012-S2-P0 Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-012-S2-P1 Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-012-S2-P2 Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-012-S3-P0 Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-012-S3-P1 Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-012-S3-P2 Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-015-S1-P0 Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140A-015-S1-P1 Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140A-015-S1-P2 Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140A-015-S2-P0 Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140A-015-S2-P1 Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140A-015-S2-P2 Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140A-015-S3-P0 Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140A-015-S3-P1 Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140A-015-S3-P2 Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140A-016-S1-P0 Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-016-S1-P1 Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-016-S1-P2 Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-016-S2-P0 Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-016-S2-P1 Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-016-S2-P2 Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-016-S3-P0 Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-016-S3-P1 Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-016-S3-P2 Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-020-S1-P0 Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-020-S1-P1 Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-020-S1-P2 Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-020-S2-P0 Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-020-S2-P1 Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-020-S2-P2 Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-020-S3-P0 Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-020-S3-P1 Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-020-S3-P2 Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-025-S1-P0 Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-025-S1-P1 Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-025-S1-P2 Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-025-S2-P0 Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-025-S2-P1 Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-025-S2-P2 Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-025-S3-P0 Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-025-S3-P1 Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-025-S3-P2 Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-028-S1-P0 Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-028-S1-P1 Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-028-S1-P2 Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-028-S2-P0 Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-028-S2-P1 Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-028-S2-P2 Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-028-S3-P0 Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-028-S3-P1 Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-028-S3-P2 Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-030-S1-P0 Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-030-S1-P1 Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-030-S1-P2 Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-030-S2-P0 Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-030-S2-P1 Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-030-S2-P2 Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-030-S3-P0 Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-030-S3-P1 Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-030-S3-P2 Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-032-S1-P0 Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-032-S1-P1 Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-032-S1-P2 Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-032-S2-P0 Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-032-S2-P1 Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-032-S2-P2 Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-032-S3-P0 Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-032-S3-P1 Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-032-S3-P2 Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-035-S1-P0 Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-035-S1-P1 Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-035-S1-P2 Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-035-S2-P0 Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-035-S2-P1 Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-035-S2-P2 Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-035-S3-P0 Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-035-S3-P1 Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-035-S3-P2 Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-040-S1-P0 Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-040-S1-P1 Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-040-S1-P2 Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-040-S2-P0 Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-040-S2-P1 Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-040-S2-P2 Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-040-S3-P0 Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-040-S3-P1 Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-040-S3-P2 Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-045-S1-P0 Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-045-S1-P1 Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-045-S1-P2 Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-045-S2-P0 Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-045-S2-P1 Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-045-S2-P2 Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-045-S3-P0 Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-045-S3-P1 Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-045-S3-P2 Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-050-S1-P0 Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-050-S1-P1 Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-050-S1-P2 Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-050-S2-P0 Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-050-S2-P1 Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-050-S2-P2 Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-050-S3-P0 Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-050-S3-P1 Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-050-S3-P2 Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-060-S1-P0 Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-060-S1-P1 Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-060-S1-P2 Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-060-S2-P0 Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-060-S2-P1 Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-060-S2-P2 Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-060-S3-P0 Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-060-S3-P1 Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-060-S3-P2 Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-070-S1-P0 Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-070-S1-P1 Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-070-S1-P2 Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-070-S2-P0 Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-070-S2-P1 Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-070-S2-P2 Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-070-S3-P0 Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-070-S3-P1 Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-070-S3-P2 Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-080-S1-P0 Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-080-S1-P1 Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-080-S1-P2 Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-080-S2-P0 Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-080-S2-P1 Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-080-S2-P2 Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-080-S3-P0 Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-080-S3-P1 Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-080-S3-P2 Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-090-S1-P0 Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-090-S1-P1 Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-090-S1-P2 Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-090-S2-P0 Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-090-S2-P1 Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-090-S2-P2 Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-090-S3-P0 Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-090-S3-P1 Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-090-S3-P2 Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-100-S1-P0 Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-100-S1-P1 Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-100-S1-P2 Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-100-S2-P0 Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-100-S2-P1 Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-100-S2-P2 Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-100-S3-P0 Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-100-S3-P1 Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-100-S3-P2 Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF180-003-S1-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-003-S1-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-003-S1-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-003-S2-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-003-S2-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-003-S2-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-003-S3-P0 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-003-S3-P1 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-003-S3-P2 Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-004-S1-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-004-S1-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-004-S1-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-004-S2-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-004-S2-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-004-S2-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-004-S3-P0 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-004-S3-P1 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-004-S3-P2 Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-005-S1-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-005-S1-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-005-S1-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-005-S2-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-005-S2-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-005-S2-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-005-S3-P0 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-005-S3-P1 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-005-S3-P2 Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-006-S1-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-006-S1-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-006-S1-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-006-S2-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-006-S2-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-006-S2-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-006-S3-P0 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-006-S3-P1 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-006-S3-P2 Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-007-S1-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-007-S1-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-007-S1-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-007-S2-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-007-S2-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-007-S2-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-007-S3-P0 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-007-S3-P1 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-007-S3-P2 Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-008-S1-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-008-S1-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-008-S1-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-008-S2-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-008-S2-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-008-S2-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-008-S3-P0 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-008-S3-P1 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-008-S3-P2 Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-009-S1-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-009-S1-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-009-S1-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-009-S2-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-009-S2-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-009-S2-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-009-S3-P0 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-009-S3-P1 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-009-S3-P2 Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-010-S1-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-010-S1-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-010-S1-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-010-S2-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-010-S2-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-010-S2-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-010-S3-P0 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-010-S3-P1 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-010-S3-P2 Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-012-S1-P0 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-012-S1-P1 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-012-S1-P2 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-012-S2-P0 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-012-S2-P1 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-012-S2-P2 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-012-S3-P0 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-012-S3-P1 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-012-S3-P2 Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-015-S1-P0 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-015-S1-P1 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-015-S1-P2 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-015-S2-P0 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-015-S2-P1 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-015-S2-P2 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-015-S3-P0 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-015-S3-P1 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-015-S3-P2 Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-016-S1-P0 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-016-S1-P1 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-016-S1-P2 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-016-S2-P0 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-016-S2-P1 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-016-S2-P2 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-016-S3-P0 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-016-S3-P1 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-016-S3-P2 Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-020-S1-P0 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-020-S1-P1 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-020-S1-P2 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-020-S2-P0 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-020-S2-P1 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-020-S2-P2 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-020-S3-P0 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-020-S3-P1 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-020-S3-P2 Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-025-S1-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-025-S1-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-025-S1-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-025-S2-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-025-S2-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-025-S2-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-025-S3-P0 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-025-S3-P1 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-025-S3-P2 Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-028-S1-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-028-S1-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-028-S1-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-028-S2-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-028-S2-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-028-S2-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-028-S3-P0 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-028-S3-P1 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-028-S3-P2 Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-030-S1-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-030-S1-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-030-S1-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-030-S2-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-030-S2-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-030-S2-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-030-S3-P0 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-030-S3-P1 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-030-S3-P2 Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-032-S1-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-032-S1-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-032-S1-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-032-S2-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-032-S2-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-032-S2-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-032-S3-P0 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-032-S3-P1 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-032-S3-P2 Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-035-S1-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-035-S1-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-035-S1-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-035-S2-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-035-S2-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-035-S2-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-035-S3-P0 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-035-S3-P1 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-035-S3-P2 Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-040-S1-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-040-S1-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-040-S1-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-040-S2-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-040-S2-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-040-S2-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-040-S3-P0 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-040-S3-P1 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-040-S3-P2 Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-045-S1-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-045-S1-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-045-S1-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-045-S2-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-045-S2-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-045-S2-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-045-S3-P0 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-045-S3-P1 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-045-S3-P2 Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-050-S1-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-050-S1-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-050-S1-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-050-S2-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-050-S2-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-050-S2-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-050-S3-P0 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-050-S3-P1 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-050-S3-P2 Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-060-S1-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-060-S1-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-060-S1-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-060-S2-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-060-S2-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-060-S2-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-060-S3-P0 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-060-S3-P1 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-060-S3-P2 Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-070-S1-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-070-S1-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-070-S1-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-070-S2-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-070-S2-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-070-S2-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-070-S3-P0 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-070-S3-P1 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-070-S3-P2 Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-080-S1-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-080-S1-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-080-S1-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-080-S2-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-080-S2-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-080-S2-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-080-S3-P0 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-080-S3-P1 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-080-S3-P2 Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-090-S1-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-090-S1-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-090-S1-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-090-S2-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-090-S2-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-090-S2-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-090-S3-P0 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-090-S3-P1 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-090-S3-P2 Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-100-S1-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-100-S1-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-100-S1-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-100-S2-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-100-S2-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-100-S2-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-100-S3-P0 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-100-S3-P1 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-100-S3-P2 Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF220-003-S1-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-003-S1-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-003-S1-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-003-S2-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-003-S2-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-003-S2-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-003-S3-P0 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-003-S3-P1 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-003-S3-P2 Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-004-S1-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-004-S1-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-004-S1-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-004-S2-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-004-S2-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-004-S2-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-004-S3-P0 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-004-S3-P1 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-004-S3-P2 Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-005-S1-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-005-S1-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-005-S1-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-005-S2-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-005-S2-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-005-S2-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-005-S3-P0 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-005-S3-P1 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-005-S3-P2 Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-006-S1-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-006-S1-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-006-S1-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-006-S2-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-006-S2-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-006-S2-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-006-S3-P0 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-006-S3-P1 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-006-S3-P2 Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-007-S1-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-007-S1-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-007-S1-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-007-S2-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-007-S2-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-007-S2-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-007-S3-P0 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-007-S3-P1 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-007-S3-P2 Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-008-S1-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-008-S1-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-008-S1-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-008-S2-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-008-S2-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-008-S2-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-008-S3-P0 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-008-S3-P1 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-008-S3-P2 Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-009-S1-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-009-S1-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-009-S1-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-009-S2-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-009-S2-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-009-S2-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-009-S3-P0 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-009-S3-P1 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-009-S3-P2 Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-010-S1-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-010-S1-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-010-S1-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-010-S2-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-010-S2-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-010-S2-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-010-S3-P0 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-010-S3-P1 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-010-S3-P2 Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-012-S1-P0 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-012-S1-P1 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-012-S1-P2 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-012-S2-P0 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-012-S2-P1 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-012-S2-P2 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-012-S3-P0 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-012-S3-P1 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-012-S3-P2 Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-015-S1-P0 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-015-S1-P1 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-015-S1-P2 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-015-S2-P0 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-015-S2-P1 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-015-S2-P2 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-015-S3-P0 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-015-S3-P1 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-015-S3-P2 Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-016-S1-P0 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-016-S1-P1 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-016-S1-P2 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-016-S2-P0 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-016-S2-P1 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-016-S2-P2 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-016-S3-P0 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-016-S3-P1 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-016-S3-P2 Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-020-S1-P0 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-020-S1-P1 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-020-S1-P2 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-020-S2-P0 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-020-S2-P1 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-020-S2-P2 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-020-S3-P0 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-020-S3-P1 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-020-S3-P2 Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-025-S1-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-025-S1-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-025-S1-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-025-S2-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-025-S2-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-025-S2-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-025-S3-P0 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-025-S3-P1 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-025-S3-P2 Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-028-S1-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-028-S1-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-028-S1-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-028-S2-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-028-S2-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-028-S2-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-028-S3-P0 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-028-S3-P1 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-028-S3-P2 Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-030-S1-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-030-S1-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-030-S1-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-030-S2-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-030-S2-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-030-S2-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-030-S3-P0 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-030-S3-P1 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-030-S3-P2 Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-032-S1-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-032-S1-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-032-S1-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-032-S2-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-032-S2-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-032-S2-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-032-S3-P0 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-032-S3-P1 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-032-S3-P2 Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-035-S1-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-035-S1-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-035-S1-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-035-S2-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-035-S2-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-035-S2-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-035-S3-P0 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-035-S3-P1 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-035-S3-P2 Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-040-S1-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-040-S1-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-040-S1-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-040-S2-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-040-S2-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-040-S2-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-040-S3-P0 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-040-S3-P1 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-040-S3-P2 Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-045-S1-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-045-S1-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-045-S1-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-045-S2-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-045-S2-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-045-S2-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-045-S3-P0 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-045-S3-P1 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-045-S3-P2 Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-050-S1-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-050-S1-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-050-S1-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-050-S2-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-050-S2-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-050-S2-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-050-S3-P0 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-050-S3-P1 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-050-S3-P2 Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-060-S1-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-060-S1-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-060-S1-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-060-S2-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-060-S2-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-060-S2-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-060-S3-P0 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-060-S3-P1 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-060-S3-P2 Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-070-S1-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-070-S1-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-070-S1-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-070-S2-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-070-S2-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-070-S2-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-070-S3-P0 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-070-S3-P1 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-070-S3-P2 Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-080-S1-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-080-S1-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-080-S1-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-080-S2-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-080-S2-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-080-S2-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-080-S3-P0 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-080-S3-P1 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-080-S3-P2 Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-090-S1-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-090-S1-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-090-S1-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-090-S2-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-090-S2-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-090-S2-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-090-S3-P0 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-090-S3-P1 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-090-S3-P2 Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-100-S1-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-100-S1-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-100-S1-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-100-S2-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-100-S2-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-100-S2-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-100-S3-P0 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-100-S3-P1 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-100-S3-P2 Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
Planetary GearboxesApex Dynamics
1206 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics AF Precision Planetary Gearboxes (Frame 100-220)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (1206)

AF100-003-S1-P0, AF100-003-S1-P1, AF100-003-S1-P2, AF100-003-S2-P0, AF100-003-S2-P1, AF100-003-S2-P2, AF100-003-S3-P0, AF100-003-S3-P1, AF100-003-S3-P2, AF100-004-S1-P0 + 1196 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AF100-003-S1-P0Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-003-S1-P1Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-003-S1-P2Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-003-S2-P0Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-003-S2-P1Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-003-S2-P2Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-003-S3-P0Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-003-S3-P1Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-003-S3-P2Frame: 100 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-004-S1-P0Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-004-S1-P1Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-004-S1-P2Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-004-S2-P0Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-004-S2-P1Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-004-S2-P2Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-004-S3-P0Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-004-S3-P1Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-004-S3-P2Frame: 100 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-005-S1-P0Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-005-S1-P1Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-005-S1-P2Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-005-S2-P0Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-005-S2-P1Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-005-S2-P2Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-005-S3-P0Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-005-S3-P1Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-005-S3-P2Frame: 100 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-006-S1-P0Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-006-S1-P1Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-006-S1-P2Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-006-S2-P0Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-006-S2-P1Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-006-S2-P2Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-006-S3-P0Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-006-S3-P1Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-006-S3-P2Frame: 100 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-007-S1-P0Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-007-S1-P1Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-007-S1-P2Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-007-S2-P0Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-007-S2-P1Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-007-S2-P2Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-007-S3-P0Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-007-S3-P1Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-007-S3-P2Frame: 100 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-008-S1-P0Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-008-S1-P1Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-008-S1-P2Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-008-S2-P0Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-008-S2-P1Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-008-S2-P2Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-008-S3-P0Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-008-S3-P1Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-008-S3-P2Frame: 100 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-009-S1-P0Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-009-S1-P1Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-009-S1-P2Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-009-S2-P0Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-009-S2-P1Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-009-S2-P2Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-009-S3-P0Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-009-S3-P1Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-009-S3-P2Frame: 100 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-010-S1-P0Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-010-S1-P1Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-010-S1-P2Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-010-S2-P0Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-010-S2-P1Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-010-S2-P2Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-010-S3-P0Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-010-S3-P1Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-010-S3-P2Frame: 100 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-012-S1-P0Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-012-S1-P1Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-012-S1-P2Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-012-S2-P0Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-012-S2-P1Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-012-S2-P2Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-012-S3-P0Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-012-S3-P1Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-012-S3-P2Frame: 100 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-015-S1-P0Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-015-S1-P1Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-015-S1-P2Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100-015-S2-P0Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-015-S2-P1Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-015-S2-P2Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100-015-S3-P0Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-015-S3-P1Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-015-S3-P2Frame: 100 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100-016-S1-P0Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-016-S1-P1Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-016-S1-P2Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-016-S2-P0Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-016-S2-P1Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-016-S2-P2Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-016-S3-P0Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-016-S3-P1Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-016-S3-P2Frame: 100 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-020-S1-P0Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-020-S1-P1Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-020-S1-P2Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100-020-S2-P0Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-020-S2-P1Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-020-S2-P2Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100-020-S3-P0Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-020-S3-P1Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-020-S3-P2Frame: 100 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100-025-S1-P0Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-025-S1-P1Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-025-S1-P2Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-025-S2-P0Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-025-S2-P1Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-025-S2-P2Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-025-S3-P0Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-025-S3-P1Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-025-S3-P2Frame: 100 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-028-S1-P0Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-028-S1-P1Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-028-S1-P2Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-028-S2-P0Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-028-S2-P1Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-028-S2-P2Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-028-S3-P0Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-028-S3-P1Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-028-S3-P2Frame: 100 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-030-S1-P0Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-030-S1-P1Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-030-S1-P2Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-030-S2-P0Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-030-S2-P1Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-030-S2-P2Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-030-S3-P0Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-030-S3-P1Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-030-S3-P2Frame: 100 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-032-S1-P0Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-032-S1-P1Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-032-S1-P2Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-032-S2-P0Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-032-S2-P1Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-032-S2-P2Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-032-S3-P0Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-032-S3-P1Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-032-S3-P2Frame: 100 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-035-S1-P0Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-035-S1-P1Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-035-S1-P2Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-035-S2-P0Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-035-S2-P1Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-035-S2-P2Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-035-S3-P0Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-035-S3-P1Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-035-S3-P2Frame: 100 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-040-S1-P0Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-040-S1-P1Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-040-S1-P2Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-040-S2-P0Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-040-S2-P1Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-040-S2-P2Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-040-S3-P0Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-040-S3-P1Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-040-S3-P2Frame: 100 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-045-S1-P0Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-045-S1-P1Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-045-S1-P2Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-045-S2-P0Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-045-S2-P1Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-045-S2-P2Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-045-S3-P0Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-045-S3-P1Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-045-S3-P2Frame: 100 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-050-S1-P0Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-050-S1-P1Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-050-S1-P2Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100-050-S2-P0Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-050-S2-P1Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-050-S2-P2Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100-050-S3-P0Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-050-S3-P1Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-050-S3-P2Frame: 100 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100-060-S1-P0Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-060-S1-P1Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-060-S1-P2Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100-060-S2-P0Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-060-S2-P1Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-060-S2-P2Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100-060-S3-P0Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-060-S3-P1Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-060-S3-P2Frame: 100 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100-070-S1-P0Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-070-S1-P1Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-070-S1-P2Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100-070-S2-P0Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-070-S2-P1Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-070-S2-P2Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100-070-S3-P0Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-070-S3-P1Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-070-S3-P2Frame: 100 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100-080-S1-P0Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-080-S1-P1Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-080-S1-P2Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100-080-S2-P0Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-080-S2-P1Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-080-S2-P2Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100-080-S3-P0Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-080-S3-P1Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-080-S3-P2Frame: 100 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100-090-S1-P0Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-090-S1-P1Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-090-S1-P2Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-090-S2-P0Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-090-S2-P1Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-090-S2-P2Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-090-S3-P0Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-090-S3-P1Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-090-S3-P2Frame: 100 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-100-S1-P0Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-100-S1-P1Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-100-S1-P2Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100-100-S2-P0Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-100-S2-P1Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-100-S2-P2Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100-100-S3-P0Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-100-S3-P1Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100-100-S3-P2Frame: 100 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-012-S1-P0Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-012-S1-P1Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-012-S1-P2Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-012-S2-P0Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-012-S2-P1Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-012-S2-P2Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-012-S3-P0Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-012-S3-P1Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-012-S3-P2Frame: 100A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-015-S1-P0Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100A-015-S1-P1Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100A-015-S1-P2Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 208 Nm
AF100A-015-S2-P0Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100A-015-S2-P1Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100A-015-S2-P2Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 208 Nm
AF100A-015-S3-P0Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100A-015-S3-P1Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100A-015-S3-P2Frame: 100A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 208 Nm
AF100A-016-S1-P0Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-016-S1-P1Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-016-S1-P2Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-016-S2-P0Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-016-S2-P1Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-016-S2-P2Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-016-S3-P0Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-016-S3-P1Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-016-S3-P2Frame: 100A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-020-S1-P0Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-020-S1-P1Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-020-S1-P2Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 290 Nm
AF100A-020-S2-P0Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-020-S2-P1Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-020-S2-P2Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 290 Nm
AF100A-020-S3-P0Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-020-S3-P1Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-020-S3-P2Frame: 100A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 290 Nm
AF100A-025-S1-P0Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-025-S1-P1Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-025-S1-P2Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-025-S2-P0Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-025-S2-P1Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-025-S2-P2Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-025-S3-P0Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-025-S3-P1Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-025-S3-P2Frame: 100A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-028-S1-P0Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-028-S1-P1Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-028-S1-P2Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-028-S2-P0Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-028-S2-P1Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-028-S2-P2Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-028-S3-P0Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-028-S3-P1Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-028-S3-P2Frame: 100A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-030-S1-P0Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-030-S1-P1Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-030-S1-P2Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-030-S2-P0Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-030-S2-P1Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-030-S2-P2Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-030-S3-P0Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-030-S3-P1Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-030-S3-P2Frame: 100A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-032-S1-P0Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-032-S1-P1Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-032-S1-P2Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-032-S2-P0Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-032-S2-P1Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-032-S2-P2Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-032-S3-P0Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-032-S3-P1Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-032-S3-P2Frame: 100A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-035-S1-P0Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-035-S1-P1Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-035-S1-P2Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-035-S2-P0Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-035-S2-P1Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-035-S2-P2Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-035-S3-P0Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-035-S3-P1Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-035-S3-P2Frame: 100A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-040-S1-P0Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-040-S1-P1Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-040-S1-P2Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-040-S2-P0Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-040-S2-P1Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-040-S2-P2Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-040-S3-P0Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-040-S3-P1Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-040-S3-P2Frame: 100A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-045-S1-P0Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-045-S1-P1Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-045-S1-P2Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-045-S2-P0Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-045-S2-P1Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-045-S2-P2Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-045-S3-P0Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-045-S3-P1Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-045-S3-P2Frame: 100A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-050-S1-P0Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-050-S1-P1Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-050-S1-P2Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
AF100A-050-S2-P0Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-050-S2-P1Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-050-S2-P2Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
AF100A-050-S3-P0Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-050-S3-P1Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-050-S3-P2Frame: 100A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 330 Nm
AF100A-060-S1-P0Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-060-S1-P1Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-060-S1-P2Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 310 Nm
AF100A-060-S2-P0Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-060-S2-P1Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-060-S2-P2Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 310 Nm
AF100A-060-S3-P0Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-060-S3-P1Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-060-S3-P2Frame: 100A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 310 Nm
AF100A-070-S1-P0Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-070-S1-P1Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-070-S1-P2Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 300 Nm
AF100A-070-S2-P0Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-070-S2-P1Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-070-S2-P2Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 300 Nm
AF100A-070-S3-P0Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-070-S3-P1Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-070-S3-P2Frame: 100A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 300 Nm
AF100A-080-S1-P0Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-080-S1-P1Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-080-S1-P2Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 260 Nm
AF100A-080-S2-P0Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-080-S2-P1Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-080-S2-P2Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 260 Nm
AF100A-080-S3-P0Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-080-S3-P1Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-080-S3-P2Frame: 100A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 260 Nm
AF100A-090-S1-P0Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-090-S1-P1Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-090-S1-P2Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-090-S2-P0Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-090-S2-P1Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-090-S2-P2Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-090-S3-P0Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-090-S3-P1Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-090-S3-P2Frame: 100A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-100-S1-P0Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-100-S1-P1Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-100-S1-P2Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 230 Nm
AF100A-100-S2-P0Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-100-S2-P1Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-100-S2-P2Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 230 Nm
AF100A-100-S3-P0Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-100-S3-P1Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF100A-100-S3-P2Frame: 100A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 230 Nm
AF140-003-S1-P0Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-003-S1-P1Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-003-S1-P2Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-003-S2-P0Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-003-S2-P1Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-003-S2-P2Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-003-S3-P0Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-003-S3-P1Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-003-S3-P2Frame: 140 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-004-S1-P0Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-004-S1-P1Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-004-S1-P2Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-004-S2-P0Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-004-S2-P1Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-004-S2-P2Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-004-S3-P0Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-004-S3-P1Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-004-S3-P2Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-005-S1-P0Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-005-S1-P1Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-005-S1-P2Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-005-S2-P0Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-005-S2-P1Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-005-S2-P2Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-005-S3-P0Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-005-S3-P1Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-005-S3-P2Frame: 140 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-006-S1-P0Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-006-S1-P1Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-006-S1-P2Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-006-S2-P0Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-006-S2-P1Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-006-S2-P2Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-006-S3-P0Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-006-S3-P1Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-006-S3-P2Frame: 140 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-007-S1-P0Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-007-S1-P1Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-007-S1-P2Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-007-S2-P0Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-007-S2-P1Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-007-S2-P2Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-007-S3-P0Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-007-S3-P1Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-007-S3-P2Frame: 140 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-008-S1-P0Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-008-S1-P1Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-008-S1-P2Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-008-S2-P0Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-008-S2-P1Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-008-S2-P2Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-008-S3-P0Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-008-S3-P1Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-008-S3-P2Frame: 140 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-009-S1-P0Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-009-S1-P1Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-009-S1-P2Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-009-S2-P0Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-009-S2-P1Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-009-S2-P2Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-009-S3-P0Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-009-S3-P1Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-009-S3-P2Frame: 140 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-010-S1-P0Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-010-S1-P1Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-010-S1-P2Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-010-S2-P0Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-010-S2-P1Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-010-S2-P2Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-010-S3-P0Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-010-S3-P1Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-010-S3-P2Frame: 140 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-012-S1-P0Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-012-S1-P1Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-012-S1-P2Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-012-S2-P0Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-012-S2-P1Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-012-S2-P2Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-012-S3-P0Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-012-S3-P1Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-012-S3-P2Frame: 140 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-015-S1-P0Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-015-S1-P1Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-015-S1-P2Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140-015-S2-P0Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-015-S2-P1Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-015-S2-P2Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140-015-S3-P0Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-015-S3-P1Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-015-S3-P2Frame: 140 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140-016-S1-P0Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-016-S1-P1Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-016-S1-P2Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-016-S2-P0Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-016-S2-P1Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-016-S2-P2Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-016-S3-P0Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-016-S3-P1Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-016-S3-P2Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-020-S1-P0Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-020-S1-P1Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-020-S1-P2Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140-020-S2-P0Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-020-S2-P1Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-020-S2-P2Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140-020-S3-P0Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-020-S3-P1Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-020-S3-P2Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140-025-S1-P0Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-025-S1-P1Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-025-S1-P2Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-025-S2-P0Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-025-S2-P1Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-025-S2-P2Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-025-S3-P0Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-025-S3-P1Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-025-S3-P2Frame: 140 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-028-S1-P0Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-028-S1-P1Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-028-S1-P2Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-028-S2-P0Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-028-S2-P1Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-028-S2-P2Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-028-S3-P0Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-028-S3-P1Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-028-S3-P2Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-030-S1-P0Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-030-S1-P1Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-030-S1-P2Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-030-S2-P0Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-030-S2-P1Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-030-S2-P2Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-030-S3-P0Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-030-S3-P1Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-030-S3-P2Frame: 140 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-032-S1-P0Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-032-S1-P1Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-032-S1-P2Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-032-S2-P0Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-032-S2-P1Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-032-S2-P2Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-032-S3-P0Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-032-S3-P1Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-032-S3-P2Frame: 140 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-035-S1-P0Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-035-S1-P1Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-035-S1-P2Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-035-S2-P0Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-035-S2-P1Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-035-S2-P2Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-035-S3-P0Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-035-S3-P1Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-035-S3-P2Frame: 140 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-040-S1-P0Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-040-S1-P1Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-040-S1-P2Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-040-S2-P0Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-040-S2-P1Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-040-S2-P2Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-040-S3-P0Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-040-S3-P1Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-040-S3-P2Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-045-S1-P0Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-045-S1-P1Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-045-S1-P2Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-045-S2-P0Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-045-S2-P1Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-045-S2-P2Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-045-S3-P0Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-045-S3-P1Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-045-S3-P2Frame: 140 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-050-S1-P0Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-050-S1-P1Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-050-S1-P2Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140-050-S2-P0Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-050-S2-P1Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-050-S2-P2Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140-050-S3-P0Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-050-S3-P1Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-050-S3-P2Frame: 140 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140-060-S1-P0Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-060-S1-P1Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-060-S1-P2Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140-060-S2-P0Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-060-S2-P1Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-060-S2-P2Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140-060-S3-P0Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-060-S3-P1Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-060-S3-P2Frame: 140 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140-070-S1-P0Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-070-S1-P1Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-070-S1-P2Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140-070-S2-P0Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-070-S2-P1Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-070-S2-P2Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140-070-S3-P0Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-070-S3-P1Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-070-S3-P2Frame: 140 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140-080-S1-P0Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-080-S1-P1Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-080-S1-P2Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140-080-S2-P0Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-080-S2-P1Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-080-S2-P2Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140-080-S3-P0Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-080-S3-P1Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-080-S3-P2Frame: 140 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140-090-S1-P0Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-090-S1-P1Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-090-S1-P2Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-090-S2-P0Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-090-S2-P1Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-090-S2-P2Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-090-S3-P0Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-090-S3-P1Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-090-S3-P2Frame: 140 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-100-S1-P0Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-100-S1-P1Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-100-S1-P2Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140-100-S2-P0Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-100-S2-P1Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-100-S2-P2Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140-100-S3-P0Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-100-S3-P1Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140-100-S3-P2Frame: 140 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-012-S1-P0Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-012-S1-P1Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-012-S1-P2Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-012-S2-P0Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-012-S2-P1Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-012-S2-P2Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-012-S3-P0Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-012-S3-P1Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-012-S3-P2Frame: 140A | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-015-S1-P0Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140A-015-S1-P1Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140A-015-S1-P2Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 342 Nm
AF140A-015-S2-P0Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140A-015-S2-P1Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140A-015-S2-P2Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 342 Nm
AF140A-015-S3-P0Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140A-015-S3-P1Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140A-015-S3-P2Frame: 140A | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 342 Nm
AF140A-016-S1-P0Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-016-S1-P1Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-016-S1-P2Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-016-S2-P0Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-016-S2-P1Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-016-S2-P2Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-016-S3-P0Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-016-S3-P1Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-016-S3-P2Frame: 140A | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-020-S1-P0Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-020-S1-P1Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-020-S1-P2Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 542 Nm
AF140A-020-S2-P0Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-020-S2-P1Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-020-S2-P2Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 542 Nm
AF140A-020-S3-P0Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-020-S3-P1Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-020-S3-P2Frame: 140A | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 542 Nm
AF140A-025-S1-P0Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-025-S1-P1Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-025-S1-P2Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-025-S2-P0Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-025-S2-P1Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-025-S2-P2Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-025-S3-P0Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-025-S3-P1Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-025-S3-P2Frame: 140A | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-028-S1-P0Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-028-S1-P1Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-028-S1-P2Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-028-S2-P0Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-028-S2-P1Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-028-S2-P2Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-028-S3-P0Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-028-S3-P1Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-028-S3-P2Frame: 140A | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-030-S1-P0Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-030-S1-P1Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-030-S1-P2Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-030-S2-P0Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-030-S2-P1Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-030-S2-P2Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-030-S3-P0Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-030-S3-P1Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-030-S3-P2Frame: 140A | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-032-S1-P0Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-032-S1-P1Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-032-S1-P2Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-032-S2-P0Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-032-S2-P1Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-032-S2-P2Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-032-S3-P0Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-032-S3-P1Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-032-S3-P2Frame: 140A | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-035-S1-P0Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-035-S1-P1Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-035-S1-P2Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-035-S2-P0Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-035-S2-P1Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-035-S2-P2Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-035-S3-P0Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-035-S3-P1Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-035-S3-P2Frame: 140A | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-040-S1-P0Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-040-S1-P1Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-040-S1-P2Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-040-S2-P0Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-040-S2-P1Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-040-S2-P2Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-040-S3-P0Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-040-S3-P1Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-040-S3-P2Frame: 140A | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-045-S1-P0Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-045-S1-P1Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-045-S1-P2Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-045-S2-P0Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-045-S2-P1Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-045-S2-P2Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-045-S3-P0Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-045-S3-P1Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-045-S3-P2Frame: 140A | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-050-S1-P0Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-050-S1-P1Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-050-S1-P2Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 650 Nm
AF140A-050-S2-P0Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-050-S2-P1Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-050-S2-P2Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 650 Nm
AF140A-050-S3-P0Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-050-S3-P1Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-050-S3-P2Frame: 140A | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 650 Nm
AF140A-060-S1-P0Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-060-S1-P1Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-060-S1-P2Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
AF140A-060-S2-P0Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-060-S2-P1Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-060-S2-P2Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
AF140A-060-S3-P0Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-060-S3-P1Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-060-S3-P2Frame: 140A | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
AF140A-070-S1-P0Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-070-S1-P1Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-070-S1-P2Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 550 Nm
AF140A-070-S2-P0Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-070-S2-P1Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-070-S2-P2Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 550 Nm
AF140A-070-S3-P0Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-070-S3-P1Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-070-S3-P2Frame: 140A | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 550 Nm
AF140A-080-S1-P0Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-080-S1-P1Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-080-S1-P2Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 500 Nm
AF140A-080-S2-P0Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-080-S2-P1Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-080-S2-P2Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 500 Nm
AF140A-080-S3-P0Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-080-S3-P1Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-080-S3-P2Frame: 140A | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 500 Nm
AF140A-090-S1-P0Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-090-S1-P1Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-090-S1-P2Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-090-S2-P0Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-090-S2-P1Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-090-S2-P2Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-090-S3-P0Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-090-S3-P1Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-090-S3-P2Frame: 140A | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-100-S1-P0Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-100-S1-P1Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-100-S1-P2Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 450 Nm
AF140A-100-S2-P0Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-100-S2-P1Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-100-S2-P2Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 450 Nm
AF140A-100-S3-P0Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-100-S3-P1Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF140A-100-S3-P2Frame: 140A | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 450 Nm
AF180-003-S1-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-003-S1-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-003-S1-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-003-S2-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-003-S2-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-003-S2-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-003-S3-P0Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-003-S3-P1Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-003-S3-P2Frame: 180 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-004-S1-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-004-S1-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-004-S1-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-004-S2-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-004-S2-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-004-S2-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-004-S3-P0Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-004-S3-P1Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-004-S3-P2Frame: 180 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-005-S1-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-005-S1-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-005-S1-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-005-S2-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-005-S2-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-005-S2-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-005-S3-P0Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-005-S3-P1Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-005-S3-P2Frame: 180 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-006-S1-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-006-S1-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-006-S1-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-006-S2-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-006-S2-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-006-S2-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-006-S3-P0Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-006-S3-P1Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-006-S3-P2Frame: 180 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-007-S1-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-007-S1-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-007-S1-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-007-S2-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-007-S2-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-007-S2-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-007-S3-P0Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-007-S3-P1Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-007-S3-P2Frame: 180 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-008-S1-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-008-S1-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-008-S1-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-008-S2-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-008-S2-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-008-S2-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-008-S3-P0Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-008-S3-P1Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-008-S3-P2Frame: 180 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-009-S1-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-009-S1-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-009-S1-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-009-S2-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-009-S2-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-009-S2-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-009-S3-P0Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-009-S3-P1Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-009-S3-P2Frame: 180 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-010-S1-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-010-S1-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-010-S1-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-010-S2-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-010-S2-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-010-S2-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-010-S3-P0Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-010-S3-P1Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-010-S3-P2Frame: 180 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-012-S1-P0Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-012-S1-P1Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-012-S1-P2Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-012-S2-P0Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-012-S2-P1Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-012-S2-P2Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-012-S3-P0Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-012-S3-P1Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-012-S3-P2Frame: 180 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-015-S1-P0Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-015-S1-P1Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-015-S1-P2Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 588 Nm
AF180-015-S2-P0Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-015-S2-P1Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-015-S2-P2Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 588 Nm
AF180-015-S3-P0Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-015-S3-P1Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-015-S3-P2Frame: 180 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 588 Nm
AF180-016-S1-P0Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-016-S1-P1Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-016-S1-P2Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-016-S2-P0Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-016-S2-P1Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-016-S2-P2Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-016-S3-P0Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-016-S3-P1Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-016-S3-P2Frame: 180 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-020-S1-P0Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-020-S1-P1Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-020-S1-P2Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,050 Nm
AF180-020-S2-P0Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-020-S2-P1Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-020-S2-P2Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,050 Nm
AF180-020-S3-P0Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-020-S3-P1Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-020-S3-P2Frame: 180 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,050 Nm
AF180-025-S1-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-025-S1-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-025-S1-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-025-S2-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-025-S2-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-025-S2-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-025-S3-P0Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-025-S3-P1Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-025-S3-P2Frame: 180 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-028-S1-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-028-S1-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-028-S1-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-028-S2-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-028-S2-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-028-S2-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-028-S3-P0Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-028-S3-P1Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-028-S3-P2Frame: 180 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-030-S1-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-030-S1-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-030-S1-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-030-S2-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-030-S2-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-030-S2-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-030-S3-P0Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-030-S3-P1Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-030-S3-P2Frame: 180 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-032-S1-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-032-S1-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-032-S1-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-032-S2-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-032-S2-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-032-S2-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-032-S3-P0Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-032-S3-P1Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-032-S3-P2Frame: 180 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-035-S1-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-035-S1-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-035-S1-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-035-S2-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-035-S2-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-035-S2-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-035-S3-P0Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-035-S3-P1Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-035-S3-P2Frame: 180 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-040-S1-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-040-S1-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-040-S1-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-040-S2-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-040-S2-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-040-S2-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-040-S3-P0Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-040-S3-P1Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-040-S3-P2Frame: 180 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-045-S1-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-045-S1-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-045-S1-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-045-S2-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-045-S2-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-045-S2-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-045-S3-P0Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-045-S3-P1Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-045-S3-P2Frame: 180 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-050-S1-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-050-S1-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-050-S1-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,200 Nm
AF180-050-S2-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-050-S2-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-050-S2-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,200 Nm
AF180-050-S3-P0Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-050-S3-P1Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-050-S3-P2Frame: 180 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,200 Nm
AF180-060-S1-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-060-S1-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-060-S1-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-060-S2-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-060-S2-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-060-S2-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-060-S3-P0Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-060-S3-P1Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-060-S3-P2Frame: 180 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-070-S1-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-070-S1-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-070-S1-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
AF180-070-S2-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-070-S2-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-070-S2-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
AF180-070-S3-P0Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-070-S3-P1Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-070-S3-P2Frame: 180 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
AF180-080-S1-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-080-S1-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-080-S1-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,000 Nm
AF180-080-S2-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-080-S2-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-080-S2-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,000 Nm
AF180-080-S3-P0Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-080-S3-P1Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-080-S3-P2Frame: 180 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,000 Nm
AF180-090-S1-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-090-S1-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-090-S1-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-090-S2-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-090-S2-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-090-S2-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-090-S3-P0Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-090-S3-P1Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-090-S3-P2Frame: 180 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-100-S1-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-100-S1-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-100-S1-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 900 Nm
AF180-100-S2-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-100-S2-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-100-S2-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 900 Nm
AF180-100-S3-P0Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-100-S3-P1Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF180-100-S3-P2Frame: 180 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 900 Nm
AF220-003-S1-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-003-S1-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-003-S1-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-003-S2-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-003-S2-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-003-S2-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-003-S3-P0Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-003-S3-P1Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-003-S3-P2Frame: 220 | Ratio i: 3 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-004-S1-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-004-S1-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-004-S1-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-004-S2-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-004-S2-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-004-S2-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-004-S3-P0Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-004-S3-P1Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-004-S3-P2Frame: 220 | Ratio i: 4 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-005-S1-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-005-S1-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-005-S1-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-005-S2-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-005-S2-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-005-S2-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-005-S3-P0Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-005-S3-P1Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-005-S3-P2Frame: 220 | Ratio i: 5 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-006-S1-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-006-S1-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-006-S1-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-006-S2-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-006-S2-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-006-S2-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-006-S3-P0Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-006-S3-P1Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-006-S3-P2Frame: 220 | Ratio i: 6 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-007-S1-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-007-S1-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-007-S1-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-007-S2-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-007-S2-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-007-S2-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-007-S3-P0Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-007-S3-P1Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-007-S3-P2Frame: 220 | Ratio i: 7 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-008-S1-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-008-S1-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-008-S1-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-008-S2-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-008-S2-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-008-S2-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-008-S3-P0Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-008-S3-P1Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-008-S3-P2Frame: 220 | Ratio i: 8 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-009-S1-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-009-S1-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-009-S1-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-009-S2-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-009-S2-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-009-S2-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-009-S3-P0Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-009-S3-P1Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-009-S3-P2Frame: 220 | Ratio i: 9 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-010-S1-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-010-S1-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-010-S1-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-010-S2-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-010-S2-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-010-S2-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-010-S3-P0Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P0 <=1 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-010-S3-P1Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P1 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-010-S3-P2Frame: 220 | Ratio i: 10 | Stages: 1 | Backlash: P2 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-012-S1-P0Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-012-S1-P1Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-012-S1-P2Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-012-S2-P0Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-012-S2-P1Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-012-S2-P2Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-012-S3-P0Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-012-S3-P1Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-012-S3-P2Frame: 220 | Ratio i: 12 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-015-S1-P0Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-015-S1-P1Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-015-S1-P2Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,140 Nm
AF220-015-S2-P0Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-015-S2-P1Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-015-S2-P2Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,140 Nm
AF220-015-S3-P0Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-015-S3-P1Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-015-S3-P2Frame: 220 | Ratio i: 15 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,140 Nm
AF220-016-S1-P0Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-016-S1-P1Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-016-S1-P2Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-016-S2-P0Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-016-S2-P1Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-016-S2-P2Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-016-S3-P0Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-016-S3-P1Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-016-S3-P2Frame: 220 | Ratio i: 16 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-020-S1-P0Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-020-S1-P1Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-020-S1-P2Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,700 Nm
AF220-020-S2-P0Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-020-S2-P1Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-020-S2-P2Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,700 Nm
AF220-020-S3-P0Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-020-S3-P1Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-020-S3-P2Frame: 220 | Ratio i: 20 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,700 Nm
AF220-025-S1-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-025-S1-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-025-S1-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-025-S2-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-025-S2-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-025-S2-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-025-S3-P0Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-025-S3-P1Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-025-S3-P2Frame: 220 | Ratio i: 25 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-028-S1-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-028-S1-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-028-S1-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-028-S2-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-028-S2-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-028-S2-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-028-S3-P0Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-028-S3-P1Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-028-S3-P2Frame: 220 | Ratio i: 28 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-030-S1-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-030-S1-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-030-S1-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-030-S2-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-030-S2-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-030-S2-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-030-S3-P0Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-030-S3-P1Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-030-S3-P2Frame: 220 | Ratio i: 30 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-032-S1-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-032-S1-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-032-S1-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-032-S2-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-032-S2-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-032-S2-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-032-S3-P0Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-032-S3-P1Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-032-S3-P2Frame: 220 | Ratio i: 32 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-035-S1-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-035-S1-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-035-S1-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-035-S2-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-035-S2-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-035-S2-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-035-S3-P0Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-035-S3-P1Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-035-S3-P2Frame: 220 | Ratio i: 35 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-040-S1-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-040-S1-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-040-S1-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-040-S2-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-040-S2-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-040-S2-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-040-S3-P0Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-040-S3-P1Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-040-S3-P2Frame: 220 | Ratio i: 40 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-045-S1-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-045-S1-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-045-S1-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-045-S2-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-045-S2-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-045-S2-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-045-S3-P0Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-045-S3-P1Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-045-S3-P2Frame: 220 | Ratio i: 45 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-050-S1-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-050-S1-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-050-S1-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 2,000 Nm
AF220-050-S2-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-050-S2-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-050-S2-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 2,000 Nm
AF220-050-S3-P0Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-050-S3-P1Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-050-S3-P2Frame: 220 | Ratio i: 50 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 2,000 Nm
AF220-060-S1-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-060-S1-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-060-S1-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,900 Nm
AF220-060-S2-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-060-S2-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-060-S2-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,900 Nm
AF220-060-S3-P0Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-060-S3-P1Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-060-S3-P2Frame: 220 | Ratio i: 60 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,900 Nm
AF220-070-S1-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-070-S1-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-070-S1-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,800 Nm
AF220-070-S2-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-070-S2-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-070-S2-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,800 Nm
AF220-070-S3-P0Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-070-S3-P1Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-070-S3-P2Frame: 220 | Ratio i: 70 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,800 Nm
AF220-080-S1-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-080-S1-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-080-S1-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
AF220-080-S2-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-080-S2-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-080-S2-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
AF220-080-S3-P0Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-080-S3-P1Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-080-S3-P2Frame: 220 | Ratio i: 80 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
AF220-090-S1-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-090-S1-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-090-S1-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-090-S2-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-090-S2-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-090-S2-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-090-S3-P0Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-090-S3-P1Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-090-S3-P2Frame: 220 | Ratio i: 90 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-100-S1-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-100-S1-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-100-S1-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S1 smooth | Nominal torque T2N: 1,500 Nm
AF220-100-S2-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-100-S2-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-100-S2-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S2 keyed | Nominal torque T2N: 1,500 Nm
AF220-100-S3-P0Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P0 <=3 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-100-S3-P1Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P1 <=5 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm
AF220-100-S3-P2Frame: 220 | Ratio i: 100 | Stages: 2 | Backlash: P2 <=7 arcmin | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,500 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
