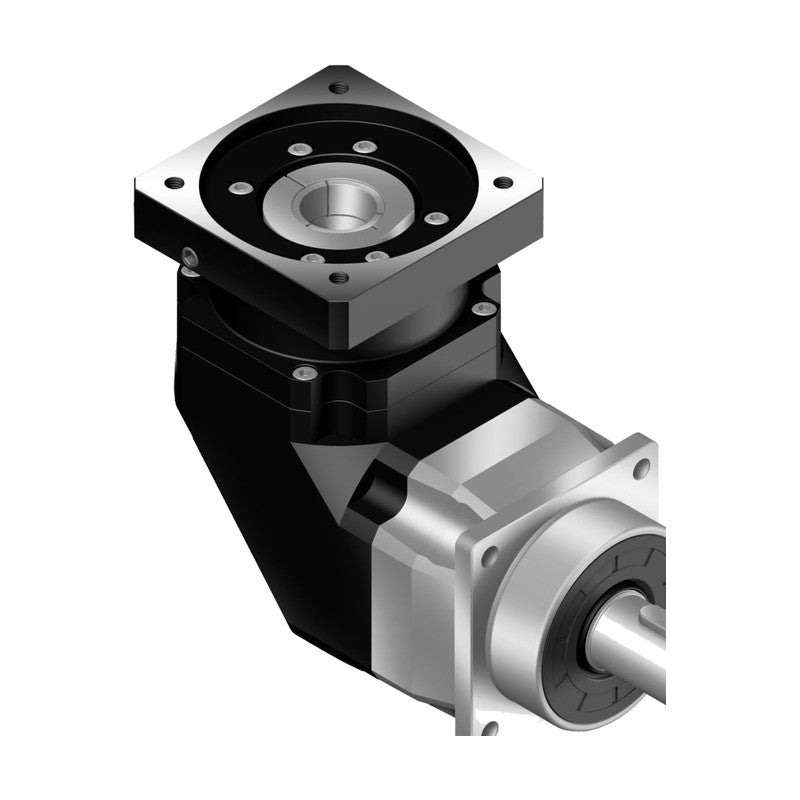

Apex Dynamics AFR Right-Angle Planetary Gearboxes (Frame 042-075A)

APEX Dynamics AFR series high precision, high speed right-angle planetary gearboxes for servo motors, frame sizes 042 to 075A.

Key features

Full order code: size - 3-digit ratio - output shaft S1/S2/S3 - backlash P0/P1/P2, then / motor make and model
Ordering example AFR075-010-S1-P1 / SIEMENS 1FT6 041-4AF71; motor adapter is specified by motor model, not by code
Right-angle version of the AF series; single-stage ratios 3-20 and two-stage ratios 12-200 (per frame table)
Micro backlash P0 <=2/4 arcmin, P1 <=4/7 arcmin, P2 <=6/9 arcmin (1-stage/2-stage)
Output shafts: S1 smooth, S2 with key, S3 DIN 5480 spline (S3 not offered on AFR042)
IP67 protection, lubricated for life, any mounting position, emergency stop torque 3x nominal

Specifications

Gearbox type	Right-angle planetary (bevel stage)
Efficiency	1-stage >=95%, 2-stage >=92%
Max. acceleration torque T2B	60% of emergency stop torque T2NOT
Emergency stop torque T2NOT	3x nominal output torque
Protection	IP67
Operating temperature	-10 to +90 C
Lubrication	Lubricant, lubricated for life
Mounting position	All directions
Motor input	Specify motor make and model when ordering
Nominal input speed n1N	5,000 rpm (042-060A), 4,000 rpm (075-075A)
Torsional rigidity	3-14 Nm/arcmin
Source	APEX Dynamics AF/AFR catalog, p. 2, 7-12

AFR042-003-S1-P1		Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 9 Nm
AFR042-003-S1-P2		Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 9 Nm
AFR042-003-S2-P1		Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 9 Nm
AFR042-003-S2-P2		Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 9 Nm
AFR042-004-S1-P1		Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 12 Nm
AFR042-004-S1-P2		Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 12 Nm
AFR042-004-S2-P1		Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 12 Nm
AFR042-004-S2-P2		Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 12 Nm
AFR042-005-S1-P1		Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
AFR042-005-S1-P2		Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
AFR042-005-S2-P1		Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
AFR042-005-S2-P2		Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
AFR042-006-S1-P1		Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 18 Nm
AFR042-006-S1-P2		Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 18 Nm
AFR042-006-S2-P1		Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 18 Nm
AFR042-006-S2-P2		Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 18 Nm
AFR042-007-S1-P1		Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
AFR042-007-S1-P2		Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
AFR042-007-S2-P1		Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
AFR042-007-S2-P2		Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
AFR042-008-S1-P1		Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
AFR042-008-S1-P2		Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
AFR042-008-S2-P1		Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
AFR042-008-S2-P2		Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
AFR042-009-S1-P1		Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-009-S1-P2		Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-009-S2-P1		Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-009-S2-P2		Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-010-S1-P1		Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-010-S1-P2		Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-010-S2-P1		Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-010-S2-P2		Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-012-S1-P1		Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 12 Nm
AFR042-012-S1-P2		Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 12 Nm
AFR042-012-S2-P1		Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 12 Nm
AFR042-012-S2-P2		Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 12 Nm
AFR042-015-S1-P1		Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-015-S1-P2		Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-015-S2-P1		Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-015-S2-P2		Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-016-S1-P1		Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
AFR042-016-S1-P2		Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
AFR042-016-S2-P1		Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
AFR042-016-S2-P2		Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
AFR042-020-S1-P1		Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-020-S1-P2		Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-020-S2-P1		Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-020-S2-P2		Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-025-S1-P1		Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
AFR042-025-S1-P2		Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
AFR042-025-S2-P1		Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
AFR042-025-S2-P2		Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
AFR042-028-S1-P1		Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
AFR042-028-S1-P2		Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
AFR042-028-S2-P1		Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
AFR042-028-S2-P2		Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
AFR042-030-S1-P1		Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 20 Nm
AFR042-030-S1-P2		Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 20 Nm
AFR042-030-S2-P1		Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 20 Nm
AFR042-030-S2-P2		Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 20 Nm
AFR042-032-S1-P1		Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
AFR042-032-S1-P2		Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
AFR042-032-S2-P1		Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
AFR042-032-S2-P2		Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
AFR042-035-S1-P1		Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
AFR042-035-S1-P2		Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
AFR042-035-S2-P1		Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
AFR042-035-S2-P2		Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
AFR042-040-S1-P1		Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
AFR042-040-S1-P2		Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
AFR042-040-S2-P1		Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
AFR042-040-S2-P2		Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
AFR042-045-S1-P1		Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-045-S1-P2		Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-045-S2-P1		Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-045-S2-P2		Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-050-S1-P1		Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-050-S1-P2		Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-050-S2-P1		Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-050-S2-P2		Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-060-S1-P1		Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 20 Nm
AFR042-060-S1-P2		Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 20 Nm
AFR042-060-S2-P1		Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 20 Nm
AFR042-060-S2-P2		Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 20 Nm
AFR042-070-S1-P1		Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
AFR042-070-S1-P2		Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
AFR042-070-S2-P1		Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
AFR042-070-S2-P2		Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
AFR042-080-S1-P1		Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
AFR042-080-S1-P2		Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
AFR042-080-S2-P1		Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
AFR042-080-S2-P2		Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
AFR042-090-S1-P1		Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-090-S1-P2		Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-090-S2-P1		Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-090-S2-P2		Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-100-S1-P1		Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-100-S1-P2		Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
AFR042-100-S2-P1		Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR042-100-S2-P2		Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
AFR060-003-S1-P1		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 36 Nm
AFR060-003-S1-P2		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 36 Nm
AFR060-003-S2-P1		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 36 Nm
AFR060-003-S2-P2		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 36 Nm
AFR060-003-S3-P1		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 36 Nm
AFR060-003-S3-P2		Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 36 Nm
AFR060-004-S1-P1		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 48 Nm
AFR060-004-S1-P2		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 48 Nm
AFR060-004-S2-P1		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 48 Nm
AFR060-004-S2-P2		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 48 Nm
AFR060-004-S3-P1		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 48 Nm
AFR060-004-S3-P2		Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 48 Nm
AFR060-005-S1-P1		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060-005-S1-P2		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060-005-S2-P1		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060-005-S2-P2		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060-005-S3-P1		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060-005-S3-P2		Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060-006-S1-P1		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060-006-S1-P2		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060-006-S2-P1		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060-006-S2-P2		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060-006-S3-P1		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060-006-S3-P2		Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060-007-S1-P1		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060-007-S1-P2		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060-007-S2-P1		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060-007-S2-P2		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060-007-S3-P1		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060-007-S3-P2		Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060-008-S1-P1		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060-008-S1-P2		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060-008-S2-P1		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060-008-S2-P2		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060-008-S3-P1		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060-008-S3-P2		Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060-009-S1-P1		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060-009-S1-P2		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060-009-S2-P1		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060-009-S2-P2		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060-009-S3-P1		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060-009-S3-P2		Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060-010-S1-P1		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060-010-S1-P2		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060-010-S2-P1		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060-010-S2-P2		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060-010-S3-P1		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060-010-S3-P2		Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060-012-S1-P1		Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060-012-S1-P2		Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060-012-S2-P1		Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060-012-S2-P2		Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060-012-S3-P1		Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060-012-S3-P2		Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060-014-S1-P1		Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 42 Nm
AFR060-014-S1-P2		Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 42 Nm
AFR060-014-S2-P1		Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 42 Nm
AFR060-014-S2-P2		Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 42 Nm
AFR060-014-S3-P1		Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 42 Nm
AFR060-014-S3-P2		Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 42 Nm
AFR060-016-S1-P1		Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060-016-S1-P2		Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060-016-S2-P1		Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060-016-S2-P2		Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060-016-S3-P1		Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060-016-S3-P2		Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060-020-S1-P1		Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060-020-S1-P2		Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060-020-S2-P1		Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060-020-S2-P2		Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060-020-S3-P1		Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060-020-S3-P2		Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060-025-S1-P1		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060-025-S1-P2		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060-025-S2-P1		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060-025-S2-P2		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060-025-S3-P1		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060-025-S3-P2		Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060-028-S1-P1		Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060-028-S1-P2		Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060-028-S2-P1		Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060-028-S2-P2		Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060-028-S3-P1		Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060-028-S3-P2		Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060-030-S1-P1		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060-030-S1-P2		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060-030-S2-P1		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060-030-S2-P2		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060-030-S3-P1		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060-030-S3-P2		Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060-032-S1-P1		Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060-032-S1-P2		Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060-032-S2-P1		Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060-032-S2-P2		Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060-032-S3-P1		Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060-032-S3-P2		Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060-035-S1-P1		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060-035-S1-P2		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060-035-S2-P1		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060-035-S2-P2		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060-035-S3-P1		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060-035-S3-P2		Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060-040-S1-P1		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060-040-S1-P2		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060-040-S2-P1		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060-040-S2-P2		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060-040-S3-P1		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060-040-S3-P2		Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060-045-S1-P1		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060-045-S1-P2		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060-045-S2-P1		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060-045-S2-P2		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060-045-S3-P1		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060-045-S3-P2		Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060-050-S1-P1		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060-050-S1-P2		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060-050-S2-P1		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060-050-S2-P2		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060-050-S3-P1		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060-050-S3-P2		Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060-060-S1-P1		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060-060-S1-P2		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060-060-S2-P1		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060-060-S2-P2		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060-060-S3-P1		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060-060-S3-P2		Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060-070-S1-P1		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060-070-S1-P2		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060-070-S2-P1		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060-070-S2-P2		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060-070-S3-P1		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060-070-S3-P2		Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060-080-S1-P1		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060-080-S1-P2		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060-080-S2-P1		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060-080-S2-P2		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060-080-S3-P1		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060-080-S3-P2		Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060-090-S1-P1		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060-090-S1-P2		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060-090-S2-P1		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060-090-S2-P2		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060-090-S3-P1		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060-090-S3-P2		Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060-100-S1-P1		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060-100-S1-P2		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060-100-S2-P1		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060-100-S2-P2		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060-100-S3-P1		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060-100-S3-P2		Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060A-025-S1-P1		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060A-025-S1-P2		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060A-025-S2-P1		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060A-025-S2-P2		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060A-025-S3-P1		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060A-025-S3-P2		Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060A-028-S1-P1		Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060A-028-S1-P2		Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060A-028-S2-P1		Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060A-028-S2-P2		Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060A-028-S3-P1		Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060A-028-S3-P2		Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060A-030-S1-P1		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060A-030-S1-P2		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060A-030-S2-P1		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060A-030-S2-P2		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060A-030-S3-P1		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060A-030-S3-P2		Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060A-032-S1-P1		Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060A-032-S1-P2		Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060A-032-S2-P1		Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060A-032-S2-P2		Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060A-032-S3-P1		Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060A-032-S3-P2		Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060A-035-S1-P1		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060A-035-S1-P2		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060A-035-S2-P1		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060A-035-S2-P2		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060A-035-S3-P1		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060A-035-S3-P2		Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060A-040-S1-P1		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060A-040-S1-P2		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060A-040-S2-P1		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060A-040-S2-P2		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060A-040-S3-P1		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060A-040-S3-P2		Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060A-045-S1-P1		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060A-045-S1-P2		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060A-045-S2-P1		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060A-045-S2-P2		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060A-045-S3-P1		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060A-045-S3-P2		Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060A-048-S1-P1		Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060A-048-S1-P2		Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060A-048-S2-P1		Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060A-048-S2-P2		Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060A-048-S3-P1		Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060A-048-S3-P2		Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060A-050-S1-P1		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060A-050-S1-P2		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060A-050-S2-P1		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060A-050-S2-P2		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060A-050-S3-P1		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060A-050-S3-P2		Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060A-060-S1-P1		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060A-060-S1-P2		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060A-060-S2-P1		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060A-060-S2-P2		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060A-060-S3-P1		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060A-060-S3-P2		Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060A-064-S1-P1		Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060A-064-S1-P2		Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060A-064-S2-P1		Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060A-064-S2-P2		Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060A-064-S3-P1		Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060A-064-S3-P2		Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060A-070-S1-P1		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060A-070-S1-P2		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060A-070-S2-P1		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060A-070-S2-P2		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060A-070-S3-P1		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060A-070-S3-P2		Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060A-080-S1-P1		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060A-080-S1-P2		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060A-080-S2-P1		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060A-080-S2-P2		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060A-080-S3-P1		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060A-080-S3-P2		Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060A-090-S1-P1		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060A-090-S1-P2		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060A-090-S2-P1		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060A-090-S2-P2		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060A-090-S3-P1		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060A-090-S3-P2		Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060A-100-S1-P1		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060A-100-S1-P2		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
AFR060A-100-S2-P1		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060A-100-S2-P2		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
AFR060A-100-S3-P1		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060A-100-S3-P2		Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
AFR060A-120-S1-P1		Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060A-120-S1-P2		Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
AFR060A-120-S2-P1		Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060A-120-S2-P2		Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
AFR060A-120-S3-P1		Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060A-120-S3-P2		Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
AFR060A-140-S1-P1		Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060A-140-S1-P2		Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
AFR060A-140-S2-P1		Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060A-140-S2-P2		Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
AFR060A-140-S3-P1		Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060A-140-S3-P2		Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
AFR060A-160-S1-P1		Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060A-160-S1-P2		Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
AFR060A-160-S2-P1		Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060A-160-S2-P2		Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
AFR060A-160-S3-P1		Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060A-160-S3-P2		Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
AFR060A-180-S1-P1		Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060A-180-S1-P2		Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060A-180-S2-P1		Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060A-180-S2-P2		Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060A-180-S3-P1		Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060A-180-S3-P2		Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060A-200-S1-P1		Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060A-200-S1-P2		Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
AFR060A-200-S2-P1		Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060A-200-S2-P2		Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
AFR060A-200-S3-P1		Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR060A-200-S3-P2		Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
AFR075-003-S1-P0		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 90 Nm
AFR075-003-S1-P1		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 90 Nm
AFR075-003-S1-P2		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 90 Nm
AFR075-003-S2-P0		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 90 Nm
AFR075-003-S2-P1		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 90 Nm
AFR075-003-S2-P2		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 90 Nm
AFR075-003-S3-P0		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 90 Nm
AFR075-003-S3-P1		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 90 Nm
AFR075-003-S3-P2		Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 90 Nm
AFR075-004-S1-P0		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-004-S1-P1		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-004-S1-P2		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-004-S2-P0		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-004-S2-P1		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-004-S2-P2		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-004-S3-P0		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-004-S3-P1		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-004-S3-P2		Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-005-S1-P0		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-005-S1-P1		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-005-S1-P2		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-005-S2-P0		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-005-S2-P1		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-005-S2-P2		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-005-S3-P0		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-005-S3-P1		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-005-S3-P2		Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-006-S1-P0		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-006-S1-P1		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-006-S1-P2		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-006-S2-P0		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-006-S2-P1		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-006-S2-P2		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-006-S3-P0		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-006-S3-P1		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-006-S3-P2		Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-007-S1-P0		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-007-S1-P1		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-007-S1-P2		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-007-S2-P0		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-007-S2-P1		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-007-S2-P2		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-007-S3-P0		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-007-S3-P1		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-007-S3-P2		Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-008-S1-P0		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-008-S1-P1		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-008-S1-P2		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-008-S2-P0		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-008-S2-P1		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-008-S2-P2		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-008-S3-P0		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-008-S3-P1		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-008-S3-P2		Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-009-S1-P0		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-009-S1-P1		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-009-S1-P2		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-009-S2-P0		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-009-S2-P1		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-009-S2-P2		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-009-S3-P0		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-009-S3-P1		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-009-S3-P2		Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-010-S1-P0		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-010-S1-P1		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-010-S1-P2		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-010-S2-P0		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-010-S2-P1		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-010-S2-P2		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-010-S3-P0		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-010-S3-P1		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-010-S3-P2		Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-012-S1-P0		Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-012-S1-P1		Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-012-S1-P2		Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-012-S2-P0		Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-012-S2-P1		Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-012-S2-P2		Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-012-S3-P0		Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-012-S3-P1		Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-012-S3-P2		Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-014-S1-P0		Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-014-S1-P1		Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-014-S1-P2		Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-014-S2-P0		Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-014-S2-P1		Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-014-S2-P2		Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-014-S3-P0		Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-014-S3-P1		Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-014-S3-P2		Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-016-S1-P0		Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-016-S1-P1		Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-016-S1-P2		Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-016-S2-P0		Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-016-S2-P1		Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-016-S2-P2		Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-016-S3-P0		Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-016-S3-P1		Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-016-S3-P2		Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-020-S1-P0		Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-020-S1-P1		Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-020-S1-P2		Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-020-S2-P0		Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-020-S2-P1		Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-020-S2-P2		Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-020-S3-P0		Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-020-S3-P1		Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-020-S3-P2		Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-025-S1-P0		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-025-S1-P1		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-025-S1-P2		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-025-S2-P0		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-025-S2-P1		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-025-S2-P2		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-025-S3-P0		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-025-S3-P1		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-025-S3-P2		Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-028-S1-P0		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-028-S1-P1		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-028-S1-P2		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-028-S2-P0		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-028-S2-P1		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-028-S2-P2		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-028-S3-P0		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-028-S3-P1		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-028-S3-P2		Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-030-S1-P0		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-030-S1-P1		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-030-S1-P2		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-030-S2-P0		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-030-S2-P1		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-030-S2-P2		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-030-S3-P0		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-030-S3-P1		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-030-S3-P2		Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-032-S1-P0		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-032-S1-P1		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-032-S1-P2		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-032-S2-P0		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-032-S2-P1		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-032-S2-P2		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-032-S3-P0		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-032-S3-P1		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-032-S3-P2		Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-035-S1-P0		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-035-S1-P1		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-035-S1-P2		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-035-S2-P0		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-035-S2-P1		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-035-S2-P2		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-035-S3-P0		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-035-S3-P1		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-035-S3-P2		Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-040-S1-P0		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-040-S1-P1		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-040-S1-P2		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-040-S2-P0		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-040-S2-P1		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-040-S2-P2		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-040-S3-P0		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-040-S3-P1		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-040-S3-P2		Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-045-S1-P0		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-045-S1-P1		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-045-S1-P2		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-045-S2-P0		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-045-S2-P1		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-045-S2-P2		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-045-S3-P0		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-045-S3-P1		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-045-S3-P2		Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-048-S1-P0		Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-048-S1-P1		Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-048-S1-P2		Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-048-S2-P0		Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-048-S2-P1		Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-048-S2-P2		Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-048-S3-P0		Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-048-S3-P1		Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-048-S3-P2		Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-050-S1-P0		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-050-S1-P1		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-050-S1-P2		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-050-S2-P0		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-050-S2-P1		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-050-S2-P2		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-050-S3-P0		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-050-S3-P1		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-050-S3-P2		Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-060-S1-P0		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-060-S1-P1		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-060-S1-P2		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-060-S2-P0		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-060-S2-P1		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-060-S2-P2		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-060-S3-P0		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-060-S3-P1		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-060-S3-P2		Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-064-S1-P0		Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-064-S1-P1		Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-064-S1-P2		Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-064-S2-P0		Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-064-S2-P1		Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-064-S2-P2		Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-064-S3-P0		Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-064-S3-P1		Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-064-S3-P2		Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-070-S1-P0		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-070-S1-P1		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-070-S1-P2		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-070-S2-P0		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-070-S2-P1		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-070-S2-P2		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-070-S3-P0		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-070-S3-P1		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-070-S3-P2		Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-080-S1-P0		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-080-S1-P1		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-080-S1-P2		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-080-S2-P0		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-080-S2-P1		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-080-S2-P2		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-080-S3-P0		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-080-S3-P1		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-080-S3-P2		Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-090-S1-P0		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-090-S1-P1		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-090-S1-P2		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-090-S2-P0		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-090-S2-P1		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-090-S2-P2		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-090-S3-P0		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-090-S3-P1		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-090-S3-P2		Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-100-S1-P0		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-100-S1-P1		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-100-S1-P2		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-100-S2-P0		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-100-S2-P1		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-100-S2-P2		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-100-S3-P0		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-100-S3-P1		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-100-S3-P2		Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-120-S1-P0		Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-120-S1-P1		Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-120-S1-P2		Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075-120-S2-P0		Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-120-S2-P1		Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-120-S2-P2		Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075-120-S3-P0		Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-120-S3-P1		Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-120-S3-P2		Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075-140-S1-P0		Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-140-S1-P1		Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-140-S1-P2		Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075-140-S2-P0		Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-140-S2-P1		Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-140-S2-P2		Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075-140-S3-P0		Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-140-S3-P1		Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-140-S3-P2		Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075-160-S1-P0		Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-160-S1-P1		Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-160-S1-P2		Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075-160-S2-P0		Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-160-S2-P1		Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-160-S2-P2		Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075-160-S3-P0		Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-160-S3-P1		Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-160-S3-P2		Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075-180-S1-P0		Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-180-S1-P1		Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-180-S1-P2		Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-180-S2-P0		Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-180-S2-P1		Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-180-S2-P2		Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-180-S3-P0		Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-180-S3-P1		Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-180-S3-P2		Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-200-S1-P0		Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-200-S1-P1		Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-200-S1-P2		Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075-200-S2-P0		Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-200-S2-P1		Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-200-S2-P2		Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075-200-S3-P0		Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-200-S3-P1		Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075-200-S3-P2		Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-025-S1-P0		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-025-S1-P1		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-025-S1-P2		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-025-S2-P0		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-025-S2-P1		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-025-S2-P2		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-025-S3-P0		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-025-S3-P1		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-025-S3-P2		Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-028-S1-P0		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-028-S1-P1		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-028-S1-P2		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-028-S2-P0		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-028-S2-P1		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-028-S2-P2		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-028-S3-P0		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-028-S3-P1		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-028-S3-P2		Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-030-S1-P0		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-030-S1-P1		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-030-S1-P2		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-030-S2-P0		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-030-S2-P1		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-030-S2-P2		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-030-S3-P0		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-030-S3-P1		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-030-S3-P2		Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-032-S1-P0		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-032-S1-P1		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-032-S1-P2		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-032-S2-P0		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-032-S2-P1		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-032-S2-P2		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-032-S3-P0		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-032-S3-P1		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-032-S3-P2		Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-035-S1-P0		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-035-S1-P1		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-035-S1-P2		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-035-S2-P0		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-035-S2-P1		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-035-S2-P2		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-035-S3-P0		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-035-S3-P1		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-035-S3-P2		Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-040-S1-P0		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-040-S1-P1		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-040-S1-P2		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-040-S2-P0		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-040-S2-P1		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-040-S2-P2		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-040-S3-P0		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-040-S3-P1		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-040-S3-P2		Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-045-S1-P0		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-045-S1-P1		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-045-S1-P2		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-045-S2-P0		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-045-S2-P1		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-045-S2-P2		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-045-S3-P0		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-045-S3-P1		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-045-S3-P2		Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-048-S1-P0		Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-048-S1-P1		Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-048-S1-P2		Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-048-S2-P0		Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-048-S2-P1		Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-048-S2-P2		Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-048-S3-P0		Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-048-S3-P1		Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-048-S3-P2		Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-050-S1-P0		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-050-S1-P1		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-050-S1-P2		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-050-S2-P0		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-050-S2-P1		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-050-S2-P2		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-050-S3-P0		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-050-S3-P1		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-050-S3-P2		Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-060-S1-P0		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-060-S1-P1		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-060-S1-P2		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-060-S2-P0		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-060-S2-P1		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-060-S2-P2		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-060-S3-P0		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-060-S3-P1		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-060-S3-P2		Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-064-S1-P0		Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-064-S1-P1		Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-064-S1-P2		Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-064-S2-P0		Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-064-S2-P1		Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-064-S2-P2		Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-064-S3-P0		Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-064-S3-P1		Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-064-S3-P2		Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-070-S1-P0		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-070-S1-P1		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-070-S1-P2		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-070-S2-P0		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-070-S2-P1		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-070-S2-P2		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-070-S3-P0		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-070-S3-P1		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-070-S3-P2		Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-080-S1-P0		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-080-S1-P1		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-080-S1-P2		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-080-S2-P0		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-080-S2-P1		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-080-S2-P2		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-080-S3-P0		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-080-S3-P1		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-080-S3-P2		Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-090-S1-P0		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-090-S1-P1		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-090-S1-P2		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-090-S2-P0		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-090-S2-P1		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-090-S2-P2		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-090-S3-P0		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-090-S3-P1		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-090-S3-P2		Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-100-S1-P0		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-100-S1-P1		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-100-S1-P2		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-100-S2-P0		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-100-S2-P1		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-100-S2-P2		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-100-S3-P0		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-100-S3-P1		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-100-S3-P2		Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-120-S1-P0		Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-120-S1-P1		Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-120-S1-P2		Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
AFR075A-120-S2-P0		Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-120-S2-P1		Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-120-S2-P2		Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
AFR075A-120-S3-P0		Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-120-S3-P1		Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-120-S3-P2		Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
AFR075A-140-S1-P0		Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-140-S1-P1		Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-140-S1-P2		Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
AFR075A-140-S2-P0		Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-140-S2-P1		Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-140-S2-P2		Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
AFR075A-140-S3-P0		Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-140-S3-P1		Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-140-S3-P2		Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
AFR075A-160-S1-P0		Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-160-S1-P1		Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-160-S1-P2		Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
AFR075A-160-S2-P0		Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-160-S2-P1		Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-160-S2-P2		Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
AFR075A-160-S3-P0		Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-160-S3-P1		Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-160-S3-P2		Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
AFR075A-180-S1-P0		Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-180-S1-P1		Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-180-S1-P2		Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-180-S2-P0		Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-180-S2-P1		Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-180-S2-P2		Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-180-S3-P0		Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-180-S3-P1		Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-180-S3-P2		Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-200-S1-P0		Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-200-S1-P1		Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-200-S1-P2		Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
AFR075A-200-S2-P0		Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-200-S2-P1		Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-200-S2-P2		Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
AFR075A-200-S3-P0		Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-200-S3-P1		Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
AFR075A-200-S3-P2		Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm

Planetary GearboxesApex Dynamics

838 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics AFR Right-Angle Planetary Gearboxes (Frame 042-075A)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (838)

AFR042-003-S1-P1, AFR042-003-S1-P2, AFR042-003-S2-P1, AFR042-003-S2-P2, AFR042-004-S1-P1, AFR042-004-S1-P2, AFR042-004-S2-P1, AFR042-004-S2-P2, AFR042-005-S1-P1, AFR042-005-S1-P2 + 828 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AFR042-003-S1-P1	Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 9 Nm
	AFR042-003-S1-P2	Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 9 Nm
	AFR042-003-S2-P1	Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 9 Nm
	AFR042-003-S2-P2	Frame: 042 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 9 Nm
	AFR042-004-S1-P1	Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 12 Nm
	AFR042-004-S1-P2	Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 12 Nm
	AFR042-004-S2-P1	Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 12 Nm
	AFR042-004-S2-P2	Frame: 042 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 12 Nm
	AFR042-005-S1-P1	Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
	AFR042-005-S1-P2	Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
	AFR042-005-S2-P1	Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
	AFR042-005-S2-P2	Frame: 042 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
	AFR042-006-S1-P1	Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 18 Nm
	AFR042-006-S1-P2	Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 18 Nm
	AFR042-006-S2-P1	Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 18 Nm
	AFR042-006-S2-P2	Frame: 042 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 18 Nm
	AFR042-007-S1-P1	Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
	AFR042-007-S1-P2	Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
	AFR042-007-S2-P1	Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
	AFR042-007-S2-P2	Frame: 042 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
	AFR042-008-S1-P1	Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
	AFR042-008-S1-P2	Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
	AFR042-008-S2-P1	Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
	AFR042-008-S2-P2	Frame: 042 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
	AFR042-009-S1-P1	Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-009-S1-P2	Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-009-S2-P1	Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-009-S2-P2	Frame: 042 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-010-S1-P1	Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-010-S1-P2	Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-010-S2-P1	Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-010-S2-P2	Frame: 042 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-012-S1-P1	Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 12 Nm
	AFR042-012-S1-P2	Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 12 Nm
	AFR042-012-S2-P1	Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 12 Nm
	AFR042-012-S2-P2	Frame: 042 \| Ratio i: 12 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 12 Nm
	AFR042-015-S1-P1	Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-015-S1-P2	Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-015-S2-P1	Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-015-S2-P2	Frame: 042 \| Ratio i: 15 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-016-S1-P1	Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
	AFR042-016-S1-P2	Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
	AFR042-016-S2-P1	Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
	AFR042-016-S2-P2	Frame: 042 \| Ratio i: 16 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
	AFR042-020-S1-P1	Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-020-S1-P2	Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-020-S2-P1	Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-020-S2-P2	Frame: 042 \| Ratio i: 20 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-025-S1-P1	Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
	AFR042-025-S1-P2	Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 15 Nm
	AFR042-025-S2-P1	Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
	AFR042-025-S2-P2	Frame: 042 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 15 Nm
	AFR042-028-S1-P1	Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
	AFR042-028-S1-P2	Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
	AFR042-028-S2-P1	Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
	AFR042-028-S2-P2	Frame: 042 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
	AFR042-030-S1-P1	Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 20 Nm
	AFR042-030-S1-P2	Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 20 Nm
	AFR042-030-S2-P1	Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 20 Nm
	AFR042-030-S2-P2	Frame: 042 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 20 Nm
	AFR042-032-S1-P1	Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
	AFR042-032-S1-P2	Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
	AFR042-032-S2-P1	Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
	AFR042-032-S2-P2	Frame: 042 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
	AFR042-035-S1-P1	Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
	AFR042-035-S1-P2	Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
	AFR042-035-S2-P1	Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
	AFR042-035-S2-P2	Frame: 042 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
	AFR042-040-S1-P1	Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
	AFR042-040-S1-P2	Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
	AFR042-040-S2-P1	Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
	AFR042-040-S2-P2	Frame: 042 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
	AFR042-045-S1-P1	Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-045-S1-P2	Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-045-S2-P1	Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-045-S2-P2	Frame: 042 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-050-S1-P1	Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-050-S1-P2	Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-050-S2-P1	Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-050-S2-P2	Frame: 042 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-060-S1-P1	Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 20 Nm
	AFR042-060-S1-P2	Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 20 Nm
	AFR042-060-S2-P1	Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 20 Nm
	AFR042-060-S2-P2	Frame: 042 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 20 Nm
	AFR042-070-S1-P1	Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
	AFR042-070-S1-P2	Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 19 Nm
	AFR042-070-S2-P1	Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
	AFR042-070-S2-P2	Frame: 042 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 19 Nm
	AFR042-080-S1-P1	Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
	AFR042-080-S1-P2	Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 17 Nm
	AFR042-080-S2-P1	Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
	AFR042-080-S2-P2	Frame: 042 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 17 Nm
	AFR042-090-S1-P1	Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-090-S1-P2	Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-090-S2-P1	Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-090-S2-P2	Frame: 042 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-100-S1-P1	Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-100-S1-P2	Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 14 Nm
	AFR042-100-S2-P1	Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR042-100-S2-P2	Frame: 042 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 14 Nm
	AFR060-003-S1-P1	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 36 Nm
	AFR060-003-S1-P2	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 36 Nm
	AFR060-003-S2-P1	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 36 Nm
	AFR060-003-S2-P2	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 36 Nm
	AFR060-003-S3-P1	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 36 Nm
	AFR060-003-S3-P2	Frame: 060 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 36 Nm
	AFR060-004-S1-P1	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 48 Nm
	AFR060-004-S1-P2	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 48 Nm
	AFR060-004-S2-P1	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 48 Nm
	AFR060-004-S2-P2	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 48 Nm
	AFR060-004-S3-P1	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 48 Nm
	AFR060-004-S3-P2	Frame: 060 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 48 Nm
	AFR060-005-S1-P1	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060-005-S1-P2	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060-005-S2-P1	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060-005-S2-P2	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060-005-S3-P1	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060-005-S3-P2	Frame: 060 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060-006-S1-P1	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060-006-S1-P2	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060-006-S2-P1	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060-006-S2-P2	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060-006-S3-P1	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060-006-S3-P2	Frame: 060 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060-007-S1-P1	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060-007-S1-P2	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060-007-S2-P1	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060-007-S2-P2	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060-007-S3-P1	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060-007-S3-P2	Frame: 060 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060-008-S1-P1	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060-008-S1-P2	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060-008-S2-P1	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060-008-S2-P2	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060-008-S3-P1	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060-008-S3-P2	Frame: 060 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060-009-S1-P1	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060-009-S1-P2	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060-009-S2-P1	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060-009-S2-P2	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060-009-S3-P1	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060-009-S3-P2	Frame: 060 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060-010-S1-P1	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060-010-S1-P2	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060-010-S2-P1	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060-010-S2-P2	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060-010-S3-P1	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060-010-S3-P2	Frame: 060 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060-012-S1-P1	Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060-012-S1-P2	Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060-012-S2-P1	Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060-012-S2-P2	Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060-012-S3-P1	Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060-012-S3-P2	Frame: 060 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060-014-S1-P1	Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 42 Nm
	AFR060-014-S1-P2	Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 42 Nm
	AFR060-014-S2-P1	Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 42 Nm
	AFR060-014-S2-P2	Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 42 Nm
	AFR060-014-S3-P1	Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 42 Nm
	AFR060-014-S3-P2	Frame: 060 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 42 Nm
	AFR060-016-S1-P1	Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060-016-S1-P2	Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060-016-S2-P1	Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060-016-S2-P2	Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060-016-S3-P1	Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060-016-S3-P2	Frame: 060 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060-020-S1-P1	Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060-020-S1-P2	Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060-020-S2-P1	Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060-020-S2-P2	Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060-020-S3-P1	Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060-020-S3-P2	Frame: 060 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060-025-S1-P1	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060-025-S1-P2	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060-025-S2-P1	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060-025-S2-P2	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060-025-S3-P1	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060-025-S3-P2	Frame: 060 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060-028-S1-P1	Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060-028-S1-P2	Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060-028-S2-P1	Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060-028-S2-P2	Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060-028-S3-P1	Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060-028-S3-P2	Frame: 060 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060-030-S1-P1	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060-030-S1-P2	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060-030-S2-P1	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060-030-S2-P2	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060-030-S3-P1	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060-030-S3-P2	Frame: 060 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060-032-S1-P1	Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060-032-S1-P2	Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060-032-S2-P1	Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060-032-S2-P2	Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060-032-S3-P1	Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060-032-S3-P2	Frame: 060 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060-035-S1-P1	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060-035-S1-P2	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060-035-S2-P1	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060-035-S2-P2	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060-035-S3-P1	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060-035-S3-P2	Frame: 060 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060-040-S1-P1	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060-040-S1-P2	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060-040-S2-P1	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060-040-S2-P2	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060-040-S3-P1	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060-040-S3-P2	Frame: 060 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060-045-S1-P1	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060-045-S1-P2	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060-045-S2-P1	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060-045-S2-P2	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060-045-S3-P1	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060-045-S3-P2	Frame: 060 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060-050-S1-P1	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060-050-S1-P2	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060-050-S2-P1	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060-050-S2-P2	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060-050-S3-P1	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060-050-S3-P2	Frame: 060 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060-060-S1-P1	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060-060-S1-P2	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060-060-S2-P1	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060-060-S2-P2	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060-060-S3-P1	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060-060-S3-P2	Frame: 060 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060-070-S1-P1	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060-070-S1-P2	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060-070-S2-P1	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060-070-S2-P2	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060-070-S3-P1	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060-070-S3-P2	Frame: 060 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060-080-S1-P1	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060-080-S1-P2	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060-080-S2-P1	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060-080-S2-P2	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060-080-S3-P1	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060-080-S3-P2	Frame: 060 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060-090-S1-P1	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060-090-S1-P2	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060-090-S2-P1	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060-090-S2-P2	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060-090-S3-P1	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060-090-S3-P2	Frame: 060 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060-100-S1-P1	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060-100-S1-P2	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060-100-S2-P1	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060-100-S2-P2	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060-100-S3-P1	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060-100-S3-P2	Frame: 060 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060A-025-S1-P1	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060A-025-S1-P2	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060A-025-S2-P1	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060A-025-S2-P2	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060A-025-S3-P1	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060A-025-S3-P2	Frame: 060A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060A-028-S1-P1	Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060A-028-S1-P2	Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060A-028-S2-P1	Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060A-028-S2-P2	Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060A-028-S3-P1	Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060A-028-S3-P2	Frame: 060A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060A-030-S1-P1	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060A-030-S1-P2	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060A-030-S2-P1	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060A-030-S2-P2	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060A-030-S3-P1	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060A-030-S3-P2	Frame: 060A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060A-032-S1-P1	Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060A-032-S1-P2	Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060A-032-S2-P1	Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060A-032-S2-P2	Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060A-032-S3-P1	Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060A-032-S3-P2	Frame: 060A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060A-035-S1-P1	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060A-035-S1-P2	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060A-035-S2-P1	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060A-035-S2-P2	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060A-035-S3-P1	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060A-035-S3-P2	Frame: 060A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060A-040-S1-P1	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060A-040-S1-P2	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060A-040-S2-P1	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060A-040-S2-P2	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060A-040-S3-P1	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060A-040-S3-P2	Frame: 060A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060A-045-S1-P1	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060A-045-S1-P2	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060A-045-S2-P1	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060A-045-S2-P2	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060A-045-S3-P1	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060A-045-S3-P2	Frame: 060A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060A-048-S1-P1	Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060A-048-S1-P2	Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060A-048-S2-P1	Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060A-048-S2-P2	Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060A-048-S3-P1	Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060A-048-S3-P2	Frame: 060A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060A-050-S1-P1	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060A-050-S1-P2	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060A-050-S2-P1	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060A-050-S2-P2	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060A-050-S3-P1	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060A-050-S3-P2	Frame: 060A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060A-060-S1-P1	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060A-060-S1-P2	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060A-060-S2-P1	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060A-060-S2-P2	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060A-060-S3-P1	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060A-060-S3-P2	Frame: 060A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060A-064-S1-P1	Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060A-064-S1-P2	Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060A-064-S2-P1	Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060A-064-S2-P2	Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060A-064-S3-P1	Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060A-064-S3-P2	Frame: 060A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060A-070-S1-P1	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060A-070-S1-P2	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060A-070-S2-P1	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060A-070-S2-P2	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060A-070-S3-P1	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060A-070-S3-P2	Frame: 060A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060A-080-S1-P1	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060A-080-S1-P2	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060A-080-S2-P1	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060A-080-S2-P2	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060A-080-S3-P1	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060A-080-S3-P2	Frame: 060A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060A-090-S1-P1	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060A-090-S1-P2	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060A-090-S2-P1	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060A-090-S2-P2	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060A-090-S3-P1	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060A-090-S3-P2	Frame: 060A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060A-100-S1-P1	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060A-100-S1-P2	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 60 Nm
	AFR060A-100-S2-P1	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060A-100-S2-P2	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 60 Nm
	AFR060A-100-S3-P1	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060A-100-S3-P2	Frame: 060A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 60 Nm
	AFR060A-120-S1-P1	Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060A-120-S1-P2	Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 55 Nm
	AFR060A-120-S2-P1	Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060A-120-S2-P2	Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 55 Nm
	AFR060A-120-S3-P1	Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060A-120-S3-P2	Frame: 060A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 55 Nm
	AFR060A-140-S1-P1	Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060A-140-S1-P2	Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 50 Nm
	AFR060A-140-S2-P1	Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060A-140-S2-P2	Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 50 Nm
	AFR060A-140-S3-P1	Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060A-140-S3-P2	Frame: 060A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 50 Nm
	AFR060A-160-S1-P1	Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060A-160-S1-P2	Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 45 Nm
	AFR060A-160-S2-P1	Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060A-160-S2-P2	Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 45 Nm
	AFR060A-160-S3-P1	Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060A-160-S3-P2	Frame: 060A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 45 Nm
	AFR060A-180-S1-P1	Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060A-180-S1-P2	Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060A-180-S2-P1	Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060A-180-S2-P2	Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060A-180-S3-P1	Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060A-180-S3-P2	Frame: 060A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060A-200-S1-P1	Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060A-200-S1-P2	Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 40 Nm
	AFR060A-200-S2-P1	Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060A-200-S2-P2	Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 40 Nm
	AFR060A-200-S3-P1	Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR060A-200-S3-P2	Frame: 060A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 40 Nm
	AFR075-003-S1-P0	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 90 Nm
	AFR075-003-S1-P1	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 90 Nm
	AFR075-003-S1-P2	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 90 Nm
	AFR075-003-S2-P0	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 90 Nm
	AFR075-003-S2-P1	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 90 Nm
	AFR075-003-S2-P2	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 90 Nm
	AFR075-003-S3-P0	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 90 Nm
	AFR075-003-S3-P1	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 90 Nm
	AFR075-003-S3-P2	Frame: 075 \| Ratio i: 3 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 90 Nm
	AFR075-004-S1-P0	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-004-S1-P1	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-004-S1-P2	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-004-S2-P0	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-004-S2-P1	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-004-S2-P2	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-004-S3-P0	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-004-S3-P1	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-004-S3-P2	Frame: 075 \| Ratio i: 4 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-005-S1-P0	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-005-S1-P1	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-005-S1-P2	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-005-S2-P0	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-005-S2-P1	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-005-S2-P2	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-005-S3-P0	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-005-S3-P1	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-005-S3-P2	Frame: 075 \| Ratio i: 5 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-006-S1-P0	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-006-S1-P1	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-006-S1-P2	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-006-S2-P0	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-006-S2-P1	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-006-S2-P2	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-006-S3-P0	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-006-S3-P1	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-006-S3-P2	Frame: 075 \| Ratio i: 6 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-007-S1-P0	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-007-S1-P1	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-007-S1-P2	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-007-S2-P0	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-007-S2-P1	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-007-S2-P2	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-007-S3-P0	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-007-S3-P1	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-007-S3-P2	Frame: 075 \| Ratio i: 7 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-008-S1-P0	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-008-S1-P1	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-008-S1-P2	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-008-S2-P0	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-008-S2-P1	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-008-S2-P2	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-008-S3-P0	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-008-S3-P1	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-008-S3-P2	Frame: 075 \| Ratio i: 8 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-009-S1-P0	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-009-S1-P1	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-009-S1-P2	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-009-S2-P0	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-009-S2-P1	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-009-S2-P2	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-009-S3-P0	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-009-S3-P1	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-009-S3-P2	Frame: 075 \| Ratio i: 9 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-010-S1-P0	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-010-S1-P1	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-010-S1-P2	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-010-S2-P0	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-010-S2-P1	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-010-S2-P2	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-010-S3-P0	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-010-S3-P1	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-010-S3-P2	Frame: 075 \| Ratio i: 10 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-012-S1-P0	Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-012-S1-P1	Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-012-S1-P2	Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-012-S2-P0	Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-012-S2-P1	Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-012-S2-P2	Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-012-S3-P0	Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-012-S3-P1	Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-012-S3-P2	Frame: 075 \| Ratio i: 12 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-014-S1-P0	Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-014-S1-P1	Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-014-S1-P2	Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-014-S2-P0	Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-014-S2-P1	Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-014-S2-P2	Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-014-S3-P0	Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-014-S3-P1	Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-014-S3-P2	Frame: 075 \| Ratio i: 14 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-016-S1-P0	Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-016-S1-P1	Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-016-S1-P2	Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-016-S2-P0	Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-016-S2-P1	Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-016-S2-P2	Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-016-S3-P0	Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-016-S3-P1	Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-016-S3-P2	Frame: 075 \| Ratio i: 16 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-020-S1-P0	Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-020-S1-P1	Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-020-S1-P2	Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-020-S2-P0	Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-020-S2-P1	Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-020-S2-P2	Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-020-S3-P0	Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P0 <=2 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-020-S3-P1	Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P1 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-020-S3-P2	Frame: 075 \| Ratio i: 20 \| Stages: 1 \| Backlash: P2 <=6 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-025-S1-P0	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-025-S1-P1	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-025-S1-P2	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-025-S2-P0	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-025-S2-P1	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-025-S2-P2	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-025-S3-P0	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-025-S3-P1	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-025-S3-P2	Frame: 075 \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-028-S1-P0	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-028-S1-P1	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-028-S1-P2	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-028-S2-P0	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-028-S2-P1	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-028-S2-P2	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-028-S3-P0	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-028-S3-P1	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-028-S3-P2	Frame: 075 \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-030-S1-P0	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-030-S1-P1	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-030-S1-P2	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-030-S2-P0	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-030-S2-P1	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-030-S2-P2	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-030-S3-P0	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-030-S3-P1	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-030-S3-P2	Frame: 075 \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-032-S1-P0	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-032-S1-P1	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-032-S1-P2	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-032-S2-P0	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-032-S2-P1	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-032-S2-P2	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-032-S3-P0	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-032-S3-P1	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-032-S3-P2	Frame: 075 \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-035-S1-P0	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-035-S1-P1	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-035-S1-P2	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-035-S2-P0	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-035-S2-P1	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-035-S2-P2	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-035-S3-P0	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-035-S3-P1	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-035-S3-P2	Frame: 075 \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-040-S1-P0	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-040-S1-P1	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-040-S1-P2	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-040-S2-P0	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-040-S2-P1	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-040-S2-P2	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-040-S3-P0	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-040-S3-P1	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-040-S3-P2	Frame: 075 \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-045-S1-P0	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-045-S1-P1	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-045-S1-P2	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-045-S2-P0	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-045-S2-P1	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-045-S2-P2	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-045-S3-P0	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-045-S3-P1	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-045-S3-P2	Frame: 075 \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-048-S1-P0	Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-048-S1-P1	Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-048-S1-P2	Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-048-S2-P0	Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-048-S2-P1	Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-048-S2-P2	Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-048-S3-P0	Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-048-S3-P1	Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-048-S3-P2	Frame: 075 \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-050-S1-P0	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-050-S1-P1	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-050-S1-P2	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-050-S2-P0	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-050-S2-P1	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-050-S2-P2	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-050-S3-P0	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-050-S3-P1	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-050-S3-P2	Frame: 075 \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-060-S1-P0	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-060-S1-P1	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-060-S1-P2	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-060-S2-P0	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-060-S2-P1	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-060-S2-P2	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-060-S3-P0	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-060-S3-P1	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-060-S3-P2	Frame: 075 \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-064-S1-P0	Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-064-S1-P1	Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-064-S1-P2	Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-064-S2-P0	Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-064-S2-P1	Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-064-S2-P2	Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-064-S3-P0	Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-064-S3-P1	Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-064-S3-P2	Frame: 075 \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-070-S1-P0	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-070-S1-P1	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-070-S1-P2	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-070-S2-P0	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-070-S2-P1	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-070-S2-P2	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-070-S3-P0	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-070-S3-P1	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-070-S3-P2	Frame: 075 \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-080-S1-P0	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-080-S1-P1	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-080-S1-P2	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-080-S2-P0	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-080-S2-P1	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-080-S2-P2	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-080-S3-P0	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-080-S3-P1	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-080-S3-P2	Frame: 075 \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-090-S1-P0	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-090-S1-P1	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-090-S1-P2	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-090-S2-P0	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-090-S2-P1	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-090-S2-P2	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-090-S3-P0	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-090-S3-P1	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-090-S3-P2	Frame: 075 \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-100-S1-P0	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-100-S1-P1	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-100-S1-P2	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-100-S2-P0	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-100-S2-P1	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-100-S2-P2	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-100-S3-P0	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-100-S3-P1	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-100-S3-P2	Frame: 075 \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-120-S1-P0	Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-120-S1-P1	Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-120-S1-P2	Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075-120-S2-P0	Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-120-S2-P1	Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-120-S2-P2	Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075-120-S3-P0	Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-120-S3-P1	Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-120-S3-P2	Frame: 075 \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075-140-S1-P0	Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-140-S1-P1	Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-140-S1-P2	Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075-140-S2-P0	Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-140-S2-P1	Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-140-S2-P2	Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075-140-S3-P0	Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-140-S3-P1	Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-140-S3-P2	Frame: 075 \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075-160-S1-P0	Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-160-S1-P1	Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-160-S1-P2	Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075-160-S2-P0	Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-160-S2-P1	Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-160-S2-P2	Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075-160-S3-P0	Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-160-S3-P1	Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-160-S3-P2	Frame: 075 \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075-180-S1-P0	Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-180-S1-P1	Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-180-S1-P2	Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-180-S2-P0	Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-180-S2-P1	Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-180-S2-P2	Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-180-S3-P0	Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-180-S3-P1	Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-180-S3-P2	Frame: 075 \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-200-S1-P0	Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-200-S1-P1	Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-200-S1-P2	Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075-200-S2-P0	Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-200-S2-P1	Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-200-S2-P2	Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075-200-S3-P0	Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-200-S3-P1	Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075-200-S3-P2	Frame: 075 \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-025-S1-P0	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-025-S1-P1	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-025-S1-P2	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-025-S2-P0	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-025-S2-P1	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-025-S2-P2	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-025-S3-P0	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-025-S3-P1	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-025-S3-P2	Frame: 075A \| Ratio i: 25 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-028-S1-P0	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-028-S1-P1	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-028-S1-P2	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-028-S2-P0	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-028-S2-P1	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-028-S2-P2	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-028-S3-P0	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-028-S3-P1	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-028-S3-P2	Frame: 075A \| Ratio i: 28 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-030-S1-P0	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-030-S1-P1	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-030-S1-P2	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-030-S2-P0	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-030-S2-P1	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-030-S2-P2	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-030-S3-P0	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-030-S3-P1	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-030-S3-P2	Frame: 075A \| Ratio i: 30 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-032-S1-P0	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-032-S1-P1	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-032-S1-P2	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-032-S2-P0	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-032-S2-P1	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-032-S2-P2	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-032-S3-P0	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-032-S3-P1	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-032-S3-P2	Frame: 075A \| Ratio i: 32 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-035-S1-P0	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-035-S1-P1	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-035-S1-P2	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-035-S2-P0	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-035-S2-P1	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-035-S2-P2	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-035-S3-P0	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-035-S3-P1	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-035-S3-P2	Frame: 075A \| Ratio i: 35 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-040-S1-P0	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-040-S1-P1	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-040-S1-P2	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-040-S2-P0	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-040-S2-P1	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-040-S2-P2	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-040-S3-P0	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-040-S3-P1	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-040-S3-P2	Frame: 075A \| Ratio i: 40 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-045-S1-P0	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-045-S1-P1	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-045-S1-P2	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-045-S2-P0	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-045-S2-P1	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-045-S2-P2	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-045-S3-P0	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-045-S3-P1	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-045-S3-P2	Frame: 075A \| Ratio i: 45 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-048-S1-P0	Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-048-S1-P1	Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-048-S1-P2	Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-048-S2-P0	Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-048-S2-P1	Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-048-S2-P2	Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-048-S3-P0	Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-048-S3-P1	Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-048-S3-P2	Frame: 075A \| Ratio i: 48 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-050-S1-P0	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-050-S1-P1	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-050-S1-P2	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-050-S2-P0	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-050-S2-P1	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-050-S2-P2	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-050-S3-P0	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-050-S3-P1	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-050-S3-P2	Frame: 075A \| Ratio i: 50 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-060-S1-P0	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-060-S1-P1	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-060-S1-P2	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-060-S2-P0	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-060-S2-P1	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-060-S2-P2	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-060-S3-P0	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-060-S3-P1	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-060-S3-P2	Frame: 075A \| Ratio i: 60 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-064-S1-P0	Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-064-S1-P1	Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-064-S1-P2	Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-064-S2-P0	Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-064-S2-P1	Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-064-S2-P2	Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-064-S3-P0	Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-064-S3-P1	Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-064-S3-P2	Frame: 075A \| Ratio i: 64 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-070-S1-P0	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-070-S1-P1	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-070-S1-P2	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-070-S2-P0	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-070-S2-P1	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-070-S2-P2	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-070-S3-P0	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-070-S3-P1	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-070-S3-P2	Frame: 075A \| Ratio i: 70 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-080-S1-P0	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-080-S1-P1	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-080-S1-P2	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-080-S2-P0	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-080-S2-P1	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-080-S2-P2	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-080-S3-P0	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-080-S3-P1	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-080-S3-P2	Frame: 075A \| Ratio i: 80 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-090-S1-P0	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-090-S1-P1	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-090-S1-P2	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-090-S2-P0	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-090-S2-P1	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-090-S2-P2	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-090-S3-P0	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-090-S3-P1	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-090-S3-P2	Frame: 075A \| Ratio i: 90 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-100-S1-P0	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-100-S1-P1	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-100-S1-P2	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-100-S2-P0	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-100-S2-P1	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-100-S2-P2	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-100-S3-P0	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-100-S3-P1	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-100-S3-P2	Frame: 075A \| Ratio i: 100 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-120-S1-P0	Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-120-S1-P1	Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-120-S1-P2	Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 150 Nm
	AFR075A-120-S2-P0	Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-120-S2-P1	Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-120-S2-P2	Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 150 Nm
	AFR075A-120-S3-P0	Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-120-S3-P1	Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-120-S3-P2	Frame: 075A \| Ratio i: 120 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 150 Nm
	AFR075A-140-S1-P0	Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-140-S1-P1	Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-140-S1-P2	Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 140 Nm
	AFR075A-140-S2-P0	Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-140-S2-P1	Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-140-S2-P2	Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 140 Nm
	AFR075A-140-S3-P0	Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-140-S3-P1	Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-140-S3-P2	Frame: 075A \| Ratio i: 140 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 140 Nm
	AFR075A-160-S1-P0	Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-160-S1-P1	Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-160-S1-P2	Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 120 Nm
	AFR075A-160-S2-P0	Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-160-S2-P1	Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-160-S2-P2	Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 120 Nm
	AFR075A-160-S3-P0	Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-160-S3-P1	Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-160-S3-P2	Frame: 075A \| Ratio i: 160 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 120 Nm
	AFR075A-180-S1-P0	Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-180-S1-P1	Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-180-S1-P2	Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-180-S2-P0	Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-180-S2-P1	Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-180-S2-P2	Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-180-S3-P0	Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-180-S3-P1	Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-180-S3-P2	Frame: 075A \| Ratio i: 180 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-200-S1-P0	Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-200-S1-P1	Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-200-S1-P2	Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S1 smooth \| Nominal torque T2N: 100 Nm
	AFR075A-200-S2-P0	Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-200-S2-P1	Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-200-S2-P2	Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S2 keyed \| Nominal torque T2N: 100 Nm
	AFR075A-200-S3-P0	Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P0 <=4 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-200-S3-P1	Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P1 <=7 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm
	AFR075A-200-S3-P2	Frame: 075A \| Ratio i: 200 \| Stages: 2 \| Backlash: P2 <=9 arcmin \| Output shaft: S3 DIN 5480 spline \| Nominal torque T2N: 100 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Apex Dynamics AFR Right-Angle Planetary Gearboxes (Frame 042-075A)
