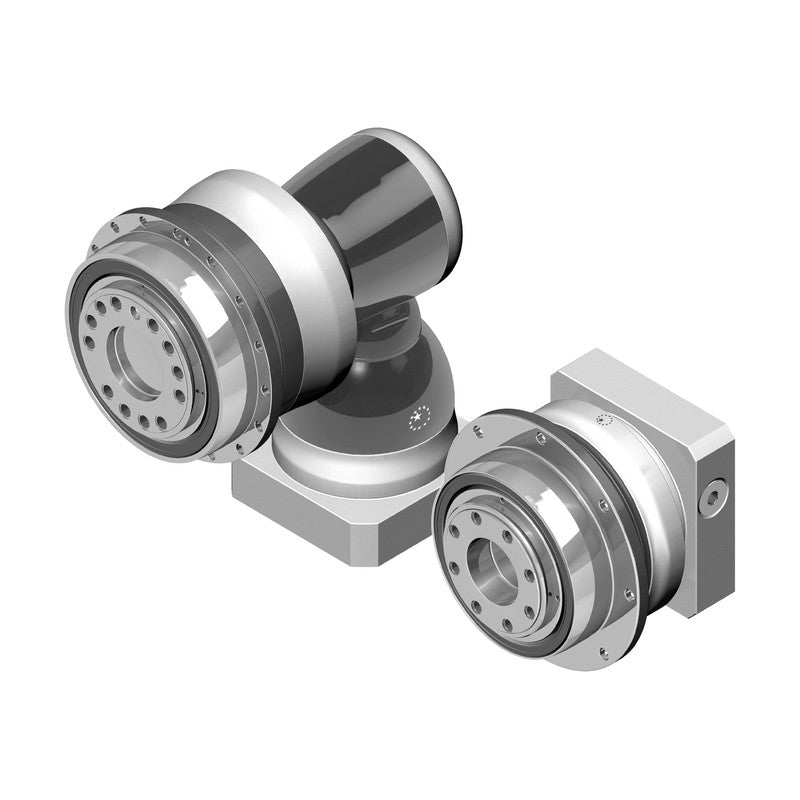

Apex Dynamics AH Precision Planetary Gearboxes (064-450, i=4-100)

Apex Dynamics AH Precision Planetary Gearboxes (064-450, i=4-100)

Apex Dynamics AH new-generation inline precision planetary gearboxes with flange output in nine frame sizes (064-450), 1- and 2-stage ratios 4-100, supplied with motor input hub (AH) or as AHS with a free input shaft.

Key features

  • Flange output with output torques up to 12,495 Nm (AH450, T2N at nominal input speed)
  • Backlash <=1 arcmin 1-stage and <=2 arcmin 2-stage (frame 064: <=2 / <=3 arcmin)
  • AH: motor input hub; specify motor make and model when ordering (code / MOTOR field)
  • AHS: input shaft version, S1 smooth or S2 keyed shaft (AHS355/450 2-stage only)
  • Synthetic grease lubricated for life, IP67, any mounting position
  • Efficiency >=97% 1-stage, >=94% 2-stage; optional FLS flange shafts for AH064-AH255

Specifications

Design Inline planetary, flange output
Emergency stop torque T2NOT 3 times T2N
Max. acceleration torque T2B 1.5 times T2N
Torsional rigidity 8-5,700 Nm/arcmin (064-450)
Nominal input speed n1N 1,000-5,000 rpm (by size/stage)
Max. input speed n1B 2,500-7,000 rpm (by size/stage)
Max. tilting moment M2K 120-63,300 Nm (at 100 rpm)
Operating temperature -10 to 90 C
Protection IP67
Lubrication Synthetic lubrication grease
Mounting position All directions
Source APEX Dynamics AH/AHK catalog, p. 2-8
AH064-004 Frame: 064 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 100 Nm
AH064-005 Frame: 064 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 85 Nm
AH064-007 Frame: 064 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 60 Nm
AH064-010 Frame: 064 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 24 Nm
AH064-016 Frame: 064 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AH064-020 Frame: 064 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AH064-021 Frame: 064 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AH064-025 Frame: 064 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AH064-028 Frame: 064 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AH064-031 Frame: 064 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AH064-035 Frame: 064 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 75 Nm
AH064-040 Frame: 064 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 40 Nm
AH064-046 Frame: 064 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AH064-050 Frame: 064 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 50 Nm
AH064-061 Frame: 064 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AH064-070 Frame: 064 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AH064-091 Frame: 064 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AH064-100 Frame: 064 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AH090-004 Frame: 090 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 205 Nm
AH090-005 Frame: 090 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 185 Nm
AH090-007 Frame: 090 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 135 Nm
AH090-010 Frame: 090 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 55 Nm
AH090-016 Frame: 090 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AH090-020 Frame: 090 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AH090-021 Frame: 090 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AH090-025 Frame: 090 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AH090-028 Frame: 090 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AH090-031 Frame: 090 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AH090-035 Frame: 090 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AH090-040 Frame: 090 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 96 Nm
AH090-046 Frame: 090 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AH090-050 Frame: 090 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 120 Nm
AH090-061 Frame: 090 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AH090-070 Frame: 090 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AH090-091 Frame: 090 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AH090-100 Frame: 090 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AH110-004 Frame: 110 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 380 Nm
AH110-005 Frame: 110 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 325 Nm
AH110-007 Frame: 110 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 260 Nm
AH110-010 Frame: 110 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 160 Nm
AH110-016 Frame: 110 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AH110-020 Frame: 110 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AH110-021 Frame: 110 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AH110-025 Frame: 110 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AH110-028 Frame: 110 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 405 Nm
AH110-031 Frame: 110 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 280 Nm
AH110-035 Frame: 110 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 350 Nm
AH110-040 Frame: 110 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 220 Nm
AH110-046 Frame: 110 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AH110-050 Frame: 110 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 275 Nm
AH110-061 Frame: 110 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AH110-070 Frame: 110 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AH110-091 Frame: 110 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AH110-100 Frame: 110 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AH140-004 Frame: 140 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 765 Nm
AH140-005 Frame: 140 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 660 Nm
AH140-007 Frame: 140 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 515 Nm
AH140-010 Frame: 140 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 315 Nm
AH140-016 Frame: 140 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 805 Nm
AH140-020 Frame: 140 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 810 Nm
AH140-021 Frame: 140 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AH140-025 Frame: 140 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AH140-028 Frame: 140 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 820 Nm
AH140-031 Frame: 140 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 560 Nm
AH140-035 Frame: 140 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 705 Nm
AH140-040 Frame: 140 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 615 Nm
AH140-046 Frame: 140 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 335 Nm
AH140-050 Frame: 140 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 715 Nm
AH140-061 Frame: 140 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AH140-070 Frame: 140 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AH140-091 Frame: 140 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AH140-100 Frame: 140 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AH200-004 Frame: 200 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,415 Nm
AH200-005 Frame: 200 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,225 Nm
AH200-007 Frame: 200 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 980 Nm
AH200-010 Frame: 200 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 700 Nm
AH200-016 Frame: 200 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,485 Nm
AH200-020 Frame: 200 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,495 Nm
AH200-021 Frame: 200 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AH200-025 Frame: 200 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AH200-028 Frame: 200 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,510 Nm
AH200-031 Frame: 200 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,050 Nm
AH200-035 Frame: 200 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,310 Nm
AH200-040 Frame: 200 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,260 Nm
AH200-046 Frame: 200 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AH200-050 Frame: 200 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,325 Nm
AH200-061 Frame: 200 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AH200-070 Frame: 200 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AH200-091 Frame: 200 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AH200-100 Frame: 200 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AH255-004 Frame: 255 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 2,190 Nm
AH255-005 Frame: 255 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,905 Nm
AH255-007 Frame: 255 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,530 Nm
AH255-010 Frame: 255 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,070 Nm
AH255-016 Frame: 255 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,295 Nm
AH255-020 Frame: 255 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,990 Nm
AH255-021 Frame: 255 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AH255-025 Frame: 255 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AH255-028 Frame: 255 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,335 Nm
AH255-031 Frame: 255 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,620 Nm
AH255-035 Frame: 255 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,030 Nm
AH255-040 Frame: 255 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,360 Nm
AH255-046 Frame: 255 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AH255-050 Frame: 255 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,050 Nm
AH255-061 Frame: 255 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AH255-070 Frame: 255 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AH255-091 Frame: 255 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AH255-100 Frame: 255 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AH285-004 Frame: 285 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 4,035 Nm
AH285-005 Frame: 285 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 3,505 Nm
AH285-007 Frame: 285 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 2,630 Nm
AH285-010 Frame: 285 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,810 Nm
AH285-016 Frame: 285 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 4,215 Nm
AH285-020 Frame: 285 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,660 Nm
AH285-021 Frame: 285 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AH285-025 Frame: 285 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AH285-028 Frame: 285 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 4,425 Nm
AH285-031 Frame: 285 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,590 Nm
AH285-035 Frame: 285 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,725 Nm
AH285-040 Frame: 285 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 4,430 Nm
AH285-046 Frame: 285 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AH285-050 Frame: 285 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,765 Nm
AH285-061 Frame: 285 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AH285-070 Frame: 285 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AH285-091 Frame: 285 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AH285-100 Frame: 285 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AH355-005 Frame: 355 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 6,250 Nm
AH355-007 Frame: 355 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 5,045 Nm
AH355-010 Frame: 355 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 3,345 Nm
AH355-021 Frame: 355 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 6,525 Nm
AH355-031 Frame: 355 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 5,280 Nm
AH355-046 Frame: 355 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AH355-061 Frame: 355 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 5,445 Nm
AH355-091 Frame: 355 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AH450-005 Frame: 450 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 12,105 Nm
AH450-007 Frame: 450 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 10,260 Nm
AH450-010 Frame: 450 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 7,160 Nm
AH450-021 Frame: 450 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 12,495 Nm
AH450-031 Frame: 450 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 10,595 Nm
AH450-046 Frame: 450 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 7,125 Nm
AH450-061 Frame: 450 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 10,895 Nm
AH450-091 Frame: 450 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 7,000 Nm
AHS064-004-S1 Frame: 064 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 100 Nm
AHS064-004-S2 Frame: 064 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 100 Nm
AHS064-005-S1 Frame: 064 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 85 Nm
AHS064-005-S2 Frame: 064 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 85 Nm
AHS064-007-S1 Frame: 064 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 60 Nm
AHS064-007-S2 Frame: 064 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 60 Nm
AHS064-010-S1 Frame: 064 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 24 Nm
AHS064-010-S2 Frame: 064 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 24 Nm
AHS064-016-S1 Frame: 064 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AHS064-016-S2 Frame: 064 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AHS064-020-S1 Frame: 064 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AHS064-020-S2 Frame: 064 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AHS064-021-S1 Frame: 064 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AHS064-021-S2 Frame: 064 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AHS064-025-S1 Frame: 064 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AHS064-025-S2 Frame: 064 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AHS064-028-S1 Frame: 064 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-028-S2 Frame: 064 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-031-S1 Frame: 064 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-031-S2 Frame: 064 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-035-S1 Frame: 064 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 75 Nm
AHS064-035-S2 Frame: 064 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 75 Nm
AHS064-040-S1 Frame: 064 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 40 Nm
AHS064-040-S2 Frame: 064 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 40 Nm
AHS064-046-S1 Frame: 064 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS064-046-S2 Frame: 064 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS064-050-S1 Frame: 064 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 50 Nm
AHS064-050-S2 Frame: 064 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 50 Nm
AHS064-061-S1 Frame: 064 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-061-S2 Frame: 064 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-070-S1 Frame: 064 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-070-S2 Frame: 064 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-091-S1 Frame: 064 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS064-091-S2 Frame: 064 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS064-100-S1 Frame: 064 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS064-100-S2 Frame: 064 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS090-004-S1 Frame: 090 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 205 Nm
AHS090-004-S2 Frame: 090 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 205 Nm
AHS090-005-S1 Frame: 090 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 185 Nm
AHS090-005-S2 Frame: 090 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 185 Nm
AHS090-007-S1 Frame: 090 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 135 Nm
AHS090-007-S2 Frame: 090 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 135 Nm
AHS090-010-S1 Frame: 090 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 55 Nm
AHS090-010-S2 Frame: 090 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 55 Nm
AHS090-016-S1 Frame: 090 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-016-S2 Frame: 090 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-020-S1 Frame: 090 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-020-S2 Frame: 090 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-021-S1 Frame: 090 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-021-S2 Frame: 090 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-025-S1 Frame: 090 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-025-S2 Frame: 090 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-028-S1 Frame: 090 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-028-S2 Frame: 090 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-031-S1 Frame: 090 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-031-S2 Frame: 090 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-035-S1 Frame: 090 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-035-S2 Frame: 090 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-040-S1 Frame: 090 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 96 Nm
AHS090-040-S2 Frame: 090 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 96 Nm
AHS090-046-S1 Frame: 090 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS090-046-S2 Frame: 090 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS090-050-S1 Frame: 090 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 120 Nm
AHS090-050-S2 Frame: 090 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 120 Nm
AHS090-061-S1 Frame: 090 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-061-S2 Frame: 090 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-070-S1 Frame: 090 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-070-S2 Frame: 090 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-091-S1 Frame: 090 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS090-091-S2 Frame: 090 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS090-100-S1 Frame: 090 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS090-100-S2 Frame: 090 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS110-004-S1 Frame: 110 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 380 Nm
AHS110-004-S2 Frame: 110 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 380 Nm
AHS110-005-S1 Frame: 110 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 325 Nm
AHS110-005-S2 Frame: 110 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 325 Nm
AHS110-007-S1 Frame: 110 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 260 Nm
AHS110-007-S2 Frame: 110 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 260 Nm
AHS110-010-S1 Frame: 110 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 160 Nm
AHS110-010-S2 Frame: 110 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 160 Nm
AHS110-016-S1 Frame: 110 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AHS110-016-S2 Frame: 110 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AHS110-020-S1 Frame: 110 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AHS110-020-S2 Frame: 110 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AHS110-021-S1 Frame: 110 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS110-021-S2 Frame: 110 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS110-025-S1 Frame: 110 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS110-025-S2 Frame: 110 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS110-028-S1 Frame: 110 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 405 Nm
AHS110-028-S2 Frame: 110 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 405 Nm
AHS110-031-S1 Frame: 110 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 280 Nm
AHS110-031-S2 Frame: 110 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 280 Nm
AHS110-035-S1 Frame: 110 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 350 Nm
AHS110-035-S2 Frame: 110 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 350 Nm
AHS110-040-S1 Frame: 110 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 220 Nm
AHS110-040-S2 Frame: 110 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 220 Nm
AHS110-046-S1 Frame: 110 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS110-046-S2 Frame: 110 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS110-050-S1 Frame: 110 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 275 Nm
AHS110-050-S2 Frame: 110 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 275 Nm
AHS110-061-S1 Frame: 110 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AHS110-061-S2 Frame: 110 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AHS110-070-S1 Frame: 110 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AHS110-070-S2 Frame: 110 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AHS110-091-S1 Frame: 110 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS110-091-S2 Frame: 110 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS110-100-S1 Frame: 110 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS110-100-S2 Frame: 110 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS140-004-S1 Frame: 140 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 765 Nm
AHS140-004-S2 Frame: 140 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 765 Nm
AHS140-005-S1 Frame: 140 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 660 Nm
AHS140-005-S2 Frame: 140 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 660 Nm
AHS140-007-S1 Frame: 140 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 515 Nm
AHS140-007-S2 Frame: 140 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 515 Nm
AHS140-010-S1 Frame: 140 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 315 Nm
AHS140-010-S2 Frame: 140 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 315 Nm
AHS140-016-S1 Frame: 140 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 805 Nm
AHS140-016-S2 Frame: 140 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 805 Nm
AHS140-020-S1 Frame: 140 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 810 Nm
AHS140-020-S2 Frame: 140 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 810 Nm
AHS140-021-S1 Frame: 140 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AHS140-021-S2 Frame: 140 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AHS140-025-S1 Frame: 140 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AHS140-025-S2 Frame: 140 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AHS140-028-S1 Frame: 140 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 820 Nm
AHS140-028-S2 Frame: 140 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 820 Nm
AHS140-031-S1 Frame: 140 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 560 Nm
AHS140-031-S2 Frame: 140 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 560 Nm
AHS140-035-S1 Frame: 140 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 705 Nm
AHS140-035-S2 Frame: 140 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 705 Nm
AHS140-040-S1 Frame: 140 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 615 Nm
AHS140-040-S2 Frame: 140 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 615 Nm
AHS140-046-S1 Frame: 140 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 335 Nm
AHS140-046-S2 Frame: 140 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 335 Nm
AHS140-050-S1 Frame: 140 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 715 Nm
AHS140-050-S2 Frame: 140 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 715 Nm
AHS140-061-S1 Frame: 140 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AHS140-061-S2 Frame: 140 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AHS140-070-S1 Frame: 140 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AHS140-070-S2 Frame: 140 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AHS140-091-S1 Frame: 140 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS140-091-S2 Frame: 140 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS140-100-S1 Frame: 140 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS140-100-S2 Frame: 140 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS200-004-S1 Frame: 200 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,415 Nm
AHS200-004-S2 Frame: 200 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,415 Nm
AHS200-005-S1 Frame: 200 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,225 Nm
AHS200-005-S2 Frame: 200 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,225 Nm
AHS200-007-S1 Frame: 200 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 980 Nm
AHS200-007-S2 Frame: 200 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 980 Nm
AHS200-010-S1 Frame: 200 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 700 Nm
AHS200-010-S2 Frame: 200 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 700 Nm
AHS200-016-S1 Frame: 200 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,485 Nm
AHS200-016-S2 Frame: 200 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,485 Nm
AHS200-020-S1 Frame: 200 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,495 Nm
AHS200-020-S2 Frame: 200 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,495 Nm
AHS200-021-S1 Frame: 200 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AHS200-021-S2 Frame: 200 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AHS200-025-S1 Frame: 200 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AHS200-025-S2 Frame: 200 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AHS200-028-S1 Frame: 200 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,510 Nm
AHS200-028-S2 Frame: 200 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,510 Nm
AHS200-031-S1 Frame: 200 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,050 Nm
AHS200-031-S2 Frame: 200 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,050 Nm
AHS200-035-S1 Frame: 200 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,310 Nm
AHS200-035-S2 Frame: 200 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,310 Nm
AHS200-040-S1 Frame: 200 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,260 Nm
AHS200-040-S2 Frame: 200 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,260 Nm
AHS200-046-S1 Frame: 200 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS200-046-S2 Frame: 200 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS200-050-S1 Frame: 200 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,325 Nm
AHS200-050-S2 Frame: 200 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,325 Nm
AHS200-061-S1 Frame: 200 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AHS200-061-S2 Frame: 200 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AHS200-070-S1 Frame: 200 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AHS200-070-S2 Frame: 200 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AHS200-091-S1 Frame: 200 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS200-091-S2 Frame: 200 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS200-100-S1 Frame: 200 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS200-100-S2 Frame: 200 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS255-004-S1 Frame: 255 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 2,190 Nm
AHS255-004-S2 Frame: 255 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 2,190 Nm
AHS255-005-S1 Frame: 255 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,905 Nm
AHS255-005-S2 Frame: 255 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,905 Nm
AHS255-007-S1 Frame: 255 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,530 Nm
AHS255-007-S2 Frame: 255 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,530 Nm
AHS255-010-S1 Frame: 255 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,070 Nm
AHS255-010-S2 Frame: 255 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,070 Nm
AHS255-016-S1 Frame: 255 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,295 Nm
AHS255-016-S2 Frame: 255 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,295 Nm
AHS255-020-S1 Frame: 255 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,990 Nm
AHS255-020-S2 Frame: 255 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,990 Nm
AHS255-021-S1 Frame: 255 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AHS255-021-S2 Frame: 255 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AHS255-025-S1 Frame: 255 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AHS255-025-S2 Frame: 255 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AHS255-028-S1 Frame: 255 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,335 Nm
AHS255-028-S2 Frame: 255 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,335 Nm
AHS255-031-S1 Frame: 255 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,620 Nm
AHS255-031-S2 Frame: 255 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,620 Nm
AHS255-035-S1 Frame: 255 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,030 Nm
AHS255-035-S2 Frame: 255 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,030 Nm
AHS255-040-S1 Frame: 255 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,360 Nm
AHS255-040-S2 Frame: 255 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,360 Nm
AHS255-046-S1 Frame: 255 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS255-046-S2 Frame: 255 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS255-050-S1 Frame: 255 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,050 Nm
AHS255-050-S2 Frame: 255 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,050 Nm
AHS255-061-S1 Frame: 255 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AHS255-061-S2 Frame: 255 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AHS255-070-S1 Frame: 255 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AHS255-070-S2 Frame: 255 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AHS255-091-S1 Frame: 255 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS255-091-S2 Frame: 255 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS255-100-S1 Frame: 255 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS255-100-S2 Frame: 255 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS285-004-S1 Frame: 285 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 4,035 Nm
AHS285-004-S2 Frame: 285 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 4,035 Nm
AHS285-005-S1 Frame: 285 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 3,505 Nm
AHS285-005-S2 Frame: 285 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 3,505 Nm
AHS285-007-S1 Frame: 285 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 2,630 Nm
AHS285-007-S2 Frame: 285 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 2,630 Nm
AHS285-010-S1 Frame: 285 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,810 Nm
AHS285-010-S2 Frame: 285 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,810 Nm
AHS285-016-S1 Frame: 285 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 4,215 Nm
AHS285-016-S2 Frame: 285 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 4,215 Nm
AHS285-020-S1 Frame: 285 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,660 Nm
AHS285-020-S2 Frame: 285 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,660 Nm
AHS285-021-S1 Frame: 285 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AHS285-021-S2 Frame: 285 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AHS285-025-S1 Frame: 285 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AHS285-025-S2 Frame: 285 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AHS285-028-S1 Frame: 285 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 4,425 Nm
AHS285-028-S2 Frame: 285 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 4,425 Nm
AHS285-031-S1 Frame: 285 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,590 Nm
AHS285-031-S2 Frame: 285 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,590 Nm
AHS285-035-S1 Frame: 285 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,725 Nm
AHS285-035-S2 Frame: 285 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,725 Nm
AHS285-040-S1 Frame: 285 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 4,430 Nm
AHS285-040-S2 Frame: 285 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 4,430 Nm
AHS285-046-S1 Frame: 285 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS285-046-S2 Frame: 285 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS285-050-S1 Frame: 285 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,765 Nm
AHS285-050-S2 Frame: 285 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,765 Nm
AHS285-061-S1 Frame: 285 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AHS285-061-S2 Frame: 285 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AHS285-070-S1 Frame: 285 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AHS285-070-S2 Frame: 285 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AHS285-091-S1 Frame: 285 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS285-091-S2 Frame: 285 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS285-100-S1 Frame: 285 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS285-100-S2 Frame: 285 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS355-021-S1 Frame: 355 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 6,525 Nm
AHS355-021-S2 Frame: 355 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 6,525 Nm
AHS355-031-S1 Frame: 355 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 5,280 Nm
AHS355-031-S2 Frame: 355 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 5,280 Nm
AHS355-046-S1 Frame: 355 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AHS355-046-S2 Frame: 355 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AHS355-061-S1 Frame: 355 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 5,445 Nm
AHS355-061-S2 Frame: 355 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 5,445 Nm
AHS355-091-S1 Frame: 355 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AHS355-091-S2 Frame: 355 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AHS450-021-S1 Frame: 450 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 12,495 Nm
AHS450-021-S2 Frame: 450 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 12,495 Nm
AHS450-031-S1 Frame: 450 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 10,595 Nm
AHS450-031-S2 Frame: 450 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 10,595 Nm
AHS450-046-S1 Frame: 450 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 7,125 Nm
AHS450-046-S2 Frame: 450 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 7,125 Nm
AHS450-061-S1 Frame: 450 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 10,895 Nm
AHS450-061-S2 Frame: 450 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 10,895 Nm
AHS450-091-S1 Frame: 450 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 7,000 Nm
AHS450-091-S2 Frame: 450 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 7,000 Nm
Planetary GearboxesApex Dynamics
414 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics AH Precision Planetary Gearboxes (064-450, i=4-100)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (414)

AH064-004, AH064-005, AH064-007, AH064-010, AH064-016, AH064-020, AH064-021, AH064-025, AH064-028, AH064-031 + 404 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AH064-004Frame: 064 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 100 Nm
AH064-005Frame: 064 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 85 Nm
AH064-007Frame: 064 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 60 Nm
AH064-010Frame: 064 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 24 Nm
AH064-016Frame: 064 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AH064-020Frame: 064 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AH064-021Frame: 064 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AH064-025Frame: 064 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AH064-028Frame: 064 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AH064-031Frame: 064 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AH064-035Frame: 064 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 75 Nm
AH064-040Frame: 064 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 40 Nm
AH064-046Frame: 064 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AH064-050Frame: 064 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 50 Nm
AH064-061Frame: 064 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AH064-070Frame: 064 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AH064-091Frame: 064 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AH064-100Frame: 064 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AH090-004Frame: 090 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 205 Nm
AH090-005Frame: 090 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 185 Nm
AH090-007Frame: 090 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 135 Nm
AH090-010Frame: 090 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 55 Nm
AH090-016Frame: 090 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AH090-020Frame: 090 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AH090-021Frame: 090 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AH090-025Frame: 090 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AH090-028Frame: 090 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AH090-031Frame: 090 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AH090-035Frame: 090 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AH090-040Frame: 090 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 96 Nm
AH090-046Frame: 090 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AH090-050Frame: 090 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 120 Nm
AH090-061Frame: 090 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AH090-070Frame: 090 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AH090-091Frame: 090 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AH090-100Frame: 090 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AH110-004Frame: 110 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 380 Nm
AH110-005Frame: 110 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 325 Nm
AH110-007Frame: 110 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 260 Nm
AH110-010Frame: 110 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 160 Nm
AH110-016Frame: 110 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AH110-020Frame: 110 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AH110-021Frame: 110 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AH110-025Frame: 110 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AH110-028Frame: 110 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 405 Nm
AH110-031Frame: 110 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 280 Nm
AH110-035Frame: 110 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 350 Nm
AH110-040Frame: 110 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 220 Nm
AH110-046Frame: 110 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AH110-050Frame: 110 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 275 Nm
AH110-061Frame: 110 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AH110-070Frame: 110 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AH110-091Frame: 110 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AH110-100Frame: 110 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AH140-004Frame: 140 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 765 Nm
AH140-005Frame: 140 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 660 Nm
AH140-007Frame: 140 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 515 Nm
AH140-010Frame: 140 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 315 Nm
AH140-016Frame: 140 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 805 Nm
AH140-020Frame: 140 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 810 Nm
AH140-021Frame: 140 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AH140-025Frame: 140 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AH140-028Frame: 140 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 820 Nm
AH140-031Frame: 140 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 560 Nm
AH140-035Frame: 140 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 705 Nm
AH140-040Frame: 140 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 615 Nm
AH140-046Frame: 140 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 335 Nm
AH140-050Frame: 140 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 715 Nm
AH140-061Frame: 140 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AH140-070Frame: 140 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AH140-091Frame: 140 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AH140-100Frame: 140 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AH200-004Frame: 200 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,415 Nm
AH200-005Frame: 200 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,225 Nm
AH200-007Frame: 200 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 980 Nm
AH200-010Frame: 200 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 700 Nm
AH200-016Frame: 200 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,485 Nm
AH200-020Frame: 200 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,495 Nm
AH200-021Frame: 200 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AH200-025Frame: 200 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AH200-028Frame: 200 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,510 Nm
AH200-031Frame: 200 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,050 Nm
AH200-035Frame: 200 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,310 Nm
AH200-040Frame: 200 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,260 Nm
AH200-046Frame: 200 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AH200-050Frame: 200 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,325 Nm
AH200-061Frame: 200 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AH200-070Frame: 200 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AH200-091Frame: 200 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AH200-100Frame: 200 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AH255-004Frame: 255 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 2,190 Nm
AH255-005Frame: 255 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,905 Nm
AH255-007Frame: 255 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,530 Nm
AH255-010Frame: 255 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,070 Nm
AH255-016Frame: 255 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,295 Nm
AH255-020Frame: 255 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,990 Nm
AH255-021Frame: 255 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AH255-025Frame: 255 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AH255-028Frame: 255 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,335 Nm
AH255-031Frame: 255 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,620 Nm
AH255-035Frame: 255 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,030 Nm
AH255-040Frame: 255 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,360 Nm
AH255-046Frame: 255 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AH255-050Frame: 255 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,050 Nm
AH255-061Frame: 255 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AH255-070Frame: 255 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AH255-091Frame: 255 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AH255-100Frame: 255 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AH285-004Frame: 285 | Ratio i: 4 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 4,035 Nm
AH285-005Frame: 285 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 3,505 Nm
AH285-007Frame: 285 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 2,630 Nm
AH285-010Frame: 285 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 1,810 Nm
AH285-016Frame: 285 | Ratio i: 16 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 4,215 Nm
AH285-020Frame: 285 | Ratio i: 20 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,660 Nm
AH285-021Frame: 285 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AH285-025Frame: 285 | Ratio i: 25 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AH285-028Frame: 285 | Ratio i: 28 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 4,425 Nm
AH285-031Frame: 285 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,590 Nm
AH285-035Frame: 285 | Ratio i: 35 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,725 Nm
AH285-040Frame: 285 | Ratio i: 40 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 4,430 Nm
AH285-046Frame: 285 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AH285-050Frame: 285 | Ratio i: 50 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,765 Nm
AH285-061Frame: 285 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AH285-070Frame: 285 | Ratio i: 70 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AH285-091Frame: 285 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AH285-100Frame: 285 | Ratio i: 100 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AH355-005Frame: 355 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 6,250 Nm
AH355-007Frame: 355 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 5,045 Nm
AH355-010Frame: 355 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 3,345 Nm
AH355-021Frame: 355 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 6,525 Nm
AH355-031Frame: 355 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 5,280 Nm
AH355-046Frame: 355 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AH355-061Frame: 355 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 5,445 Nm
AH355-091Frame: 355 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AH450-005Frame: 450 | Ratio i: 5 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 12,105 Nm
AH450-007Frame: 450 | Ratio i: 7 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 10,260 Nm
AH450-010Frame: 450 | Ratio i: 10 | Stages: 1 | Input: Hub (motor mounting) | Backlash: <=1 arcmin | Nominal torque T2N: 7,160 Nm
AH450-021Frame: 450 | Ratio i: 21 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 12,495 Nm
AH450-031Frame: 450 | Ratio i: 31 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 10,595 Nm
AH450-046Frame: 450 | Ratio i: 46 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 7,125 Nm
AH450-061Frame: 450 | Ratio i: 61 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 10,895 Nm
AH450-091Frame: 450 | Ratio i: 91 | Stages: 2 | Input: Hub (motor mounting) | Backlash: <=2 arcmin | Nominal torque T2N: 7,000 Nm
AHS064-004-S1Frame: 064 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 100 Nm
AHS064-004-S2Frame: 064 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 100 Nm
AHS064-005-S1Frame: 064 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 85 Nm
AHS064-005-S2Frame: 064 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 85 Nm
AHS064-007-S1Frame: 064 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 60 Nm
AHS064-007-S2Frame: 064 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 60 Nm
AHS064-010-S1Frame: 064 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 24 Nm
AHS064-010-S2Frame: 064 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 24 Nm
AHS064-016-S1Frame: 064 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AHS064-016-S2Frame: 064 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AHS064-020-S1Frame: 064 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AHS064-020-S2Frame: 064 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 100 Nm
AHS064-021-S1Frame: 064 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AHS064-021-S2Frame: 064 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AHS064-025-S1Frame: 064 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AHS064-025-S2Frame: 064 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 90 Nm
AHS064-028-S1Frame: 064 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-028-S2Frame: 064 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-031-S1Frame: 064 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-031-S2Frame: 064 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-035-S1Frame: 064 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 75 Nm
AHS064-035-S2Frame: 064 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 75 Nm
AHS064-040-S1Frame: 064 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 40 Nm
AHS064-040-S2Frame: 064 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 40 Nm
AHS064-046-S1Frame: 064 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS064-046-S2Frame: 064 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS064-050-S1Frame: 064 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 50 Nm
AHS064-050-S2Frame: 064 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 50 Nm
AHS064-061-S1Frame: 064 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-061-S2Frame: 064 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-070-S1Frame: 064 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-070-S2Frame: 064 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 60 Nm
AHS064-091-S1Frame: 064 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS064-091-S2Frame: 064 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS064-100-S1Frame: 064 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS064-100-S2Frame: 064 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=3 arcmin | Nominal torque T2N: 24 Nm
AHS090-004-S1Frame: 090 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 205 Nm
AHS090-004-S2Frame: 090 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 205 Nm
AHS090-005-S1Frame: 090 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 185 Nm
AHS090-005-S2Frame: 090 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 185 Nm
AHS090-007-S1Frame: 090 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 135 Nm
AHS090-007-S2Frame: 090 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 135 Nm
AHS090-010-S1Frame: 090 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 55 Nm
AHS090-010-S2Frame: 090 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 55 Nm
AHS090-016-S1Frame: 090 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-016-S2Frame: 090 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-020-S1Frame: 090 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-020-S2Frame: 090 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-021-S1Frame: 090 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-021-S2Frame: 090 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-025-S1Frame: 090 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-025-S2Frame: 090 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-028-S1Frame: 090 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-028-S2Frame: 090 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 205 Nm
AHS090-031-S1Frame: 090 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-031-S2Frame: 090 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-035-S1Frame: 090 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-035-S2Frame: 090 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 195 Nm
AHS090-040-S1Frame: 090 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 96 Nm
AHS090-040-S2Frame: 090 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 96 Nm
AHS090-046-S1Frame: 090 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS090-046-S2Frame: 090 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS090-050-S1Frame: 090 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 120 Nm
AHS090-050-S2Frame: 090 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 120 Nm
AHS090-061-S1Frame: 090 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-061-S2Frame: 090 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-070-S1Frame: 090 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-070-S2Frame: 090 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 135 Nm
AHS090-091-S1Frame: 090 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS090-091-S2Frame: 090 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS090-100-S1Frame: 090 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS090-100-S2Frame: 090 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 55 Nm
AHS110-004-S1Frame: 110 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 380 Nm
AHS110-004-S2Frame: 110 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 380 Nm
AHS110-005-S1Frame: 110 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 325 Nm
AHS110-005-S2Frame: 110 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 325 Nm
AHS110-007-S1Frame: 110 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 260 Nm
AHS110-007-S2Frame: 110 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 260 Nm
AHS110-010-S1Frame: 110 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 160 Nm
AHS110-010-S2Frame: 110 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 160 Nm
AHS110-016-S1Frame: 110 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AHS110-016-S2Frame: 110 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AHS110-020-S1Frame: 110 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AHS110-020-S2Frame: 110 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 400 Nm
AHS110-021-S1Frame: 110 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS110-021-S2Frame: 110 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS110-025-S1Frame: 110 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS110-025-S2Frame: 110 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS110-028-S1Frame: 110 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 405 Nm
AHS110-028-S2Frame: 110 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 405 Nm
AHS110-031-S1Frame: 110 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 280 Nm
AHS110-031-S2Frame: 110 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 280 Nm
AHS110-035-S1Frame: 110 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 350 Nm
AHS110-035-S2Frame: 110 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 350 Nm
AHS110-040-S1Frame: 110 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 220 Nm
AHS110-040-S2Frame: 110 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 220 Nm
AHS110-046-S1Frame: 110 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS110-046-S2Frame: 110 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS110-050-S1Frame: 110 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 275 Nm
AHS110-050-S2Frame: 110 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 275 Nm
AHS110-061-S1Frame: 110 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AHS110-061-S2Frame: 110 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AHS110-070-S1Frame: 110 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AHS110-070-S2Frame: 110 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm
AHS110-091-S1Frame: 110 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS110-091-S2Frame: 110 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS110-100-S1Frame: 110 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS110-100-S2Frame: 110 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 160 Nm
AHS140-004-S1Frame: 140 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 765 Nm
AHS140-004-S2Frame: 140 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 765 Nm
AHS140-005-S1Frame: 140 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 660 Nm
AHS140-005-S2Frame: 140 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 660 Nm
AHS140-007-S1Frame: 140 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 515 Nm
AHS140-007-S2Frame: 140 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 515 Nm
AHS140-010-S1Frame: 140 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 315 Nm
AHS140-010-S2Frame: 140 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 315 Nm
AHS140-016-S1Frame: 140 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 805 Nm
AHS140-016-S2Frame: 140 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 805 Nm
AHS140-020-S1Frame: 140 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 810 Nm
AHS140-020-S2Frame: 140 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 810 Nm
AHS140-021-S1Frame: 140 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AHS140-021-S2Frame: 140 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AHS140-025-S1Frame: 140 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AHS140-025-S2Frame: 140 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 700 Nm
AHS140-028-S1Frame: 140 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 820 Nm
AHS140-028-S2Frame: 140 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 820 Nm
AHS140-031-S1Frame: 140 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 560 Nm
AHS140-031-S2Frame: 140 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 560 Nm
AHS140-035-S1Frame: 140 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 705 Nm
AHS140-035-S2Frame: 140 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 705 Nm
AHS140-040-S1Frame: 140 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 615 Nm
AHS140-040-S2Frame: 140 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 615 Nm
AHS140-046-S1Frame: 140 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 335 Nm
AHS140-046-S2Frame: 140 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 335 Nm
AHS140-050-S1Frame: 140 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 715 Nm
AHS140-050-S2Frame: 140 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 715 Nm
AHS140-061-S1Frame: 140 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AHS140-061-S2Frame: 140 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AHS140-070-S1Frame: 140 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AHS140-070-S2Frame: 140 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 585 Nm
AHS140-091-S1Frame: 140 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS140-091-S2Frame: 140 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS140-100-S1Frame: 140 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS140-100-S2Frame: 140 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 345 Nm
AHS200-004-S1Frame: 200 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,415 Nm
AHS200-004-S2Frame: 200 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,415 Nm
AHS200-005-S1Frame: 200 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,225 Nm
AHS200-005-S2Frame: 200 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,225 Nm
AHS200-007-S1Frame: 200 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 980 Nm
AHS200-007-S2Frame: 200 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 980 Nm
AHS200-010-S1Frame: 200 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 700 Nm
AHS200-010-S2Frame: 200 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 700 Nm
AHS200-016-S1Frame: 200 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,485 Nm
AHS200-016-S2Frame: 200 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,485 Nm
AHS200-020-S1Frame: 200 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,495 Nm
AHS200-020-S2Frame: 200 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,495 Nm
AHS200-021-S1Frame: 200 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AHS200-021-S2Frame: 200 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AHS200-025-S1Frame: 200 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AHS200-025-S2Frame: 200 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,295 Nm
AHS200-028-S1Frame: 200 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,510 Nm
AHS200-028-S2Frame: 200 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,510 Nm
AHS200-031-S1Frame: 200 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,050 Nm
AHS200-031-S2Frame: 200 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,050 Nm
AHS200-035-S1Frame: 200 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,310 Nm
AHS200-035-S2Frame: 200 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,310 Nm
AHS200-040-S1Frame: 200 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,260 Nm
AHS200-040-S2Frame: 200 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,260 Nm
AHS200-046-S1Frame: 200 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS200-046-S2Frame: 200 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS200-050-S1Frame: 200 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,325 Nm
AHS200-050-S2Frame: 200 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,325 Nm
AHS200-061-S1Frame: 200 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AHS200-061-S2Frame: 200 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AHS200-070-S1Frame: 200 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AHS200-070-S2Frame: 200 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,095 Nm
AHS200-091-S1Frame: 200 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS200-091-S2Frame: 200 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS200-100-S1Frame: 200 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS200-100-S2Frame: 200 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 660 Nm
AHS255-004-S1Frame: 255 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 2,190 Nm
AHS255-004-S2Frame: 255 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 2,190 Nm
AHS255-005-S1Frame: 255 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,905 Nm
AHS255-005-S2Frame: 255 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,905 Nm
AHS255-007-S1Frame: 255 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,530 Nm
AHS255-007-S2Frame: 255 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,530 Nm
AHS255-010-S1Frame: 255 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,070 Nm
AHS255-010-S2Frame: 255 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,070 Nm
AHS255-016-S1Frame: 255 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,295 Nm
AHS255-016-S2Frame: 255 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,295 Nm
AHS255-020-S1Frame: 255 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,990 Nm
AHS255-020-S2Frame: 255 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,990 Nm
AHS255-021-S1Frame: 255 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AHS255-021-S2Frame: 255 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AHS255-025-S1Frame: 255 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AHS255-025-S2Frame: 255 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,005 Nm
AHS255-028-S1Frame: 255 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,335 Nm
AHS255-028-S2Frame: 255 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,335 Nm
AHS255-031-S1Frame: 255 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,620 Nm
AHS255-031-S2Frame: 255 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,620 Nm
AHS255-035-S1Frame: 255 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,030 Nm
AHS255-035-S2Frame: 255 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,030 Nm
AHS255-040-S1Frame: 255 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,360 Nm
AHS255-040-S2Frame: 255 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,360 Nm
AHS255-046-S1Frame: 255 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS255-046-S2Frame: 255 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS255-050-S1Frame: 255 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,050 Nm
AHS255-050-S2Frame: 255 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,050 Nm
AHS255-061-S1Frame: 255 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AHS255-061-S2Frame: 255 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AHS255-070-S1Frame: 255 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AHS255-070-S2Frame: 255 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,670 Nm
AHS255-091-S1Frame: 255 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS255-091-S2Frame: 255 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS255-100-S1Frame: 255 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS255-100-S2Frame: 255 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,005 Nm
AHS285-004-S1Frame: 285 | Ratio i: 4 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 4,035 Nm
AHS285-004-S2Frame: 285 | Ratio i: 4 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 4,035 Nm
AHS285-005-S1Frame: 285 | Ratio i: 5 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 3,505 Nm
AHS285-005-S2Frame: 285 | Ratio i: 5 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 3,505 Nm
AHS285-007-S1Frame: 285 | Ratio i: 7 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 2,630 Nm
AHS285-007-S2Frame: 285 | Ratio i: 7 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 2,630 Nm
AHS285-010-S1Frame: 285 | Ratio i: 10 | Stages: 1 | Input: S1 smooth input shaft | Backlash: <=1 arcmin | Nominal torque T2N: 1,810 Nm
AHS285-010-S2Frame: 285 | Ratio i: 10 | Stages: 1 | Input: S2 input shaft with key | Backlash: <=1 arcmin | Nominal torque T2N: 1,810 Nm
AHS285-016-S1Frame: 285 | Ratio i: 16 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 4,215 Nm
AHS285-016-S2Frame: 285 | Ratio i: 16 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 4,215 Nm
AHS285-020-S1Frame: 285 | Ratio i: 20 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,660 Nm
AHS285-020-S2Frame: 285 | Ratio i: 20 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,660 Nm
AHS285-021-S1Frame: 285 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AHS285-021-S2Frame: 285 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AHS285-025-S1Frame: 285 | Ratio i: 25 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AHS285-025-S2Frame: 285 | Ratio i: 25 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,685 Nm
AHS285-028-S1Frame: 285 | Ratio i: 28 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 4,425 Nm
AHS285-028-S2Frame: 285 | Ratio i: 28 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 4,425 Nm
AHS285-031-S1Frame: 285 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,590 Nm
AHS285-031-S2Frame: 285 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,590 Nm
AHS285-035-S1Frame: 285 | Ratio i: 35 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,725 Nm
AHS285-035-S2Frame: 285 | Ratio i: 35 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,725 Nm
AHS285-040-S1Frame: 285 | Ratio i: 40 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 4,430 Nm
AHS285-040-S2Frame: 285 | Ratio i: 40 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 4,430 Nm
AHS285-046-S1Frame: 285 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS285-046-S2Frame: 285 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS285-050-S1Frame: 285 | Ratio i: 50 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,765 Nm
AHS285-050-S2Frame: 285 | Ratio i: 50 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,765 Nm
AHS285-061-S1Frame: 285 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AHS285-061-S2Frame: 285 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AHS285-070-S1Frame: 285 | Ratio i: 70 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AHS285-070-S2Frame: 285 | Ratio i: 70 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 2,675 Nm
AHS285-091-S1Frame: 285 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS285-091-S2Frame: 285 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS285-100-S1Frame: 285 | Ratio i: 100 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS285-100-S2Frame: 285 | Ratio i: 100 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 1,700 Nm
AHS355-021-S1Frame: 355 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 6,525 Nm
AHS355-021-S2Frame: 355 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 6,525 Nm
AHS355-031-S1Frame: 355 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 5,280 Nm
AHS355-031-S2Frame: 355 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 5,280 Nm
AHS355-046-S1Frame: 355 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AHS355-046-S2Frame: 355 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AHS355-061-S1Frame: 355 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 5,445 Nm
AHS355-061-S2Frame: 355 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 5,445 Nm
AHS355-091-S1Frame: 355 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AHS355-091-S2Frame: 355 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 3,400 Nm
AHS450-021-S1Frame: 450 | Ratio i: 21 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 12,495 Nm
AHS450-021-S2Frame: 450 | Ratio i: 21 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 12,495 Nm
AHS450-031-S1Frame: 450 | Ratio i: 31 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 10,595 Nm
AHS450-031-S2Frame: 450 | Ratio i: 31 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 10,595 Nm
AHS450-046-S1Frame: 450 | Ratio i: 46 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 7,125 Nm
AHS450-046-S2Frame: 450 | Ratio i: 46 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 7,125 Nm
AHS450-061-S1Frame: 450 | Ratio i: 61 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 10,895 Nm
AHS450-061-S2Frame: 450 | Ratio i: 61 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 10,895 Nm
AHS450-091-S1Frame: 450 | Ratio i: 91 | Stages: 2 | Input: S1 smooth input shaft | Backlash: <=2 arcmin | Nominal torque T2N: 7,000 Nm
AHS450-091-S2Frame: 450 | Ratio i: 91 | Stages: 2 | Input: S2 input shaft with key | Backlash: <=2 arcmin | Nominal torque T2N: 7,000 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
