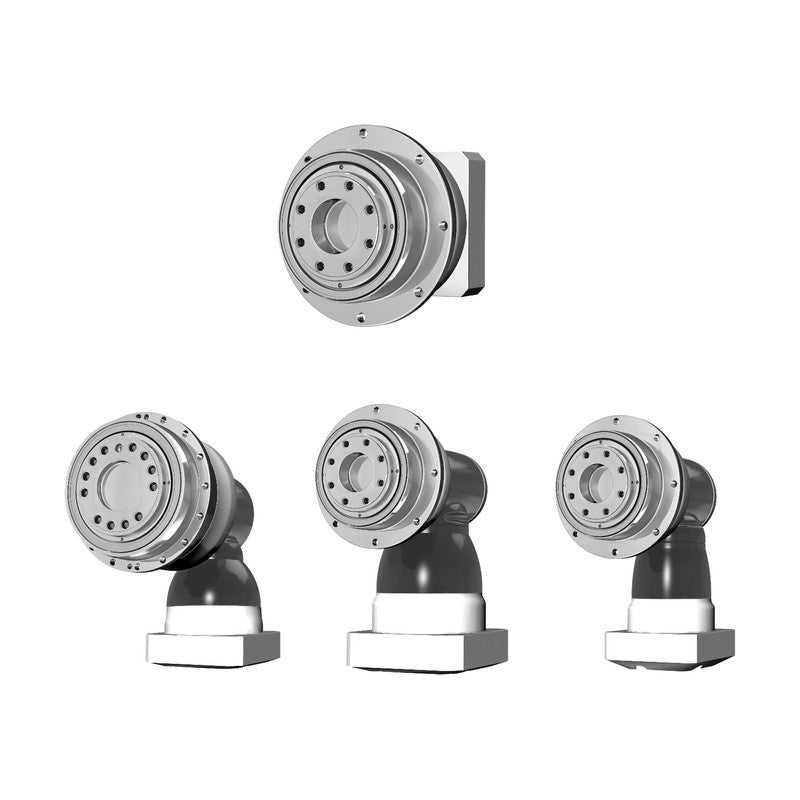

Apex Dynamics AHK Right-Angle Planetary Gearboxes (i=4-10,000)

Apex Dynamics AHK right-angle precision planetary gearboxes with flange output, offered as AHK 2- and 4-stage, AHKA and AHKB 3-stage and AHKC versions covering ratios 4 to 10,000 in frames 064-450.

Key features

Right-angle input stage combined with flange-output planetary stages
AHK 2-stage i=12-100 (064-355) and 4-stage i=1,225-10,000 (285-450)
AHKA 3-stage i=100-1,000 (285-450); AHKB 3-stage i=48-1,000 (090-355)
AHKC low-ratio version i=4-10 (2-stage) and i=21-91 (3-stage), frames 064-450
Backlash <=2 arcmin (frame 064: <=3 arcmin); torque up to 13,585 Nm
Motor input hub; specify motor make and model when ordering (code / MOTOR field)

Specifications

Design	Right-angle planetary, flange output
Emergency stop torque T2NOT	2 times T2N
Max. acceleration torque T2B	1.5 times T2N
Torsional rigidity	12-5,100 Nm/arcmin (by size)
Max. input speed n1B	2,200-7,000 rpm (by size/version)
Max. tilting moment M2K	120-63,300 Nm (at 100 rpm)
Operating temperature	-10 to 90 C
Protection	IP67 (AHK 2-st., AHKA); IP65 (AHKB, AHK 4-st., AHKC)
Lubrication	Synthetic lubrication grease
Efficiency	>=95% to >=90% (by stages)
Source	APEX Dynamics AH/AHK catalog, p. 3-18

AHK064-012		Version: AHK \| Frame: 064 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AHK064-016		Version: AHK \| Frame: 064 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AHK064-020		Version: AHK \| Frame: 064 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AHK064-025		Version: AHK \| Frame: 064 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
AHK064-028		Version: AHK \| Frame: 064 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 92 Nm
AHK064-035		Version: AHK \| Frame: 064 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
AHK064-040		Version: AHK \| Frame: 064 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 72 Nm
AHK064-049		Version: AHK \| Frame: 064 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
AHK064-050		Version: AHK \| Frame: 064 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
AHK064-070		Version: AHK \| Frame: 064 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
AHK064-100		Version: AHK \| Frame: 064 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
AHK090-012		Version: AHK \| Frame: 090 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AHK090-016		Version: AHK \| Frame: 090 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 225 Nm
AHK090-020		Version: AHK \| Frame: 090 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 230 Nm
AHK090-025		Version: AHK \| Frame: 090 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
AHK090-028		Version: AHK \| Frame: 090 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AHK090-035		Version: AHK \| Frame: 090 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AHK090-040		Version: AHK \| Frame: 090 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AHK090-049		Version: AHK \| Frame: 090 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AHK090-050		Version: AHK \| Frame: 090 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AHK090-070		Version: AHK \| Frame: 090 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AHK090-100		Version: AHK \| Frame: 090 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
AHK110-012		Version: AHK \| Frame: 110 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AHK110-016		Version: AHK \| Frame: 110 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
AHK110-020		Version: AHK \| Frame: 110 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
AHK110-025		Version: AHK \| Frame: 110 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
AHK110-028		Version: AHK \| Frame: 110 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AHK110-035		Version: AHK \| Frame: 110 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 355 Nm
AHK110-040		Version: AHK \| Frame: 110 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AHK110-049		Version: AHK \| Frame: 110 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 290 Nm
AHK110-050		Version: AHK \| Frame: 110 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 360 Nm
AHK110-070		Version: AHK \| Frame: 110 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 295 Nm
AHK110-100		Version: AHK \| Frame: 110 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AHK140-012		Version: AHK \| Frame: 140 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 805 Nm
AHK140-016		Version: AHK \| Frame: 140 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 815 Nm
AHK140-020		Version: AHK \| Frame: 140 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 820 Nm
AHK140-025		Version: AHK \| Frame: 140 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 710 Nm
AHK140-028		Version: AHK \| Frame: 140 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AHK140-035		Version: AHK \| Frame: 140 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 715 Nm
AHK140-040		Version: AHK \| Frame: 140 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
AHK140-049		Version: AHK \| Frame: 140 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 585 Nm
AHK140-050		Version: AHK \| Frame: 140 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 725 Nm
AHK140-070		Version: AHK \| Frame: 140 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 600 Nm
AHK140-100		Version: AHK \| Frame: 140 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
AHK200-012		Version: AHK \| Frame: 200 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,495 Nm
AHK200-016		Version: AHK \| Frame: 200 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,510 Nm
AHK200-020		Version: AHK \| Frame: 200 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,520 Nm
AHK200-025		Version: AHK \| Frame: 200 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
AHK200-028		Version: AHK \| Frame: 200 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,535 Nm
AHK200-035		Version: AHK \| Frame: 200 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,330 Nm
AHK200-040		Version: AHK \| Frame: 200 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AHK200-049		Version: AHK \| Frame: 200 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,105 Nm
AHK200-050		Version: AHK \| Frame: 200 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,345 Nm
AHK200-070		Version: AHK \| Frame: 200 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,130 Nm
AHK200-100		Version: AHK \| Frame: 200 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 655 Nm
AHK255-012		Version: AHK \| Frame: 255 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AHK255-015		Version: AHK \| Frame: 255 \| Ratio i: 15 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,005 Nm
AHK255-016		Version: AHK \| Frame: 255 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AHK255-020		Version: AHK \| Frame: 255 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,780 Nm
AHK255-025		Version: AHK \| Frame: 255 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,775 Nm
AHK255-028		Version: AHK \| Frame: 255 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AHK255-035		Version: AHK \| Frame: 255 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
AHK255-040		Version: AHK \| Frame: 255 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AHK255-049		Version: AHK \| Frame: 255 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AHK255-050		Version: AHK \| Frame: 255 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
AHK255-070		Version: AHK \| Frame: 255 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,710 Nm
AHK255-100		Version: AHK \| Frame: 255 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,005 Nm
AHK285-012		Version: AHK \| Frame: 285 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AHK285-015		Version: AHK \| Frame: 285 \| Ratio i: 15 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,675 Nm
AHK285-016		Version: AHK \| Frame: 285 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AHK285-020		Version: AHK \| Frame: 285 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,710 Nm
AHK285-025		Version: AHK \| Frame: 285 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,735 Nm
AHK285-028		Version: AHK \| Frame: 285 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AHK285-035		Version: AHK \| Frame: 285 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
AHK285-040		Version: AHK \| Frame: 285 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
AHK285-049		Version: AHK \| Frame: 285 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,685 Nm
AHK285-050		Version: AHK \| Frame: 285 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AHK285-070		Version: AHK \| Frame: 285 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,730 Nm
AHK285-100		Version: AHK \| Frame: 285 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,685 Nm
AHK355-015		Version: AHK \| Frame: 355 \| Ratio i: 15 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,510 Nm
AHK355-020		Version: AHK \| Frame: 355 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,570 Nm
AHK355-025		Version: AHK \| Frame: 355 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,615 Nm
AHK355-035		Version: AHK \| Frame: 355 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,675 Nm
AHK355-049		Version: AHK \| Frame: 355 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,470 Nm
AHK355-050		Version: AHK \| Frame: 355 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,500 Nm
AHK355-070		Version: AHK \| Frame: 355 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,560 Nm
AHK355-100		Version: AHK \| Frame: 355 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,315 Nm
AHK285-1225		Version: AHK \| Frame: 285 \| Ratio i: 1225 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,070 Nm
AHK285-1400		Version: AHK \| Frame: 285 \| Ratio i: 1400 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,085 Nm
AHK285-1750		Version: AHK \| Frame: 285 \| Ratio i: 1750 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,100 Nm
AHK285-2000		Version: AHK \| Frame: 285 \| Ratio i: 2000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,120 Nm
AHK285-2800		Version: AHK \| Frame: 285 \| Ratio i: 2800 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,185 Nm
AHK285-3500		Version: AHK \| Frame: 285 \| Ratio i: 3500 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,180 Nm
AHK285-5000		Version: AHK \| Frame: 285 \| Ratio i: 5000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,285 Nm
AHK285-7000		Version: AHK \| Frame: 285 \| Ratio i: 7000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,445 Nm
AHK285-10000		Version: AHK \| Frame: 285 \| Ratio i: 10000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
AHK355-1225		Version: AHK \| Frame: 355 \| Ratio i: 1225 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,145 Nm
AHK355-1400		Version: AHK \| Frame: 355 \| Ratio i: 1400 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,170 Nm
AHK355-1750		Version: AHK \| Frame: 355 \| Ratio i: 1750 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,200 Nm
AHK355-2000		Version: AHK \| Frame: 355 \| Ratio i: 2000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,200 Nm
AHK355-2800		Version: AHK \| Frame: 355 \| Ratio i: 2800 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,320 Nm
AHK355-3500		Version: AHK \| Frame: 355 \| Ratio i: 3500 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,330 Nm
AHK355-5000		Version: AHK \| Frame: 355 \| Ratio i: 5000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,350 Nm
AHK355-7000		Version: AHK \| Frame: 355 \| Ratio i: 7000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,780 Nm
AHK355-10000		Version: AHK \| Frame: 355 \| Ratio i: 10000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,425 Nm
AHK450-1225		Version: AHK \| Frame: 450 \| Ratio i: 1225 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,490 Nm
AHK450-1400		Version: AHK \| Frame: 450 \| Ratio i: 1400 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,535 Nm
AHK450-1750		Version: AHK \| Frame: 450 \| Ratio i: 1750 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,585 Nm
AHK450-2000		Version: AHK \| Frame: 450 \| Ratio i: 2000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,000 Nm
AHK450-2800		Version: AHK \| Frame: 450 \| Ratio i: 2800 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,145 Nm
AHK450-3500		Version: AHK \| Frame: 450 \| Ratio i: 3500 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,150 Nm
AHK450-5000		Version: AHK \| Frame: 450 \| Ratio i: 5000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 9,050 Nm
AHK450-7000		Version: AHK \| Frame: 450 \| Ratio i: 7000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,670 Nm
AHK450-10000		Version: AHK \| Frame: 450 \| Ratio i: 10000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 9,370 Nm
AHKA285-100		Version: AHKA \| Frame: 285 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,875 Nm
AHKA285-125		Version: AHKA \| Frame: 285 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
AHKA285-140		Version: AHKA \| Frame: 285 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,910 Nm
AHKA285-175		Version: AHKA \| Frame: 285 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,930 Nm
AHKA285-200		Version: AHKA \| Frame: 285 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,945 Nm
AHKA285-250		Version: AHKA \| Frame: 285 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,970 Nm
AHKA285-350		Version: AHKA \| Frame: 285 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,000 Nm
AHKA285-500		Version: AHKA \| Frame: 285 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,035 Nm
AHKA285-700		Version: AHKA \| Frame: 285 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,090 Nm
AHKA285-1000		Version: AHKA \| Frame: 285 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,770 Nm
AHKA355-100		Version: AHKA \| Frame: 355 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,815 Nm
AHKA355-125		Version: AHKA \| Frame: 355 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,855 Nm
AHKA355-140		Version: AHKA \| Frame: 355 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,870 Nm
AHKA355-175		Version: AHKA \| Frame: 355 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,910 Nm
AHKA355-200		Version: AHKA \| Frame: 355 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,930 Nm
AHKA355-250		Version: AHKA \| Frame: 355 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,970 Nm
AHKA355-350		Version: AHKA \| Frame: 355 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,030 Nm
AHKA355-500		Version: AHKA \| Frame: 355 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,350 Nm
AHKA355-700		Version: AHKA \| Frame: 355 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,190 Nm
AHKA355-1000		Version: AHKA \| Frame: 355 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,400 Nm
AHKA450-100		Version: AHKA \| Frame: 450 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,930 Nm
AHKA450-125		Version: AHKA \| Frame: 450 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,995 Nm
AHKA450-140		Version: AHKA \| Frame: 450 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,030 Nm
AHKA450-175		Version: AHKA \| Frame: 450 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,090 Nm
AHKA450-200		Version: AHKA \| Frame: 450 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,000 Nm
AHKA450-250		Version: AHKA \| Frame: 450 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,195 Nm
AHKA450-350		Version: AHKA \| Frame: 450 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,150 Nm
AHKA450-500		Version: AHKA \| Frame: 450 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 9,050 Nm
AHKA450-700		Version: AHKA \| Frame: 450 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 11,960 Nm
AHKA450-1000		Version: AHKA \| Frame: 450 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,055 Nm
AHKB090-064		Version: AHKB \| Frame: 090 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AHKB090-084		Version: AHKB \| Frame: 090 \| Ratio i: 84 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AHKB090-100		Version: AHKB \| Frame: 090 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AHKB090-125		Version: AHKB \| Frame: 090 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AHKB090-140		Version: AHKB \| Frame: 090 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AHKB090-175		Version: AHKB \| Frame: 090 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AHKB090-200		Version: AHKB \| Frame: 090 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AHKB090-250		Version: AHKB \| Frame: 090 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AHKB090-280		Version: AHKB \| Frame: 090 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AHKB090-350		Version: AHKB \| Frame: 090 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 210 Nm
AHKB090-400		Version: AHKB \| Frame: 090 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AHKB090-500		Version: AHKB \| Frame: 090 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
AHKB090-700		Version: AHKB \| Frame: 090 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AHKB090-1000		Version: AHKB \| Frame: 090 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 55 Nm
AHKB110-064		Version: AHKB \| Frame: 110 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 415 Nm
AHKB110-084		Version: AHKB \| Frame: 110 \| Ratio i: 84 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
AHKB110-100		Version: AHKB \| Frame: 110 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
AHKB110-125		Version: AHKB \| Frame: 110 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
AHKB110-140		Version: AHKB \| Frame: 110 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 425 Nm
AHKB110-175		Version: AHKB \| Frame: 110 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
AHKB110-200		Version: AHKB \| Frame: 110 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 430 Nm
AHKB110-250		Version: AHKB \| Frame: 110 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 370 Nm
AHKB110-280		Version: AHKB \| Frame: 110 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
AHKB110-350		Version: AHKB \| Frame: 110 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 375 Nm
AHKB110-400		Version: AHKB \| Frame: 110 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AHKB110-500		Version: AHKB \| Frame: 110 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AHKB110-700		Version: AHKB \| Frame: 110 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 325 Nm
AHKB110-1000		Version: AHKB \| Frame: 110 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AHKB140-064		Version: AHKB \| Frame: 140 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 840 Nm
AHKB140-084		Version: AHKB \| Frame: 140 \| Ratio i: 84 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AHKB140-100		Version: AHKB \| Frame: 140 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AHKB140-125		Version: AHKB \| Frame: 140 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 730 Nm
AHKB140-140		Version: AHKB \| Frame: 140 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AHKB140-175		Version: AHKB \| Frame: 140 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 740 Nm
AHKB140-200		Version: AHKB \| Frame: 140 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
AHKB140-250		Version: AHKB \| Frame: 140 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 745 Nm
AHKB140-280		Version: AHKB \| Frame: 140 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AHKB140-350		Version: AHKB \| Frame: 140 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 755 Nm
AHKB140-400		Version: AHKB \| Frame: 140 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
AHKB140-500		Version: AHKB \| Frame: 140 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 760 Nm
AHKB140-700		Version: AHKB \| Frame: 140 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
AHKB140-1000		Version: AHKB \| Frame: 140 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AHKB200-064		Version: AHKB \| Frame: 200 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,545 Nm
AHKB200-084		Version: AHKB \| Frame: 200 \| Ratio i: 84 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,555 Nm
AHKB200-100		Version: AHKB \| Frame: 200 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,565 Nm
AHKB200-125		Version: AHKB \| Frame: 200 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,355 Nm
AHKB200-140		Version: AHKB \| Frame: 200 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,580 Nm
AHKB200-175		Version: AHKB \| Frame: 200 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,370 Nm
AHKB200-200		Version: AHKB \| Frame: 200 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,590 Nm
AHKB200-250		Version: AHKB \| Frame: 200 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,380 Nm
AHKB200-280		Version: AHKB \| Frame: 200 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
AHKB200-350		Version: AHKB \| Frame: 200 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,395 Nm
AHKB200-400		Version: AHKB \| Frame: 200 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AHKB200-500		Version: AHKB \| Frame: 200 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,405 Nm
AHKB200-700		Version: AHKB \| Frame: 200 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,240 Nm
AHKB200-1000		Version: AHKB \| Frame: 200 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 660 Nm
AHKB255-064		Version: AHKB \| Frame: 255 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AHKB255-084		Version: AHKB \| Frame: 255 \| Ratio i: 84 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
AHKB255-100		Version: AHKB \| Frame: 255 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,085 Nm
AHKB255-125		Version: AHKB \| Frame: 255 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,095 Nm
AHKB255-140		Version: AHKB \| Frame: 255 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,100 Nm
AHKB255-175		Version: AHKB \| Frame: 255 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,115 Nm
AHKB255-200		Version: AHKB \| Frame: 255 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
AHKB255-250		Version: AHKB \| Frame: 255 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
AHKB255-280		Version: AHKB \| Frame: 255 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,780 Nm
AHKB255-350		Version: AHKB \| Frame: 255 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
AHKB255-400		Version: AHKB \| Frame: 255 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AHKB255-500		Version: AHKB \| Frame: 255 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
AHKB255-700		Version: AHKB \| Frame: 255 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,875 Nm
AHKB255-1000		Version: AHKB \| Frame: 255 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,065 Nm
AHKB285-048		Version: AHKB \| Frame: 285 \| Ratio i: 48 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AHKB285-064		Version: AHKB \| Frame: 285 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
AHKB285-100		Version: AHKB \| Frame: 285 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,830 Nm
AHKB285-125		Version: AHKB \| Frame: 285 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,850 Nm
AHKB285-140		Version: AHKB \| Frame: 285 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,860 Nm
AHKB285-175		Version: AHKB \| Frame: 285 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,885 Nm
AHKB285-200		Version: AHKB \| Frame: 285 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
AHKB285-250		Version: AHKB \| Frame: 285 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,920 Nm
AHKB285-280		Version: AHKB \| Frame: 285 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AHKB285-350		Version: AHKB \| Frame: 285 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
AHKB285-400		Version: AHKB \| Frame: 285 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
AHKB285-500		Version: AHKB \| Frame: 285 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
AHKB285-700		Version: AHKB \| Frame: 285 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,005 Nm
AHKB285-1000		Version: AHKB \| Frame: 285 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,725 Nm
AHKB355-100		Version: AHKB \| Frame: 355 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,745 Nm
AHKB355-125		Version: AHKB \| Frame: 355 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,785 Nm
AHKB355-140		Version: AHKB \| Frame: 355 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,805 Nm
AHKB355-175		Version: AHKB \| Frame: 355 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,845 Nm
AHKB355-200		Version: AHKB \| Frame: 355 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,865 Nm
AHKB355-250		Version: AHKB \| Frame: 355 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,905 Nm
AHKB355-350		Version: AHKB \| Frame: 355 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,965 Nm
AHKB355-500		Version: AHKB \| Frame: 355 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,500 Nm
AHKB355-700		Version: AHKB \| Frame: 355 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,060 Nm
AHKB355-1000		Version: AHKB \| Frame: 355 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,325 Nm
AHKC064-004		Version: AHKC \| Frame: 064 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
AHKC064-005		Version: AHKC \| Frame: 064 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
AHKC064-007		Version: AHKC \| Frame: 064 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
AHKC064-008		Version: AHKC \| Frame: 064 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 96 Nm
AHKC064-010		Version: AHKC \| Frame: 064 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
AHKC090-004		Version: AHKC \| Frame: 090 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AHKC090-005		Version: AHKC \| Frame: 090 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 185 Nm
AHKC090-007		Version: AHKC \| Frame: 090 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AHKC090-008		Version: AHKC \| Frame: 090 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
AHKC090-010		Version: AHKC \| Frame: 090 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 190 Nm
AHKC090-021		Version: AHKC \| Frame: 090 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
AHKC090-031		Version: AHKC \| Frame: 090 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AHKC090-046		Version: AHKC \| Frame: 090 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
AHKC090-061		Version: AHKC \| Frame: 090 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
AHKC090-091		Version: AHKC \| Frame: 090 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
AHKC110-004		Version: AHKC \| Frame: 110 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
AHKC110-005		Version: AHKC \| Frame: 110 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 330 Nm
AHKC110-007		Version: AHKC \| Frame: 110 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 260 Nm
AHKC110-008		Version: AHKC \| Frame: 110 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 395 Nm
AHKC110-010		Version: AHKC \| Frame: 110 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AHKC110-021		Version: AHKC \| Frame: 110 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 345 Nm
AHKC110-031		Version: AHKC \| Frame: 110 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 275 Nm
AHKC110-046		Version: AHKC \| Frame: 110 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AHKC110-061		Version: AHKC \| Frame: 110 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 285 Nm
AHKC110-091		Version: AHKC \| Frame: 110 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
AHKC140-004		Version: AHKC \| Frame: 140 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 775 Nm
AHKC140-005		Version: AHKC \| Frame: 140 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
AHKC140-007		Version: AHKC \| Frame: 140 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 525 Nm
AHKC140-008		Version: AHKC \| Frame: 140 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
AHKC140-010		Version: AHKC \| Frame: 140 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 690 Nm
AHKC140-021		Version: AHKC \| Frame: 140 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 700 Nm
AHKC140-031		Version: AHKC \| Frame: 140 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 565 Nm
AHKC140-046		Version: AHKC \| Frame: 140 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
AHKC140-061		Version: AHKC \| Frame: 140 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 590 Nm
AHKC140-091		Version: AHKC \| Frame: 140 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
AHKC200-004		Version: AHKC \| Frame: 200 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
AHKC200-005		Version: AHKC \| Frame: 200 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,250 Nm
AHKC200-007		Version: AHKC \| Frame: 200 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,000 Nm
AHKC200-008		Version: AHKC \| Frame: 200 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
AHKC200-010		Version: AHKC \| Frame: 200 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,290 Nm
AHKC200-021		Version: AHKC \| Frame: 200 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,310 Nm
AHKC200-031		Version: AHKC \| Frame: 200 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,070 Nm
AHKC200-046		Version: AHKC \| Frame: 200 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 675 Nm
AHKC200-061		Version: AHKC \| Frame: 200 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,115 Nm
AHKC200-091		Version: AHKC \| Frame: 200 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 675 Nm
AHKC255-004		Version: AHKC \| Frame: 255 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
AHKC255-005		Version: AHKC \| Frame: 255 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,930 Nm
AHKC255-007		Version: AHKC \| Frame: 255 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,750 Nm
AHKC255-008		Version: AHKC \| Frame: 255 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,300 Nm
AHKC255-010		Version: AHKC \| Frame: 255 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,000 Nm
AHKC255-021		Version: AHKC \| Frame: 255 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,100 Nm
AHKC255-031		Version: AHKC \| Frame: 255 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,790 Nm
AHKC255-046		Version: AHKC \| Frame: 255 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,080 Nm
AHKC255-061		Version: AHKC \| Frame: 255 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,790 Nm
AHKC255-091		Version: AHKC \| Frame: 255 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 985 Nm
AHKC285-004		Version: AHKC \| Frame: 285 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,160 Nm
AHKC285-005		Version: AHKC \| Frame: 285 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,610 Nm
AHKC285-007		Version: AHKC \| Frame: 285 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,535 Nm
AHKC285-008		Version: AHKC \| Frame: 285 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,260 Nm
AHKC285-010		Version: AHKC \| Frame: 285 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,700 Nm
AHKC285-021		Version: AHKC \| Frame: 285 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
AHKC285-031		Version: AHKC \| Frame: 285 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,660 Nm
AHKC285-046		Version: AHKC \| Frame: 285 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,890 Nm
AHKC285-061		Version: AHKC \| Frame: 285 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,750 Nm
AHKC285-091		Version: AHKC \| Frame: 285 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,600 Nm
AHKC355-021		Version: AHKC \| Frame: 355 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,590 Nm
AHKC355-031		Version: AHKC \| Frame: 355 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,720 Nm
AHKC355-046		Version: AHKC \| Frame: 355 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,460 Nm
AHKC355-061		Version: AHKC \| Frame: 355 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,720 Nm
AHKC355-091		Version: AHKC \| Frame: 355 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,460 Nm
AHKC450-021		Version: AHKC \| Frame: 450 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,630 Nm
AHKC450-031		Version: AHKC \| Frame: 450 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 10,800 Nm
AHKC450-046		Version: AHKC \| Frame: 450 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,800 Nm
AHKC450-061		Version: AHKC \| Frame: 450 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 11,110 Nm
AHKC450-091		Version: AHKC \| Frame: 450 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,430 Nm

Planetary GearboxesApex Dynamics

313 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics AHK Right-Angle Planetary Gearboxes (i=4-10,000)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (313)

AHK064-012, AHK064-016, AHK064-020, AHK064-025, AHK064-028, AHK064-035, AHK064-040, AHK064-049, AHK064-050, AHK064-070 + 303 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AHK064-012	Version: AHK \| Frame: 064 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AHK064-016	Version: AHK \| Frame: 064 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AHK064-020	Version: AHK \| Frame: 064 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AHK064-025	Version: AHK \| Frame: 064 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
	AHK064-028	Version: AHK \| Frame: 064 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 92 Nm
	AHK064-035	Version: AHK \| Frame: 064 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 95 Nm
	AHK064-040	Version: AHK \| Frame: 064 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 72 Nm
	AHK064-049	Version: AHK \| Frame: 064 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
	AHK064-050	Version: AHK \| Frame: 064 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
	AHK064-070	Version: AHK \| Frame: 064 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 63 Nm
	AHK064-100	Version: AHK \| Frame: 064 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
	AHK090-012	Version: AHK \| Frame: 090 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AHK090-016	Version: AHK \| Frame: 090 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 225 Nm
	AHK090-020	Version: AHK \| Frame: 090 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 230 Nm
	AHK090-025	Version: AHK \| Frame: 090 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
	AHK090-028	Version: AHK \| Frame: 090 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AHK090-035	Version: AHK \| Frame: 090 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AHK090-040	Version: AHK \| Frame: 090 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AHK090-049	Version: AHK \| Frame: 090 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AHK090-050	Version: AHK \| Frame: 090 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AHK090-070	Version: AHK \| Frame: 090 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AHK090-100	Version: AHK \| Frame: 090 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
	AHK110-012	Version: AHK \| Frame: 110 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AHK110-016	Version: AHK \| Frame: 110 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
	AHK110-020	Version: AHK \| Frame: 110 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 405 Nm
	AHK110-025	Version: AHK \| Frame: 110 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
	AHK110-028	Version: AHK \| Frame: 110 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AHK110-035	Version: AHK \| Frame: 110 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 355 Nm
	AHK110-040	Version: AHK \| Frame: 110 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AHK110-049	Version: AHK \| Frame: 110 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 290 Nm
	AHK110-050	Version: AHK \| Frame: 110 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 360 Nm
	AHK110-070	Version: AHK \| Frame: 110 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 295 Nm
	AHK110-100	Version: AHK \| Frame: 110 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AHK140-012	Version: AHK \| Frame: 140 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 805 Nm
	AHK140-016	Version: AHK \| Frame: 140 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 815 Nm
	AHK140-020	Version: AHK \| Frame: 140 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 820 Nm
	AHK140-025	Version: AHK \| Frame: 140 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 710 Nm
	AHK140-028	Version: AHK \| Frame: 140 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AHK140-035	Version: AHK \| Frame: 140 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 715 Nm
	AHK140-040	Version: AHK \| Frame: 140 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
	AHK140-049	Version: AHK \| Frame: 140 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 585 Nm
	AHK140-050	Version: AHK \| Frame: 140 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 725 Nm
	AHK140-070	Version: AHK \| Frame: 140 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 600 Nm
	AHK140-100	Version: AHK \| Frame: 140 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
	AHK200-012	Version: AHK \| Frame: 200 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,495 Nm
	AHK200-016	Version: AHK \| Frame: 200 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,510 Nm
	AHK200-020	Version: AHK \| Frame: 200 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,520 Nm
	AHK200-025	Version: AHK \| Frame: 200 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
	AHK200-028	Version: AHK \| Frame: 200 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,535 Nm
	AHK200-035	Version: AHK \| Frame: 200 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,330 Nm
	AHK200-040	Version: AHK \| Frame: 200 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AHK200-049	Version: AHK \| Frame: 200 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,105 Nm
	AHK200-050	Version: AHK \| Frame: 200 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,345 Nm
	AHK200-070	Version: AHK \| Frame: 200 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,130 Nm
	AHK200-100	Version: AHK \| Frame: 200 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 655 Nm
	AHK255-012	Version: AHK \| Frame: 255 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AHK255-015	Version: AHK \| Frame: 255 \| Ratio i: 15 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,005 Nm
	AHK255-016	Version: AHK \| Frame: 255 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AHK255-020	Version: AHK \| Frame: 255 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,780 Nm
	AHK255-025	Version: AHK \| Frame: 255 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,775 Nm
	AHK255-028	Version: AHK \| Frame: 255 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AHK255-035	Version: AHK \| Frame: 255 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
	AHK255-040	Version: AHK \| Frame: 255 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AHK255-049	Version: AHK \| Frame: 255 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AHK255-050	Version: AHK \| Frame: 255 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
	AHK255-070	Version: AHK \| Frame: 255 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,710 Nm
	AHK255-100	Version: AHK \| Frame: 255 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,005 Nm
	AHK285-012	Version: AHK \| Frame: 285 \| Ratio i: 12 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AHK285-015	Version: AHK \| Frame: 285 \| Ratio i: 15 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,675 Nm
	AHK285-016	Version: AHK \| Frame: 285 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AHK285-020	Version: AHK \| Frame: 285 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,710 Nm
	AHK285-025	Version: AHK \| Frame: 285 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,735 Nm
	AHK285-028	Version: AHK \| Frame: 285 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AHK285-035	Version: AHK \| Frame: 285 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
	AHK285-040	Version: AHK \| Frame: 285 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
	AHK285-049	Version: AHK \| Frame: 285 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,685 Nm
	AHK285-050	Version: AHK \| Frame: 285 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AHK285-070	Version: AHK \| Frame: 285 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,730 Nm
	AHK285-100	Version: AHK \| Frame: 285 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,685 Nm
	AHK355-015	Version: AHK \| Frame: 355 \| Ratio i: 15 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,510 Nm
	AHK355-020	Version: AHK \| Frame: 355 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,570 Nm
	AHK355-025	Version: AHK \| Frame: 355 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,615 Nm
	AHK355-035	Version: AHK \| Frame: 355 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,675 Nm
	AHK355-049	Version: AHK \| Frame: 355 \| Ratio i: 49 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,470 Nm
	AHK355-050	Version: AHK \| Frame: 355 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,500 Nm
	AHK355-070	Version: AHK \| Frame: 355 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,560 Nm
	AHK355-100	Version: AHK \| Frame: 355 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,315 Nm
	AHK285-1225	Version: AHK \| Frame: 285 \| Ratio i: 1225 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,070 Nm
	AHK285-1400	Version: AHK \| Frame: 285 \| Ratio i: 1400 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,085 Nm
	AHK285-1750	Version: AHK \| Frame: 285 \| Ratio i: 1750 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,100 Nm
	AHK285-2000	Version: AHK \| Frame: 285 \| Ratio i: 2000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,120 Nm
	AHK285-2800	Version: AHK \| Frame: 285 \| Ratio i: 2800 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,185 Nm
	AHK285-3500	Version: AHK \| Frame: 285 \| Ratio i: 3500 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,180 Nm
	AHK285-5000	Version: AHK \| Frame: 285 \| Ratio i: 5000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,285 Nm
	AHK285-7000	Version: AHK \| Frame: 285 \| Ratio i: 7000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,445 Nm
	AHK285-10000	Version: AHK \| Frame: 285 \| Ratio i: 10000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
	AHK355-1225	Version: AHK \| Frame: 355 \| Ratio i: 1225 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,145 Nm
	AHK355-1400	Version: AHK \| Frame: 355 \| Ratio i: 1400 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,170 Nm
	AHK355-1750	Version: AHK \| Frame: 355 \| Ratio i: 1750 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,200 Nm
	AHK355-2000	Version: AHK \| Frame: 355 \| Ratio i: 2000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,200 Nm
	AHK355-2800	Version: AHK \| Frame: 355 \| Ratio i: 2800 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,320 Nm
	AHK355-3500	Version: AHK \| Frame: 355 \| Ratio i: 3500 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,330 Nm
	AHK355-5000	Version: AHK \| Frame: 355 \| Ratio i: 5000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,350 Nm
	AHK355-7000	Version: AHK \| Frame: 355 \| Ratio i: 7000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,780 Nm
	AHK355-10000	Version: AHK \| Frame: 355 \| Ratio i: 10000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,425 Nm
	AHK450-1225	Version: AHK \| Frame: 450 \| Ratio i: 1225 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,490 Nm
	AHK450-1400	Version: AHK \| Frame: 450 \| Ratio i: 1400 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,535 Nm
	AHK450-1750	Version: AHK \| Frame: 450 \| Ratio i: 1750 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,585 Nm
	AHK450-2000	Version: AHK \| Frame: 450 \| Ratio i: 2000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,000 Nm
	AHK450-2800	Version: AHK \| Frame: 450 \| Ratio i: 2800 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,145 Nm
	AHK450-3500	Version: AHK \| Frame: 450 \| Ratio i: 3500 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,150 Nm
	AHK450-5000	Version: AHK \| Frame: 450 \| Ratio i: 5000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 9,050 Nm
	AHK450-7000	Version: AHK \| Frame: 450 \| Ratio i: 7000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,670 Nm
	AHK450-10000	Version: AHK \| Frame: 450 \| Ratio i: 10000 \| Stages: 4 \| Backlash: <=2 arcmin \| Nominal torque T2N: 9,370 Nm
	AHKA285-100	Version: AHKA \| Frame: 285 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,875 Nm
	AHKA285-125	Version: AHKA \| Frame: 285 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
	AHKA285-140	Version: AHKA \| Frame: 285 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,910 Nm
	AHKA285-175	Version: AHKA \| Frame: 285 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,930 Nm
	AHKA285-200	Version: AHKA \| Frame: 285 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,945 Nm
	AHKA285-250	Version: AHKA \| Frame: 285 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,970 Nm
	AHKA285-350	Version: AHKA \| Frame: 285 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,000 Nm
	AHKA285-500	Version: AHKA \| Frame: 285 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,035 Nm
	AHKA285-700	Version: AHKA \| Frame: 285 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,090 Nm
	AHKA285-1000	Version: AHKA \| Frame: 285 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,770 Nm
	AHKA355-100	Version: AHKA \| Frame: 355 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,815 Nm
	AHKA355-125	Version: AHKA \| Frame: 355 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,855 Nm
	AHKA355-140	Version: AHKA \| Frame: 355 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,870 Nm
	AHKA355-175	Version: AHKA \| Frame: 355 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,910 Nm
	AHKA355-200	Version: AHKA \| Frame: 355 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,930 Nm
	AHKA355-250	Version: AHKA \| Frame: 355 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,970 Nm
	AHKA355-350	Version: AHKA \| Frame: 355 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,030 Nm
	AHKA355-500	Version: AHKA \| Frame: 355 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,350 Nm
	AHKA355-700	Version: AHKA \| Frame: 355 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,190 Nm
	AHKA355-1000	Version: AHKA \| Frame: 355 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,400 Nm
	AHKA450-100	Version: AHKA \| Frame: 450 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,930 Nm
	AHKA450-125	Version: AHKA \| Frame: 450 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,995 Nm
	AHKA450-140	Version: AHKA \| Frame: 450 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,030 Nm
	AHKA450-175	Version: AHKA \| Frame: 450 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,090 Nm
	AHKA450-200	Version: AHKA \| Frame: 450 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,000 Nm
	AHKA450-250	Version: AHKA \| Frame: 450 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,195 Nm
	AHKA450-350	Version: AHKA \| Frame: 450 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 13,150 Nm
	AHKA450-500	Version: AHKA \| Frame: 450 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 9,050 Nm
	AHKA450-700	Version: AHKA \| Frame: 450 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 11,960 Nm
	AHKA450-1000	Version: AHKA \| Frame: 450 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,055 Nm
	AHKB090-064	Version: AHKB \| Frame: 090 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AHKB090-084	Version: AHKB \| Frame: 090 \| Ratio i: 84 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AHKB090-100	Version: AHKB \| Frame: 090 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AHKB090-125	Version: AHKB \| Frame: 090 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AHKB090-140	Version: AHKB \| Frame: 090 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AHKB090-175	Version: AHKB \| Frame: 090 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AHKB090-200	Version: AHKB \| Frame: 090 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AHKB090-250	Version: AHKB \| Frame: 090 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AHKB090-280	Version: AHKB \| Frame: 090 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AHKB090-350	Version: AHKB \| Frame: 090 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 210 Nm
	AHKB090-400	Version: AHKB \| Frame: 090 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AHKB090-500	Version: AHKB \| Frame: 090 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 200 Nm
	AHKB090-700	Version: AHKB \| Frame: 090 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AHKB090-1000	Version: AHKB \| Frame: 090 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 55 Nm
	AHKB110-064	Version: AHKB \| Frame: 110 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 415 Nm
	AHKB110-084	Version: AHKB \| Frame: 110 \| Ratio i: 84 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
	AHKB110-100	Version: AHKB \| Frame: 110 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 420 Nm
	AHKB110-125	Version: AHKB \| Frame: 110 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
	AHKB110-140	Version: AHKB \| Frame: 110 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 425 Nm
	AHKB110-175	Version: AHKB \| Frame: 110 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 365 Nm
	AHKB110-200	Version: AHKB \| Frame: 110 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 430 Nm
	AHKB110-250	Version: AHKB \| Frame: 110 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 370 Nm
	AHKB110-280	Version: AHKB \| Frame: 110 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 400 Nm
	AHKB110-350	Version: AHKB \| Frame: 110 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 375 Nm
	AHKB110-400	Version: AHKB \| Frame: 110 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AHKB110-500	Version: AHKB \| Frame: 110 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AHKB110-700	Version: AHKB \| Frame: 110 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 325 Nm
	AHKB110-1000	Version: AHKB \| Frame: 110 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AHKB140-064	Version: AHKB \| Frame: 140 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 840 Nm
	AHKB140-084	Version: AHKB \| Frame: 140 \| Ratio i: 84 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AHKB140-100	Version: AHKB \| Frame: 140 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AHKB140-125	Version: AHKB \| Frame: 140 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 730 Nm
	AHKB140-140	Version: AHKB \| Frame: 140 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AHKB140-175	Version: AHKB \| Frame: 140 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 740 Nm
	AHKB140-200	Version: AHKB \| Frame: 140 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 845 Nm
	AHKB140-250	Version: AHKB \| Frame: 140 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 745 Nm
	AHKB140-280	Version: AHKB \| Frame: 140 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AHKB140-350	Version: AHKB \| Frame: 140 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 755 Nm
	AHKB140-400	Version: AHKB \| Frame: 140 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 680 Nm
	AHKB140-500	Version: AHKB \| Frame: 140 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 760 Nm
	AHKB140-700	Version: AHKB \| Frame: 140 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
	AHKB140-1000	Version: AHKB \| Frame: 140 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AHKB200-064	Version: AHKB \| Frame: 200 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,545 Nm
	AHKB200-084	Version: AHKB \| Frame: 200 \| Ratio i: 84 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,555 Nm
	AHKB200-100	Version: AHKB \| Frame: 200 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,565 Nm
	AHKB200-125	Version: AHKB \| Frame: 200 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,355 Nm
	AHKB200-140	Version: AHKB \| Frame: 200 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,580 Nm
	AHKB200-175	Version: AHKB \| Frame: 200 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,370 Nm
	AHKB200-200	Version: AHKB \| Frame: 200 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,590 Nm
	AHKB200-250	Version: AHKB \| Frame: 200 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,380 Nm
	AHKB200-280	Version: AHKB \| Frame: 200 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,560 Nm
	AHKB200-350	Version: AHKB \| Frame: 200 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,395 Nm
	AHKB200-400	Version: AHKB \| Frame: 200 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AHKB200-500	Version: AHKB \| Frame: 200 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,405 Nm
	AHKB200-700	Version: AHKB \| Frame: 200 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,240 Nm
	AHKB200-1000	Version: AHKB \| Frame: 200 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 660 Nm
	AHKB255-064	Version: AHKB \| Frame: 255 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AHKB255-084	Version: AHKB \| Frame: 255 \| Ratio i: 84 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,680 Nm
	AHKB255-100	Version: AHKB \| Frame: 255 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,085 Nm
	AHKB255-125	Version: AHKB \| Frame: 255 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,095 Nm
	AHKB255-140	Version: AHKB \| Frame: 255 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,100 Nm
	AHKB255-175	Version: AHKB \| Frame: 255 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,115 Nm
	AHKB255-200	Version: AHKB \| Frame: 255 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
	AHKB255-250	Version: AHKB \| Frame: 255 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,135 Nm
	AHKB255-280	Version: AHKB \| Frame: 255 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,780 Nm
	AHKB255-350	Version: AHKB \| Frame: 255 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,950 Nm
	AHKB255-400	Version: AHKB \| Frame: 255 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AHKB255-500	Version: AHKB \| Frame: 255 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,800 Nm
	AHKB255-700	Version: AHKB \| Frame: 255 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,875 Nm
	AHKB255-1000	Version: AHKB \| Frame: 255 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,065 Nm
	AHKB285-048	Version: AHKB \| Frame: 285 \| Ratio i: 48 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AHKB285-064	Version: AHKB \| Frame: 285 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,280 Nm
	AHKB285-100	Version: AHKB \| Frame: 285 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,830 Nm
	AHKB285-125	Version: AHKB \| Frame: 285 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,850 Nm
	AHKB285-140	Version: AHKB \| Frame: 285 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,860 Nm
	AHKB285-175	Version: AHKB \| Frame: 285 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,885 Nm
	AHKB285-200	Version: AHKB \| Frame: 285 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,900 Nm
	AHKB285-250	Version: AHKB \| Frame: 285 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,920 Nm
	AHKB285-280	Version: AHKB \| Frame: 285 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AHKB285-350	Version: AHKB \| Frame: 285 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
	AHKB285-400	Version: AHKB \| Frame: 285 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,400 Nm
	AHKB285-500	Version: AHKB \| Frame: 285 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,000 Nm
	AHKB285-700	Version: AHKB \| Frame: 285 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,005 Nm
	AHKB285-1000	Version: AHKB \| Frame: 285 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,725 Nm
	AHKB355-100	Version: AHKB \| Frame: 355 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,745 Nm
	AHKB355-125	Version: AHKB \| Frame: 355 \| Ratio i: 125 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,785 Nm
	AHKB355-140	Version: AHKB \| Frame: 355 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,805 Nm
	AHKB355-175	Version: AHKB \| Frame: 355 \| Ratio i: 175 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,845 Nm
	AHKB355-200	Version: AHKB \| Frame: 355 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,865 Nm
	AHKB355-250	Version: AHKB \| Frame: 355 \| Ratio i: 250 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,905 Nm
	AHKB355-350	Version: AHKB \| Frame: 355 \| Ratio i: 350 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,965 Nm
	AHKB355-500	Version: AHKB \| Frame: 355 \| Ratio i: 500 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,500 Nm
	AHKB355-700	Version: AHKB \| Frame: 355 \| Ratio i: 700 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,060 Nm
	AHKB355-1000	Version: AHKB \| Frame: 355 \| Ratio i: 1000 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,325 Nm
	AHKC064-004	Version: AHKC \| Frame: 064 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	AHKC064-005	Version: AHKC \| Frame: 064 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
	AHKC064-007	Version: AHKC \| Frame: 064 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
	AHKC064-008	Version: AHKC \| Frame: 064 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 96 Nm
	AHKC064-010	Version: AHKC \| Frame: 064 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=3 arcmin \| Nominal torque T2N: 90 Nm
	AHKC090-004	Version: AHKC \| Frame: 090 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AHKC090-005	Version: AHKC \| Frame: 090 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 185 Nm
	AHKC090-007	Version: AHKC \| Frame: 090 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AHKC090-008	Version: AHKC \| Frame: 090 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 205 Nm
	AHKC090-010	Version: AHKC \| Frame: 090 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 190 Nm
	AHKC090-021	Version: AHKC \| Frame: 090 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 195 Nm
	AHKC090-031	Version: AHKC \| Frame: 090 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AHKC090-046	Version: AHKC \| Frame: 090 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
	AHKC090-061	Version: AHKC \| Frame: 090 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 135 Nm
	AHKC090-091	Version: AHKC \| Frame: 090 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 57 Nm
	AHKC110-004	Version: AHKC \| Frame: 110 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 380 Nm
	AHKC110-005	Version: AHKC \| Frame: 110 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 330 Nm
	AHKC110-007	Version: AHKC \| Frame: 110 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 260 Nm
	AHKC110-008	Version: AHKC \| Frame: 110 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 395 Nm
	AHKC110-010	Version: AHKC \| Frame: 110 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AHKC110-021	Version: AHKC \| Frame: 110 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 345 Nm
	AHKC110-031	Version: AHKC \| Frame: 110 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 275 Nm
	AHKC110-046	Version: AHKC \| Frame: 110 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AHKC110-061	Version: AHKC \| Frame: 110 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 285 Nm
	AHKC110-091	Version: AHKC \| Frame: 110 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 160 Nm
	AHKC140-004	Version: AHKC \| Frame: 140 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 775 Nm
	AHKC140-005	Version: AHKC \| Frame: 140 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 670 Nm
	AHKC140-007	Version: AHKC \| Frame: 140 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 525 Nm
	AHKC140-008	Version: AHKC \| Frame: 140 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 800 Nm
	AHKC140-010	Version: AHKC \| Frame: 140 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 690 Nm
	AHKC140-021	Version: AHKC \| Frame: 140 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 700 Nm
	AHKC140-031	Version: AHKC \| Frame: 140 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 565 Nm
	AHKC140-046	Version: AHKC \| Frame: 140 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 340 Nm
	AHKC140-061	Version: AHKC \| Frame: 140 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 590 Nm
	AHKC140-091	Version: AHKC \| Frame: 140 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 350 Nm
	AHKC200-004	Version: AHKC \| Frame: 200 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,440 Nm
	AHKC200-005	Version: AHKC \| Frame: 200 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,250 Nm
	AHKC200-007	Version: AHKC \| Frame: 200 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,000 Nm
	AHKC200-008	Version: AHKC \| Frame: 200 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,320 Nm
	AHKC200-010	Version: AHKC \| Frame: 200 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,290 Nm
	AHKC200-021	Version: AHKC \| Frame: 200 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,310 Nm
	AHKC200-031	Version: AHKC \| Frame: 200 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,070 Nm
	AHKC200-046	Version: AHKC \| Frame: 200 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 675 Nm
	AHKC200-061	Version: AHKC \| Frame: 200 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,115 Nm
	AHKC200-091	Version: AHKC \| Frame: 200 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 675 Nm
	AHKC255-004	Version: AHKC \| Frame: 255 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,240 Nm
	AHKC255-005	Version: AHKC \| Frame: 255 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,930 Nm
	AHKC255-007	Version: AHKC \| Frame: 255 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,750 Nm
	AHKC255-008	Version: AHKC \| Frame: 255 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,300 Nm
	AHKC255-010	Version: AHKC \| Frame: 255 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,000 Nm
	AHKC255-021	Version: AHKC \| Frame: 255 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,100 Nm
	AHKC255-031	Version: AHKC \| Frame: 255 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,790 Nm
	AHKC255-046	Version: AHKC \| Frame: 255 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,080 Nm
	AHKC255-061	Version: AHKC \| Frame: 255 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,790 Nm
	AHKC255-091	Version: AHKC \| Frame: 255 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 985 Nm
	AHKC285-004	Version: AHKC \| Frame: 285 \| Ratio i: 4 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,160 Nm
	AHKC285-005	Version: AHKC \| Frame: 285 \| Ratio i: 5 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,610 Nm
	AHKC285-007	Version: AHKC \| Frame: 285 \| Ratio i: 7 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,535 Nm
	AHKC285-008	Version: AHKC \| Frame: 285 \| Ratio i: 8 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 4,260 Nm
	AHKC285-010	Version: AHKC \| Frame: 285 \| Ratio i: 10 \| Stages: 2 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,700 Nm
	AHKC285-021	Version: AHKC \| Frame: 285 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,750 Nm
	AHKC285-031	Version: AHKC \| Frame: 285 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,660 Nm
	AHKC285-046	Version: AHKC \| Frame: 285 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,890 Nm
	AHKC285-061	Version: AHKC \| Frame: 285 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 2,750 Nm
	AHKC285-091	Version: AHKC \| Frame: 285 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 1,600 Nm
	AHKC355-021	Version: AHKC \| Frame: 355 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,590 Nm
	AHKC355-031	Version: AHKC \| Frame: 355 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,720 Nm
	AHKC355-046	Version: AHKC \| Frame: 355 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,460 Nm
	AHKC355-061	Version: AHKC \| Frame: 355 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 5,720 Nm
	AHKC355-091	Version: AHKC \| Frame: 355 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 3,460 Nm
	AHKC450-021	Version: AHKC \| Frame: 450 \| Ratio i: 21 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 12,630 Nm
	AHKC450-031	Version: AHKC \| Frame: 450 \| Ratio i: 31 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 10,800 Nm
	AHKC450-046	Version: AHKC \| Frame: 450 \| Ratio i: 46 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 7,800 Nm
	AHKC450-061	Version: AHKC \| Frame: 450 \| Ratio i: 61 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 11,110 Nm
	AHKC450-091	Version: AHKC \| Frame: 450 \| Ratio i: 91 \| Stages: 3 \| Backlash: <=2 arcmin \| Nominal torque T2N: 6,430 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Apex Dynamics AHK Right-Angle Planetary Gearboxes (i=4-10,000)
