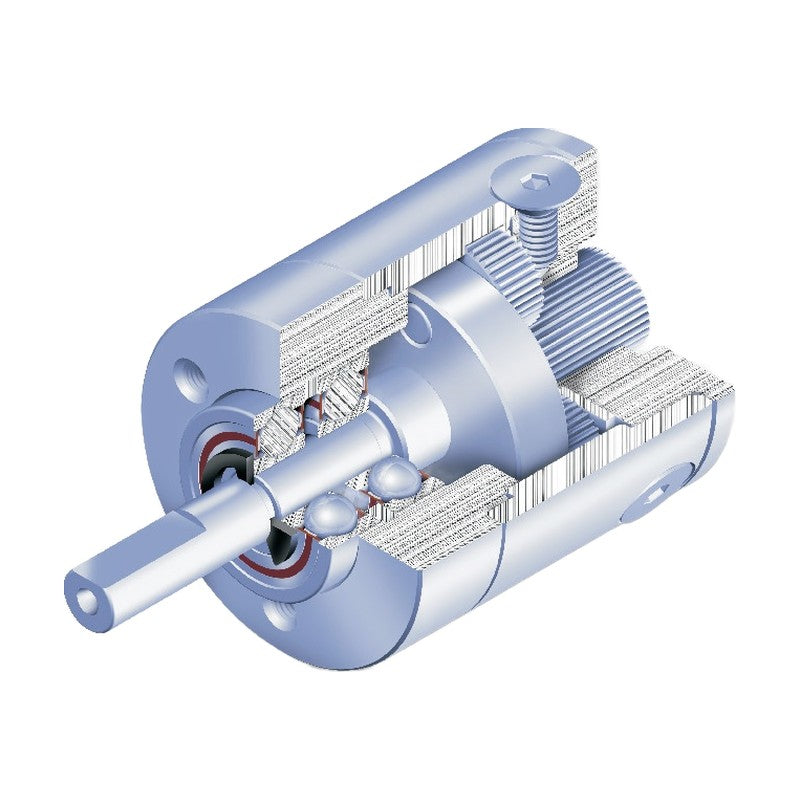

Apex Dynamics AM Micro Planetary Gearboxes (AM013-AM032)

Apex Dynamics AM Micro Planetary Gearboxes (AM013-AM032)

Apex Dynamics AM compact, lightweight micro planetary gearboxes in 13, 16, 22, 26 and 32 mm sizes for DC motors, stepper motors and small servomotors, with 1- to 5-stage ratios.

Key features

  • Stainless steel exterior with aluminum alloy front cover and motor adapter
  • Hardened alloy steel gearing machined in house for high torque, low backlash and low noise
  • AM013 and AM016 available in 1 to 5 stages; AM022, AM026 and AM032 in 1 to 3 stages
  • Simple installation with motor adapter and bonded sun gear, no special tooling required
  • Suited to medical, electronics, food, packaging, robotics and automation applications
  • Motor-specific adapter: specify motor manufacturer, type and model when ordering

Specifications

Max. acceleration torque 1.5 x nominal output torque
Service life 10,000 h (S1 duty 5,000 h)
Operating temperature -10 to +90 C
Protection IP44
Mounting position All directions
Housing Stainless steel, aluminum alloy cover
Ordering code AM<size>-<ratio>/<motor make and model>
Source APEX Dynamics AM Series catalog, p. 1-6, back cover
AM013-4.1 Frame: AM013 (13 mm) | Stages: 1 | Ratio i: 4.1 | Nominal torque T2N: 0.2 Nm | Backlash: <=1 deg | Weight: 11 g
AM013-5.1 Frame: AM013 (13 mm) | Stages: 1 | Ratio i: 5.1 | Nominal torque T2N: 0.2 Nm | Backlash: <=1 deg | Weight: 11 g
AM013-17 Frame: AM013 (13 mm) | Stages: 2 | Ratio i: 17 | Nominal torque T2N: 0.2 Nm | Backlash: <=1.2 deg | Weight: 16 g
AM013-26 Frame: AM013 (13 mm) | Stages: 2 | Ratio i: 26 | Nominal torque T2N: 0.2 Nm | Backlash: <=1.2 deg | Weight: 16 g
AM013-67 Frame: AM013 (13 mm) | Stages: 3 | Ratio i: 67 | Nominal torque T2N: 0.3 Nm | Backlash: <=1.5 deg | Weight: 21 g
AM013-131 Frame: AM013 (13 mm) | Stages: 3 | Ratio i: 131 | Nominal torque T2N: 0.3 Nm | Backlash: <=1.5 deg | Weight: 21 g
AM013-275 Frame: AM013 (13 mm) | Stages: 4 | Ratio i: 275 | Nominal torque T2N: 0.3 Nm | Backlash: <=1.8 deg | Weight: 26 g
AM013-664 Frame: AM013 (13 mm) | Stages: 4 | Ratio i: 664 | Nominal torque T2N: 0.3 Nm | Backlash: <=1.8 deg | Weight: 26 g
AM013-1119 Frame: AM013 (13 mm) | Stages: 5 | Ratio i: 1119 | Nominal torque T2N: 0.35 Nm | Backlash: <=2 deg | Weight: 31 g
AM013-3373 Frame: AM013 (13 mm) | Stages: 5 | Ratio i: 3373 | Nominal torque T2N: 0.35 Nm | Backlash: <=2 deg | Weight: 31 g
AM016-4.4 Frame: AM016 (16 mm) | Stages: 1 | Ratio i: 4.4 | Nominal torque T2N: 0.1 Nm | Backlash: <=1.4 deg | Weight: 22 g
AM016-5.4 Frame: AM016 (16 mm) | Stages: 1 | Ratio i: 5.4 | Nominal torque T2N: 0.1 Nm | Backlash: <=1.4 deg | Weight: 22 g
AM016-19 Frame: AM016 (16 mm) | Stages: 2 | Ratio i: 19 | Nominal torque T2N: 0.15 Nm | Backlash: <=1.6 deg | Weight: 30 g
AM016-24 Frame: AM016 (16 mm) | Stages: 2 | Ratio i: 24 | Nominal torque T2N: 0.15 Nm | Backlash: <=1.6 deg | Weight: 30 g
AM016-29 Frame: AM016 (16 mm) | Stages: 2 | Ratio i: 29 | Nominal torque T2N: 0.15 Nm | Backlash: <=1.6 deg | Weight: 30 g
AM016-84 Frame: AM016 (16 mm) | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 0.2 Nm | Backlash: <=2 deg | Weight: 35 g
AM016-104 Frame: AM016 (16 mm) | Stages: 3 | Ratio i: 104 | Nominal torque T2N: 0.2 Nm | Backlash: <=2 deg | Weight: 35 g
AM016-128 Frame: AM016 (16 mm) | Stages: 3 | Ratio i: 128 | Nominal torque T2N: 0.2 Nm | Backlash: <=2 deg | Weight: 35 g
AM016-157 Frame: AM016 (16 mm) | Stages: 3 | Ratio i: 157 | Nominal torque T2N: 0.2 Nm | Backlash: <=2 deg | Weight: 35 g
AM016-370 Frame: AM016 (16 mm) | Stages: 4 | Ratio i: 370 | Nominal torque T2N: 0.25 Nm | Backlash: <=2.4 deg | Weight: 42 g
AM016-455 Frame: AM016 (16 mm) | Stages: 4 | Ratio i: 455 | Nominal torque T2N: 0.25 Nm | Backlash: <=2.4 deg | Weight: 42 g
AM016-561 Frame: AM016 (16 mm) | Stages: 4 | Ratio i: 561 | Nominal torque T2N: 0.25 Nm | Backlash: <=2.4 deg | Weight: 42 g
AM016-690 Frame: AM016 (16 mm) | Stages: 4 | Ratio i: 690 | Nominal torque T2N: 0.25 Nm | Backlash: <=2.4 deg | Weight: 42 g
AM016-850 Frame: AM016 (16 mm) | Stages: 4 | Ratio i: 850 | Nominal torque T2N: 0.25 Nm | Backlash: <=2.4 deg | Weight: 42 g
AM016-1621 Frame: AM016 (16 mm) | Stages: 5 | Ratio i: 1621 | Nominal torque T2N: 0.3 Nm | Backlash: <=3 deg | Weight: 49 g
AM016-1996 Frame: AM016 (16 mm) | Stages: 5 | Ratio i: 1996 | Nominal torque T2N: 0.3 Nm | Backlash: <=3 deg | Weight: 49 g
AM016-2458 Frame: AM016 (16 mm) | Stages: 5 | Ratio i: 2458 | Nominal torque T2N: 0.3 Nm | Backlash: <=3 deg | Weight: 49 g
AM016-3027 Frame: AM016 (16 mm) | Stages: 5 | Ratio i: 3027 | Nominal torque T2N: 0.3 Nm | Backlash: <=3 deg | Weight: 49 g
AM016-3728 Frame: AM016 (16 mm) | Stages: 5 | Ratio i: 3728 | Nominal torque T2N: 0.3 Nm | Backlash: <=3 deg | Weight: 49 g
AM016-4592 Frame: AM016 (16 mm) | Stages: 5 | Ratio i: 4592 | Nominal torque T2N: 0.3 Nm | Backlash: <=3 deg | Weight: 49 g
AM022-4 Frame: AM022 (22 mm) | Stages: 1 | Ratio i: 4 | Nominal torque T2N: 0.2 Nm | Backlash: <=20 arcmin | Weight: 47.38 g
AM022-5 Frame: AM022 (22 mm) | Stages: 1 | Ratio i: 5 | Nominal torque T2N: 0.2 Nm | Backlash: <=20 arcmin | Weight: 47.38 g
AM022-7 Frame: AM022 (22 mm) | Stages: 1 | Ratio i: 7 | Nominal torque T2N: 0.2 Nm | Backlash: <=20 arcmin | Weight: 47.38 g
AM022-9 Frame: AM022 (22 mm) | Stages: 1 | Ratio i: 9 | Nominal torque T2N: 0.2 Nm | Backlash: <=20 arcmin | Weight: 47.38 g
AM022-16 Frame: AM022 (22 mm) | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 1 Nm | Backlash: <=35 arcmin | Weight: 67.34 g
AM022-20 Frame: AM022 (22 mm) | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 1 Nm | Backlash: <=35 arcmin | Weight: 67.34 g
AM022-28 Frame: AM022 (22 mm) | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 1 Nm | Backlash: <=35 arcmin | Weight: 67.34 g
AM022-35 Frame: AM022 (22 mm) | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 1 Nm | Backlash: <=35 arcmin | Weight: 67.34 g
AM022-49 Frame: AM022 (22 mm) | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 1 Nm | Backlash: <=35 arcmin | Weight: 67.34 g
AM022-64 Frame: AM022 (22 mm) | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 1.5 Nm | Backlash: <=50 arcmin | Weight: 84.3 g
AM022-80 Frame: AM022 (22 mm) | Stages: 3 | Ratio i: 80 | Nominal torque T2N: 1.5 Nm | Backlash: <=50 arcmin | Weight: 84.3 g
AM022-112 Frame: AM022 (22 mm) | Stages: 3 | Ratio i: 112 | Nominal torque T2N: 1.5 Nm | Backlash: <=50 arcmin | Weight: 84.3 g
AM022-140 Frame: AM022 (22 mm) | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 1.5 Nm | Backlash: <=50 arcmin | Weight: 84.3 g
AM022-196 Frame: AM022 (22 mm) | Stages: 3 | Ratio i: 196 | Nominal torque T2N: 1.5 Nm | Backlash: <=50 arcmin | Weight: 84.3 g
AM022-245 Frame: AM022 (22 mm) | Stages: 3 | Ratio i: 245 | Nominal torque T2N: 1.5 Nm | Backlash: <=50 arcmin | Weight: 84.3 g
AM022-343 Frame: AM022 (22 mm) | Stages: 3 | Ratio i: 343 | Nominal torque T2N: 1.5 Nm | Backlash: <=50 arcmin | Weight: 84.3 g
AM026-3.5 Frame: AM026 (26 mm) | Stages: 1 | Ratio i: 3.5 | Nominal torque T2N: 0.6 Nm | Backlash: <=20 arcmin | Weight: 98.66 g
AM026-4.33 Frame: AM026 (26 mm) | Stages: 1 | Ratio i: 4.33 | Nominal torque T2N: 0.6 Nm | Backlash: <=20 arcmin | Weight: 98.66 g
AM026-6 Frame: AM026 (26 mm) | Stages: 1 | Ratio i: 6 | Nominal torque T2N: 0.6 Nm | Backlash: <=20 arcmin | Weight: 98.66 g
AM026-7.67 Frame: AM026 (26 mm) | Stages: 1 | Ratio i: 7.67 | Nominal torque T2N: 0.6 Nm | Backlash: <=20 arcmin | Weight: 98.66 g
AM026-12.25 Frame: AM026 (26 mm) | Stages: 2 | Ratio i: 12.25 | Nominal torque T2N: 2 Nm | Backlash: <=35 arcmin | Weight: 137.83 g
AM026-18.78 Frame: AM026 (26 mm) | Stages: 2 | Ratio i: 18.78 | Nominal torque T2N: 2 Nm | Backlash: <=35 arcmin | Weight: 137.83 g
AM026-26 Frame: AM026 (26 mm) | Stages: 2 | Ratio i: 26 | Nominal torque T2N: 2 Nm | Backlash: <=35 arcmin | Weight: 137.83 g
AM026-33.22 Frame: AM026 (26 mm) | Stages: 2 | Ratio i: 33.22 | Nominal torque T2N: 2 Nm | Backlash: <=35 arcmin | Weight: 137.83 g
AM026-46 Frame: AM026 (26 mm) | Stages: 2 | Ratio i: 46 | Nominal torque T2N: 2 Nm | Backlash: <=35 arcmin | Weight: 137.83 g
AM026-81.37 Frame: AM026 (26 mm) | Stages: 3 | Ratio i: 81.37 | Nominal torque T2N: 3 Nm | Backlash: <=50 arcmin | Weight: 170.62 g
AM026-112.67 Frame: AM026 (26 mm) | Stages: 3 | Ratio i: 112.67 | Nominal torque T2N: 3 Nm | Backlash: <=50 arcmin | Weight: 170.62 g
AM026-143.96 Frame: AM026 (26 mm) | Stages: 3 | Ratio i: 143.96 | Nominal torque T2N: 3 Nm | Backlash: <=50 arcmin | Weight: 170.62 g
AM026-199.33 Frame: AM026 (26 mm) | Stages: 3 | Ratio i: 199.33 | Nominal torque T2N: 3 Nm | Backlash: <=50 arcmin | Weight: 170.62 g
AM026-216 Frame: AM026 (26 mm) | Stages: 3 | Ratio i: 216 | Nominal torque T2N: 3 Nm | Backlash: <=50 arcmin | Weight: 170.62 g
AM026-276 Frame: AM026 (26 mm) | Stages: 3 | Ratio i: 276 | Nominal torque T2N: 3 Nm | Backlash: <=50 arcmin | Weight: 170.62 g
AM026-352.67 Frame: AM026 (26 mm) | Stages: 3 | Ratio i: 352.67 | Nominal torque T2N: 3 Nm | Backlash: <=50 arcmin | Weight: 170.62 g
AM032-4 Frame: AM032 (32 mm) | Stages: 1 | Ratio i: 4 | Nominal torque T2N: 0.8 Nm | Backlash: <=20 arcmin | Weight: 156.3 g
AM032-4.5 Frame: AM032 (32 mm) | Stages: 1 | Ratio i: 4.5 | Nominal torque T2N: 0.8 Nm | Backlash: <=20 arcmin | Weight: 156.3 g
AM032-5.2 Frame: AM032 (32 mm) | Stages: 1 | Ratio i: 5.2 | Nominal torque T2N: 0.8 Nm | Backlash: <=20 arcmin | Weight: 156.3 g
AM032-6.25 Frame: AM032 (32 mm) | Stages: 1 | Ratio i: 6.25 | Nominal torque T2N: 0.8 Nm | Backlash: <=20 arcmin | Weight: 156.3 g
AM032-8 Frame: AM032 (32 mm) | Stages: 1 | Ratio i: 8 | Nominal torque T2N: 0.8 Nm | Backlash: <=20 arcmin | Weight: 156.3 g
AM032-16 Frame: AM032 (32 mm) | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 4 Nm | Backlash: <=35 arcmin | Weight: 218.32 g
AM032-18 Frame: AM032 (32 mm) | Stages: 2 | Ratio i: 18 | Nominal torque T2N: 4 Nm | Backlash: <=35 arcmin | Weight: 218.32 g
AM032-20.8 Frame: AM032 (32 mm) | Stages: 2 | Ratio i: 20.8 | Nominal torque T2N: 4 Nm | Backlash: <=35 arcmin | Weight: 218.32 g
AM032-25 Frame: AM032 (32 mm) | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 4 Nm | Backlash: <=35 arcmin | Weight: 218.32 g
AM032-32 Frame: AM032 (32 mm) | Stages: 2 | Ratio i: 32 | Nominal torque T2N: 4 Nm | Backlash: <=35 arcmin | Weight: 218.32 g
AM032-36 Frame: AM032 (32 mm) | Stages: 2 | Ratio i: 36 | Nominal torque T2N: 4 Nm | Backlash: <=35 arcmin | Weight: 218.32 g
AM032-41.6 Frame: AM032 (32 mm) | Stages: 2 | Ratio i: 41.6 | Nominal torque T2N: 4 Nm | Backlash: <=35 arcmin | Weight: 218.32 g
AM032-50 Frame: AM032 (32 mm) | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 4 Nm | Backlash: <=35 arcmin | Weight: 218.32 g
AM032-64 Frame: AM032 (32 mm) | Stages: 2 or 3 | Ratio i: 64 | Nominal torque T2N: 4 / 6 Nm | Backlash: <=35 arcmin / <=50 arcmin | Weight: 218.32 / 265.83 g
AM032-72 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 72 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-81 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 81 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-100 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-130 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 130 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-144 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 144 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-175.78 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 175.78 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-200 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-225 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 225 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-256 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 256 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-288 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 288 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-332.8 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 332.8 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-400 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
AM032-512 Frame: AM032 (32 mm) | Stages: 3 | Ratio i: 512 | Nominal torque T2N: 6 Nm | Backlash: <=50 arcmin | Weight: 265.83 g
