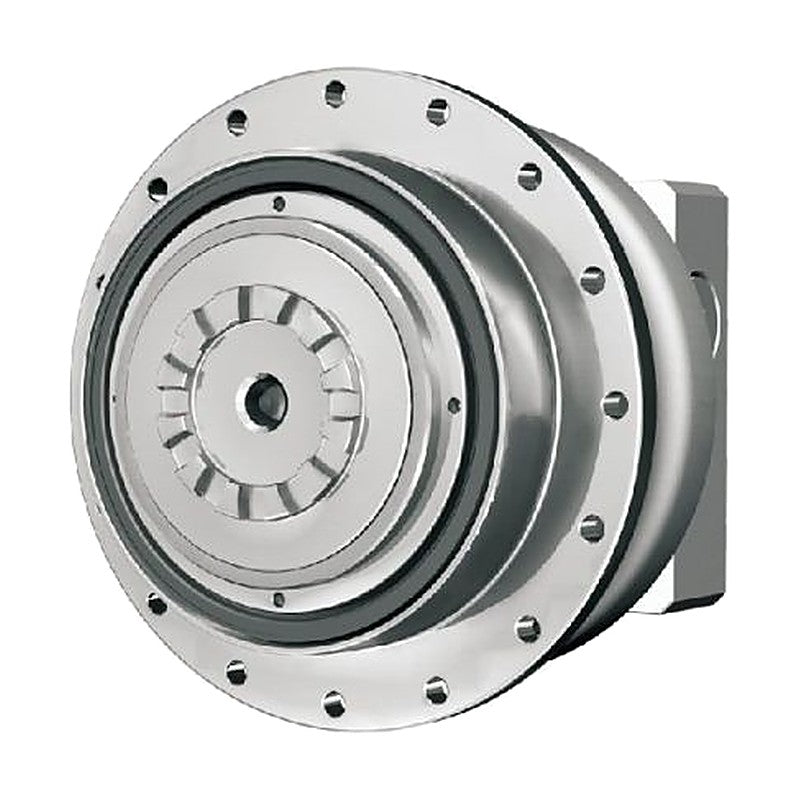

Apex Dynamics APC Curvic Output Planetary Gearboxes (Frames 090-450)

Apex Dynamics APC Curvic Output Planetary Gearboxes (Frames 090-450)

Apex Dynamics APC series inline high-torque planetary gearboxes with a curvic coupling output interface for direct, zero-backlash mounting of APEX curvic pinions.

Key features

  • Curvic coupling output interface for all-teeth coupling between pinion and gearbox, with automatic concentricity
  • Same gearing and ratings as AP: nominal output torque up to 17,275 Nm
  • Backlash <=1 arcmin (1-stage) and <=2 arcmin (2- and 3-stage), measured at 2% of T2N
  • Max. axial load F2a 2,220 / 4,070 / 8,530 / 17,000 / 26,900 / 39,200 / 101,500 / 143,700 N and max. tilting moment M2K 280 / 480 / 1,310 / 3,530 / 5,920 / 9,230 / 29,100 / 63,300 Nm for frames 090-450
  • Efficiency >=97% (1-stage), >=94% (2-stage), >=92% (3-stage)
  • Motor adapter is part of the order code (APC090-005.5 / MOTOR): specify motor make and model when ordering

Specifications

Gear type Planetary, inline
Frame sizes 090, 110, 140, 200, 255, 285, 355, 450
Ratios 4-5.5 (1-stage), 16-55 (2-stage), 64-400 (3-stage)
Output Curvic coupling interface
Max. acceleration torque T2B 1.5 x T2N
Emergency stop torque T2NOT 3 x T2N
Protection class IP67
Operating temperature -10 C to 90 C
Lubrication Synthetic lubrication grease, for life
Mounting position All directions
Source APEX Dynamics AP/APK catalog, p. 2-5, 7, 19
APC090-004 Frame: 090 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 205 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-005.5 Frame: 090 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 230 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-016 Frame: 090 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-020 Frame: 090 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-022 Frame: 090 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 240 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-027.5 Frame: 090 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 240 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-028 Frame: 090 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 250 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-038.5 Frame: 090 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 245 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-040 Frame: 090 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 96 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-055 Frame: 090 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 130 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-064 Frame: 090 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 310 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-088 Frame: 090 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 250 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-100 Frame: 090 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 315 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-110 Frame: 090 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 250 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-140 Frame: 090 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 315 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-154 Frame: 090 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 250 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-160 Frame: 090 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 210 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-200 Frame: 090 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 265 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-220 Frame: 090 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 255 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-280 Frame: 090 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 250 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-400 Frame: 090 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 100 Nm | Torsional rigidity: 42 Nm/arcmin
APC110-004 Frame: 110 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 505 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-005.5 Frame: 110 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 435 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-016 Frame: 110 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 530 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-020 Frame: 110 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 535 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-022 Frame: 110 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 460 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-027.5 Frame: 110 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 460 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-028 Frame: 110 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 540 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-038.5 Frame: 110 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 465 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-040 Frame: 110 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 225 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-055 Frame: 110 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 315 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-064 Frame: 110 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 500 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-088 Frame: 110 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 470 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-100 Frame: 110 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 560 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-110 Frame: 110 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 475 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-140 Frame: 110 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 565 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-154 Frame: 110 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 480 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-160 Frame: 110 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 385 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-200 Frame: 110 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 480 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-220 Frame: 110 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 480 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-280 Frame: 110 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 575 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-400 Frame: 110 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 235 Nm | Torsional rigidity: 95 Nm/arcmin
APC140-004 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 790 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-005.5 Frame: 140 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 735 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-016 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 895 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-020 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 900 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-022 Frame: 140 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 770 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-027.5 Frame: 140 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 775 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-028 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 910 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-038.5 Frame: 140 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 785 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-040 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 650 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-055 Frame: 140 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 795 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-064 Frame: 140 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 930 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-088 Frame: 140 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 800 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-100 Frame: 140 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 945 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-110 Frame: 140 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 810 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-140 Frame: 140 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 950 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-154 Frame: 140 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 815 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-160 Frame: 140 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 915 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-200 Frame: 140 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 960 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-220 Frame: 140 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 825 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-280 Frame: 140 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 970 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-400 Frame: 140 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 980 Nm | Torsional rigidity: 205 Nm/arcmin
APC200-004 Frame: 200 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 1,885 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-005.5 Frame: 200 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 1,635 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-016 Frame: 200 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,980 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-020 Frame: 200 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,995 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-022 Frame: 200 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,710 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-027.5 Frame: 200 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,720 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-028 Frame: 200 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 2,015 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-038.5 Frame: 200 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,740 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-040 Frame: 200 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,610 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-055 Frame: 200 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,740 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-064 Frame: 200 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,060 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-088 Frame: 200 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 1,780 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-100 Frame: 200 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,085 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-110 Frame: 200 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 1,790 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-140 Frame: 200 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,105 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-154 Frame: 200 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 1,805 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-160 Frame: 200 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,110 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-200 Frame: 200 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,125 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-220 Frame: 200 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 1,820 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-280 Frame: 200 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,140 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-400 Frame: 200 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,160 Nm | Torsional rigidity: 650 Nm/arcmin
APC255-004 Frame: 255 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 2,920 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-005.5 Frame: 255 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 2,535 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-016 Frame: 255 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 3,055 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-020 Frame: 255 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 3,080 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-022 Frame: 255 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 2,640 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-027.5 Frame: 255 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 2,660 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-028 Frame: 255 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 3,110 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-038.5 Frame: 255 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 2,690 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-040 Frame: 255 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 3,145 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-055 Frame: 255 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 2,715 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-064 Frame: 255 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,180 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-088 Frame: 255 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,720 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-100 Frame: 255 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,215 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-110 Frame: 255 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,760 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-140 Frame: 255 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,245 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-154 Frame: 255 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,785 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-160 Frame: 255 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,255 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-200 Frame: 255 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,270 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-220 Frame: 255 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,810 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-280 Frame: 255 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,300 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-400 Frame: 255 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,330 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC285-004 Frame: 285 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 5,380 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-005.5 Frame: 285 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 4,580 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-016 Frame: 285 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 5,615 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-020 Frame: 285 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 5,660 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-022 Frame: 285 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 4,755 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-027.5 Frame: 285 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 4,785 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-028 Frame: 285 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 5,720 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-038.5 Frame: 285 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 4,830 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-040 Frame: 285 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 5,780 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-055 Frame: 285 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 4,875 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-064 Frame: 285 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 5,840 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-088 Frame: 285 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 4,920 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-100 Frame: 285 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 5,910 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-110 Frame: 285 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 4,945 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-140 Frame: 285 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 5,965 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-154 Frame: 285 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 4,980 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-160 Frame: 285 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 5,985 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-200 Frame: 285 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 6,020 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-220 Frame: 285 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 5,020 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-280 Frame: 285 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 6,070 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-400 Frame: 285 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 6,120 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC355-005.5 Frame: 355 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 8,300 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-022 Frame: 355 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 8,565 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-027.5 Frame: 355 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 8,620 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-038.5 Frame: 355 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 8,700 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-055 Frame: 355 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 8,775 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-088 Frame: 355 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 8,830 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-110 Frame: 355 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 8,875 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-154 Frame: 355 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 8,940 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-220 Frame: 355 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 9,010 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC450-005.5 Frame: 450 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 16,050 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-022 Frame: 450 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 16,430 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-027.5 Frame: 450 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 16,530 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-038.5 Frame: 450 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 16,680 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-055 Frame: 450 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 16,830 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-088 Frame: 450 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 16,930 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-110 Frame: 450 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 17,020 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-154 Frame: 450 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 17,150 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-220 Frame: 450 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 17,275 Nm | Torsional rigidity: 5,700 Nm/arcmin
Planetary GearboxesApex Dynamics
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics APC Curvic Output Planetary Gearboxes (Frames 090-450)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (144)

APC090-004, APC090-005.5, APC090-016, APC090-020, APC090-022, APC090-027.5, APC090-028, APC090-038.5, APC090-040, APC090-055 + 134 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APC090-004Frame: 090 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 205 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-005.5Frame: 090 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 230 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-016Frame: 090 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-020Frame: 090 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 300 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-022Frame: 090 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 240 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-027.5Frame: 090 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 240 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-028Frame: 090 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 250 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-038.5Frame: 090 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 245 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-040Frame: 090 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 96 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-055Frame: 090 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 130 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-064Frame: 090 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 310 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-088Frame: 090 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 250 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-100Frame: 090 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 315 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-110Frame: 090 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 250 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-140Frame: 090 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 315 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-154Frame: 090 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 250 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-160Frame: 090 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 210 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-200Frame: 090 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 265 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-220Frame: 090 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 255 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-280Frame: 090 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 250 Nm | Torsional rigidity: 42 Nm/arcmin
APC090-400Frame: 090 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 100 Nm | Torsional rigidity: 42 Nm/arcmin
APC110-004Frame: 110 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 505 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-005.5Frame: 110 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 435 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-016Frame: 110 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 530 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-020Frame: 110 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 535 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-022Frame: 110 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 460 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-027.5Frame: 110 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 460 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-028Frame: 110 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 540 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-038.5Frame: 110 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 465 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-040Frame: 110 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 225 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-055Frame: 110 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 315 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-064Frame: 110 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 500 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-088Frame: 110 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 470 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-100Frame: 110 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 560 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-110Frame: 110 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 475 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-140Frame: 110 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 565 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-154Frame: 110 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 480 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-160Frame: 110 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 385 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-200Frame: 110 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 480 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-220Frame: 110 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 480 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-280Frame: 110 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 575 Nm | Torsional rigidity: 95 Nm/arcmin
APC110-400Frame: 110 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 235 Nm | Torsional rigidity: 95 Nm/arcmin
APC140-004Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 790 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-005.5Frame: 140 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 735 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-016Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 895 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-020Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 900 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-022Frame: 140 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 770 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-027.5Frame: 140 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 775 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-028Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 910 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-038.5Frame: 140 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 785 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-040Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 650 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-055Frame: 140 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 795 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-064Frame: 140 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 930 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-088Frame: 140 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 800 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-100Frame: 140 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 945 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-110Frame: 140 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 810 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-140Frame: 140 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 950 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-154Frame: 140 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 815 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-160Frame: 140 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 915 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-200Frame: 140 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 960 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-220Frame: 140 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 825 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-280Frame: 140 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 970 Nm | Torsional rigidity: 205 Nm/arcmin
APC140-400Frame: 140 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 980 Nm | Torsional rigidity: 205 Nm/arcmin
APC200-004Frame: 200 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 1,885 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-005.5Frame: 200 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 1,635 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-016Frame: 200 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,980 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-020Frame: 200 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,995 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-022Frame: 200 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,710 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-027.5Frame: 200 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,720 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-028Frame: 200 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 2,015 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-038.5Frame: 200 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,740 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-040Frame: 200 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,610 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-055Frame: 200 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 1,740 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-064Frame: 200 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,060 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-088Frame: 200 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 1,780 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-100Frame: 200 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,085 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-110Frame: 200 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 1,790 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-140Frame: 200 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,105 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-154Frame: 200 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 1,805 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-160Frame: 200 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,110 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-200Frame: 200 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,125 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-220Frame: 200 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 1,820 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-280Frame: 200 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,140 Nm | Torsional rigidity: 650 Nm/arcmin
APC200-400Frame: 200 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,160 Nm | Torsional rigidity: 650 Nm/arcmin
APC255-004Frame: 255 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 2,920 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-005.5Frame: 255 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 2,535 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-016Frame: 255 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 3,055 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-020Frame: 255 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 3,080 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-022Frame: 255 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 2,640 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-027.5Frame: 255 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 2,660 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-028Frame: 255 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 3,110 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-038.5Frame: 255 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 2,690 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-040Frame: 255 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 3,145 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-055Frame: 255 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 2,715 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-064Frame: 255 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,180 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-088Frame: 255 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,720 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-100Frame: 255 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,215 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-110Frame: 255 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,760 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-140Frame: 255 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,245 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-154Frame: 255 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,785 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-160Frame: 255 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,255 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-200Frame: 255 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,270 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-220Frame: 255 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 2,810 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-280Frame: 255 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,300 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC255-400Frame: 255 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 3,330 Nm | Torsional rigidity: 1,200 Nm/arcmin
APC285-004Frame: 285 | Ratio i: 4 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 5,380 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-005.5Frame: 285 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 4,580 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-016Frame: 285 | Ratio i: 16 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 5,615 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-020Frame: 285 | Ratio i: 20 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 5,660 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-022Frame: 285 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 4,755 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-027.5Frame: 285 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 4,785 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-028Frame: 285 | Ratio i: 28 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 5,720 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-038.5Frame: 285 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 4,830 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-040Frame: 285 | Ratio i: 40 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 5,780 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-055Frame: 285 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 4,875 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-064Frame: 285 | Ratio i: 64 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 5,840 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-088Frame: 285 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 4,920 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-100Frame: 285 | Ratio i: 100 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 5,910 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-110Frame: 285 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 4,945 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-140Frame: 285 | Ratio i: 140 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 5,965 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-154Frame: 285 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 4,980 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-160Frame: 285 | Ratio i: 160 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 5,985 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-200Frame: 285 | Ratio i: 200 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 6,020 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-220Frame: 285 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 5,020 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-280Frame: 285 | Ratio i: 280 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 6,070 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC285-400Frame: 285 | Ratio i: 400 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 6,120 Nm | Torsional rigidity: 1,800 Nm/arcmin
APC355-005.5Frame: 355 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 8,300 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-022Frame: 355 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 8,565 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-027.5Frame: 355 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 8,620 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-038.5Frame: 355 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 8,700 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-055Frame: 355 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 8,775 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-088Frame: 355 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 8,830 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-110Frame: 355 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 8,875 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-154Frame: 355 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 8,940 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC355-220Frame: 355 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 9,010 Nm | Torsional rigidity: 2,850 Nm/arcmin
APC450-005.5Frame: 450 | Ratio i: 5.5 | Stages: 1 | Backlash: <=1 arcmin | Nominal torque T2N: 16,050 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-022Frame: 450 | Ratio i: 22 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 16,430 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-027.5Frame: 450 | Ratio i: 27.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 16,530 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-038.5Frame: 450 | Ratio i: 38.5 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 16,680 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-055Frame: 450 | Ratio i: 55 | Stages: 2 | Backlash: <=2 arcmin | Nominal torque T2N: 16,830 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-088Frame: 450 | Ratio i: 88 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 16,930 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-110Frame: 450 | Ratio i: 110 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 17,020 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-154Frame: 450 | Ratio i: 154 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 17,150 Nm | Torsional rigidity: 5,700 Nm/arcmin
APC450-220Frame: 450 | Ratio i: 220 | Stages: 3 | Backlash: <=2 arcmin | Nominal torque T2N: 17,275 Nm | Torsional rigidity: 5,700 Nm/arcmin

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
