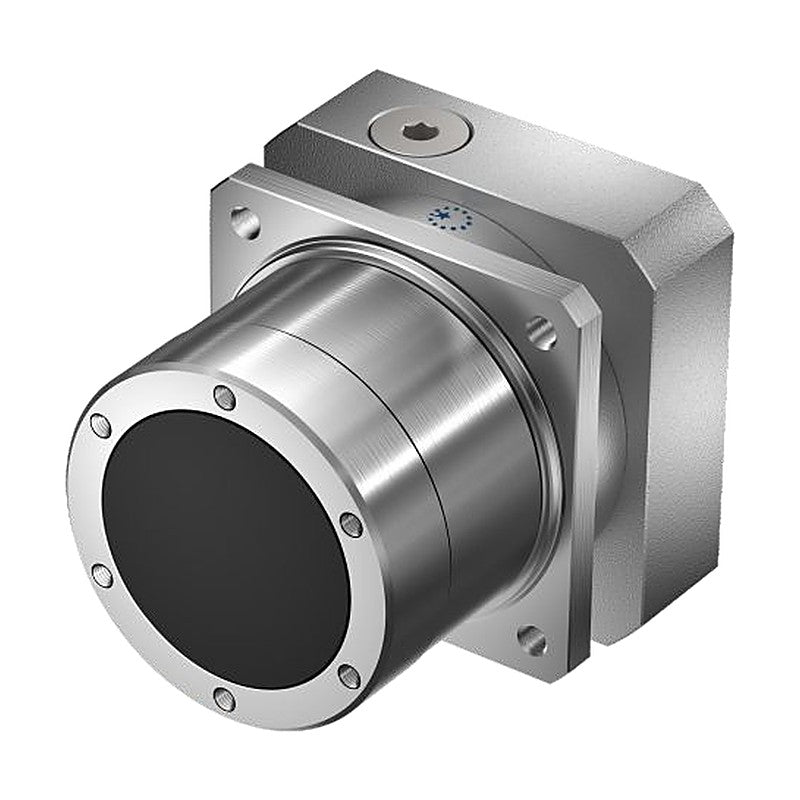

Apex Dynamics GL Rotating-Housing Planetary Gearboxes (082-132)

Apex Dynamics GL Rotating-Housing Planetary Gearboxes (082-132)

Apex Dynamics GL 1- and 2-stage planetary gearboxes with rotating output housing, high radial load capacity and a motor input hub for direct servo motor mounting.

Key features

  • Rotating housing as output for direct mounting of wheels, pulleys or rims
  • High radial load (up to 7,200 N) and tilting moment up to 452 Nm
  • Ratios 2-9 (1-stage) and 10-90 (2-stage), backlash <=6 arcmin
  • High efficiency up to 97%, low noise <=58-64 dB(A), limited temperature rise
  • Motor input hub: specify motor make and model when ordering (/MOTOR); blackening on request

Specifications

Input Hub for motor (clamping)
Backlash <=6 arcmin
Emergency stop / max. accel. torque 3 x T2N / 1.5 x T2N
Torsional rigidity 8 / 22 / 60 Nm/arcmin (082/100/132)
Max. radial / axial load 2,860-7,200 N / 1,430-3,600 N
Max. tilting moment M2K 117 / 155 / 452 Nm (082/100/132)
Efficiency >=97% (1-stage), >=94% (2-stage)
Protection / lubrication IP65, synthetic lubrication grease
Operating temperature -10 to +90 C
Source APEX Dynamics GL/GLS catalog, p. 2-5
GL082-002 Frame: 082 | Ratio i: 2 | Stages: 1 | Nominal torque T2N: 60 Nm
GL082-003 Frame: 082 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 90 Nm
GL082-004 Frame: 082 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 83 Nm
GL082-006 Frame: 082 | Ratio i: 6 | Stages: 1 | Nominal torque T2N: 54 Nm
GL082-009 Frame: 082 | Ratio i: 9 | Stages: 1 | Nominal torque T2N: 21 Nm
GL082-010 Frame: 082 | Ratio i: 10 | Stages: 2 | Nominal torque T2N: 60 Nm
GL082-015 Frame: 082 | Ratio i: 15 | Stages: 2 | Nominal torque T2N: 90 Nm
GL082-020 Frame: 082 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 83 Nm
GL082-024 Frame: 082 | Ratio i: 24 | Stages: 2 | Nominal torque T2N: 54 Nm
GL082-030 Frame: 082 | Ratio i: 30 | Stages: 2 | Nominal torque T2N: 54 Nm
GL082-036 Frame: 082 | Ratio i: 36 | Stages: 2 | Nominal torque T2N: 21 Nm
GL082-040 Frame: 082 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 53 Nm
GL082-045 Frame: 082 | Ratio i: 45 | Stages: 2 | Nominal torque T2N: 21 Nm
GL082-060 Frame: 082 | Ratio i: 60 | Stages: 2 | Nominal torque T2N: 54 Nm
GL082-090 Frame: 082 | Ratio i: 90 | Stages: 2 | Nominal torque T2N: 21 Nm
GL100-002 Frame: 100 | Ratio i: 2 | Stages: 1 | Nominal torque T2N: 102 Nm
GL100-003 Frame: 100 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 155 Nm
GL100-004 Frame: 100 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 168 Nm
GL100-006 Frame: 100 | Ratio i: 6 | Stages: 1 | Nominal torque T2N: 115 Nm
GL100-009 Frame: 100 | Ratio i: 9 | Stages: 1 | Nominal torque T2N: 50 Nm
GL100-010 Frame: 100 | Ratio i: 10 | Stages: 2 | Nominal torque T2N: 102 Nm
GL100-015 Frame: 100 | Ratio i: 15 | Stages: 2 | Nominal torque T2N: 155 Nm
GL100-020 Frame: 100 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 168 Nm
GL100-024 Frame: 100 | Ratio i: 24 | Stages: 2 | Nominal torque T2N: 115 Nm
GL100-030 Frame: 100 | Ratio i: 30 | Stages: 2 | Nominal torque T2N: 115 Nm
GL100-036 Frame: 100 | Ratio i: 36 | Stages: 2 | Nominal torque T2N: 50 Nm
GL100-040 Frame: 100 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 96 Nm
GL100-045 Frame: 100 | Ratio i: 45 | Stages: 2 | Nominal torque T2N: 50 Nm
GL100-060 Frame: 100 | Ratio i: 60 | Stages: 2 | Nominal torque T2N: 115 Nm
GL100-090 Frame: 100 | Ratio i: 90 | Stages: 2 | Nominal torque T2N: 50 Nm
GL132-002 Frame: 132 | Ratio i: 2 | Stages: 1 | Nominal torque T2N: 280 Nm
GL132-003 Frame: 132 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 355 Nm
GL132-004 Frame: 132 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 308 Nm
GL132-006 Frame: 132 | Ratio i: 6 | Stages: 1 | Nominal torque T2N: 252 Nm
GL132-009 Frame: 132 | Ratio i: 9 | Stages: 1 | Nominal torque T2N: 145 Nm
GL132-010 Frame: 132 | Ratio i: 10 | Stages: 2 | Nominal torque T2N: 280 Nm
GL132-015 Frame: 132 | Ratio i: 15 | Stages: 2 | Nominal torque T2N: 355 Nm
GL132-020 Frame: 132 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 308 Nm
GL132-024 Frame: 132 | Ratio i: 24 | Stages: 2 | Nominal torque T2N: 252 Nm
GL132-030 Frame: 132 | Ratio i: 30 | Stages: 2 | Nominal torque T2N: 252 Nm
GL132-036 Frame: 132 | Ratio i: 36 | Stages: 2 | Nominal torque T2N: 145 Nm
GL132-040 Frame: 132 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 229 Nm
GL132-045 Frame: 132 | Ratio i: 45 | Stages: 2 | Nominal torque T2N: 145 Nm
GL132-060 Frame: 132 | Ratio i: 60 | Stages: 2 | Nominal torque T2N: 252 Nm
GL132-090 Frame: 132 | Ratio i: 90 | Stages: 2 | Nominal torque T2N: 145 Nm
Planetary GearboxesApex Dynamics
45 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics GL Rotating-Housing Planetary Gearboxes (082-132)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (45)

GL082-002, GL082-003, GL082-004, GL082-006, GL082-009, GL082-010, GL082-015, GL082-020, GL082-024, GL082-030 + 35 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GL082-002Frame: 082 | Ratio i: 2 | Stages: 1 | Nominal torque T2N: 60 Nm
GL082-003Frame: 082 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 90 Nm
GL082-004Frame: 082 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 83 Nm
GL082-006Frame: 082 | Ratio i: 6 | Stages: 1 | Nominal torque T2N: 54 Nm
GL082-009Frame: 082 | Ratio i: 9 | Stages: 1 | Nominal torque T2N: 21 Nm
GL082-010Frame: 082 | Ratio i: 10 | Stages: 2 | Nominal torque T2N: 60 Nm
GL082-015Frame: 082 | Ratio i: 15 | Stages: 2 | Nominal torque T2N: 90 Nm
GL082-020Frame: 082 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 83 Nm
GL082-024Frame: 082 | Ratio i: 24 | Stages: 2 | Nominal torque T2N: 54 Nm
GL082-030Frame: 082 | Ratio i: 30 | Stages: 2 | Nominal torque T2N: 54 Nm
GL082-036Frame: 082 | Ratio i: 36 | Stages: 2 | Nominal torque T2N: 21 Nm
GL082-040Frame: 082 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 53 Nm
GL082-045Frame: 082 | Ratio i: 45 | Stages: 2 | Nominal torque T2N: 21 Nm
GL082-060Frame: 082 | Ratio i: 60 | Stages: 2 | Nominal torque T2N: 54 Nm
GL082-090Frame: 082 | Ratio i: 90 | Stages: 2 | Nominal torque T2N: 21 Nm
GL100-002Frame: 100 | Ratio i: 2 | Stages: 1 | Nominal torque T2N: 102 Nm
GL100-003Frame: 100 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 155 Nm
GL100-004Frame: 100 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 168 Nm
GL100-006Frame: 100 | Ratio i: 6 | Stages: 1 | Nominal torque T2N: 115 Nm
GL100-009Frame: 100 | Ratio i: 9 | Stages: 1 | Nominal torque T2N: 50 Nm
GL100-010Frame: 100 | Ratio i: 10 | Stages: 2 | Nominal torque T2N: 102 Nm
GL100-015Frame: 100 | Ratio i: 15 | Stages: 2 | Nominal torque T2N: 155 Nm
GL100-020Frame: 100 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 168 Nm
GL100-024Frame: 100 | Ratio i: 24 | Stages: 2 | Nominal torque T2N: 115 Nm
GL100-030Frame: 100 | Ratio i: 30 | Stages: 2 | Nominal torque T2N: 115 Nm
GL100-036Frame: 100 | Ratio i: 36 | Stages: 2 | Nominal torque T2N: 50 Nm
GL100-040Frame: 100 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 96 Nm
GL100-045Frame: 100 | Ratio i: 45 | Stages: 2 | Nominal torque T2N: 50 Nm
GL100-060Frame: 100 | Ratio i: 60 | Stages: 2 | Nominal torque T2N: 115 Nm
GL100-090Frame: 100 | Ratio i: 90 | Stages: 2 | Nominal torque T2N: 50 Nm
GL132-002Frame: 132 | Ratio i: 2 | Stages: 1 | Nominal torque T2N: 280 Nm
GL132-003Frame: 132 | Ratio i: 3 | Stages: 1 | Nominal torque T2N: 355 Nm
GL132-004Frame: 132 | Ratio i: 4 | Stages: 1 | Nominal torque T2N: 308 Nm
GL132-006Frame: 132 | Ratio i: 6 | Stages: 1 | Nominal torque T2N: 252 Nm
GL132-009Frame: 132 | Ratio i: 9 | Stages: 1 | Nominal torque T2N: 145 Nm
GL132-010Frame: 132 | Ratio i: 10 | Stages: 2 | Nominal torque T2N: 280 Nm
GL132-015Frame: 132 | Ratio i: 15 | Stages: 2 | Nominal torque T2N: 355 Nm
GL132-020Frame: 132 | Ratio i: 20 | Stages: 2 | Nominal torque T2N: 308 Nm
GL132-024Frame: 132 | Ratio i: 24 | Stages: 2 | Nominal torque T2N: 252 Nm
GL132-030Frame: 132 | Ratio i: 30 | Stages: 2 | Nominal torque T2N: 252 Nm
GL132-036Frame: 132 | Ratio i: 36 | Stages: 2 | Nominal torque T2N: 145 Nm
GL132-040Frame: 132 | Ratio i: 40 | Stages: 2 | Nominal torque T2N: 229 Nm
GL132-045Frame: 132 | Ratio i: 45 | Stages: 2 | Nominal torque T2N: 145 Nm
GL132-060Frame: 132 | Ratio i: 60 | Stages: 2 | Nominal torque T2N: 252 Nm
GL132-090Frame: 132 | Ratio i: 90 | Stages: 2 | Nominal torque T2N: 145 Nm
