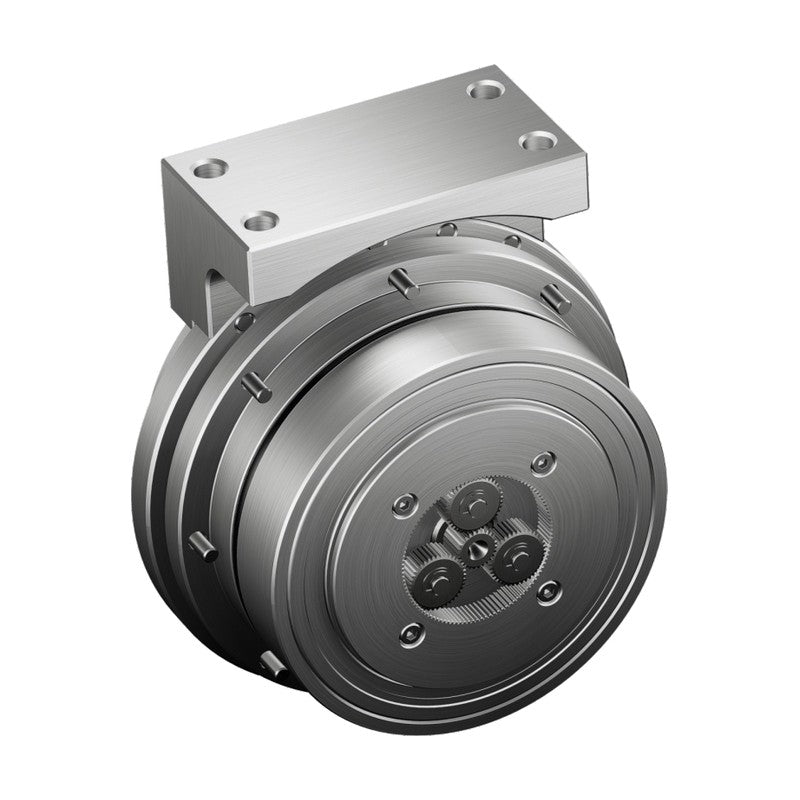

Apex Dynamics GV AGV Wheel Planetary Gearboxes (098-165)

Apex Dynamics GV AGV Wheel Planetary Gearboxes (098-165)

Apex Dynamics GV inline 2-stage planetary gearboxes with rotating ring-gear housing and integrated wheel rim, designed as compact drive units for AGV applications.

Key features

  • Ring-gear housing rotation with high-strength bearing and wheel hub for high vertical load
  • Minimized length at high reduction (i = 22.5 / 31.5) to save space inside the AGV
  • Rims type A green TPU, B red TPU or E cream Hytrel; spare rims ordered as EP-GV<size>-<type>
  • Optional base plate for mounting (code suffix -BP after the rims type)
  • Backlash <=8 arcmin, efficiency >=94%, running noise <=64-68 dB(A)
  • Motor adapter to suit any servo motor: specify motor make and model when ordering (/MOTOR)

Specifications

Backlash <=8 arcmin
Efficiency >=94%
Stages 2
Emergency stop torque 3 x T2N
Max. acceleration torque 1.8 x T2N
Torsional rigidity 8 / 12 / 16 Nm/arcmin (098/130/165)
Nominal / max. input speed 3,600-2,500 / 6,000-3,600 rpm
Max. vertical load 580 / 1,000 / 1,450 kg (098/130/165)
Protection / lubrication IP54 (IP65 on request), lubricant
Source APEX Dynamics GV/GVR catalog, p. 2-7
GV098-022.5-A Item: Gearbox with wheel | Frame: 098 | Ratio i: 22.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 140 mm | Nominal torque T2N: 76 Nm
GV098-022.5-B Item: Gearbox with wheel | Frame: 098 | Ratio i: 22.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 140 mm | Nominal torque T2N: 76 Nm
GV098-022.5-E Item: Gearbox with wheel | Frame: 098 | Ratio i: 22.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 140 mm | Nominal torque T2N: 76 Nm
GV098-031.5-A Item: Gearbox with wheel | Frame: 098 | Ratio i: 31.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 140 mm | Nominal torque T2N: 54 Nm
GV098-031.5-B Item: Gearbox with wheel | Frame: 098 | Ratio i: 31.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 140 mm | Nominal torque T2N: 54 Nm
GV098-031.5-E Item: Gearbox with wheel | Frame: 098 | Ratio i: 31.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 140 mm | Nominal torque T2N: 54 Nm
GV130-022.5-A Item: Gearbox with wheel | Frame: 130 | Ratio i: 22.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 180 mm | Nominal torque T2N: 237 Nm
GV130-022.5-B Item: Gearbox with wheel | Frame: 130 | Ratio i: 22.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 180 mm | Nominal torque T2N: 237 Nm
GV130-022.5-E Item: Gearbox with wheel | Frame: 130 | Ratio i: 22.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 180 mm | Nominal torque T2N: 237 Nm
GV130-031.5-A Item: Gearbox with wheel | Frame: 130 | Ratio i: 31.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 180 mm | Nominal torque T2N: 180 Nm
GV130-031.5-B Item: Gearbox with wheel | Frame: 130 | Ratio i: 31.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 180 mm | Nominal torque T2N: 180 Nm
GV130-031.5-E Item: Gearbox with wheel | Frame: 130 | Ratio i: 31.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 180 mm | Nominal torque T2N: 180 Nm
GV165-022.5-A Item: Gearbox with wheel | Frame: 165 | Ratio i: 22.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 220 mm | Nominal torque T2N: 418 Nm
GV165-022.5-B Item: Gearbox with wheel | Frame: 165 | Ratio i: 22.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 220 mm | Nominal torque T2N: 418 Nm
GV165-022.5-E Item: Gearbox with wheel | Frame: 165 | Ratio i: 22.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 220 mm | Nominal torque T2N: 418 Nm
GV165-031.5-A Item: Gearbox with wheel | Frame: 165 | Ratio i: 31.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 220 mm | Nominal torque T2N: 396 Nm
GV165-031.5-B Item: Gearbox with wheel | Frame: 165 | Ratio i: 31.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 220 mm | Nominal torque T2N: 396 Nm
GV165-031.5-E Item: Gearbox with wheel | Frame: 165 | Ratio i: 31.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 220 mm | Nominal torque T2N: 396 Nm
EP-GV098-A Item: Spare rim (0.52 kg) | Frame: 098 | Ratio i: - | Rims: A green TPU 64 Sh-D | Wheel dia.: 140 mm | Nominal torque T2N: -
EP-GV098-B Item: Spare rim (0.52 kg) | Frame: 098 | Ratio i: - | Rims: B red TPU 98 Sh-A | Wheel dia.: 140 mm | Nominal torque T2N: -
EP-GV098-E Item: Spare rim (0.52 kg) | Frame: 098 | Ratio i: - | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 140 mm | Nominal torque T2N: -
EP-GV130-A Item: Spare rim (1.13 kg) | Frame: 130 | Ratio i: - | Rims: A green TPU 64 Sh-D | Wheel dia.: 180 mm | Nominal torque T2N: -
EP-GV130-B Item: Spare rim (1.13 kg) | Frame: 130 | Ratio i: - | Rims: B red TPU 98 Sh-A | Wheel dia.: 180 mm | Nominal torque T2N: -
EP-GV130-E Item: Spare rim (1.13 kg) | Frame: 130 | Ratio i: - | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 180 mm | Nominal torque T2N: -
EP-GV165-A Item: Spare rim (2.1 kg) | Frame: 165 | Ratio i: - | Rims: A green TPU 64 Sh-D | Wheel dia.: 220 mm | Nominal torque T2N: -
EP-GV165-B Item: Spare rim (2.1 kg) | Frame: 165 | Ratio i: - | Rims: B red TPU 98 Sh-A | Wheel dia.: 220 mm | Nominal torque T2N: -
EP-GV165-E Item: Spare rim (2.1 kg) | Frame: 165 | Ratio i: - | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 220 mm | Nominal torque T2N: -
