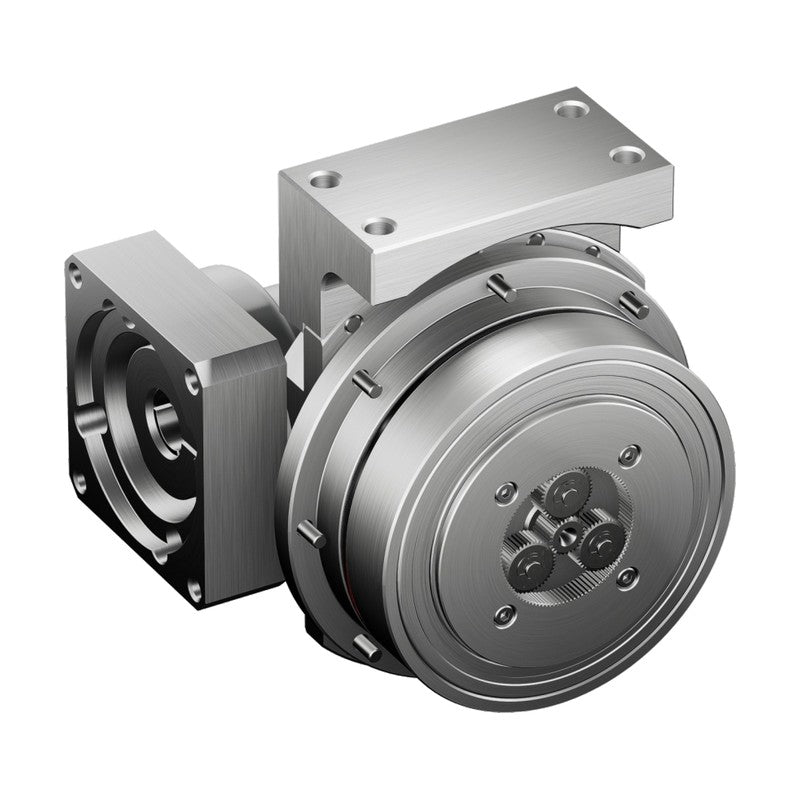

Apex Dynamics GVR right-angle 2-stage planetary gearboxes with rotating ring-gear housing and integrated wheel rim, built as compact AGV drive units with the motor mounted at 90 degrees.

Key features

  • Right-angle input for short AGV chassis, ring-gear housing rotation with integrated wheel hub
  • High-strength bearing supporting high vertical load; ratios i = 22.5 / 31.5
  • Rims type A green TPU, B red TPU or E cream Hytrel
  • Optional base plate (-BP) with application direction B = 9 o'clock or D = 3 o'clock
  • Backlash <=12 arcmin, efficiency >=90%, running noise <=74-77 dB(A)
  • Motor adapter to suit any servo motor: specify motor make and model when ordering (/MOTOR)

Specifications

Backlash <=12 arcmin
Efficiency >=90%
Stages 2
Emergency stop torque 3 x T2N
Max. acceleration torque 1.8 x T2N
Torsional rigidity 8 / 12 / 16 Nm/arcmin (098/130/165)
Nominal / max. input speed 3,600-2,500 / 6,000-3,600 rpm
Max. vertical load 580 / 1,000 / 1,450 kg (098/130/165)
Protection / lubrication IP54 (IP65 on request), lubricant
Source APEX Dynamics GV/GVR catalog, p. 2-12
GVR098-022.5-A Frame: 098 | Ratio i: 22.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 140 mm | Nominal torque T2N: 76 Nm
GVR098-022.5-B Frame: 098 | Ratio i: 22.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 140 mm | Nominal torque T2N: 76 Nm
GVR098-022.5-E Frame: 098 | Ratio i: 22.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 140 mm | Nominal torque T2N: 76 Nm
GVR098-031.5-A Frame: 098 | Ratio i: 31.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 140 mm | Nominal torque T2N: 54 Nm
GVR098-031.5-B Frame: 098 | Ratio i: 31.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 140 mm | Nominal torque T2N: 54 Nm
GVR098-031.5-E Frame: 098 | Ratio i: 31.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 140 mm | Nominal torque T2N: 54 Nm
GVR130-022.5-A Frame: 130 | Ratio i: 22.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 180 mm | Nominal torque T2N: 237 Nm
GVR130-022.5-B Frame: 130 | Ratio i: 22.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 180 mm | Nominal torque T2N: 237 Nm
GVR130-022.5-E Frame: 130 | Ratio i: 22.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 180 mm | Nominal torque T2N: 237 Nm
GVR130-031.5-A Frame: 130 | Ratio i: 31.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 180 mm | Nominal torque T2N: 180 Nm
GVR130-031.5-B Frame: 130 | Ratio i: 31.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 180 mm | Nominal torque T2N: 180 Nm
GVR130-031.5-E Frame: 130 | Ratio i: 31.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 180 mm | Nominal torque T2N: 180 Nm
GVR165-022.5-A Frame: 165 | Ratio i: 22.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 220 mm | Nominal torque T2N: 418 Nm
GVR165-022.5-B Frame: 165 | Ratio i: 22.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 220 mm | Nominal torque T2N: 418 Nm
GVR165-022.5-E Frame: 165 | Ratio i: 22.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 220 mm | Nominal torque T2N: 418 Nm
GVR165-031.5-A Frame: 165 | Ratio i: 31.5 | Rims: A green TPU 64 Sh-D | Wheel dia.: 220 mm | Nominal torque T2N: 396 Nm
GVR165-031.5-B Frame: 165 | Ratio i: 31.5 | Rims: B red TPU 98 Sh-A | Wheel dia.: 220 mm | Nominal torque T2N: 396 Nm
GVR165-031.5-E Frame: 165 | Ratio i: 31.5 | Rims: E cream Hytrel 64 Sh-D | Wheel dia.: 220 mm | Nominal torque T2N: 396 Nm
