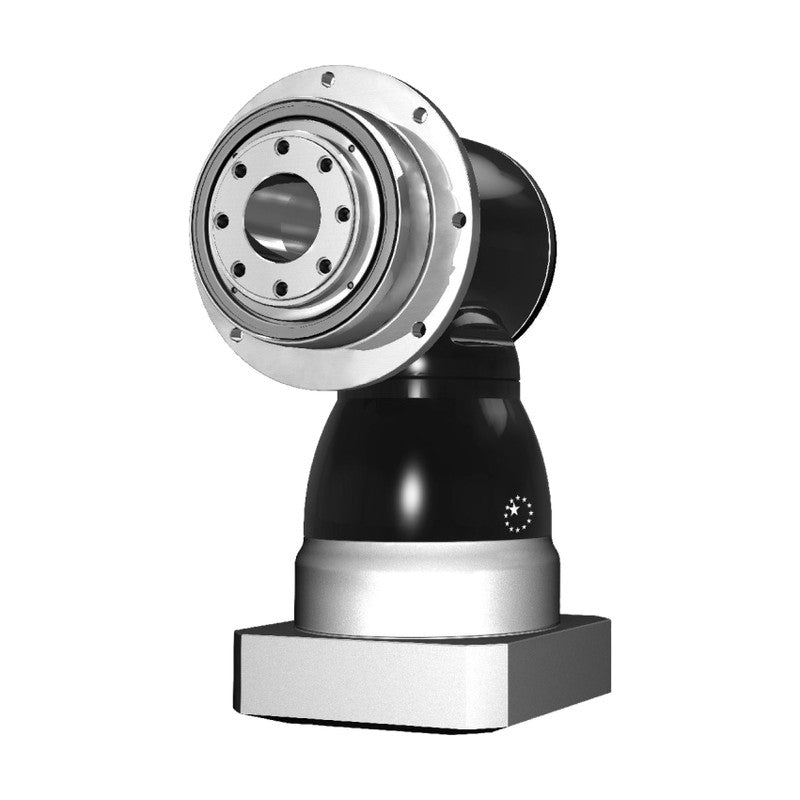

Apex Dynamics KF Hypoid Gearboxes (Shaft Output, 060-240)

Apex Dynamics KF Hypoid Gearboxes (Shaft Output, 060-240)

Apex Dynamics KF high-performance right-angle gearboxes with shaft output, in hypoid (ratios 3-100) and spiral bevel (ratios 1-2) versions across seven frame sizes from KF060 to KF240.

Key features

  • Hypoid helical bevel gearing: 1-stage ratios 3-10, 2-stage ratios 12-100; spiral bevel version with ratios 1 and 2
  • Backlash <=3 arcmin (measured at 2% of T2N) for hypoid and spiral bevel versions
  • Output shafts S1 smooth, S2 keyed, S3 DIN 5480 spline; S4 hollow shaft on KF060-KF180 (hypoid)
  • Output rotates in the same direction as the servo motor; 20,000 h service life (hypoid)
  • IP65, lifetime synthetic grease lubrication, any mounting position
  • Motor adapter to suit any servo motor: specify motor make and model when ordering

Specifications

Backlash <=3 arcmin
Emergency stop torque 2 x T2N
Max. acceleration torque 1.5 x T2N
Efficiency >=96% hypoid 1-stg, >=94% 2-stg, >=97% bevel
Protection IP65
Lubrication Synthetic lubrication grease
Operating temperature 0 to +90 C
Mounting position All directions
Ordering code KF<size>-<ratio>-<shaft>/<motor make and model>
Source APEX Dynamics K Series (KH/KF) catalog, p. 2-13
KF060-003-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-003-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-003-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-003-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-004-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-004-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-004-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-004-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-005-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-005-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-005-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-005-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-007-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 23 Nm
KF060-007-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 23 Nm
KF060-007-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 23 Nm
KF060-007-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 23 Nm
KF060-010-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 18 Nm
KF060-010-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 18 Nm
KF060-010-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 18 Nm
KF060-010-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 18 Nm
KF060-012-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-012-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-012-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-012-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-016-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-016-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-016-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-016-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-020-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-020-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-020-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-020-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-025-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-025-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-025-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-025-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-028-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-028-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-028-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-028-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-035-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-035-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-035-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-035-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-040-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-040-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-040-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-040-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-050-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-050-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-050-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-050-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-070-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 23 Nm
KF060-070-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 23 Nm
KF060-070-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 23 Nm
KF060-070-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 23 Nm
KF060-100-S1 Frame: KF060 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 18 Nm
KF060-100-S2 Frame: KF060 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 18 Nm
KF060-100-S3 Frame: KF060 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 18 Nm
KF060-100-S4 Frame: KF060 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 18 Nm
KF075-003-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 50 Nm
KF075-003-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 50 Nm
KF075-003-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 50 Nm
KF075-003-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 50 Nm
KF075-004-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-004-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-004-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-004-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-005-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-005-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-005-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-005-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-007-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 50 Nm
KF075-007-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 50 Nm
KF075-007-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 50 Nm
KF075-007-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 50 Nm
KF075-010-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 40 Nm
KF075-010-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 40 Nm
KF075-010-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 40 Nm
KF075-010-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 40 Nm
KF075-012-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-012-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-012-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-012-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-016-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-016-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-016-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-016-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-020-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-020-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-020-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-020-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-025-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-025-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-025-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-025-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-028-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-028-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-028-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-028-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-035-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-035-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-035-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-035-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-040-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-040-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-040-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-040-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-050-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-050-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-050-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-050-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-070-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 50 Nm
KF075-070-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 50 Nm
KF075-070-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 50 Nm
KF075-070-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 50 Nm
KF075-100-S1 Frame: KF075 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 40 Nm
KF075-100-S2 Frame: KF075 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 40 Nm
KF075-100-S3 Frame: KF075 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 40 Nm
KF075-100-S4 Frame: KF075 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 40 Nm
KF100-003-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-003-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-003-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-003-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-004-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-004-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-004-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-004-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-005-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-005-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-005-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-005-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-007-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 100 Nm
KF100-007-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 100 Nm
KF100-007-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 100 Nm
KF100-007-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 100 Nm
KF100-010-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 85 Nm
KF100-010-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 85 Nm
KF100-010-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 85 Nm
KF100-010-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 85 Nm
KF100-012-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-012-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-012-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-012-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-016-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-016-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-016-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-016-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-020-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-020-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-020-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-020-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-025-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-025-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-025-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-025-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-028-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-028-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-028-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-028-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-035-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-035-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-035-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-035-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-040-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-040-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-040-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-040-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-050-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-050-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-050-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-050-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-070-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 100 Nm
KF100-070-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 100 Nm
KF100-070-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 100 Nm
KF100-070-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 100 Nm
KF100-100-S1 Frame: KF100 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 85 Nm
KF100-100-S2 Frame: KF100 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 85 Nm
KF100-100-S3 Frame: KF100 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 85 Nm
KF100-100-S4 Frame: KF100 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 85 Nm
KF140-003-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-003-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-003-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-003-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-004-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-004-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-004-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-004-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-005-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-005-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-005-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-005-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-007-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 200 Nm
KF140-007-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 200 Nm
KF140-007-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 200 Nm
KF140-007-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 200 Nm
KF140-010-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 170 Nm
KF140-010-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 170 Nm
KF140-010-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 170 Nm
KF140-010-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 170 Nm
KF140-012-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-012-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-012-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-012-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-016-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-016-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-016-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-016-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-020-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-020-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-020-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-020-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-025-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-025-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-025-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-025-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-028-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-028-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-028-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-028-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-035-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-035-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-035-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-035-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-040-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-040-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-040-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-040-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-050-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-050-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-050-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-050-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-070-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 200 Nm
KF140-070-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 200 Nm
KF140-070-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 200 Nm
KF140-070-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 200 Nm
KF140-100-S1 Frame: KF140 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 170 Nm
KF140-100-S2 Frame: KF140 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 170 Nm
KF140-100-S3 Frame: KF140 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 170 Nm
KF140-100-S4 Frame: KF140 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 170 Nm
KF180-003-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-003-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-003-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-003-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-004-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-004-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-004-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-004-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-005-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-005-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-005-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-005-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-007-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 390 Nm
KF180-007-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 390 Nm
KF180-007-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 390 Nm
KF180-007-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 390 Nm
KF180-010-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 360 Nm
KF180-010-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 360 Nm
KF180-010-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 360 Nm
KF180-010-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 360 Nm
KF180-012-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-012-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-012-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-012-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-016-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-016-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-016-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-016-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-020-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-020-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-020-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-020-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-025-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-025-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-025-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-025-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-028-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-028-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-028-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-028-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-035-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-035-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-035-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-035-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-040-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-040-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-040-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-040-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-050-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-050-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-050-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-050-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-070-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 390 Nm
KF180-070-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 390 Nm
KF180-070-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 390 Nm
KF180-070-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 390 Nm
KF180-100-S1 Frame: KF180 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 360 Nm
KF180-100-S2 Frame: KF180 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 360 Nm
KF180-100-S3 Frame: KF180 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 360 Nm
KF180-100-S4 Frame: KF180 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 360 Nm
KF210-003-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-003-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-003-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-004-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-004-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-004-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-005-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-005-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-005-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-007-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 750 Nm
KF210-007-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 750 Nm
KF210-007-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 750 Nm
KF210-010-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
KF210-010-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
KF210-010-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
KF210-012-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-012-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-012-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-016-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-016-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-016-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-020-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-020-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-020-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-025-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-025-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-025-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-028-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-028-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-028-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-035-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-035-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-035-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-040-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-040-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-040-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-050-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-050-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-050-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-070-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 750 Nm
KF210-070-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 750 Nm
KF210-070-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 750 Nm
KF210-100-S1 Frame: KF210 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
KF210-100-S2 Frame: KF210 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
KF210-100-S3 Frame: KF210 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
KF240-003-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-003-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-003-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-004-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-004-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-004-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-005-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-005-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-005-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-007-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,400 Nm
KF240-007-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,400 Nm
KF240-007-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,400 Nm
KF240-010-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
KF240-010-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
KF240-010-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
KF240-012-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-012-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-012-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-016-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-016-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-016-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-020-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-020-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-020-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-025-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-025-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-025-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-028-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-028-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-028-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-035-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-035-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-035-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-040-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-040-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-040-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-050-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-050-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-050-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-070-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,400 Nm
KF240-070-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,400 Nm
KF240-070-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,400 Nm
KF240-100-S1 Frame: KF240 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
KF240-100-S2 Frame: KF240 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
KF240-100-S3 Frame: KF240 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
KF060-001-S1 Frame: KF060 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-001-S2 Frame: KF060 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-002-S1 Frame: KF060 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 24 Nm
KF060-002-S2 Frame: KF060 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 24 Nm
KF075-001-S1 Frame: KF075 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 45 Nm
KF075-001-S2 Frame: KF075 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 45 Nm
KF075-002-S1 Frame: KF075 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 42 Nm
KF075-002-S2 Frame: KF075 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 42 Nm
KF100-001-S1 Frame: KF100 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 78 Nm
KF100-001-S2 Frame: KF100 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 78 Nm
KF100-002-S1 Frame: KF100 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 68 Nm
KF100-002-S2 Frame: KF100 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 68 Nm
KF140-001-S1 Frame: KF140 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 150 Nm
KF140-001-S2 Frame: KF140 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 150 Nm
KF140-002-S1 Frame: KF140 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 150 Nm
KF140-002-S2 Frame: KF140 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 150 Nm
KF180-001-S1 Frame: KF180 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 360 Nm
KF180-001-S2 Frame: KF180 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 360 Nm
KF180-002-S1 Frame: KF180 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
KF180-002-S2 Frame: KF180 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
KF210-001-S1 Frame: KF210 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 585 Nm
KF210-001-S2 Frame: KF210 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 585 Nm
KF210-002-S1 Frame: KF210 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 544 Nm
KF210-002-S2 Frame: KF210 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 544 Nm
KF240-001-S1 Frame: KF240 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,300 Nm
KF240-001-S2 Frame: KF240 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,300 Nm
KF240-002-S1 Frame: KF240 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,220 Nm
KF240-002-S2 Frame: KF240 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,220 Nm
Hypoid GearboxesApex Dynamics
418 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics KF Hypoid Gearboxes (Shaft Output, 060-240)

Brand Apex Dynamics·Hypoid Gearboxes

Available part numbers (418)

KF060-003-S1, KF060-003-S2, KF060-003-S3, KF060-003-S4, KF060-004-S1, KF060-004-S2, KF060-004-S3, KF060-004-S4, KF060-005-S1, KF060-005-S2 + 408 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KF060-003-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-003-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-003-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-003-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-004-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-004-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-004-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-004-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-005-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-005-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-005-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-005-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-007-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 23 Nm
KF060-007-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 23 Nm
KF060-007-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 23 Nm
KF060-007-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 23 Nm
KF060-010-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 18 Nm
KF060-010-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 18 Nm
KF060-010-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 18 Nm
KF060-010-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 18 Nm
KF060-012-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-012-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-012-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-012-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-016-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-016-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-016-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-016-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-020-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-020-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-020-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-020-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-025-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-025-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-025-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-025-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-028-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-028-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-028-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-028-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-035-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-035-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-035-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-035-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-040-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-040-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-040-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-040-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-050-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-050-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-050-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 25 Nm
KF060-050-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 25 Nm
KF060-070-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 23 Nm
KF060-070-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 23 Nm
KF060-070-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 23 Nm
KF060-070-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 23 Nm
KF060-100-S1Frame: KF060 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 18 Nm
KF060-100-S2Frame: KF060 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 18 Nm
KF060-100-S3Frame: KF060 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 18 Nm
KF060-100-S4Frame: KF060 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 18 Nm
KF075-003-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 50 Nm
KF075-003-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 50 Nm
KF075-003-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 50 Nm
KF075-003-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 50 Nm
KF075-004-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-004-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-004-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-004-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-005-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-005-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-005-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-005-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-007-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 50 Nm
KF075-007-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 50 Nm
KF075-007-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 50 Nm
KF075-007-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 50 Nm
KF075-010-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 40 Nm
KF075-010-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 40 Nm
KF075-010-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 40 Nm
KF075-010-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 40 Nm
KF075-012-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-012-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-012-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-012-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-016-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-016-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-016-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-016-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-020-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-020-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-020-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-020-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-025-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-025-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-025-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-025-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-028-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-028-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-028-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-028-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-035-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-035-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-035-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-035-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-040-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-040-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-040-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-040-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-050-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 60 Nm
KF075-050-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 60 Nm
KF075-050-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 60 Nm
KF075-050-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 60 Nm
KF075-070-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 50 Nm
KF075-070-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 50 Nm
KF075-070-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 50 Nm
KF075-070-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 50 Nm
KF075-100-S1Frame: KF075 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 40 Nm
KF075-100-S2Frame: KF075 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 40 Nm
KF075-100-S3Frame: KF075 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 40 Nm
KF075-100-S4Frame: KF075 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 40 Nm
KF100-003-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-003-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-003-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-003-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-004-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-004-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-004-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-004-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-005-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-005-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-005-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-005-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-007-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 100 Nm
KF100-007-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 100 Nm
KF100-007-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 100 Nm
KF100-007-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 100 Nm
KF100-010-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 85 Nm
KF100-010-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 85 Nm
KF100-010-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 85 Nm
KF100-010-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 85 Nm
KF100-012-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-012-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-012-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-012-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-016-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-016-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-016-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-016-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-020-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-020-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-020-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-020-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-025-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-025-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-025-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-025-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-028-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-028-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-028-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-028-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-035-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-035-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-035-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-035-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-040-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-040-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-040-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-040-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-050-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 110 Nm
KF100-050-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 110 Nm
KF100-050-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 110 Nm
KF100-050-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 110 Nm
KF100-070-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 100 Nm
KF100-070-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 100 Nm
KF100-070-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 100 Nm
KF100-070-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 100 Nm
KF100-100-S1Frame: KF100 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 85 Nm
KF100-100-S2Frame: KF100 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 85 Nm
KF100-100-S3Frame: KF100 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 85 Nm
KF100-100-S4Frame: KF100 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 85 Nm
KF140-003-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-003-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-003-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-003-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-004-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-004-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-004-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-004-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-005-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-005-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-005-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-005-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-007-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 200 Nm
KF140-007-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 200 Nm
KF140-007-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 200 Nm
KF140-007-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 200 Nm
KF140-010-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 170 Nm
KF140-010-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 170 Nm
KF140-010-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 170 Nm
KF140-010-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 170 Nm
KF140-012-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-012-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-012-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-012-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-016-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-016-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-016-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-016-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-020-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-020-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-020-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-020-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-025-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-025-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-025-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-025-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-028-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-028-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-028-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-028-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-035-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-035-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-035-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-035-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-040-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-040-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-040-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-040-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-050-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 210 Nm
KF140-050-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 210 Nm
KF140-050-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 210 Nm
KF140-050-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 210 Nm
KF140-070-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 200 Nm
KF140-070-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 200 Nm
KF140-070-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 200 Nm
KF140-070-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 200 Nm
KF140-100-S1Frame: KF140 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 170 Nm
KF140-100-S2Frame: KF140 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 170 Nm
KF140-100-S3Frame: KF140 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 170 Nm
KF140-100-S4Frame: KF140 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 170 Nm
KF180-003-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-003-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-003-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-003-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-004-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-004-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-004-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-004-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-005-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-005-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-005-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-005-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-007-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 390 Nm
KF180-007-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 390 Nm
KF180-007-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 390 Nm
KF180-007-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 390 Nm
KF180-010-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 360 Nm
KF180-010-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 360 Nm
KF180-010-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 360 Nm
KF180-010-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S4 hollow | Nominal torque T2N: 360 Nm
KF180-012-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-012-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-012-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-012-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-016-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-016-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-016-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-016-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-020-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-020-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-020-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-020-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-025-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-025-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-025-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-025-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-028-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-028-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-028-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-028-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-035-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-035-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-035-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-035-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-040-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-040-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-040-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-040-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-050-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 420 Nm
KF180-050-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 420 Nm
KF180-050-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 420 Nm
KF180-050-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 420 Nm
KF180-070-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 390 Nm
KF180-070-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 390 Nm
KF180-070-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 390 Nm
KF180-070-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 390 Nm
KF180-100-S1Frame: KF180 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 360 Nm
KF180-100-S2Frame: KF180 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 360 Nm
KF180-100-S3Frame: KF180 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 360 Nm
KF180-100-S4Frame: KF180 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S4 hollow | Nominal torque T2N: 360 Nm
KF210-003-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-003-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-003-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-004-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-004-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-004-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-005-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-005-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-005-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-007-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 750 Nm
KF210-007-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 750 Nm
KF210-007-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 750 Nm
KF210-010-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
KF210-010-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
KF210-010-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
KF210-012-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-012-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-012-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-016-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-016-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-016-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-020-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-020-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-020-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-025-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-025-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-025-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-028-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-028-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-028-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-035-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-035-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-035-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-040-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-040-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-040-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-050-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 820 Nm
KF210-050-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 820 Nm
KF210-050-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 820 Nm
KF210-070-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 750 Nm
KF210-070-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 750 Nm
KF210-070-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 750 Nm
KF210-100-S1Frame: KF210 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 600 Nm
KF210-100-S2Frame: KF210 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 600 Nm
KF210-100-S3Frame: KF210 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 600 Nm
KF240-003-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-003-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-003-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 3 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-004-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-004-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-004-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 4 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-005-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-005-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-005-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 5 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-007-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,400 Nm
KF240-007-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,400 Nm
KF240-007-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 7 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,400 Nm
KF240-010-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
KF240-010-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
KF240-010-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 10 | Stages: 1 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
KF240-012-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-012-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-012-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 12 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-016-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-016-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-016-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 16 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-020-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-020-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-020-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 20 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-025-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-025-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-025-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 25 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-028-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-028-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-028-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 28 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-035-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-035-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-035-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 35 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-040-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-040-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-040-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 40 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-050-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,600 Nm
KF240-050-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,600 Nm
KF240-050-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 50 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,600 Nm
KF240-070-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,400 Nm
KF240-070-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,400 Nm
KF240-070-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 70 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,400 Nm
KF240-100-S1Frame: KF240 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S1 smooth | Nominal torque T2N: 1,100 Nm
KF240-100-S2Frame: KF240 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S2 keyed | Nominal torque T2N: 1,100 Nm
KF240-100-S3Frame: KF240 | Gearing: Hypoid | Ratio i: 100 | Stages: 2 | Output shaft: S3 DIN 5480 spline | Nominal torque T2N: 1,100 Nm
KF060-001-S1Frame: KF060 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 25 Nm
KF060-001-S2Frame: KF060 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 25 Nm
KF060-002-S1Frame: KF060 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 24 Nm
KF060-002-S2Frame: KF060 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 24 Nm
KF075-001-S1Frame: KF075 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 45 Nm
KF075-001-S2Frame: KF075 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 45 Nm
KF075-002-S1Frame: KF075 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 42 Nm
KF075-002-S2Frame: KF075 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 42 Nm
KF100-001-S1Frame: KF100 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 78 Nm
KF100-001-S2Frame: KF100 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 78 Nm
KF100-002-S1Frame: KF100 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 68 Nm
KF100-002-S2Frame: KF100 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 68 Nm
KF140-001-S1Frame: KF140 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 150 Nm
KF140-001-S2Frame: KF140 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 150 Nm
KF140-002-S1Frame: KF140 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 150 Nm
KF140-002-S2Frame: KF140 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 150 Nm
KF180-001-S1Frame: KF180 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 360 Nm
KF180-001-S2Frame: KF180 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 360 Nm
KF180-002-S1Frame: KF180 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 330 Nm
KF180-002-S2Frame: KF180 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 330 Nm
KF210-001-S1Frame: KF210 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 585 Nm
KF210-001-S2Frame: KF210 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 585 Nm
KF210-002-S1Frame: KF210 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 544 Nm
KF210-002-S2Frame: KF210 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 544 Nm
KF240-001-S1Frame: KF240 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,300 Nm
KF240-001-S2Frame: KF240 | Gearing: Spiral bevel | Ratio i: 1 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,300 Nm
KF240-002-S1Frame: KF240 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S1 smooth | Nominal torque T2N: 1,220 Nm
KF240-002-S2Frame: KF240 | Gearing: Spiral bevel | Ratio i: 2 | Stages: 1 | Output shaft: S2 keyed | Nominal torque T2N: 1,220 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
