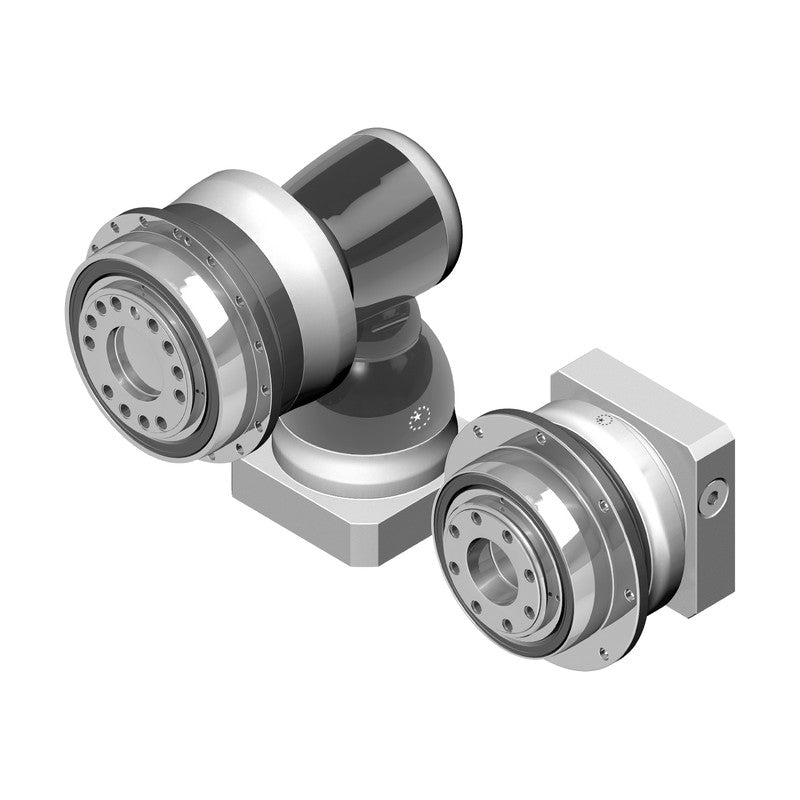

Apex Dynamics MD Precision Planetary Gearboxes (064-450, i=4-100)

Apex Dynamics new-generation MD precision planetary gearboxes with flange output in nine frame sizes (064-450), 1-stage ratios 4-10 and 2-stage ratios 16-100, with motor input hub (MD) or input shaft (MDS).

Key features

Backlash <=3 arcmin (1-stage) and <=4 arcmin (2-stage), measured at 2% of T2N
Nominal output torque 24 Nm (MD064) up to 12,495 Nm (MD450); emergency stop torque 3 x T2N
Torsional rigidity 8 Nm/arcmin (MD064) to 5,700 Nm/arcmin (MD450); max. tilting moment up to 63,300 Nm
Efficiency >=97% (1-stage) / >=94% (2-stage); IP67, synthetic grease lubrication, any mounting position
MDS version replaces the motor hub with an input shaft: S1 smooth or S2 keyed (MDS355/450 2-stage only)
MD codes are completed with the motor: specify motor make and model when ordering (e.g. MD090-005 / motor)

Specifications

Series	MD / MDS (input shaft version)
Frame sizes	064, 090, 110, 140, 200, 255, 285, 355, 450
Max. acceleration torque T2B	1.5 x T2N
Emergency stop torque T2NOT	3 x T2N
Nominal input speed n1N	1,000-5,000 rpm (by size and stage)
Max. input speed n1B	2,500-7,000 rpm (by size and stage)
Max. axial load F2a	1,690-143,700 N
Running noise	<=58 to <=70 dB(A)
Operating temperature	-10 to 90 C
Protection / lubrication	IP67 / synthetic lubrication grease
Source	APEX Dynamics MD/MDK catalog, p. 3-7

MD064-004		Frame: 064 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
MD064-005		Frame: 064 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
MD064-007		Frame: 064 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
MD064-010		Frame: 064 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
MD064-016		Frame: 064 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 85 Nm
MD064-020		Frame: 064 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 80 Nm
MD064-021		Frame: 064 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
MD064-025		Frame: 064 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
MD064-028		Frame: 064 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MD064-031		Frame: 064 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MD064-035		Frame: 064 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 75 Nm
MD064-040		Frame: 064 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 40 Nm
MD064-046		Frame: 064 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
MD064-050		Frame: 064 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 50 Nm
MD064-061		Frame: 064 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MD064-070		Frame: 064 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MD064-091		Frame: 064 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
MD064-100		Frame: 064 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
MD090-004		Frame: 090 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 205 Nm
MD090-005		Frame: 090 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 185 Nm
MD090-007		Frame: 090 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 135 Nm
MD090-010		Frame: 090 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 55 Nm
MD090-016		Frame: 090 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MD090-020		Frame: 090 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 190 Nm
MD090-021		Frame: 090 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MD090-025		Frame: 090 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MD090-028		Frame: 090 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 180 Nm
MD090-031		Frame: 090 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MD090-035		Frame: 090 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MD090-040		Frame: 090 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 96 Nm
MD090-046		Frame: 090 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MD090-050		Frame: 090 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 120 Nm
MD090-061		Frame: 090 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MD090-070		Frame: 090 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MD090-091		Frame: 090 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MD090-100		Frame: 090 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MD110-004		Frame: 110 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 380 Nm
MD110-005		Frame: 110 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 325 Nm
MD110-007		Frame: 110 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 260 Nm
MD110-010		Frame: 110 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 160 Nm
MD110-016		Frame: 110 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 385 Nm
MD110-020		Frame: 110 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 370 Nm
MD110-021		Frame: 110 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MD110-025		Frame: 110 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MD110-028		Frame: 110 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MD110-031		Frame: 110 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 280 Nm
MD110-035		Frame: 110 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 350 Nm
MD110-040		Frame: 110 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 220 Nm
MD110-046		Frame: 110 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MD110-050		Frame: 110 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 275 Nm
MD110-061		Frame: 110 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
MD110-070		Frame: 110 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
MD110-091		Frame: 110 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MD110-100		Frame: 110 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MD140-004		Frame: 140 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 765 Nm
MD140-005		Frame: 140 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 660 Nm
MD140-007		Frame: 140 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 515 Nm
MD140-010		Frame: 140 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 315 Nm
MD140-016		Frame: 140 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 805 Nm
MD140-020		Frame: 140 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 795 Nm
MD140-021		Frame: 140 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
MD140-025		Frame: 140 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
MD140-028		Frame: 140 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 755 Nm
MD140-031		Frame: 140 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 560 Nm
MD140-035		Frame: 140 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 705 Nm
MD140-040		Frame: 140 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 615 Nm
MD140-046		Frame: 140 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 335 Nm
MD140-050		Frame: 140 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 715 Nm
MD140-061		Frame: 140 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
MD140-070		Frame: 140 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
MD140-091		Frame: 140 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MD140-100		Frame: 140 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MD200-004		Frame: 200 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,415 Nm
MD200-005		Frame: 200 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,225 Nm
MD200-007		Frame: 200 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 980 Nm
MD200-010		Frame: 200 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 700 Nm
MD200-016		Frame: 200 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,485 Nm
MD200-020		Frame: 200 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,495 Nm
MD200-021		Frame: 200 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
MD200-025		Frame: 200 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
MD200-028		Frame: 200 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,510 Nm
MD200-031		Frame: 200 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,050 Nm
MD200-035		Frame: 200 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,310 Nm
MD200-040		Frame: 200 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,260 Nm
MD200-046		Frame: 200 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MD200-050		Frame: 200 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,325 Nm
MD200-061		Frame: 200 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
MD200-070		Frame: 200 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
MD200-091		Frame: 200 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MD200-100		Frame: 200 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MD255-004		Frame: 255 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,190 Nm
MD255-005		Frame: 255 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,905 Nm
MD255-007		Frame: 255 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,530 Nm
MD255-010		Frame: 255 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,070 Nm
MD255-016		Frame: 255 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,295 Nm
MD255-020		Frame: 255 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,990 Nm
MD255-021		Frame: 255 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
MD255-025		Frame: 255 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
MD255-028		Frame: 255 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,335 Nm
MD255-031		Frame: 255 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,620 Nm
MD255-035		Frame: 255 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,030 Nm
MD255-040		Frame: 255 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,360 Nm
MD255-046		Frame: 255 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MD255-050		Frame: 255 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,050 Nm
MD255-061		Frame: 255 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
MD255-070		Frame: 255 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
MD255-091		Frame: 255 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MD255-100		Frame: 255 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MD285-004		Frame: 285 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 4,035 Nm
MD285-005		Frame: 285 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 3,505 Nm
MD285-007		Frame: 285 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,530 Nm
MD285-010		Frame: 285 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,810 Nm
MD285-016		Frame: 285 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,215 Nm
MD285-020		Frame: 285 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,660 Nm
MD285-021		Frame: 285 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
MD285-025		Frame: 285 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
MD285-028		Frame: 285 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,290 Nm
MD285-031		Frame: 285 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,590 Nm
MD285-035		Frame: 285 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,725 Nm
MD285-040		Frame: 285 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,280 Nm
MD285-046		Frame: 285 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MD285-050		Frame: 285 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,765 Nm
MD285-061		Frame: 285 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
MD285-070		Frame: 285 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
MD285-091		Frame: 285 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MD285-100		Frame: 285 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MD355-005		Frame: 355 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 6,250 Nm
MD355-007		Frame: 355 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 5,045 Nm
MD355-010		Frame: 355 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 3,345 Nm
MD355-021		Frame: 355 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 6,525 Nm
MD355-031		Frame: 355 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,280 Nm
MD355-046		Frame: 355 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
MD355-061		Frame: 355 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,445 Nm
MD355-091		Frame: 355 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
MD450-005		Frame: 450 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 12,105 Nm
MD450-007		Frame: 450 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 10,260 Nm
MD450-010		Frame: 450 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 7,160 Nm
MD450-021		Frame: 450 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 12,495 Nm
MD450-031		Frame: 450 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,595 Nm
MD450-046		Frame: 450 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,125 Nm
MD450-061		Frame: 450 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,895 Nm
MD450-091		Frame: 450 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,000 Nm
MDS064-004-S1		Frame: 064 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
MDS064-005-S1		Frame: 064 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
MDS064-007-S1		Frame: 064 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
MDS064-010-S1		Frame: 064 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
MDS064-016-S1		Frame: 064 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 85 Nm
MDS064-020-S1		Frame: 064 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 80 Nm
MDS064-021-S1		Frame: 064 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
MDS064-025-S1		Frame: 064 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
MDS064-028-S1		Frame: 064 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MDS064-031-S1		Frame: 064 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MDS064-035-S1		Frame: 064 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 75 Nm
MDS064-040-S1		Frame: 064 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 40 Nm
MDS064-046-S1		Frame: 064 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
MDS064-050-S1		Frame: 064 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 50 Nm
MDS064-061-S1		Frame: 064 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MDS064-070-S1		Frame: 064 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MDS064-091-S1		Frame: 064 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
MDS064-100-S1		Frame: 064 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
MDS090-004-S1		Frame: 090 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 205 Nm
MDS090-005-S1		Frame: 090 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 185 Nm
MDS090-007-S1		Frame: 090 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 135 Nm
MDS090-010-S1		Frame: 090 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 55 Nm
MDS090-016-S1		Frame: 090 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MDS090-020-S1		Frame: 090 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 190 Nm
MDS090-021-S1		Frame: 090 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MDS090-025-S1		Frame: 090 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MDS090-028-S1		Frame: 090 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 180 Nm
MDS090-031-S1		Frame: 090 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MDS090-035-S1		Frame: 090 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MDS090-040-S1		Frame: 090 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 96 Nm
MDS090-046-S1		Frame: 090 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MDS090-050-S1		Frame: 090 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 120 Nm
MDS090-061-S1		Frame: 090 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MDS090-070-S1		Frame: 090 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MDS090-091-S1		Frame: 090 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MDS090-100-S1		Frame: 090 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MDS110-004-S1		Frame: 110 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 380 Nm
MDS110-005-S1		Frame: 110 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 325 Nm
MDS110-007-S1		Frame: 110 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 260 Nm
MDS110-010-S1		Frame: 110 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 160 Nm
MDS110-016-S1		Frame: 110 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 385 Nm
MDS110-020-S1		Frame: 110 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 370 Nm
MDS110-021-S1		Frame: 110 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MDS110-025-S1		Frame: 110 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MDS110-028-S1		Frame: 110 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MDS110-031-S1		Frame: 110 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 280 Nm
MDS110-035-S1		Frame: 110 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 350 Nm
MDS110-040-S1		Frame: 110 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 220 Nm
MDS110-046-S1		Frame: 110 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MDS110-050-S1		Frame: 110 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 275 Nm
MDS110-061-S1		Frame: 110 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
MDS110-070-S1		Frame: 110 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
MDS110-091-S1		Frame: 110 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MDS110-100-S1		Frame: 110 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MDS140-004-S1		Frame: 140 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 765 Nm
MDS140-005-S1		Frame: 140 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 660 Nm
MDS140-007-S1		Frame: 140 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 515 Nm
MDS140-010-S1		Frame: 140 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 315 Nm
MDS140-016-S1		Frame: 140 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 805 Nm
MDS140-020-S1		Frame: 140 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 795 Nm
MDS140-021-S1		Frame: 140 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
MDS140-025-S1		Frame: 140 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
MDS140-028-S1		Frame: 140 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 755 Nm
MDS140-031-S1		Frame: 140 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 560 Nm
MDS140-035-S1		Frame: 140 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 705 Nm
MDS140-040-S1		Frame: 140 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 615 Nm
MDS140-046-S1		Frame: 140 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 335 Nm
MDS140-050-S1		Frame: 140 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 715 Nm
MDS140-061-S1		Frame: 140 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
MDS140-070-S1		Frame: 140 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
MDS140-091-S1		Frame: 140 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MDS140-100-S1		Frame: 140 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MDS200-004-S1		Frame: 200 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,415 Nm
MDS200-005-S1		Frame: 200 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,225 Nm
MDS200-007-S1		Frame: 200 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 980 Nm
MDS200-010-S1		Frame: 200 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 700 Nm
MDS200-016-S1		Frame: 200 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,485 Nm
MDS200-020-S1		Frame: 200 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,495 Nm
MDS200-021-S1		Frame: 200 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
MDS200-025-S1		Frame: 200 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
MDS200-028-S1		Frame: 200 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,510 Nm
MDS200-031-S1		Frame: 200 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,050 Nm
MDS200-035-S1		Frame: 200 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,310 Nm
MDS200-040-S1		Frame: 200 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,260 Nm
MDS200-046-S1		Frame: 200 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MDS200-050-S1		Frame: 200 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,325 Nm
MDS200-061-S1		Frame: 200 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
MDS200-070-S1		Frame: 200 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
MDS200-091-S1		Frame: 200 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MDS200-100-S1		Frame: 200 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MDS255-004-S1		Frame: 255 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,190 Nm
MDS255-005-S1		Frame: 255 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,905 Nm
MDS255-007-S1		Frame: 255 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,530 Nm
MDS255-010-S1		Frame: 255 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,070 Nm
MDS255-016-S1		Frame: 255 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,295 Nm
MDS255-020-S1		Frame: 255 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,990 Nm
MDS255-021-S1		Frame: 255 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
MDS255-025-S1		Frame: 255 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
MDS255-028-S1		Frame: 255 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,335 Nm
MDS255-031-S1		Frame: 255 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,620 Nm
MDS255-035-S1		Frame: 255 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,030 Nm
MDS255-040-S1		Frame: 255 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,360 Nm
MDS255-046-S1		Frame: 255 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MDS255-050-S1		Frame: 255 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,050 Nm
MDS255-061-S1		Frame: 255 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
MDS255-070-S1		Frame: 255 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
MDS255-091-S1		Frame: 255 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MDS255-100-S1		Frame: 255 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MDS285-004-S1		Frame: 285 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 4,035 Nm
MDS285-005-S1		Frame: 285 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 3,505 Nm
MDS285-007-S1		Frame: 285 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,530 Nm
MDS285-010-S1		Frame: 285 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,810 Nm
MDS285-016-S1		Frame: 285 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,215 Nm
MDS285-020-S1		Frame: 285 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,660 Nm
MDS285-021-S1		Frame: 285 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
MDS285-025-S1		Frame: 285 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
MDS285-028-S1		Frame: 285 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,290 Nm
MDS285-031-S1		Frame: 285 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,590 Nm
MDS285-035-S1		Frame: 285 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,725 Nm
MDS285-040-S1		Frame: 285 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,280 Nm
MDS285-046-S1		Frame: 285 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MDS285-050-S1		Frame: 285 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,765 Nm
MDS285-061-S1		Frame: 285 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
MDS285-070-S1		Frame: 285 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
MDS285-091-S1		Frame: 285 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MDS285-100-S1		Frame: 285 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MDS355-021-S1		Frame: 355 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 6,525 Nm
MDS355-031-S1		Frame: 355 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,280 Nm
MDS355-046-S1		Frame: 355 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
MDS355-061-S1		Frame: 355 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,445 Nm
MDS355-091-S1		Frame: 355 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
MDS450-021-S1		Frame: 450 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 12,495 Nm
MDS450-031-S1		Frame: 450 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,595 Nm
MDS450-046-S1		Frame: 450 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,125 Nm
MDS450-061-S1		Frame: 450 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,895 Nm
MDS450-091-S1		Frame: 450 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,000 Nm
MDS064-004-S2		Frame: 064 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
MDS064-005-S2		Frame: 064 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
MDS064-007-S2		Frame: 064 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
MDS064-010-S2		Frame: 064 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
MDS064-016-S2		Frame: 064 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 85 Nm
MDS064-020-S2		Frame: 064 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 80 Nm
MDS064-021-S2		Frame: 064 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
MDS064-025-S2		Frame: 064 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
MDS064-028-S2		Frame: 064 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MDS064-031-S2		Frame: 064 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MDS064-035-S2		Frame: 064 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 75 Nm
MDS064-040-S2		Frame: 064 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 40 Nm
MDS064-046-S2		Frame: 064 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
MDS064-050-S2		Frame: 064 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 50 Nm
MDS064-061-S2		Frame: 064 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MDS064-070-S2		Frame: 064 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
MDS064-091-S2		Frame: 064 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
MDS064-100-S2		Frame: 064 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
MDS090-004-S2		Frame: 090 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 205 Nm
MDS090-005-S2		Frame: 090 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 185 Nm
MDS090-007-S2		Frame: 090 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 135 Nm
MDS090-010-S2		Frame: 090 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 55 Nm
MDS090-016-S2		Frame: 090 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MDS090-020-S2		Frame: 090 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 190 Nm
MDS090-021-S2		Frame: 090 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MDS090-025-S2		Frame: 090 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MDS090-028-S2		Frame: 090 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 180 Nm
MDS090-031-S2		Frame: 090 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MDS090-035-S2		Frame: 090 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MDS090-040-S2		Frame: 090 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 96 Nm
MDS090-046-S2		Frame: 090 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MDS090-050-S2		Frame: 090 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 120 Nm
MDS090-061-S2		Frame: 090 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MDS090-070-S2		Frame: 090 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MDS090-091-S2		Frame: 090 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MDS090-100-S2		Frame: 090 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MDS110-004-S2		Frame: 110 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 380 Nm
MDS110-005-S2		Frame: 110 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 325 Nm
MDS110-007-S2		Frame: 110 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 260 Nm
MDS110-010-S2		Frame: 110 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 160 Nm
MDS110-016-S2		Frame: 110 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 385 Nm
MDS110-020-S2		Frame: 110 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 370 Nm
MDS110-021-S2		Frame: 110 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MDS110-025-S2		Frame: 110 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MDS110-028-S2		Frame: 110 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MDS110-031-S2		Frame: 110 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 280 Nm
MDS110-035-S2		Frame: 110 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 350 Nm
MDS110-040-S2		Frame: 110 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 220 Nm
MDS110-046-S2		Frame: 110 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MDS110-050-S2		Frame: 110 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 275 Nm
MDS110-061-S2		Frame: 110 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
MDS110-070-S2		Frame: 110 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
MDS110-091-S2		Frame: 110 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MDS110-100-S2		Frame: 110 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MDS140-004-S2		Frame: 140 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 765 Nm
MDS140-005-S2		Frame: 140 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 660 Nm
MDS140-007-S2		Frame: 140 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 515 Nm
MDS140-010-S2		Frame: 140 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 315 Nm
MDS140-016-S2		Frame: 140 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 805 Nm
MDS140-020-S2		Frame: 140 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 795 Nm
MDS140-021-S2		Frame: 140 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
MDS140-025-S2		Frame: 140 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
MDS140-028-S2		Frame: 140 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 755 Nm
MDS140-031-S2		Frame: 140 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 560 Nm
MDS140-035-S2		Frame: 140 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 705 Nm
MDS140-040-S2		Frame: 140 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 615 Nm
MDS140-046-S2		Frame: 140 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 335 Nm
MDS140-050-S2		Frame: 140 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 715 Nm
MDS140-061-S2		Frame: 140 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
MDS140-070-S2		Frame: 140 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
MDS140-091-S2		Frame: 140 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MDS140-100-S2		Frame: 140 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MDS200-004-S2		Frame: 200 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,415 Nm
MDS200-005-S2		Frame: 200 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,225 Nm
MDS200-007-S2		Frame: 200 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 980 Nm
MDS200-010-S2		Frame: 200 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 700 Nm
MDS200-016-S2		Frame: 200 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,485 Nm
MDS200-020-S2		Frame: 200 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,495 Nm
MDS200-021-S2		Frame: 200 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
MDS200-025-S2		Frame: 200 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
MDS200-028-S2		Frame: 200 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,510 Nm
MDS200-031-S2		Frame: 200 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,050 Nm
MDS200-035-S2		Frame: 200 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,310 Nm
MDS200-040-S2		Frame: 200 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,260 Nm
MDS200-046-S2		Frame: 200 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MDS200-050-S2		Frame: 200 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,325 Nm
MDS200-061-S2		Frame: 200 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
MDS200-070-S2		Frame: 200 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
MDS200-091-S2		Frame: 200 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MDS200-100-S2		Frame: 200 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MDS255-004-S2		Frame: 255 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,190 Nm
MDS255-005-S2		Frame: 255 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,905 Nm
MDS255-007-S2		Frame: 255 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,530 Nm
MDS255-010-S2		Frame: 255 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,070 Nm
MDS255-016-S2		Frame: 255 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,295 Nm
MDS255-020-S2		Frame: 255 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,990 Nm
MDS255-021-S2		Frame: 255 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
MDS255-025-S2		Frame: 255 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
MDS255-028-S2		Frame: 255 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,335 Nm
MDS255-031-S2		Frame: 255 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,620 Nm
MDS255-035-S2		Frame: 255 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,030 Nm
MDS255-040-S2		Frame: 255 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,360 Nm
MDS255-046-S2		Frame: 255 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MDS255-050-S2		Frame: 255 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,050 Nm
MDS255-061-S2		Frame: 255 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
MDS255-070-S2		Frame: 255 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
MDS255-091-S2		Frame: 255 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MDS255-100-S2		Frame: 255 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MDS285-004-S2		Frame: 285 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 4,035 Nm
MDS285-005-S2		Frame: 285 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 3,505 Nm
MDS285-007-S2		Frame: 285 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,530 Nm
MDS285-010-S2		Frame: 285 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,810 Nm
MDS285-016-S2		Frame: 285 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,215 Nm
MDS285-020-S2		Frame: 285 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,660 Nm
MDS285-021-S2		Frame: 285 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
MDS285-025-S2		Frame: 285 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
MDS285-028-S2		Frame: 285 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,290 Nm
MDS285-031-S2		Frame: 285 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,590 Nm
MDS285-035-S2		Frame: 285 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,725 Nm
MDS285-040-S2		Frame: 285 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,280 Nm
MDS285-046-S2		Frame: 285 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MDS285-050-S2		Frame: 285 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,765 Nm
MDS285-061-S2		Frame: 285 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
MDS285-070-S2		Frame: 285 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
MDS285-091-S2		Frame: 285 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MDS285-100-S2		Frame: 285 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MDS355-021-S2		Frame: 355 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 6,525 Nm
MDS355-031-S2		Frame: 355 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,280 Nm
MDS355-046-S2		Frame: 355 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
MDS355-061-S2		Frame: 355 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,445 Nm
MDS355-091-S2		Frame: 355 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
MDS450-021-S2		Frame: 450 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 12,495 Nm
MDS450-031-S2		Frame: 450 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,595 Nm
MDS450-046-S2		Frame: 450 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,125 Nm
MDS450-061-S2		Frame: 450 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,895 Nm
MDS450-091-S2		Frame: 450 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,000 Nm

Planetary GearboxesApex Dynamics

414 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics MD Precision Planetary Gearboxes (064-450, i=4-100)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (414)

MD064-004, MD064-005, MD064-007, MD064-010, MD064-016, MD064-020, MD064-021, MD064-025, MD064-028, MD064-031 + 404 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MD064-004	Frame: 064 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	MD064-005	Frame: 064 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
	MD064-007	Frame: 064 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
	MD064-010	Frame: 064 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
	MD064-016	Frame: 064 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 85 Nm
	MD064-020	Frame: 064 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 80 Nm
	MD064-021	Frame: 064 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
	MD064-025	Frame: 064 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
	MD064-028	Frame: 064 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MD064-031	Frame: 064 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MD064-035	Frame: 064 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 75 Nm
	MD064-040	Frame: 064 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 40 Nm
	MD064-046	Frame: 064 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
	MD064-050	Frame: 064 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 50 Nm
	MD064-061	Frame: 064 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MD064-070	Frame: 064 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MD064-091	Frame: 064 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
	MD064-100	Frame: 064 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
	MD090-004	Frame: 090 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 205 Nm
	MD090-005	Frame: 090 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 185 Nm
	MD090-007	Frame: 090 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 135 Nm
	MD090-010	Frame: 090 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 55 Nm
	MD090-016	Frame: 090 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MD090-020	Frame: 090 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 190 Nm
	MD090-021	Frame: 090 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MD090-025	Frame: 090 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MD090-028	Frame: 090 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 180 Nm
	MD090-031	Frame: 090 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MD090-035	Frame: 090 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MD090-040	Frame: 090 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 96 Nm
	MD090-046	Frame: 090 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MD090-050	Frame: 090 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 120 Nm
	MD090-061	Frame: 090 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MD090-070	Frame: 090 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MD090-091	Frame: 090 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MD090-100	Frame: 090 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MD110-004	Frame: 110 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 380 Nm
	MD110-005	Frame: 110 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 325 Nm
	MD110-007	Frame: 110 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 260 Nm
	MD110-010	Frame: 110 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 160 Nm
	MD110-016	Frame: 110 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 385 Nm
	MD110-020	Frame: 110 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 370 Nm
	MD110-021	Frame: 110 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MD110-025	Frame: 110 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MD110-028	Frame: 110 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MD110-031	Frame: 110 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 280 Nm
	MD110-035	Frame: 110 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 350 Nm
	MD110-040	Frame: 110 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 220 Nm
	MD110-046	Frame: 110 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MD110-050	Frame: 110 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 275 Nm
	MD110-061	Frame: 110 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
	MD110-070	Frame: 110 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
	MD110-091	Frame: 110 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MD110-100	Frame: 110 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MD140-004	Frame: 140 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 765 Nm
	MD140-005	Frame: 140 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 660 Nm
	MD140-007	Frame: 140 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 515 Nm
	MD140-010	Frame: 140 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 315 Nm
	MD140-016	Frame: 140 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 805 Nm
	MD140-020	Frame: 140 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 795 Nm
	MD140-021	Frame: 140 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
	MD140-025	Frame: 140 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
	MD140-028	Frame: 140 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 755 Nm
	MD140-031	Frame: 140 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 560 Nm
	MD140-035	Frame: 140 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 705 Nm
	MD140-040	Frame: 140 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 615 Nm
	MD140-046	Frame: 140 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 335 Nm
	MD140-050	Frame: 140 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 715 Nm
	MD140-061	Frame: 140 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
	MD140-070	Frame: 140 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
	MD140-091	Frame: 140 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MD140-100	Frame: 140 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MD200-004	Frame: 200 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,415 Nm
	MD200-005	Frame: 200 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,225 Nm
	MD200-007	Frame: 200 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 980 Nm
	MD200-010	Frame: 200 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 700 Nm
	MD200-016	Frame: 200 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,485 Nm
	MD200-020	Frame: 200 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,495 Nm
	MD200-021	Frame: 200 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
	MD200-025	Frame: 200 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
	MD200-028	Frame: 200 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,510 Nm
	MD200-031	Frame: 200 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,050 Nm
	MD200-035	Frame: 200 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,310 Nm
	MD200-040	Frame: 200 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,260 Nm
	MD200-046	Frame: 200 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MD200-050	Frame: 200 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,325 Nm
	MD200-061	Frame: 200 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
	MD200-070	Frame: 200 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
	MD200-091	Frame: 200 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MD200-100	Frame: 200 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MD255-004	Frame: 255 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,190 Nm
	MD255-005	Frame: 255 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,905 Nm
	MD255-007	Frame: 255 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,530 Nm
	MD255-010	Frame: 255 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,070 Nm
	MD255-016	Frame: 255 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,295 Nm
	MD255-020	Frame: 255 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,990 Nm
	MD255-021	Frame: 255 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
	MD255-025	Frame: 255 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
	MD255-028	Frame: 255 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,335 Nm
	MD255-031	Frame: 255 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,620 Nm
	MD255-035	Frame: 255 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,030 Nm
	MD255-040	Frame: 255 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,360 Nm
	MD255-046	Frame: 255 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MD255-050	Frame: 255 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,050 Nm
	MD255-061	Frame: 255 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
	MD255-070	Frame: 255 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
	MD255-091	Frame: 255 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MD255-100	Frame: 255 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MD285-004	Frame: 285 \| Stages: 1 \| Ratio i: 4 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 4,035 Nm
	MD285-005	Frame: 285 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 3,505 Nm
	MD285-007	Frame: 285 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,530 Nm
	MD285-010	Frame: 285 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,810 Nm
	MD285-016	Frame: 285 \| Stages: 2 \| Ratio i: 16 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,215 Nm
	MD285-020	Frame: 285 \| Stages: 2 \| Ratio i: 20 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,660 Nm
	MD285-021	Frame: 285 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
	MD285-025	Frame: 285 \| Stages: 2 \| Ratio i: 25 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
	MD285-028	Frame: 285 \| Stages: 2 \| Ratio i: 28 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,290 Nm
	MD285-031	Frame: 285 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,590 Nm
	MD285-035	Frame: 285 \| Stages: 2 \| Ratio i: 35 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,725 Nm
	MD285-040	Frame: 285 \| Stages: 2 \| Ratio i: 40 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,280 Nm
	MD285-046	Frame: 285 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MD285-050	Frame: 285 \| Stages: 2 \| Ratio i: 50 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,765 Nm
	MD285-061	Frame: 285 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
	MD285-070	Frame: 285 \| Stages: 2 \| Ratio i: 70 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
	MD285-091	Frame: 285 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MD285-100	Frame: 285 \| Stages: 2 \| Ratio i: 100 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MD355-005	Frame: 355 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 6,250 Nm
	MD355-007	Frame: 355 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 5,045 Nm
	MD355-010	Frame: 355 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 3,345 Nm
	MD355-021	Frame: 355 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 6,525 Nm
	MD355-031	Frame: 355 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,280 Nm
	MD355-046	Frame: 355 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
	MD355-061	Frame: 355 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,445 Nm
	MD355-091	Frame: 355 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
	MD450-005	Frame: 450 \| Stages: 1 \| Ratio i: 5 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 12,105 Nm
	MD450-007	Frame: 450 \| Stages: 1 \| Ratio i: 7 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 10,260 Nm
	MD450-010	Frame: 450 \| Stages: 1 \| Ratio i: 10 \| Input: Hub (motor flange) \| Backlash: <=3 arcmin \| Nominal torque T2N: 7,160 Nm
	MD450-021	Frame: 450 \| Stages: 2 \| Ratio i: 21 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 12,495 Nm
	MD450-031	Frame: 450 \| Stages: 2 \| Ratio i: 31 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,595 Nm
	MD450-046	Frame: 450 \| Stages: 2 \| Ratio i: 46 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,125 Nm
	MD450-061	Frame: 450 \| Stages: 2 \| Ratio i: 61 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,895 Nm
	MD450-091	Frame: 450 \| Stages: 2 \| Ratio i: 91 \| Input: Hub (motor flange) \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,000 Nm
	MDS064-004-S1	Frame: 064 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	MDS064-005-S1	Frame: 064 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
	MDS064-007-S1	Frame: 064 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
	MDS064-010-S1	Frame: 064 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
	MDS064-016-S1	Frame: 064 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 85 Nm
	MDS064-020-S1	Frame: 064 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 80 Nm
	MDS064-021-S1	Frame: 064 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
	MDS064-025-S1	Frame: 064 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
	MDS064-028-S1	Frame: 064 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MDS064-031-S1	Frame: 064 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MDS064-035-S1	Frame: 064 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 75 Nm
	MDS064-040-S1	Frame: 064 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 40 Nm
	MDS064-046-S1	Frame: 064 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
	MDS064-050-S1	Frame: 064 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 50 Nm
	MDS064-061-S1	Frame: 064 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MDS064-070-S1	Frame: 064 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MDS064-091-S1	Frame: 064 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
	MDS064-100-S1	Frame: 064 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
	MDS090-004-S1	Frame: 090 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 205 Nm
	MDS090-005-S1	Frame: 090 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 185 Nm
	MDS090-007-S1	Frame: 090 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 135 Nm
	MDS090-010-S1	Frame: 090 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 55 Nm
	MDS090-016-S1	Frame: 090 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MDS090-020-S1	Frame: 090 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 190 Nm
	MDS090-021-S1	Frame: 090 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MDS090-025-S1	Frame: 090 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MDS090-028-S1	Frame: 090 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 180 Nm
	MDS090-031-S1	Frame: 090 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MDS090-035-S1	Frame: 090 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MDS090-040-S1	Frame: 090 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 96 Nm
	MDS090-046-S1	Frame: 090 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MDS090-050-S1	Frame: 090 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 120 Nm
	MDS090-061-S1	Frame: 090 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MDS090-070-S1	Frame: 090 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MDS090-091-S1	Frame: 090 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MDS090-100-S1	Frame: 090 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MDS110-004-S1	Frame: 110 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 380 Nm
	MDS110-005-S1	Frame: 110 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 325 Nm
	MDS110-007-S1	Frame: 110 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 260 Nm
	MDS110-010-S1	Frame: 110 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 160 Nm
	MDS110-016-S1	Frame: 110 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 385 Nm
	MDS110-020-S1	Frame: 110 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 370 Nm
	MDS110-021-S1	Frame: 110 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MDS110-025-S1	Frame: 110 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MDS110-028-S1	Frame: 110 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MDS110-031-S1	Frame: 110 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 280 Nm
	MDS110-035-S1	Frame: 110 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 350 Nm
	MDS110-040-S1	Frame: 110 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 220 Nm
	MDS110-046-S1	Frame: 110 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MDS110-050-S1	Frame: 110 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 275 Nm
	MDS110-061-S1	Frame: 110 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
	MDS110-070-S1	Frame: 110 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
	MDS110-091-S1	Frame: 110 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MDS110-100-S1	Frame: 110 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MDS140-004-S1	Frame: 140 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 765 Nm
	MDS140-005-S1	Frame: 140 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 660 Nm
	MDS140-007-S1	Frame: 140 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 515 Nm
	MDS140-010-S1	Frame: 140 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 315 Nm
	MDS140-016-S1	Frame: 140 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 805 Nm
	MDS140-020-S1	Frame: 140 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 795 Nm
	MDS140-021-S1	Frame: 140 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
	MDS140-025-S1	Frame: 140 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
	MDS140-028-S1	Frame: 140 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 755 Nm
	MDS140-031-S1	Frame: 140 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 560 Nm
	MDS140-035-S1	Frame: 140 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 705 Nm
	MDS140-040-S1	Frame: 140 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 615 Nm
	MDS140-046-S1	Frame: 140 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 335 Nm
	MDS140-050-S1	Frame: 140 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 715 Nm
	MDS140-061-S1	Frame: 140 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
	MDS140-070-S1	Frame: 140 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
	MDS140-091-S1	Frame: 140 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MDS140-100-S1	Frame: 140 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MDS200-004-S1	Frame: 200 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,415 Nm
	MDS200-005-S1	Frame: 200 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,225 Nm
	MDS200-007-S1	Frame: 200 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 980 Nm
	MDS200-010-S1	Frame: 200 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 700 Nm
	MDS200-016-S1	Frame: 200 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,485 Nm
	MDS200-020-S1	Frame: 200 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,495 Nm
	MDS200-021-S1	Frame: 200 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
	MDS200-025-S1	Frame: 200 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
	MDS200-028-S1	Frame: 200 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,510 Nm
	MDS200-031-S1	Frame: 200 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,050 Nm
	MDS200-035-S1	Frame: 200 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,310 Nm
	MDS200-040-S1	Frame: 200 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,260 Nm
	MDS200-046-S1	Frame: 200 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MDS200-050-S1	Frame: 200 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,325 Nm
	MDS200-061-S1	Frame: 200 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
	MDS200-070-S1	Frame: 200 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
	MDS200-091-S1	Frame: 200 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MDS200-100-S1	Frame: 200 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MDS255-004-S1	Frame: 255 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,190 Nm
	MDS255-005-S1	Frame: 255 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,905 Nm
	MDS255-007-S1	Frame: 255 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,530 Nm
	MDS255-010-S1	Frame: 255 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,070 Nm
	MDS255-016-S1	Frame: 255 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,295 Nm
	MDS255-020-S1	Frame: 255 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,990 Nm
	MDS255-021-S1	Frame: 255 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
	MDS255-025-S1	Frame: 255 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
	MDS255-028-S1	Frame: 255 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,335 Nm
	MDS255-031-S1	Frame: 255 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,620 Nm
	MDS255-035-S1	Frame: 255 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,030 Nm
	MDS255-040-S1	Frame: 255 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,360 Nm
	MDS255-046-S1	Frame: 255 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MDS255-050-S1	Frame: 255 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,050 Nm
	MDS255-061-S1	Frame: 255 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
	MDS255-070-S1	Frame: 255 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
	MDS255-091-S1	Frame: 255 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MDS255-100-S1	Frame: 255 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MDS285-004-S1	Frame: 285 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 4,035 Nm
	MDS285-005-S1	Frame: 285 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 3,505 Nm
	MDS285-007-S1	Frame: 285 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,530 Nm
	MDS285-010-S1	Frame: 285 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S1 smooth \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,810 Nm
	MDS285-016-S1	Frame: 285 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,215 Nm
	MDS285-020-S1	Frame: 285 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,660 Nm
	MDS285-021-S1	Frame: 285 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
	MDS285-025-S1	Frame: 285 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
	MDS285-028-S1	Frame: 285 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,290 Nm
	MDS285-031-S1	Frame: 285 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,590 Nm
	MDS285-035-S1	Frame: 285 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,725 Nm
	MDS285-040-S1	Frame: 285 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,280 Nm
	MDS285-046-S1	Frame: 285 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MDS285-050-S1	Frame: 285 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,765 Nm
	MDS285-061-S1	Frame: 285 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
	MDS285-070-S1	Frame: 285 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
	MDS285-091-S1	Frame: 285 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MDS285-100-S1	Frame: 285 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MDS355-021-S1	Frame: 355 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 6,525 Nm
	MDS355-031-S1	Frame: 355 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,280 Nm
	MDS355-046-S1	Frame: 355 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
	MDS355-061-S1	Frame: 355 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,445 Nm
	MDS355-091-S1	Frame: 355 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
	MDS450-021-S1	Frame: 450 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 12,495 Nm
	MDS450-031-S1	Frame: 450 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,595 Nm
	MDS450-046-S1	Frame: 450 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,125 Nm
	MDS450-061-S1	Frame: 450 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,895 Nm
	MDS450-091-S1	Frame: 450 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S1 smooth \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,000 Nm
	MDS064-004-S2	Frame: 064 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 100 Nm
	MDS064-005-S2	Frame: 064 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 85 Nm
	MDS064-007-S2	Frame: 064 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 60 Nm
	MDS064-010-S2	Frame: 064 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 24 Nm
	MDS064-016-S2	Frame: 064 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 85 Nm
	MDS064-020-S2	Frame: 064 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 80 Nm
	MDS064-021-S2	Frame: 064 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
	MDS064-025-S2	Frame: 064 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 90 Nm
	MDS064-028-S2	Frame: 064 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MDS064-031-S2	Frame: 064 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MDS064-035-S2	Frame: 064 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 75 Nm
	MDS064-040-S2	Frame: 064 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 40 Nm
	MDS064-046-S2	Frame: 064 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
	MDS064-050-S2	Frame: 064 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 50 Nm
	MDS064-061-S2	Frame: 064 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MDS064-070-S2	Frame: 064 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 60 Nm
	MDS064-091-S2	Frame: 064 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
	MDS064-100-S2	Frame: 064 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 24 Nm
	MDS090-004-S2	Frame: 090 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 205 Nm
	MDS090-005-S2	Frame: 090 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 185 Nm
	MDS090-007-S2	Frame: 090 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 135 Nm
	MDS090-010-S2	Frame: 090 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 55 Nm
	MDS090-016-S2	Frame: 090 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MDS090-020-S2	Frame: 090 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 190 Nm
	MDS090-021-S2	Frame: 090 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MDS090-025-S2	Frame: 090 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MDS090-028-S2	Frame: 090 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 180 Nm
	MDS090-031-S2	Frame: 090 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MDS090-035-S2	Frame: 090 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MDS090-040-S2	Frame: 090 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 96 Nm
	MDS090-046-S2	Frame: 090 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MDS090-050-S2	Frame: 090 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 120 Nm
	MDS090-061-S2	Frame: 090 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MDS090-070-S2	Frame: 090 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MDS090-091-S2	Frame: 090 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MDS090-100-S2	Frame: 090 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MDS110-004-S2	Frame: 110 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 380 Nm
	MDS110-005-S2	Frame: 110 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 325 Nm
	MDS110-007-S2	Frame: 110 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 260 Nm
	MDS110-010-S2	Frame: 110 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 160 Nm
	MDS110-016-S2	Frame: 110 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 385 Nm
	MDS110-020-S2	Frame: 110 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 370 Nm
	MDS110-021-S2	Frame: 110 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MDS110-025-S2	Frame: 110 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MDS110-028-S2	Frame: 110 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MDS110-031-S2	Frame: 110 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 280 Nm
	MDS110-035-S2	Frame: 110 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 350 Nm
	MDS110-040-S2	Frame: 110 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 220 Nm
	MDS110-046-S2	Frame: 110 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MDS110-050-S2	Frame: 110 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 275 Nm
	MDS110-061-S2	Frame: 110 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
	MDS110-070-S2	Frame: 110 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
	MDS110-091-S2	Frame: 110 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MDS110-100-S2	Frame: 110 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MDS140-004-S2	Frame: 140 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 765 Nm
	MDS140-005-S2	Frame: 140 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 660 Nm
	MDS140-007-S2	Frame: 140 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 515 Nm
	MDS140-010-S2	Frame: 140 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 315 Nm
	MDS140-016-S2	Frame: 140 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 805 Nm
	MDS140-020-S2	Frame: 140 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 795 Nm
	MDS140-021-S2	Frame: 140 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
	MDS140-025-S2	Frame: 140 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
	MDS140-028-S2	Frame: 140 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 755 Nm
	MDS140-031-S2	Frame: 140 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 560 Nm
	MDS140-035-S2	Frame: 140 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 705 Nm
	MDS140-040-S2	Frame: 140 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 615 Nm
	MDS140-046-S2	Frame: 140 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 335 Nm
	MDS140-050-S2	Frame: 140 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 715 Nm
	MDS140-061-S2	Frame: 140 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
	MDS140-070-S2	Frame: 140 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
	MDS140-091-S2	Frame: 140 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MDS140-100-S2	Frame: 140 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MDS200-004-S2	Frame: 200 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,415 Nm
	MDS200-005-S2	Frame: 200 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,225 Nm
	MDS200-007-S2	Frame: 200 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 980 Nm
	MDS200-010-S2	Frame: 200 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 700 Nm
	MDS200-016-S2	Frame: 200 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,485 Nm
	MDS200-020-S2	Frame: 200 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,495 Nm
	MDS200-021-S2	Frame: 200 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
	MDS200-025-S2	Frame: 200 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
	MDS200-028-S2	Frame: 200 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,510 Nm
	MDS200-031-S2	Frame: 200 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,050 Nm
	MDS200-035-S2	Frame: 200 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,310 Nm
	MDS200-040-S2	Frame: 200 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,260 Nm
	MDS200-046-S2	Frame: 200 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MDS200-050-S2	Frame: 200 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,325 Nm
	MDS200-061-S2	Frame: 200 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
	MDS200-070-S2	Frame: 200 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
	MDS200-091-S2	Frame: 200 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MDS200-100-S2	Frame: 200 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MDS255-004-S2	Frame: 255 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,190 Nm
	MDS255-005-S2	Frame: 255 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,905 Nm
	MDS255-007-S2	Frame: 255 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,530 Nm
	MDS255-010-S2	Frame: 255 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,070 Nm
	MDS255-016-S2	Frame: 255 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,295 Nm
	MDS255-020-S2	Frame: 255 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,990 Nm
	MDS255-021-S2	Frame: 255 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
	MDS255-025-S2	Frame: 255 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
	MDS255-028-S2	Frame: 255 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,335 Nm
	MDS255-031-S2	Frame: 255 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,620 Nm
	MDS255-035-S2	Frame: 255 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,030 Nm
	MDS255-040-S2	Frame: 255 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,360 Nm
	MDS255-046-S2	Frame: 255 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MDS255-050-S2	Frame: 255 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,050 Nm
	MDS255-061-S2	Frame: 255 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
	MDS255-070-S2	Frame: 255 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
	MDS255-091-S2	Frame: 255 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MDS255-100-S2	Frame: 255 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MDS285-004-S2	Frame: 285 \| Stages: 1 \| Ratio i: 4 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 4,035 Nm
	MDS285-005-S2	Frame: 285 \| Stages: 1 \| Ratio i: 5 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 3,505 Nm
	MDS285-007-S2	Frame: 285 \| Stages: 1 \| Ratio i: 7 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,530 Nm
	MDS285-010-S2	Frame: 285 \| Stages: 1 \| Ratio i: 10 \| Input: Shaft S2 keyed \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,810 Nm
	MDS285-016-S2	Frame: 285 \| Stages: 2 \| Ratio i: 16 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,215 Nm
	MDS285-020-S2	Frame: 285 \| Stages: 2 \| Ratio i: 20 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,660 Nm
	MDS285-021-S2	Frame: 285 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
	MDS285-025-S2	Frame: 285 \| Stages: 2 \| Ratio i: 25 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
	MDS285-028-S2	Frame: 285 \| Stages: 2 \| Ratio i: 28 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,290 Nm
	MDS285-031-S2	Frame: 285 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,590 Nm
	MDS285-035-S2	Frame: 285 \| Stages: 2 \| Ratio i: 35 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,725 Nm
	MDS285-040-S2	Frame: 285 \| Stages: 2 \| Ratio i: 40 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,280 Nm
	MDS285-046-S2	Frame: 285 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MDS285-050-S2	Frame: 285 \| Stages: 2 \| Ratio i: 50 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,765 Nm
	MDS285-061-S2	Frame: 285 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
	MDS285-070-S2	Frame: 285 \| Stages: 2 \| Ratio i: 70 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
	MDS285-091-S2	Frame: 285 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MDS285-100-S2	Frame: 285 \| Stages: 2 \| Ratio i: 100 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MDS355-021-S2	Frame: 355 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 6,525 Nm
	MDS355-031-S2	Frame: 355 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,280 Nm
	MDS355-046-S2	Frame: 355 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
	MDS355-061-S2	Frame: 355 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,445 Nm
	MDS355-091-S2	Frame: 355 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,400 Nm
	MDS450-021-S2	Frame: 450 \| Stages: 2 \| Ratio i: 21 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 12,495 Nm
	MDS450-031-S2	Frame: 450 \| Stages: 2 \| Ratio i: 31 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,595 Nm
	MDS450-046-S2	Frame: 450 \| Stages: 2 \| Ratio i: 46 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,125 Nm
	MDS450-061-S2	Frame: 450 \| Stages: 2 \| Ratio i: 61 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 10,895 Nm
	MDS450-091-S2	Frame: 450 \| Stages: 2 \| Ratio i: 91 \| Input: Shaft S2 keyed \| Backlash: <=4 arcmin \| Nominal torque T2N: 7,000 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Apex Dynamics MD Precision Planetary Gearboxes (064-450, i=4-100)
