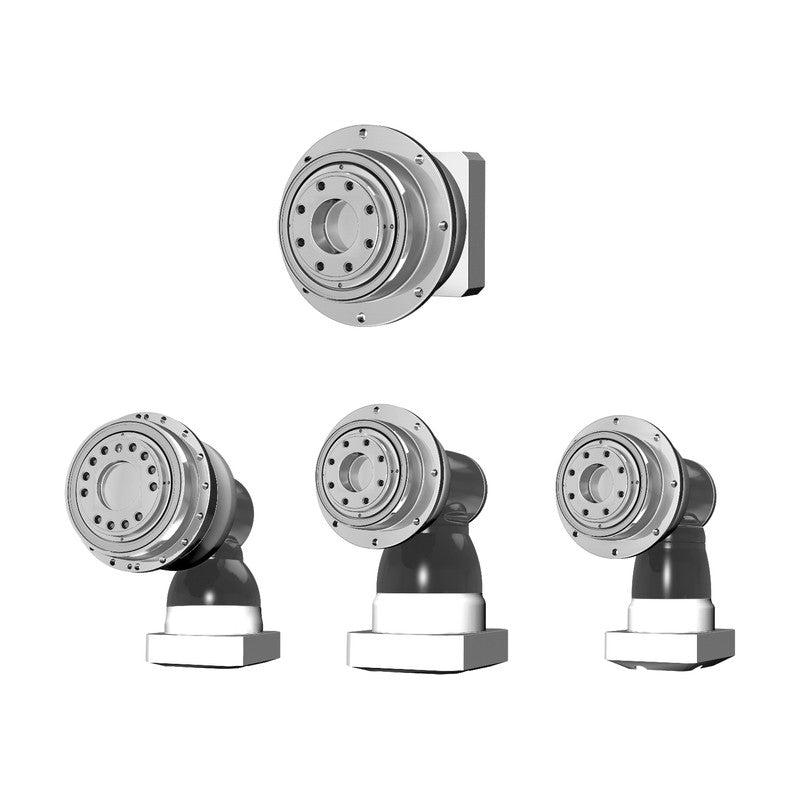

Apex Dynamics MDK Right-Angle Planetary Gearboxes (i=4-10,000)

Apex Dynamics MDK Right-Angle Planetary Gearboxes (i=4-10,000)

Apex Dynamics MDK right-angle precision gearboxes combining a K hypoid right-angle stage with MD flange-output planetary stages, in 2- to 4-stage versions MDK, MDKA, MDKB and MDKC with ratios from 4 up to 10,000.

Key features

  • MDK 2-stage (K+MD) i=12-100, frames 064-355; MDK 4-stage i=1,225-10,000, frames 285-450
  • MDKA 3-stage (K+MD+MD) i=100-1,000, frames 285-450; MDKB 3-stage (MD input + K + MD) i=64-1,000, frames 090-355
  • MDKC: 2-stage i=4-10 (frames 064-285) and 3-stage i=21-91 (frames 090-450)
  • Backlash <=4 arcmin; nominal output torque up to 13,585 Nm; emergency stop torque 2 x T2N
  • IP67, synthetic grease lubrication, any mounting position; MD flange output interface
  • Motor input completed per motor: specify motor make and model when ordering (e.g. MDK090-012 / motor)

Specifications

Series MDK / MDKA / MDKB / MDKC
Backlash <=4 arcmin (at 2% of T2N)
Max. acceleration torque T2B 1.5 x T2N
Emergency stop torque T2NOT 2 x T2N
Torsional rigidity 12-5,100 Nm/arcmin (by size)
Max. tilting moment M2K 120-63,300 Nm
Efficiency >=92% to >=95% (by version/stages)
Operating temperature -10 to 90 C
Protection / lubrication IP67 / synthetic lubrication grease
Source APEX Dynamics MD/MDK catalog, p. 3, 8-18
MDK064-012 Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 80 Nm
MDK064-016 Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 80 Nm
MDK064-020 Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 75 Nm
MDK064-025 Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 80 Nm
MDK064-028 Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 75 Nm
MDK064-035 Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 80 Nm
MDK064-040 Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 72 Nm
MDK064-049 Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 63 Nm
MDK064-050 Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 85 Nm
MDK064-070 Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 63 Nm
MDK064-100 Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 24 Nm
MDK090-012 Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 195 Nm
MDK090-016 Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 185 Nm
MDK090-020 Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 180 Nm
MDK090-025 Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 195 Nm
MDK090-028 Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 170 Nm
MDK090-035 Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 190 Nm
MDK090-040 Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 160 Nm
MDK090-049 Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 135 Nm
MDK090-050 Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 185 Nm
MDK090-070 Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 135 Nm
MDK090-100 Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 57 Nm
MDK110-012 Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 365 Nm
MDK110-016 Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 350 Nm
MDK110-020 Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 335 Nm
MDK110-025 Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 350 Nm
MDK110-028 Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 320 Nm
MDK110-035 Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 355 Nm
MDK110-040 Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 305 Nm
MDK110-049 Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 290 Nm
MDK110-050 Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 345 Nm
MDK110-070 Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 295 Nm
MDK110-100 Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 160 Nm
MDK140-012 Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 805 Nm
MDK140-016 Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 775 Nm
MDK140-020 Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 750 Nm
MDK140-025 Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 710 Nm
MDK140-028 Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 720 Nm
MDK140-035 Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 715 Nm
MDK140-040 Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 680 Nm
MDK140-049 Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 585 Nm
MDK140-050 Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 725 Nm
MDK140-070 Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 600 Nm
MDK140-100 Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 350 Nm
MDK200-012 Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 1,495 Nm
MDK200-016 Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 1,510 Nm
MDK200-020 Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 1,520 Nm
MDK200-025 Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 1,320 Nm
MDK200-028 Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 1,465 Nm
MDK200-035 Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 1,330 Nm
MDK200-040 Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 1,405 Nm
MDK200-049 Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 1,105 Nm
MDK200-050 Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 1,345 Nm
MDK200-070 Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 1,130 Nm
MDK200-100 Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 605 Nm
MDK255-012 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 1,680 Nm
MDK255-015 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 15 | Nominal torque T2N: 2,005 Nm
MDK255-016 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 1,680 Nm
MDK255-020 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 1,780 Nm
MDK255-025 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 1,775 Nm
MDK255-028 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 1,560 Nm
MDK255-035 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 1,950 Nm
MDK255-040 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 1,440 Nm
MDK255-049 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 1,680 Nm
MDK255-050 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 1,800 Nm
MDK255-070 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 1,710 Nm
MDK255-100 Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 915 Nm
MDK285-012 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 3,280 Nm
MDK285-015 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 15 | Nominal torque T2N: 3,675 Nm
MDK285-016 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 3,280 Nm
MDK285-020 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 3,710 Nm
MDK285-025 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 3,735 Nm
MDK285-028 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 3,000 Nm
MDK285-035 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 3,750 Nm
MDK285-040 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 2,400 Nm
MDK285-049 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 2,685 Nm
MDK285-050 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 3,000 Nm
MDK285-070 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 2,730 Nm
MDK285-100 Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 1,590 Nm
MDK355-015 Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 15 | Nominal torque T2N: 6,510 Nm
MDK355-020 Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 6,570 Nm
MDK355-025 Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 6,615 Nm
MDK355-035 Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 6,675 Nm
MDK355-049 Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 5,470 Nm
MDK355-050 Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 5,500 Nm
MDK355-070 Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 5,560 Nm
MDK355-100 Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 3,315 Nm
MDKA285-100 Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 3,875 Nm
MDKA285-125 Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 3,900 Nm
MDKA285-140 Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 3,910 Nm
MDKA285-175 Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 3,930 Nm
MDKA285-200 Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 3,945 Nm
MDKA285-250 Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 3,970 Nm
MDKA285-350 Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 4,000 Nm
MDKA285-500 Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 4,035 Nm
MDKA285-700 Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 3,090 Nm
MDKA285-1000 Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 1,770 Nm
MDKA355-100 Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 6,815 Nm
MDKA355-125 Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 6,855 Nm
MDKA355-140 Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 6,870 Nm
MDKA355-175 Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 6,910 Nm
MDKA355-200 Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 6,930 Nm
MDKA355-250 Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 6,970 Nm
MDKA355-350 Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 7,030 Nm
MDKA355-500 Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 5,350 Nm
MDKA355-700 Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 6,190 Nm
MDKA355-1000 Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 3,400 Nm
MDKA450-100 Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 12,930 Nm
MDKA450-125 Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 12,995 Nm
MDKA450-140 Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 13,030 Nm
MDKA450-175 Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 13,090 Nm
MDKA450-200 Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 12,000 Nm
MDKA450-250 Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 13,195 Nm
MDKA450-350 Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 12,650 Nm
MDKA450-500 Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 9,050 Nm
MDKA450-700 Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 11,960 Nm
MDKA450-1000 Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 7,055 Nm
MDKB090-064 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 165 Nm
MDKB090-084 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 165 Nm
MDKB090-100 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 165 Nm
MDKB090-125 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 190 Nm
MDKB090-140 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 170 Nm
MDKB090-175 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 190 Nm
MDKB090-200 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 175 Nm
MDKB090-250 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 195 Nm
MDKB090-280 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 180 Nm
MDKB090-350 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 200 Nm
MDKB090-400 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 160 Nm
MDKB090-500 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 200 Nm
MDKB090-700 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 135 Nm
MDKB090-1000 Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 55 Nm
MDKB110-064 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 310 Nm
MDKB110-084 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 300 Nm
MDKB110-100 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 290 Nm
MDKB110-125 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 330 Nm
MDKB110-140 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 285 Nm
MDKB110-175 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 325 Nm
MDKB110-200 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 290 Nm
MDKB110-250 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 335 Nm
MDKB110-280 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 300 Nm
MDKB110-350 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 345 Nm
MDKB110-400 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 330 Nm
MDKB110-500 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 380 Nm
MDKB110-700 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 325 Nm
MDKB110-1000 Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 160 Nm
MDKB140-064 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 690 Nm
MDKB140-084 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 670 Nm
MDKB140-100 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 655 Nm
MDKB140-125 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 730 Nm
MDKB140-140 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 630 Nm
MDKB140-175 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 705 Nm
MDKB140-200 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 605 Nm
MDKB140-250 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 680 Nm
MDKB140-280 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 610 Nm
MDKB140-350 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 705 Nm
MDKB140-400 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 670 Nm
MDKB140-500 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 760 Nm
MDKB140-700 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 670 Nm
MDKB140-1000 Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 380 Nm
MDKB200-064 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 1,425 Nm
MDKB200-084 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 1,380 Nm
MDKB200-100 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 1,355 Nm
MDKB200-125 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 1,355 Nm
MDKB200-140 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 1,310 Nm
MDKB200-175 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 1,370 Nm
MDKB200-200 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 1,265 Nm
MDKB200-250 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 1,380 Nm
MDKB200-280 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 1,230 Nm
MDKB200-350 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 1,395 Nm
MDKB200-400 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 1,330 Nm
MDKB200-500 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 1,405 Nm
MDKB200-700 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 1,240 Nm
MDKB200-1000 Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 660 Nm
MDKB255-064 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 1,680 Nm
MDKB255-084 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 1,680 Nm
MDKB255-100 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 2,085 Nm
MDKB255-125 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 2,095 Nm
MDKB255-140 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 2,100 Nm
MDKB255-175 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 2,115 Nm
MDKB255-200 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 2,100 Nm
MDKB255-250 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 2,135 Nm
MDKB255-280 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 1,560 Nm
MDKB255-350 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 1,950 Nm
MDKB255-400 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 1,440 Nm
MDKB255-500 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 1,800 Nm
MDKB255-700 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 1,875 Nm
MDKB255-1000 Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 1,065 Nm
MDKB285-064 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 3,280 Nm
MDKB285-084 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 3,280 Nm
MDKB285-100 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 3,830 Nm
MDKB285-125 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 3,850 Nm
MDKB285-140 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 3,860 Nm
MDKB285-175 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 3,885 Nm
MDKB285-200 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 3,900 Nm
MDKB285-250 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 3,920 Nm
MDKB285-280 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 3,000 Nm
MDKB285-350 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 3,750 Nm
MDKB285-400 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 2,400 Nm
MDKB285-500 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 3,000 Nm
MDKB285-700 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 3,005 Nm
MDKB285-1000 Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 1,725 Nm
MDKB355-100 Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 6,745 Nm
MDKB355-125 Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 6,785 Nm
MDKB355-140 Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 6,805 Nm
MDKB355-175 Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 6,845 Nm
MDKB355-200 Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 6,865 Nm
MDKB355-250 Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 6,905 Nm
MDKB355-350 Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 6,965 Nm
MDKB355-500 Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 5,050 Nm
MDKB355-700 Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 6,060 Nm
MDKB355-1000 Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 3,325 Nm
MDK285-1225 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 1,225 | Nominal torque T2N: 4,070 Nm
MDK285-1400 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 1,400 | Nominal torque T2N: 4,085 Nm
MDK285-1750 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 1,750 | Nominal torque T2N: 4,100 Nm
MDK285-2000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 2,000 | Nominal torque T2N: 4,120 Nm
MDK285-2800 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 2,800 | Nominal torque T2N: 3,185 Nm
MDK285-3500 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 3,500 | Nominal torque T2N: 4,180 Nm
MDK285-5000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 5,000 | Nominal torque T2N: 4,285 Nm
MDK285-7000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 7,000 | Nominal torque T2N: 3,445 Nm
MDK285-10000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 10,000 | Nominal torque T2N: 2,240 Nm
MDK355-1225 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 1,225 | Nominal torque T2N: 7,145 Nm
MDK355-1400 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 1,400 | Nominal torque T2N: 7,170 Nm
MDK355-1750 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 1,750 | Nominal torque T2N: 7,200 Nm
MDK355-2000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 2,000 | Nominal torque T2N: 7,200 Nm
MDK355-2800 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 2,800 | Nominal torque T2N: 6,320 Nm
MDK355-3500 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 3,500 | Nominal torque T2N: 7,330 Nm
MDK355-5000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 5,000 | Nominal torque T2N: 5,350 Nm
MDK355-7000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 7,000 | Nominal torque T2N: 6,780 Nm
MDK355-10000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 10,000 | Nominal torque T2N: 4,425 Nm
MDK450-1225 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 1,225 | Nominal torque T2N: 13,490 Nm
MDK450-1400 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 1,400 | Nominal torque T2N: 13,535 Nm
MDK450-1750 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 1,750 | Nominal torque T2N: 13,585 Nm
MDK450-2000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 2,000 | Nominal torque T2N: 12,000 Nm
MDK450-2800 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 2,800 | Nominal torque T2N: 12,145 Nm
MDK450-3500 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 3,500 | Nominal torque T2N: 12,650 Nm
MDK450-5000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 5,000 | Nominal torque T2N: 9,050 Nm
MDK450-7000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 7,000 | Nominal torque T2N: 12,670 Nm
MDK450-10000 Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 10,000 | Nominal torque T2N: 9,370 Nm
MDKC064-004 Version: MDKC 2-stage | Frame: 064 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 100 Nm
MDKC064-005 Version: MDKC 2-stage | Frame: 064 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 85 Nm
MDKC064-007 Version: MDKC 2-stage | Frame: 064 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 60 Nm
MDKC064-008 Version: MDKC 2-stage | Frame: 064 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 96 Nm
MDKC064-010 Version: MDKC 2-stage | Frame: 064 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 90 Nm
MDKC090-004 Version: MDKC 2-stage | Frame: 090 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 205 Nm
MDKC090-005 Version: MDKC 2-stage | Frame: 090 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 185 Nm
MDKC090-007 Version: MDKC 2-stage | Frame: 090 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 135 Nm
MDKC090-008 Version: MDKC 2-stage | Frame: 090 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 205 Nm
MDKC090-010 Version: MDKC 2-stage | Frame: 090 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 190 Nm
MDKC090-021 Version: MDKC 3-stage | Frame: 090 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 195 Nm
MDKC090-031 Version: MDKC 3-stage | Frame: 090 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 135 Nm
MDKC090-046 Version: MDKC 3-stage | Frame: 090 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 57 Nm
MDKC090-061 Version: MDKC 3-stage | Frame: 090 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 135 Nm
MDKC090-091 Version: MDKC 3-stage | Frame: 090 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 57 Nm
MDKC110-004 Version: MDKC 2-stage | Frame: 110 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 380 Nm
MDKC110-005 Version: MDKC 2-stage | Frame: 110 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 330 Nm
MDKC110-007 Version: MDKC 2-stage | Frame: 110 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 260 Nm
MDKC110-008 Version: MDKC 2-stage | Frame: 110 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 395 Nm
MDKC110-010 Version: MDKC 2-stage | Frame: 110 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 340 Nm
MDKC110-021 Version: MDKC 3-stage | Frame: 110 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 345 Nm
MDKC110-031 Version: MDKC 3-stage | Frame: 110 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 275 Nm
MDKC110-046 Version: MDKC 3-stage | Frame: 110 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 160 Nm
MDKC110-061 Version: MDKC 3-stage | Frame: 110 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 285 Nm
MDKC110-091 Version: MDKC 3-stage | Frame: 110 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 160 Nm
MDKC140-004 Version: MDKC 2-stage | Frame: 140 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 775 Nm
MDKC140-005 Version: MDKC 2-stage | Frame: 140 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 670 Nm
MDKC140-007 Version: MDKC 2-stage | Frame: 140 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 525 Nm
MDKC140-008 Version: MDKC 2-stage | Frame: 140 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 800 Nm
MDKC140-010 Version: MDKC 2-stage | Frame: 140 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 690 Nm
MDKC140-021 Version: MDKC 3-stage | Frame: 140 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 700 Nm
MDKC140-031 Version: MDKC 3-stage | Frame: 140 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 565 Nm
MDKC140-046 Version: MDKC 3-stage | Frame: 140 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 340 Nm
MDKC140-061 Version: MDKC 3-stage | Frame: 140 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 590 Nm
MDKC140-091 Version: MDKC 3-stage | Frame: 140 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 350 Nm
MDKC200-004 Version: MDKC 2-stage | Frame: 200 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 1,440 Nm
MDKC200-005 Version: MDKC 2-stage | Frame: 200 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 1,250 Nm
MDKC200-007 Version: MDKC 2-stage | Frame: 200 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 1,000 Nm
MDKC200-008 Version: MDKC 2-stage | Frame: 200 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 1,320 Nm
MDKC200-010 Version: MDKC 2-stage | Frame: 200 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 1,290 Nm
MDKC200-021 Version: MDKC 3-stage | Frame: 200 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 1,310 Nm
MDKC200-031 Version: MDKC 3-stage | Frame: 200 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 1,070 Nm
MDKC200-046 Version: MDKC 3-stage | Frame: 200 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 660 Nm
MDKC200-061 Version: MDKC 3-stage | Frame: 200 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 1,115 Nm
MDKC200-091 Version: MDKC 3-stage | Frame: 200 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 660 Nm
MDKC255-004 Version: MDKC 2-stage | Frame: 255 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 2,240 Nm
MDKC255-005 Version: MDKC 2-stage | Frame: 255 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 1,930 Nm
MDKC255-007 Version: MDKC 2-stage | Frame: 255 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 1,565 Nm
MDKC255-008 Version: MDKC 2-stage | Frame: 255 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 2,300 Nm
MDKC255-010 Version: MDKC 2-stage | Frame: 255 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 2,000 Nm
MDKC255-021 Version: MDKC 3-stage | Frame: 255 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 2,045 Nm
MDKC255-031 Version: MDKC 3-stage | Frame: 255 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 1,665 Nm
MDKC255-046 Version: MDKC 3-stage | Frame: 255 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 1,000 Nm
MDKC255-061 Version: MDKC 3-stage | Frame: 255 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 1,720 Nm
MDKC255-091 Version: MDKC 3-stage | Frame: 255 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 985 Nm
MDKC285-004 Version: MDKC 2-stage | Frame: 285 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 4,160 Nm
MDKC285-005 Version: MDKC 2-stage | Frame: 285 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 3,610 Nm
MDKC285-007 Version: MDKC 2-stage | Frame: 285 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 2,535 Nm
MDKC285-008 Version: MDKC 2-stage | Frame: 285 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 4,260 Nm
MDKC285-010 Version: MDKC 2-stage | Frame: 285 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 3,700 Nm
MDKC285-021 Version: MDKC 3-stage | Frame: 285 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 3,750 Nm
MDKC285-031 Version: MDKC 3-stage | Frame: 285 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 2,660 Nm
MDKC285-046 Version: MDKC 3-stage | Frame: 285 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 1,710 Nm
MDKC285-061 Version: MDKC 3-stage | Frame: 285 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 2,750 Nm
MDKC285-091 Version: MDKC 3-stage | Frame: 285 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 1,600 Nm
MDKC355-021 Version: MDKC 3-stage | Frame: 355 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 6,590 Nm
MDKC355-031 Version: MDKC 3-stage | Frame: 355 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 5,400 Nm
MDKC355-046 Version: MDKC 3-stage | Frame: 355 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 3,375 Nm
MDKC355-061 Version: MDKC 3-stage | Frame: 355 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 5,580 Nm
MDKC355-091 Version: MDKC 3-stage | Frame: 355 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 3,375 Nm
MDKC450-021 Version: MDKC 3-stage | Frame: 450 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 12,630 Nm
MDKC450-031 Version: MDKC 3-stage | Frame: 450 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 10,800 Nm
MDKC450-046 Version: MDKC 3-stage | Frame: 450 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 6,945 Nm
MDKC450-061 Version: MDKC 3-stage | Frame: 450 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 11,110 Nm
MDKC450-091 Version: MDKC 3-stage | Frame: 450 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 6,430 Nm
Planetary GearboxesApex Dynamics
313 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics MDK Right-Angle Planetary Gearboxes (i=4-10,000)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (313)

MDK064-012, MDK064-016, MDK064-020, MDK064-025, MDK064-028, MDK064-035, MDK064-040, MDK064-049, MDK064-050, MDK064-070 + 303 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDK064-012Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 80 Nm
MDK064-016Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 80 Nm
MDK064-020Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 75 Nm
MDK064-025Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 80 Nm
MDK064-028Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 75 Nm
MDK064-035Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 80 Nm
MDK064-040Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 72 Nm
MDK064-049Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 63 Nm
MDK064-050Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 85 Nm
MDK064-070Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 63 Nm
MDK064-100Version: MDK 2-stage (K+MD) | Frame: 064 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 24 Nm
MDK090-012Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 195 Nm
MDK090-016Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 185 Nm
MDK090-020Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 180 Nm
MDK090-025Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 195 Nm
MDK090-028Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 170 Nm
MDK090-035Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 190 Nm
MDK090-040Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 160 Nm
MDK090-049Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 135 Nm
MDK090-050Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 185 Nm
MDK090-070Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 135 Nm
MDK090-100Version: MDK 2-stage (K+MD) | Frame: 090 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 57 Nm
MDK110-012Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 365 Nm
MDK110-016Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 350 Nm
MDK110-020Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 335 Nm
MDK110-025Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 350 Nm
MDK110-028Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 320 Nm
MDK110-035Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 355 Nm
MDK110-040Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 305 Nm
MDK110-049Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 290 Nm
MDK110-050Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 345 Nm
MDK110-070Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 295 Nm
MDK110-100Version: MDK 2-stage (K+MD) | Frame: 110 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 160 Nm
MDK140-012Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 805 Nm
MDK140-016Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 775 Nm
MDK140-020Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 750 Nm
MDK140-025Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 710 Nm
MDK140-028Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 720 Nm
MDK140-035Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 715 Nm
MDK140-040Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 680 Nm
MDK140-049Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 585 Nm
MDK140-050Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 725 Nm
MDK140-070Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 600 Nm
MDK140-100Version: MDK 2-stage (K+MD) | Frame: 140 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 350 Nm
MDK200-012Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 1,495 Nm
MDK200-016Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 1,510 Nm
MDK200-020Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 1,520 Nm
MDK200-025Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 1,320 Nm
MDK200-028Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 1,465 Nm
MDK200-035Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 1,330 Nm
MDK200-040Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 1,405 Nm
MDK200-049Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 1,105 Nm
MDK200-050Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 1,345 Nm
MDK200-070Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 1,130 Nm
MDK200-100Version: MDK 2-stage (K+MD) | Frame: 200 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 605 Nm
MDK255-012Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 1,680 Nm
MDK255-015Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 15 | Nominal torque T2N: 2,005 Nm
MDK255-016Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 1,680 Nm
MDK255-020Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 1,780 Nm
MDK255-025Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 1,775 Nm
MDK255-028Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 1,560 Nm
MDK255-035Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 1,950 Nm
MDK255-040Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 1,440 Nm
MDK255-049Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 1,680 Nm
MDK255-050Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 1,800 Nm
MDK255-070Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 1,710 Nm
MDK255-100Version: MDK 2-stage (K+MD) | Frame: 255 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 915 Nm
MDK285-012Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 12 | Nominal torque T2N: 3,280 Nm
MDK285-015Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 15 | Nominal torque T2N: 3,675 Nm
MDK285-016Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 16 | Nominal torque T2N: 3,280 Nm
MDK285-020Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 3,710 Nm
MDK285-025Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 3,735 Nm
MDK285-028Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 28 | Nominal torque T2N: 3,000 Nm
MDK285-035Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 3,750 Nm
MDK285-040Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 40 | Nominal torque T2N: 2,400 Nm
MDK285-049Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 2,685 Nm
MDK285-050Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 3,000 Nm
MDK285-070Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 2,730 Nm
MDK285-100Version: MDK 2-stage (K+MD) | Frame: 285 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 1,590 Nm
MDK355-015Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 15 | Nominal torque T2N: 6,510 Nm
MDK355-020Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 20 | Nominal torque T2N: 6,570 Nm
MDK355-025Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 25 | Nominal torque T2N: 6,615 Nm
MDK355-035Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 35 | Nominal torque T2N: 6,675 Nm
MDK355-049Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 49 | Nominal torque T2N: 5,470 Nm
MDK355-050Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 50 | Nominal torque T2N: 5,500 Nm
MDK355-070Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 70 | Nominal torque T2N: 5,560 Nm
MDK355-100Version: MDK 2-stage (K+MD) | Frame: 355 | Stages: 2 | Ratio i: 100 | Nominal torque T2N: 3,315 Nm
MDKA285-100Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 3,875 Nm
MDKA285-125Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 3,900 Nm
MDKA285-140Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 3,910 Nm
MDKA285-175Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 3,930 Nm
MDKA285-200Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 3,945 Nm
MDKA285-250Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 3,970 Nm
MDKA285-350Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 4,000 Nm
MDKA285-500Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 4,035 Nm
MDKA285-700Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 3,090 Nm
MDKA285-1000Version: MDKA 3-stage (K+MD+MD) | Frame: 285 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 1,770 Nm
MDKA355-100Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 6,815 Nm
MDKA355-125Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 6,855 Nm
MDKA355-140Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 6,870 Nm
MDKA355-175Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 6,910 Nm
MDKA355-200Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 6,930 Nm
MDKA355-250Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 6,970 Nm
MDKA355-350Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 7,030 Nm
MDKA355-500Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 5,350 Nm
MDKA355-700Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 6,190 Nm
MDKA355-1000Version: MDKA 3-stage (K+MD+MD) | Frame: 355 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 3,400 Nm
MDKA450-100Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 12,930 Nm
MDKA450-125Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 12,995 Nm
MDKA450-140Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 13,030 Nm
MDKA450-175Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 13,090 Nm
MDKA450-200Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 12,000 Nm
MDKA450-250Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 13,195 Nm
MDKA450-350Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 12,650 Nm
MDKA450-500Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 9,050 Nm
MDKA450-700Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 11,960 Nm
MDKA450-1000Version: MDKA 3-stage (K+MD+MD) | Frame: 450 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 7,055 Nm
MDKB090-064Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 165 Nm
MDKB090-084Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 165 Nm
MDKB090-100Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 165 Nm
MDKB090-125Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 190 Nm
MDKB090-140Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 170 Nm
MDKB090-175Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 190 Nm
MDKB090-200Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 175 Nm
MDKB090-250Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 195 Nm
MDKB090-280Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 180 Nm
MDKB090-350Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 200 Nm
MDKB090-400Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 160 Nm
MDKB090-500Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 200 Nm
MDKB090-700Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 135 Nm
MDKB090-1000Version: MDKB 3-stage (MD+K+MD) | Frame: 090 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 55 Nm
MDKB110-064Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 310 Nm
MDKB110-084Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 300 Nm
MDKB110-100Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 290 Nm
MDKB110-125Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 330 Nm
MDKB110-140Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 285 Nm
MDKB110-175Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 325 Nm
MDKB110-200Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 290 Nm
MDKB110-250Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 335 Nm
MDKB110-280Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 300 Nm
MDKB110-350Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 345 Nm
MDKB110-400Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 330 Nm
MDKB110-500Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 380 Nm
MDKB110-700Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 325 Nm
MDKB110-1000Version: MDKB 3-stage (MD+K+MD) | Frame: 110 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 160 Nm
MDKB140-064Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 690 Nm
MDKB140-084Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 670 Nm
MDKB140-100Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 655 Nm
MDKB140-125Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 730 Nm
MDKB140-140Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 630 Nm
MDKB140-175Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 705 Nm
MDKB140-200Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 605 Nm
MDKB140-250Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 680 Nm
MDKB140-280Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 610 Nm
MDKB140-350Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 705 Nm
MDKB140-400Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 670 Nm
MDKB140-500Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 760 Nm
MDKB140-700Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 670 Nm
MDKB140-1000Version: MDKB 3-stage (MD+K+MD) | Frame: 140 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 380 Nm
MDKB200-064Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 1,425 Nm
MDKB200-084Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 1,380 Nm
MDKB200-100Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 1,355 Nm
MDKB200-125Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 1,355 Nm
MDKB200-140Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 1,310 Nm
MDKB200-175Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 1,370 Nm
MDKB200-200Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 1,265 Nm
MDKB200-250Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 1,380 Nm
MDKB200-280Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 1,230 Nm
MDKB200-350Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 1,395 Nm
MDKB200-400Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 1,330 Nm
MDKB200-500Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 1,405 Nm
MDKB200-700Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 1,240 Nm
MDKB200-1000Version: MDKB 3-stage (MD+K+MD) | Frame: 200 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 660 Nm
MDKB255-064Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 1,680 Nm
MDKB255-084Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 1,680 Nm
MDKB255-100Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 2,085 Nm
MDKB255-125Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 2,095 Nm
MDKB255-140Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 2,100 Nm
MDKB255-175Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 2,115 Nm
MDKB255-200Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 2,100 Nm
MDKB255-250Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 2,135 Nm
MDKB255-280Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 1,560 Nm
MDKB255-350Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 1,950 Nm
MDKB255-400Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 1,440 Nm
MDKB255-500Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 1,800 Nm
MDKB255-700Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 1,875 Nm
MDKB255-1000Version: MDKB 3-stage (MD+K+MD) | Frame: 255 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 1,065 Nm
MDKB285-064Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 64 | Nominal torque T2N: 3,280 Nm
MDKB285-084Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 84 | Nominal torque T2N: 3,280 Nm
MDKB285-100Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 3,830 Nm
MDKB285-125Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 3,850 Nm
MDKB285-140Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 3,860 Nm
MDKB285-175Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 3,885 Nm
MDKB285-200Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 3,900 Nm
MDKB285-250Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 3,920 Nm
MDKB285-280Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 280 | Nominal torque T2N: 3,000 Nm
MDKB285-350Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 3,750 Nm
MDKB285-400Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 400 | Nominal torque T2N: 2,400 Nm
MDKB285-500Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 3,000 Nm
MDKB285-700Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 3,005 Nm
MDKB285-1000Version: MDKB 3-stage (MD+K+MD) | Frame: 285 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 1,725 Nm
MDKB355-100Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 100 | Nominal torque T2N: 6,745 Nm
MDKB355-125Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 125 | Nominal torque T2N: 6,785 Nm
MDKB355-140Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 140 | Nominal torque T2N: 6,805 Nm
MDKB355-175Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 175 | Nominal torque T2N: 6,845 Nm
MDKB355-200Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 200 | Nominal torque T2N: 6,865 Nm
MDKB355-250Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 250 | Nominal torque T2N: 6,905 Nm
MDKB355-350Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 350 | Nominal torque T2N: 6,965 Nm
MDKB355-500Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 500 | Nominal torque T2N: 5,050 Nm
MDKB355-700Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 700 | Nominal torque T2N: 6,060 Nm
MDKB355-1000Version: MDKB 3-stage (MD+K+MD) | Frame: 355 | Stages: 3 | Ratio i: 1,000 | Nominal torque T2N: 3,325 Nm
MDK285-1225Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 1,225 | Nominal torque T2N: 4,070 Nm
MDK285-1400Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 1,400 | Nominal torque T2N: 4,085 Nm
MDK285-1750Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 1,750 | Nominal torque T2N: 4,100 Nm
MDK285-2000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 2,000 | Nominal torque T2N: 4,120 Nm
MDK285-2800Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 2,800 | Nominal torque T2N: 3,185 Nm
MDK285-3500Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 3,500 | Nominal torque T2N: 4,180 Nm
MDK285-5000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 5,000 | Nominal torque T2N: 4,285 Nm
MDK285-7000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 7,000 | Nominal torque T2N: 3,445 Nm
MDK285-10000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 285 | Stages: 4 | Ratio i: 10,000 | Nominal torque T2N: 2,240 Nm
MDK355-1225Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 1,225 | Nominal torque T2N: 7,145 Nm
MDK355-1400Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 1,400 | Nominal torque T2N: 7,170 Nm
MDK355-1750Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 1,750 | Nominal torque T2N: 7,200 Nm
MDK355-2000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 2,000 | Nominal torque T2N: 7,200 Nm
MDK355-2800Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 2,800 | Nominal torque T2N: 6,320 Nm
MDK355-3500Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 3,500 | Nominal torque T2N: 7,330 Nm
MDK355-5000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 5,000 | Nominal torque T2N: 5,350 Nm
MDK355-7000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 7,000 | Nominal torque T2N: 6,780 Nm
MDK355-10000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 355 | Stages: 4 | Ratio i: 10,000 | Nominal torque T2N: 4,425 Nm
MDK450-1225Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 1,225 | Nominal torque T2N: 13,490 Nm
MDK450-1400Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 1,400 | Nominal torque T2N: 13,535 Nm
MDK450-1750Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 1,750 | Nominal torque T2N: 13,585 Nm
MDK450-2000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 2,000 | Nominal torque T2N: 12,000 Nm
MDK450-2800Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 2,800 | Nominal torque T2N: 12,145 Nm
MDK450-3500Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 3,500 | Nominal torque T2N: 12,650 Nm
MDK450-5000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 5,000 | Nominal torque T2N: 9,050 Nm
MDK450-7000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 7,000 | Nominal torque T2N: 12,670 Nm
MDK450-10000Version: MDK 4-stage (MD+K+MD+MD) | Frame: 450 | Stages: 4 | Ratio i: 10,000 | Nominal torque T2N: 9,370 Nm
MDKC064-004Version: MDKC 2-stage | Frame: 064 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 100 Nm
MDKC064-005Version: MDKC 2-stage | Frame: 064 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 85 Nm
MDKC064-007Version: MDKC 2-stage | Frame: 064 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 60 Nm
MDKC064-008Version: MDKC 2-stage | Frame: 064 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 96 Nm
MDKC064-010Version: MDKC 2-stage | Frame: 064 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 90 Nm
MDKC090-004Version: MDKC 2-stage | Frame: 090 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 205 Nm
MDKC090-005Version: MDKC 2-stage | Frame: 090 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 185 Nm
MDKC090-007Version: MDKC 2-stage | Frame: 090 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 135 Nm
MDKC090-008Version: MDKC 2-stage | Frame: 090 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 205 Nm
MDKC090-010Version: MDKC 2-stage | Frame: 090 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 190 Nm
MDKC090-021Version: MDKC 3-stage | Frame: 090 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 195 Nm
MDKC090-031Version: MDKC 3-stage | Frame: 090 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 135 Nm
MDKC090-046Version: MDKC 3-stage | Frame: 090 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 57 Nm
MDKC090-061Version: MDKC 3-stage | Frame: 090 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 135 Nm
MDKC090-091Version: MDKC 3-stage | Frame: 090 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 57 Nm
MDKC110-004Version: MDKC 2-stage | Frame: 110 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 380 Nm
MDKC110-005Version: MDKC 2-stage | Frame: 110 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 330 Nm
MDKC110-007Version: MDKC 2-stage | Frame: 110 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 260 Nm
MDKC110-008Version: MDKC 2-stage | Frame: 110 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 395 Nm
MDKC110-010Version: MDKC 2-stage | Frame: 110 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 340 Nm
MDKC110-021Version: MDKC 3-stage | Frame: 110 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 345 Nm
MDKC110-031Version: MDKC 3-stage | Frame: 110 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 275 Nm
MDKC110-046Version: MDKC 3-stage | Frame: 110 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 160 Nm
MDKC110-061Version: MDKC 3-stage | Frame: 110 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 285 Nm
MDKC110-091Version: MDKC 3-stage | Frame: 110 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 160 Nm
MDKC140-004Version: MDKC 2-stage | Frame: 140 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 775 Nm
MDKC140-005Version: MDKC 2-stage | Frame: 140 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 670 Nm
MDKC140-007Version: MDKC 2-stage | Frame: 140 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 525 Nm
MDKC140-008Version: MDKC 2-stage | Frame: 140 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 800 Nm
MDKC140-010Version: MDKC 2-stage | Frame: 140 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 690 Nm
MDKC140-021Version: MDKC 3-stage | Frame: 140 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 700 Nm
MDKC140-031Version: MDKC 3-stage | Frame: 140 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 565 Nm
MDKC140-046Version: MDKC 3-stage | Frame: 140 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 340 Nm
MDKC140-061Version: MDKC 3-stage | Frame: 140 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 590 Nm
MDKC140-091Version: MDKC 3-stage | Frame: 140 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 350 Nm
MDKC200-004Version: MDKC 2-stage | Frame: 200 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 1,440 Nm
MDKC200-005Version: MDKC 2-stage | Frame: 200 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 1,250 Nm
MDKC200-007Version: MDKC 2-stage | Frame: 200 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 1,000 Nm
MDKC200-008Version: MDKC 2-stage | Frame: 200 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 1,320 Nm
MDKC200-010Version: MDKC 2-stage | Frame: 200 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 1,290 Nm
MDKC200-021Version: MDKC 3-stage | Frame: 200 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 1,310 Nm
MDKC200-031Version: MDKC 3-stage | Frame: 200 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 1,070 Nm
MDKC200-046Version: MDKC 3-stage | Frame: 200 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 660 Nm
MDKC200-061Version: MDKC 3-stage | Frame: 200 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 1,115 Nm
MDKC200-091Version: MDKC 3-stage | Frame: 200 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 660 Nm
MDKC255-004Version: MDKC 2-stage | Frame: 255 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 2,240 Nm
MDKC255-005Version: MDKC 2-stage | Frame: 255 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 1,930 Nm
MDKC255-007Version: MDKC 2-stage | Frame: 255 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 1,565 Nm
MDKC255-008Version: MDKC 2-stage | Frame: 255 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 2,300 Nm
MDKC255-010Version: MDKC 2-stage | Frame: 255 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 2,000 Nm
MDKC255-021Version: MDKC 3-stage | Frame: 255 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 2,045 Nm
MDKC255-031Version: MDKC 3-stage | Frame: 255 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 1,665 Nm
MDKC255-046Version: MDKC 3-stage | Frame: 255 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 1,000 Nm
MDKC255-061Version: MDKC 3-stage | Frame: 255 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 1,720 Nm
MDKC255-091Version: MDKC 3-stage | Frame: 255 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 985 Nm
MDKC285-004Version: MDKC 2-stage | Frame: 285 | Stages: 2 | Ratio i: 4 | Nominal torque T2N: 4,160 Nm
MDKC285-005Version: MDKC 2-stage | Frame: 285 | Stages: 2 | Ratio i: 5 | Nominal torque T2N: 3,610 Nm
MDKC285-007Version: MDKC 2-stage | Frame: 285 | Stages: 2 | Ratio i: 7 | Nominal torque T2N: 2,535 Nm
MDKC285-008Version: MDKC 2-stage | Frame: 285 | Stages: 2 | Ratio i: 8 | Nominal torque T2N: 4,260 Nm
MDKC285-010Version: MDKC 2-stage | Frame: 285 | Stages: 2 | Ratio i: 10 | Nominal torque T2N: 3,700 Nm
MDKC285-021Version: MDKC 3-stage | Frame: 285 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 3,750 Nm
MDKC285-031Version: MDKC 3-stage | Frame: 285 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 2,660 Nm
MDKC285-046Version: MDKC 3-stage | Frame: 285 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 1,710 Nm
MDKC285-061Version: MDKC 3-stage | Frame: 285 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 2,750 Nm
MDKC285-091Version: MDKC 3-stage | Frame: 285 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 1,600 Nm
MDKC355-021Version: MDKC 3-stage | Frame: 355 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 6,590 Nm
MDKC355-031Version: MDKC 3-stage | Frame: 355 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 5,400 Nm
MDKC355-046Version: MDKC 3-stage | Frame: 355 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 3,375 Nm
MDKC355-061Version: MDKC 3-stage | Frame: 355 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 5,580 Nm
MDKC355-091Version: MDKC 3-stage | Frame: 355 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 3,375 Nm
MDKC450-021Version: MDKC 3-stage | Frame: 450 | Stages: 3 | Ratio i: 21 | Nominal torque T2N: 12,630 Nm
MDKC450-031Version: MDKC 3-stage | Frame: 450 | Stages: 3 | Ratio i: 31 | Nominal torque T2N: 10,800 Nm
MDKC450-046Version: MDKC 3-stage | Frame: 450 | Stages: 3 | Ratio i: 46 | Nominal torque T2N: 6,945 Nm
MDKC450-061Version: MDKC 3-stage | Frame: 450 | Stages: 3 | Ratio i: 61 | Nominal torque T2N: 11,110 Nm
MDKC450-091Version: MDKC 3-stage | Frame: 450 | Stages: 3 | Ratio i: 91 | Nominal torque T2N: 6,430 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
