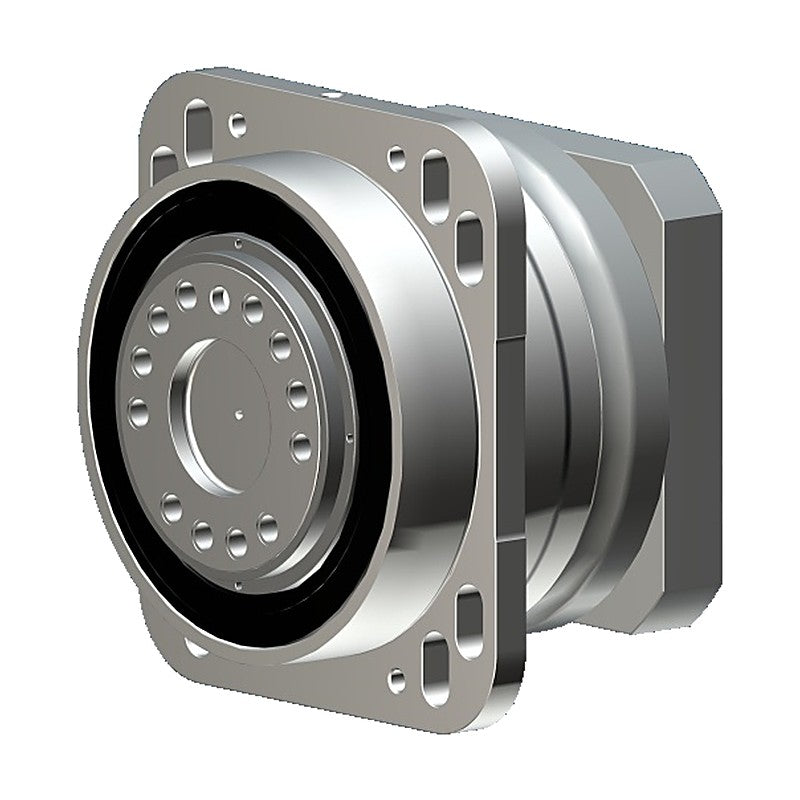

Apex Dynamics MG High Performance Planetary Gearboxes (115-320)

APEX Dynamics MG series inline high performance planetary gearboxes with flange output, frame sizes 115 to 320, in 1-stage (i=4-10) and 2-stage (i=16-100) versions.

Key features

Flange output with enhanced axial and radial load capacity (max. axial load 2,900-46,000 N)
Backlash <=3 arcmin (1-stage) and <=4 arcmin (2-stage), long-term persistence of low backlash
High torsional rigidity 22-1,050 Nm/arcmin; efficiency >=97% (1-stage) / >=94% (2-stage)
Identical input-output rotating direction with hypoid right-angle K series
Specify motor make and model when ordering (code suffix /MOTOR); motor adapter matched to the motor
Not for the European and UK market; European and UK customers refer to the MGO/MGOH series; anti-rust cover available as an option

Specifications

Gearbox type	Inline planetary, flange output
Frame sizes	115 / 140 / 170 / 240 / 285 / 320
Ratios	4-10 (1-stage), 16-100 (2-stage)
Emergency stop torque	3 x T2N
Max. acceleration torque	1.5 x T2N
Torsional rigidity	22 / 60 / 115 / 395 / 650 / 1,050 Nm/arcmin
Max. tilting moment	1,300 - 22,000 Nm
Operating temperature	-10 to +90 C
Protection	IP67
Lubrication	Lubricant, lifetime
Mounting position	All directions
Source	APEX Dynamics MG/MGK catalog, p. 2-7

MG115-004		Frame: 115 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 205 Nm
MG115-005		Frame: 115 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 185 Nm
MG115-007		Frame: 115 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 135 Nm
MG115-010		Frame: 115 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 55 Nm
MG115-016		Frame: 115 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MG115-020		Frame: 115 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 190 Nm
MG115-021		Frame: 115 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MG115-025		Frame: 115 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MG115-028		Frame: 115 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 180 Nm
MG115-031		Frame: 115 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MG115-035		Frame: 115 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
MG115-040		Frame: 115 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 96 Nm
MG115-046		Frame: 115 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MG115-050		Frame: 115 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 120 Nm
MG115-061		Frame: 115 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MG115-070		Frame: 115 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
MG115-091		Frame: 115 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MG115-100		Frame: 115 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
MG140-004		Frame: 140 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 380 Nm
MG140-005		Frame: 140 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 325 Nm
MG140-007		Frame: 140 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 260 Nm
MG140-010		Frame: 140 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 160 Nm
MG140-016		Frame: 140 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 385 Nm
MG140-020		Frame: 140 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 370 Nm
MG140-021		Frame: 140 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MG140-025		Frame: 140 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MG140-028		Frame: 140 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MG140-031		Frame: 140 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 280 Nm
MG140-035		Frame: 140 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 350 Nm
MG140-040		Frame: 140 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 220 Nm
MG140-046		Frame: 140 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MG140-050		Frame: 140 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 275 Nm
MG140-061		Frame: 140 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
MG140-070		Frame: 140 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
MG140-091		Frame: 140 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MG140-100		Frame: 140 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
MG170-004		Frame: 170 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 765 Nm
MG170-005		Frame: 170 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 660 Nm
MG170-007		Frame: 170 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 515 Nm
MG170-010		Frame: 170 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 315 Nm
MG170-016		Frame: 170 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 805 Nm
MG170-020		Frame: 170 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 795 Nm
MG170-021		Frame: 170 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
MG170-025		Frame: 170 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
MG170-028		Frame: 170 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 755 Nm
MG170-031		Frame: 170 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 560 Nm
MG170-035		Frame: 170 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 705 Nm
MG170-040		Frame: 170 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 615 Nm
MG170-046		Frame: 170 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 335 Nm
MG170-050		Frame: 170 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 715 Nm
MG170-061		Frame: 170 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
MG170-070		Frame: 170 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
MG170-091		Frame: 170 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MG170-100		Frame: 170 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
MG240-004		Frame: 240 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,415 Nm
MG240-005		Frame: 240 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,225 Nm
MG240-007		Frame: 240 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 980 Nm
MG240-010		Frame: 240 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 700 Nm
MG240-016		Frame: 240 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,485 Nm
MG240-020		Frame: 240 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,495 Nm
MG240-021		Frame: 240 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
MG240-025		Frame: 240 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
MG240-028		Frame: 240 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,510 Nm
MG240-031		Frame: 240 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,050 Nm
MG240-035		Frame: 240 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,310 Nm
MG240-040		Frame: 240 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,260 Nm
MG240-046		Frame: 240 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MG240-050		Frame: 240 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,325 Nm
MG240-061		Frame: 240 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
MG240-070		Frame: 240 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
MG240-091		Frame: 240 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MG240-100		Frame: 240 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
MG285-004		Frame: 285 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,190 Nm
MG285-005		Frame: 285 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,905 Nm
MG285-007		Frame: 285 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,530 Nm
MG285-010		Frame: 285 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,070 Nm
MG285-016		Frame: 285 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,295 Nm
MG285-020		Frame: 285 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,990 Nm
MG285-021		Frame: 285 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
MG285-025		Frame: 285 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
MG285-028		Frame: 285 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,335 Nm
MG285-031		Frame: 285 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,620 Nm
MG285-035		Frame: 285 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,030 Nm
MG285-040		Frame: 285 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,360 Nm
MG285-046		Frame: 285 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MG285-050		Frame: 285 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,050 Nm
MG285-061		Frame: 285 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
MG285-070		Frame: 285 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
MG285-091		Frame: 285 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MG285-100		Frame: 285 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
MG320-004		Frame: 320 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 4,035 Nm
MG320-005		Frame: 320 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 3,505 Nm
MG320-007		Frame: 320 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,530 Nm
MG320-010		Frame: 320 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,810 Nm
MG320-016		Frame: 320 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,215 Nm
MG320-020		Frame: 320 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,660 Nm
MG320-021		Frame: 320 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
MG320-025		Frame: 320 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
MG320-028		Frame: 320 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,290 Nm
MG320-031		Frame: 320 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,590 Nm
MG320-035		Frame: 320 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,725 Nm
MG320-040		Frame: 320 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,280 Nm
MG320-046		Frame: 320 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MG320-050		Frame: 320 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,765 Nm
MG320-061		Frame: 320 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
MG320-070		Frame: 320 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
MG320-091		Frame: 320 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MG320-100		Frame: 320 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm

Planetary GearboxesApex Dynamics

108 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics MG High Performance Planetary Gearboxes (115-320)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (108)

MG115-004, MG115-005, MG115-007, MG115-010, MG115-016, MG115-020, MG115-021, MG115-025, MG115-028, MG115-031 + 98 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MG115-004	Frame: 115 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 205 Nm
	MG115-005	Frame: 115 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 185 Nm
	MG115-007	Frame: 115 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 135 Nm
	MG115-010	Frame: 115 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 55 Nm
	MG115-016	Frame: 115 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MG115-020	Frame: 115 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 190 Nm
	MG115-021	Frame: 115 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MG115-025	Frame: 115 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MG115-028	Frame: 115 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 180 Nm
	MG115-031	Frame: 115 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MG115-035	Frame: 115 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 195 Nm
	MG115-040	Frame: 115 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 96 Nm
	MG115-046	Frame: 115 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MG115-050	Frame: 115 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 120 Nm
	MG115-061	Frame: 115 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MG115-070	Frame: 115 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 135 Nm
	MG115-091	Frame: 115 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MG115-100	Frame: 115 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 55 Nm
	MG140-004	Frame: 140 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 380 Nm
	MG140-005	Frame: 140 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 325 Nm
	MG140-007	Frame: 140 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 260 Nm
	MG140-010	Frame: 140 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 160 Nm
	MG140-016	Frame: 140 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 385 Nm
	MG140-020	Frame: 140 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 370 Nm
	MG140-021	Frame: 140 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MG140-025	Frame: 140 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MG140-028	Frame: 140 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MG140-031	Frame: 140 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 280 Nm
	MG140-035	Frame: 140 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 350 Nm
	MG140-040	Frame: 140 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 220 Nm
	MG140-046	Frame: 140 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MG140-050	Frame: 140 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 275 Nm
	MG140-061	Frame: 140 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
	MG140-070	Frame: 140 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 285 Nm
	MG140-091	Frame: 140 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MG140-100	Frame: 140 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 160 Nm
	MG170-004	Frame: 170 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 765 Nm
	MG170-005	Frame: 170 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 660 Nm
	MG170-007	Frame: 170 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 515 Nm
	MG170-010	Frame: 170 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 315 Nm
	MG170-016	Frame: 170 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 805 Nm
	MG170-020	Frame: 170 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 795 Nm
	MG170-021	Frame: 170 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
	MG170-025	Frame: 170 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 700 Nm
	MG170-028	Frame: 170 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 755 Nm
	MG170-031	Frame: 170 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 560 Nm
	MG170-035	Frame: 170 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 705 Nm
	MG170-040	Frame: 170 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 615 Nm
	MG170-046	Frame: 170 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 335 Nm
	MG170-050	Frame: 170 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 715 Nm
	MG170-061	Frame: 170 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
	MG170-070	Frame: 170 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 585 Nm
	MG170-091	Frame: 170 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MG170-100	Frame: 170 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 345 Nm
	MG240-004	Frame: 240 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,415 Nm
	MG240-005	Frame: 240 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,225 Nm
	MG240-007	Frame: 240 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 980 Nm
	MG240-010	Frame: 240 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 700 Nm
	MG240-016	Frame: 240 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,485 Nm
	MG240-020	Frame: 240 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,495 Nm
	MG240-021	Frame: 240 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
	MG240-025	Frame: 240 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,295 Nm
	MG240-028	Frame: 240 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,510 Nm
	MG240-031	Frame: 240 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,050 Nm
	MG240-035	Frame: 240 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,310 Nm
	MG240-040	Frame: 240 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,260 Nm
	MG240-046	Frame: 240 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MG240-050	Frame: 240 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,325 Nm
	MG240-061	Frame: 240 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
	MG240-070	Frame: 240 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,095 Nm
	MG240-091	Frame: 240 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MG240-100	Frame: 240 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 660 Nm
	MG285-004	Frame: 285 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,190 Nm
	MG285-005	Frame: 285 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,905 Nm
	MG285-007	Frame: 285 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,530 Nm
	MG285-010	Frame: 285 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,070 Nm
	MG285-016	Frame: 285 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,295 Nm
	MG285-020	Frame: 285 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,990 Nm
	MG285-021	Frame: 285 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
	MG285-025	Frame: 285 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,005 Nm
	MG285-028	Frame: 285 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,335 Nm
	MG285-031	Frame: 285 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,620 Nm
	MG285-035	Frame: 285 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,030 Nm
	MG285-040	Frame: 285 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,360 Nm
	MG285-046	Frame: 285 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MG285-050	Frame: 285 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,050 Nm
	MG285-061	Frame: 285 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
	MG285-070	Frame: 285 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,670 Nm
	MG285-091	Frame: 285 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MG285-100	Frame: 285 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,005 Nm
	MG320-004	Frame: 320 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 4,035 Nm
	MG320-005	Frame: 320 \| Ratio i: 5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 3,505 Nm
	MG320-007	Frame: 320 \| Ratio i: 7 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,530 Nm
	MG320-010	Frame: 320 \| Ratio i: 10 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,810 Nm
	MG320-016	Frame: 320 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,215 Nm
	MG320-020	Frame: 320 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,660 Nm
	MG320-021	Frame: 320 \| Ratio i: 21 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
	MG320-025	Frame: 320 \| Ratio i: 25 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,685 Nm
	MG320-028	Frame: 320 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,290 Nm
	MG320-031	Frame: 320 \| Ratio i: 31 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,590 Nm
	MG320-035	Frame: 320 \| Ratio i: 35 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,725 Nm
	MG320-040	Frame: 320 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,280 Nm
	MG320-046	Frame: 320 \| Ratio i: 46 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MG320-050	Frame: 320 \| Ratio i: 50 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,765 Nm
	MG320-061	Frame: 320 \| Ratio i: 61 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
	MG320-070	Frame: 320 \| Ratio i: 70 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,675 Nm
	MG320-091	Frame: 320 \| Ratio i: 91 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MG320-100	Frame: 320 \| Ratio i: 100 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Apex Dynamics MG High Performance Planetary Gearboxes (115-320)
