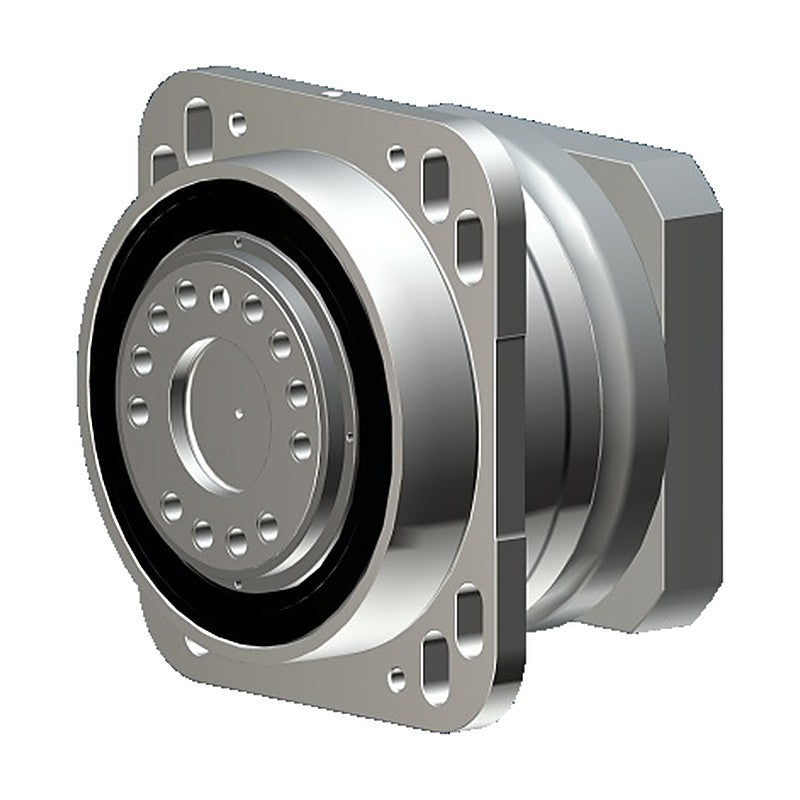

Apex Dynamics MGH Extra High Torque Planetary Gearboxes (115-320)

APEX Dynamics MGH series inline extra high torque planetary gearboxes with standard flange output, frame sizes 115 to 320, in 1-, 2- and 3-stage versions with ratios 4 to 400.

Key features

Standard flange output; curvic output version available as MGHC
Backlash <=3 arcmin (1-stage) and <=4 arcmin (2/3-stage)
Torsional rigidity 42-1,800 Nm/arcmin; efficiency >=97% / >=94% / >=92% (1/2/3-stage)
Enhanced axial and radial load capacity (max. axial load 2,900-46,000 N)
Specify motor make and model when ordering (code suffix /MOTOR); motor adapter matched to the motor
Not for the European market; European customers refer to the MGO/MGOH series; anti-rust cover available as an option

Specifications

Gearbox type	Inline planetary, standard flange output
Frame sizes	115 / 140 / 170 / 240 / 285 / 320
Emergency stop torque	3 x T2N
Max. acceleration torque	1.5 x T2N
Torsional rigidity	42 / 95 / 205 / 650 / 1,200 / 1,800 Nm/arcmin
Max. tilting moment	1,300 - 22,000 Nm
Operating temperature	-10 to +90 C
Protection	IP67
Lubrication	Lubricant, lifetime
Mounting position	All directions
Source	APEX Dynamics MGH/MGHC catalog, p. 20-24

MGH115-004		Frame: 115 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 205 Nm
MGH115-005.5		Frame: 115 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 230 Nm
MGH115-016		Frame: 115 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 255 Nm
MGH115-020		Frame: 115 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 245 Nm
MGH115-022		Frame: 115 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 240 Nm
MGH115-027.5		Frame: 115 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 240 Nm
MGH115-028		Frame: 115 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 235 Nm
MGH115-038.5		Frame: 115 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 245 Nm
MGH115-040		Frame: 115 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 96 Nm
MGH115-055		Frame: 115 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 130 Nm
MGH115-064		Frame: 115 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 210 Nm
MGH115-088		Frame: 115 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 250 Nm
MGH115-100		Frame: 115 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 215 Nm
MGH115-110		Frame: 115 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 250 Nm
MGH115-140		Frame: 115 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 220 Nm
MGH115-154		Frame: 115 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 250 Nm
MGH115-160		Frame: 115 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 210 Nm
MGH115-200		Frame: 115 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 225 Nm
MGH115-220		Frame: 115 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 255 Nm
MGH115-280		Frame: 115 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 230 Nm
MGH115-400		Frame: 115 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 100 Nm
MGH140-004		Frame: 140 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 505 Nm
MGH140-005.5		Frame: 140 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 435 Nm
MGH140-016		Frame: 140 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 485 Nm
MGH140-020		Frame: 140 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 470 Nm
MGH140-022		Frame: 140 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 460 Nm
MGH140-027.5		Frame: 140 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 460 Nm
MGH140-028		Frame: 140 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 445 Nm
MGH140-038.5		Frame: 140 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 465 Nm
MGH140-040		Frame: 140 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 225 Nm
MGH140-055		Frame: 140 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 315 Nm
MGH140-064		Frame: 140 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 400 Nm
MGH140-088		Frame: 140 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 470 Nm
MGH140-100		Frame: 140 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 380 Nm
MGH140-110		Frame: 140 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 475 Nm
MGH140-140		Frame: 140 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 365 Nm
MGH140-154		Frame: 140 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 480 Nm
MGH140-160		Frame: 140 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 370 Nm
MGH140-200		Frame: 140 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 375 Nm
MGH140-220		Frame: 140 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 480 Nm
MGH140-280		Frame: 140 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 385 Nm
MGH140-400		Frame: 140 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 235 Nm
MGH170-004		Frame: 170 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 790 Nm
MGH170-005.5		Frame: 170 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 735 Nm
MGH170-016		Frame: 170 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 890 Nm
MGH170-020		Frame: 170 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 860 Nm
MGH170-022		Frame: 170 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 770 Nm
MGH170-027.5		Frame: 170 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 775 Nm
MGH170-028		Frame: 170 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 820 Nm
MGH170-038.5		Frame: 170 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 785 Nm
MGH170-040		Frame: 170 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 650 Nm
MGH170-055		Frame: 170 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 795 Nm
MGH170-064		Frame: 170 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 745 Nm
MGH170-088		Frame: 170 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 800 Nm
MGH170-100		Frame: 170 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 705 Nm
MGH170-110		Frame: 170 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 810 Nm
MGH170-140		Frame: 170 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 680 Nm
MGH170-154		Frame: 170 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 815 Nm
MGH170-160		Frame: 170 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 670 Nm
MGH170-200		Frame: 170 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 655 Nm
MGH170-220		Frame: 170 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 825 Nm
MGH170-280		Frame: 170 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 655 Nm
MGH170-400		Frame: 170 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 675 Nm
MGH240-004		Frame: 240 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,885 Nm
MGH240-005.5		Frame: 240 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,635 Nm
MGH240-016		Frame: 240 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,980 Nm
MGH240-020		Frame: 240 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,995 Nm
MGH240-022		Frame: 240 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,710 Nm
MGH240-027.5		Frame: 240 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,720 Nm
MGH240-028		Frame: 240 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,015 Nm
MGH240-038.5		Frame: 240 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,740 Nm
MGH240-040		Frame: 240 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,610 Nm
MGH240-055		Frame: 240 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,740 Nm
MGH240-064		Frame: 240 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,850 Nm
MGH240-088		Frame: 240 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,780 Nm
MGH240-100		Frame: 240 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,760 Nm
MGH240-110		Frame: 240 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,790 Nm
MGH240-140		Frame: 240 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
MGH240-154		Frame: 240 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,805 Nm
MGH240-160		Frame: 240 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,680 Nm
MGH240-200		Frame: 240 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,645 Nm
MGH240-220		Frame: 240 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,820 Nm
MGH240-280		Frame: 240 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,595 Nm
MGH240-400		Frame: 240 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,590 Nm
MGH285-004		Frame: 285 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,920 Nm
MGH285-005.5		Frame: 285 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,535 Nm
MGH285-016		Frame: 285 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,055 Nm
MGH285-020		Frame: 285 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,080 Nm
MGH285-022		Frame: 285 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,640 Nm
MGH285-027.5		Frame: 285 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,660 Nm
MGH285-028		Frame: 285 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,110 Nm
MGH285-038.5		Frame: 285 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,690 Nm
MGH285-040		Frame: 285 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,145 Nm
MGH285-055		Frame: 285 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,715 Nm
MGH285-064		Frame: 285 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,040 Nm
MGH285-088		Frame: 285 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,720 Nm
MGH285-100		Frame: 285 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,900 Nm
MGH285-110		Frame: 285 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,760 Nm
MGH285-140		Frame: 285 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,810 Nm
MGH285-154		Frame: 285 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,785 Nm
MGH285-160		Frame: 285 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,775 Nm
MGH285-200		Frame: 285 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,715 Nm
MGH285-220		Frame: 285 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,810 Nm
MGH285-280		Frame: 285 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,640 Nm
MGH285-400		Frame: 285 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,645 Nm
MGH320-004		Frame: 320 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 5,380 Nm
MGH320-005.5		Frame: 320 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 4,580 Nm
MGH320-016		Frame: 320 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,615 Nm
MGH320-020		Frame: 320 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,660 Nm
MGH320-022		Frame: 320 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,755 Nm
MGH320-027.5		Frame: 320 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,785 Nm
MGH320-028		Frame: 320 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,720 Nm
MGH320-038.5		Frame: 320 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,830 Nm
MGH320-040		Frame: 320 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,780 Nm
MGH320-055		Frame: 320 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,875 Nm
MGH320-064		Frame: 320 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,840 Nm
MGH320-088		Frame: 320 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,920 Nm
MGH320-100		Frame: 320 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,780 Nm
MGH320-110		Frame: 320 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,945 Nm
MGH320-140		Frame: 320 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,595 Nm
MGH320-154		Frame: 320 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,980 Nm
MGH320-160		Frame: 320 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,530 Nm
MGH320-200		Frame: 320 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,420 Nm
MGH320-220		Frame: 320 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,020 Nm
MGH320-280		Frame: 320 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,265 Nm
MGH320-400		Frame: 320 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,375 Nm

Planetary GearboxesApex Dynamics

126 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics MGH Extra High Torque Planetary Gearboxes (115-320)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (126)

MGH115-004, MGH115-005.5, MGH115-016, MGH115-020, MGH115-022, MGH115-027.5, MGH115-028, MGH115-038.5, MGH115-040, MGH115-055 + 116 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MGH115-004	Frame: 115 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 205 Nm
	MGH115-005.5	Frame: 115 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 230 Nm
	MGH115-016	Frame: 115 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 255 Nm
	MGH115-020	Frame: 115 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 245 Nm
	MGH115-022	Frame: 115 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 240 Nm
	MGH115-027.5	Frame: 115 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 240 Nm
	MGH115-028	Frame: 115 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 235 Nm
	MGH115-038.5	Frame: 115 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 245 Nm
	MGH115-040	Frame: 115 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 96 Nm
	MGH115-055	Frame: 115 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 130 Nm
	MGH115-064	Frame: 115 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 210 Nm
	MGH115-088	Frame: 115 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 250 Nm
	MGH115-100	Frame: 115 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 215 Nm
	MGH115-110	Frame: 115 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 250 Nm
	MGH115-140	Frame: 115 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 220 Nm
	MGH115-154	Frame: 115 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 250 Nm
	MGH115-160	Frame: 115 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 210 Nm
	MGH115-200	Frame: 115 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 225 Nm
	MGH115-220	Frame: 115 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 255 Nm
	MGH115-280	Frame: 115 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 230 Nm
	MGH115-400	Frame: 115 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 100 Nm
	MGH140-004	Frame: 140 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 505 Nm
	MGH140-005.5	Frame: 140 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 435 Nm
	MGH140-016	Frame: 140 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 485 Nm
	MGH140-020	Frame: 140 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 470 Nm
	MGH140-022	Frame: 140 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 460 Nm
	MGH140-027.5	Frame: 140 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 460 Nm
	MGH140-028	Frame: 140 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 445 Nm
	MGH140-038.5	Frame: 140 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 465 Nm
	MGH140-040	Frame: 140 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 225 Nm
	MGH140-055	Frame: 140 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 315 Nm
	MGH140-064	Frame: 140 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 400 Nm
	MGH140-088	Frame: 140 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 470 Nm
	MGH140-100	Frame: 140 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 380 Nm
	MGH140-110	Frame: 140 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 475 Nm
	MGH140-140	Frame: 140 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 365 Nm
	MGH140-154	Frame: 140 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 480 Nm
	MGH140-160	Frame: 140 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 370 Nm
	MGH140-200	Frame: 140 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 375 Nm
	MGH140-220	Frame: 140 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 480 Nm
	MGH140-280	Frame: 140 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 385 Nm
	MGH140-400	Frame: 140 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 235 Nm
	MGH170-004	Frame: 170 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 790 Nm
	MGH170-005.5	Frame: 170 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 735 Nm
	MGH170-016	Frame: 170 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 890 Nm
	MGH170-020	Frame: 170 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 860 Nm
	MGH170-022	Frame: 170 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 770 Nm
	MGH170-027.5	Frame: 170 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 775 Nm
	MGH170-028	Frame: 170 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 820 Nm
	MGH170-038.5	Frame: 170 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 785 Nm
	MGH170-040	Frame: 170 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 650 Nm
	MGH170-055	Frame: 170 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 795 Nm
	MGH170-064	Frame: 170 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 745 Nm
	MGH170-088	Frame: 170 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 800 Nm
	MGH170-100	Frame: 170 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 705 Nm
	MGH170-110	Frame: 170 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 810 Nm
	MGH170-140	Frame: 170 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 680 Nm
	MGH170-154	Frame: 170 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 815 Nm
	MGH170-160	Frame: 170 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 670 Nm
	MGH170-200	Frame: 170 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 655 Nm
	MGH170-220	Frame: 170 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 825 Nm
	MGH170-280	Frame: 170 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 655 Nm
	MGH170-400	Frame: 170 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 675 Nm
	MGH240-004	Frame: 240 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,885 Nm
	MGH240-005.5	Frame: 240 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 1,635 Nm
	MGH240-016	Frame: 240 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,980 Nm
	MGH240-020	Frame: 240 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,995 Nm
	MGH240-022	Frame: 240 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,710 Nm
	MGH240-027.5	Frame: 240 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,720 Nm
	MGH240-028	Frame: 240 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,015 Nm
	MGH240-038.5	Frame: 240 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,740 Nm
	MGH240-040	Frame: 240 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,610 Nm
	MGH240-055	Frame: 240 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,740 Nm
	MGH240-064	Frame: 240 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,850 Nm
	MGH240-088	Frame: 240 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,780 Nm
	MGH240-100	Frame: 240 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,760 Nm
	MGH240-110	Frame: 240 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,790 Nm
	MGH240-140	Frame: 240 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,700 Nm
	MGH240-154	Frame: 240 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,805 Nm
	MGH240-160	Frame: 240 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,680 Nm
	MGH240-200	Frame: 240 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,645 Nm
	MGH240-220	Frame: 240 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,820 Nm
	MGH240-280	Frame: 240 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,595 Nm
	MGH240-400	Frame: 240 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 1,590 Nm
	MGH285-004	Frame: 285 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,920 Nm
	MGH285-005.5	Frame: 285 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 2,535 Nm
	MGH285-016	Frame: 285 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,055 Nm
	MGH285-020	Frame: 285 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,080 Nm
	MGH285-022	Frame: 285 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,640 Nm
	MGH285-027.5	Frame: 285 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,660 Nm
	MGH285-028	Frame: 285 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,110 Nm
	MGH285-038.5	Frame: 285 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,690 Nm
	MGH285-040	Frame: 285 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,145 Nm
	MGH285-055	Frame: 285 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,715 Nm
	MGH285-064	Frame: 285 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 3,040 Nm
	MGH285-088	Frame: 285 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,720 Nm
	MGH285-100	Frame: 285 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,900 Nm
	MGH285-110	Frame: 285 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,760 Nm
	MGH285-140	Frame: 285 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,810 Nm
	MGH285-154	Frame: 285 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,785 Nm
	MGH285-160	Frame: 285 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,775 Nm
	MGH285-200	Frame: 285 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,715 Nm
	MGH285-220	Frame: 285 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,810 Nm
	MGH285-280	Frame: 285 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,640 Nm
	MGH285-400	Frame: 285 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 2,645 Nm
	MGH320-004	Frame: 320 \| Ratio i: 4 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 5,380 Nm
	MGH320-005.5	Frame: 320 \| Ratio i: 5.5 \| Stages: 1 \| Backlash: <=3 arcmin \| Nominal torque T2N: 4,580 Nm
	MGH320-016	Frame: 320 \| Ratio i: 16 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,615 Nm
	MGH320-020	Frame: 320 \| Ratio i: 20 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,660 Nm
	MGH320-022	Frame: 320 \| Ratio i: 22 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,755 Nm
	MGH320-027.5	Frame: 320 \| Ratio i: 27.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,785 Nm
	MGH320-028	Frame: 320 \| Ratio i: 28 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,720 Nm
	MGH320-038.5	Frame: 320 \| Ratio i: 38.5 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,830 Nm
	MGH320-040	Frame: 320 \| Ratio i: 40 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,780 Nm
	MGH320-055	Frame: 320 \| Ratio i: 55 \| Stages: 2 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,875 Nm
	MGH320-064	Frame: 320 \| Ratio i: 64 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,840 Nm
	MGH320-088	Frame: 320 \| Ratio i: 88 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,920 Nm
	MGH320-100	Frame: 320 \| Ratio i: 100 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,780 Nm
	MGH320-110	Frame: 320 \| Ratio i: 110 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,945 Nm
	MGH320-140	Frame: 320 \| Ratio i: 140 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,595 Nm
	MGH320-154	Frame: 320 \| Ratio i: 154 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 4,980 Nm
	MGH320-160	Frame: 320 \| Ratio i: 160 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,530 Nm
	MGH320-200	Frame: 320 \| Ratio i: 200 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,420 Nm
	MGH320-220	Frame: 320 \| Ratio i: 220 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,020 Nm
	MGH320-280	Frame: 320 \| Ratio i: 280 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,265 Nm
	MGH320-400	Frame: 320 \| Ratio i: 400 \| Stages: 3 \| Backlash: <=4 arcmin \| Nominal torque T2N: 5,375 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Apex Dynamics MGH Extra High Torque Planetary Gearboxes (115-320)
