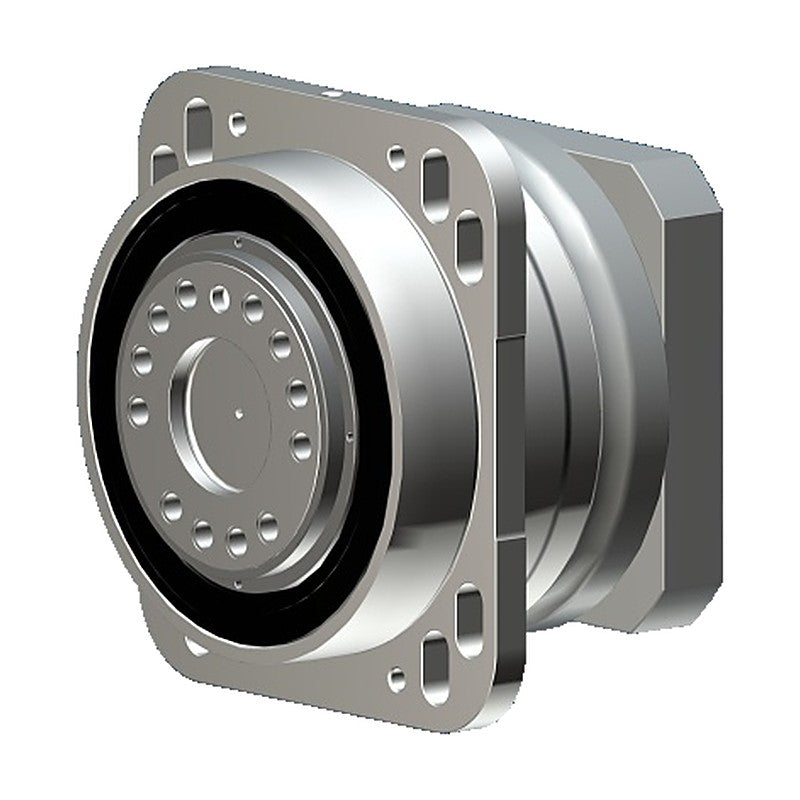

Apex Dynamics MGHC Extra High Torque Planetary Gearboxes (115-320)

Apex Dynamics MGHC Extra High Torque Planetary Gearboxes (115-320)

APEX Dynamics MGHC series inline extra high torque planetary gearboxes with curvic output, frame sizes 115 to 320, in 1-, 2- and 3-stage versions with ratios 4 to 400.

Key features

  • Curvic coupling output for direct, zero-backlash mounting of APEX MGH rack pinions
  • Backlash <=3 arcmin (1-stage) and <=4 arcmin (2/3-stage)
  • Torsional rigidity 42-1,800 Nm/arcmin; efficiency >=97% / >=94% / >=92% (1/2/3-stage)
  • Enhanced axial and radial load capacity (max. axial load 2,900-46,000 N)
  • Specify motor make and model when ordering (code suffix /MOTOR); motor adapter matched to the motor
  • Not for the European market; European customers refer to the MGO/MGOH series; anti-rust cover available as an option

Specifications

Gearbox type Inline planetary, curvic output
Frame sizes 115 / 140 / 170 / 240 / 285 / 320
Emergency stop torque 3 x T2N
Max. acceleration torque 1.5 x T2N
Torsional rigidity 42 / 95 / 205 / 650 / 1,200 / 1,800 Nm/arcmin
Max. tilting moment 1,300 - 22,000 Nm
Operating temperature -10 to +90 C
Protection IP67
Lubrication Lubricant, lifetime
Mounting position All directions
Source APEX Dynamics MGH/MGHC catalog, p. 20-25
MGHC115-004 Frame: 115 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 205 Nm
MGHC115-005.5 Frame: 115 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 230 Nm
MGHC115-016 Frame: 115 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 255 Nm
MGHC115-020 Frame: 115 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 245 Nm
MGHC115-022 Frame: 115 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 240 Nm
MGHC115-027.5 Frame: 115 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 240 Nm
MGHC115-028 Frame: 115 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 235 Nm
MGHC115-038.5 Frame: 115 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 245 Nm
MGHC115-040 Frame: 115 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 96 Nm
MGHC115-055 Frame: 115 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 130 Nm
MGHC115-064 Frame: 115 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 210 Nm
MGHC115-088 Frame: 115 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGHC115-100 Frame: 115 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 215 Nm
MGHC115-110 Frame: 115 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGHC115-140 Frame: 115 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 220 Nm
MGHC115-154 Frame: 115 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGHC115-160 Frame: 115 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 210 Nm
MGHC115-200 Frame: 115 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 225 Nm
MGHC115-220 Frame: 115 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 255 Nm
MGHC115-280 Frame: 115 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 230 Nm
MGHC115-400 Frame: 115 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 100 Nm
MGHC140-004 Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 505 Nm
MGHC140-005.5 Frame: 140 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 435 Nm
MGHC140-016 Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 485 Nm
MGHC140-020 Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 470 Nm
MGHC140-022 Frame: 140 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 460 Nm
MGHC140-027.5 Frame: 140 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 460 Nm
MGHC140-028 Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 445 Nm
MGHC140-038.5 Frame: 140 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 465 Nm
MGHC140-040 Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 225 Nm
MGHC140-055 Frame: 140 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 315 Nm
MGHC140-064 Frame: 140 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 400 Nm
MGHC140-088 Frame: 140 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 470 Nm
MGHC140-100 Frame: 140 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 380 Nm
MGHC140-110 Frame: 140 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 475 Nm
MGHC140-140 Frame: 140 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 365 Nm
MGHC140-154 Frame: 140 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 480 Nm
MGHC140-160 Frame: 140 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 370 Nm
MGHC140-200 Frame: 140 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 375 Nm
MGHC140-220 Frame: 140 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 480 Nm
MGHC140-280 Frame: 140 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 385 Nm
MGHC140-400 Frame: 140 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 235 Nm
MGHC170-004 Frame: 170 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 790 Nm
MGHC170-005.5 Frame: 170 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 735 Nm
MGHC170-016 Frame: 170 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 890 Nm
MGHC170-020 Frame: 170 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 860 Nm
MGHC170-022 Frame: 170 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 770 Nm
MGHC170-027.5 Frame: 170 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 775 Nm
MGHC170-028 Frame: 170 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 820 Nm
MGHC170-038.5 Frame: 170 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 785 Nm
MGHC170-040 Frame: 170 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 650 Nm
MGHC170-055 Frame: 170 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 795 Nm
MGHC170-064 Frame: 170 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 745 Nm
MGHC170-088 Frame: 170 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 800 Nm
MGHC170-100 Frame: 170 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 705 Nm
MGHC170-110 Frame: 170 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 810 Nm
MGHC170-140 Frame: 170 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 680 Nm
MGHC170-154 Frame: 170 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 815 Nm
MGHC170-160 Frame: 170 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 670 Nm
MGHC170-200 Frame: 170 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 655 Nm
MGHC170-220 Frame: 170 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 825 Nm
MGHC170-280 Frame: 170 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 655 Nm
MGHC170-400 Frame: 170 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 675 Nm
MGHC240-004 Frame: 240 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 1,885 Nm
MGHC240-005.5 Frame: 240 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 1,635 Nm
MGHC240-016 Frame: 240 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,980 Nm
MGHC240-020 Frame: 240 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,995 Nm
MGHC240-022 Frame: 240 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,710 Nm
MGHC240-027.5 Frame: 240 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,720 Nm
MGHC240-028 Frame: 240 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,015 Nm
MGHC240-038.5 Frame: 240 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,740 Nm
MGHC240-040 Frame: 240 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,610 Nm
MGHC240-055 Frame: 240 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,740 Nm
MGHC240-064 Frame: 240 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,850 Nm
MGHC240-088 Frame: 240 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,780 Nm
MGHC240-100 Frame: 240 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,760 Nm
MGHC240-110 Frame: 240 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,790 Nm
MGHC240-140 Frame: 240 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,700 Nm
MGHC240-154 Frame: 240 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,805 Nm
MGHC240-160 Frame: 240 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,680 Nm
MGHC240-200 Frame: 240 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,645 Nm
MGHC240-220 Frame: 240 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,820 Nm
MGHC240-280 Frame: 240 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,595 Nm
MGHC240-400 Frame: 240 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,590 Nm
MGHC285-004 Frame: 285 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 2,920 Nm
MGHC285-005.5 Frame: 285 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 2,535 Nm
MGHC285-016 Frame: 285 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,055 Nm
MGHC285-020 Frame: 285 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,080 Nm
MGHC285-022 Frame: 285 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,640 Nm
MGHC285-027.5 Frame: 285 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,660 Nm
MGHC285-028 Frame: 285 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,110 Nm
MGHC285-038.5 Frame: 285 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,690 Nm
MGHC285-040 Frame: 285 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,145 Nm
MGHC285-055 Frame: 285 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,715 Nm
MGHC285-064 Frame: 285 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 3,040 Nm
MGHC285-088 Frame: 285 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,720 Nm
MGHC285-100 Frame: 285 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,900 Nm
MGHC285-110 Frame: 285 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,760 Nm
MGHC285-140 Frame: 285 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,810 Nm
MGHC285-154 Frame: 285 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,785 Nm
MGHC285-160 Frame: 285 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,775 Nm
MGHC285-200 Frame: 285 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,715 Nm
MGHC285-220 Frame: 285 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,810 Nm
MGHC285-280 Frame: 285 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,640 Nm
MGHC285-400 Frame: 285 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,645 Nm
MGHC320-004 Frame: 320 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 5,380 Nm
MGHC320-005.5 Frame: 320 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 4,580 Nm
MGHC320-016 Frame: 320 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,615 Nm
MGHC320-020 Frame: 320 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,660 Nm
MGHC320-022 Frame: 320 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,755 Nm
MGHC320-027.5 Frame: 320 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,785 Nm
MGHC320-028 Frame: 320 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,720 Nm
MGHC320-038.5 Frame: 320 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,830 Nm
MGHC320-040 Frame: 320 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,780 Nm
MGHC320-055 Frame: 320 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,875 Nm
MGHC320-064 Frame: 320 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,840 Nm
MGHC320-088 Frame: 320 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,920 Nm
MGHC320-100 Frame: 320 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,780 Nm
MGHC320-110 Frame: 320 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,945 Nm
MGHC320-140 Frame: 320 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,595 Nm
MGHC320-154 Frame: 320 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,980 Nm
MGHC320-160 Frame: 320 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,530 Nm
MGHC320-200 Frame: 320 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,420 Nm
MGHC320-220 Frame: 320 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,020 Nm
MGHC320-280 Frame: 320 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,265 Nm
MGHC320-400 Frame: 320 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,375 Nm
Planetary GearboxesApex Dynamics
126 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics MGHC Extra High Torque Planetary Gearboxes (115-320)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (126)

MGHC115-004, MGHC115-005.5, MGHC115-016, MGHC115-020, MGHC115-022, MGHC115-027.5, MGHC115-028, MGHC115-038.5, MGHC115-040, MGHC115-055 + 116 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MGHC115-004Frame: 115 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 205 Nm
MGHC115-005.5Frame: 115 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 230 Nm
MGHC115-016Frame: 115 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 255 Nm
MGHC115-020Frame: 115 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 245 Nm
MGHC115-022Frame: 115 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 240 Nm
MGHC115-027.5Frame: 115 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 240 Nm
MGHC115-028Frame: 115 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 235 Nm
MGHC115-038.5Frame: 115 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 245 Nm
MGHC115-040Frame: 115 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 96 Nm
MGHC115-055Frame: 115 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 130 Nm
MGHC115-064Frame: 115 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 210 Nm
MGHC115-088Frame: 115 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGHC115-100Frame: 115 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 215 Nm
MGHC115-110Frame: 115 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGHC115-140Frame: 115 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 220 Nm
MGHC115-154Frame: 115 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 250 Nm
MGHC115-160Frame: 115 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 210 Nm
MGHC115-200Frame: 115 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 225 Nm
MGHC115-220Frame: 115 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 255 Nm
MGHC115-280Frame: 115 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 230 Nm
MGHC115-400Frame: 115 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 100 Nm
MGHC140-004Frame: 140 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 505 Nm
MGHC140-005.5Frame: 140 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 435 Nm
MGHC140-016Frame: 140 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 485 Nm
MGHC140-020Frame: 140 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 470 Nm
MGHC140-022Frame: 140 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 460 Nm
MGHC140-027.5Frame: 140 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 460 Nm
MGHC140-028Frame: 140 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 445 Nm
MGHC140-038.5Frame: 140 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 465 Nm
MGHC140-040Frame: 140 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 225 Nm
MGHC140-055Frame: 140 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 315 Nm
MGHC140-064Frame: 140 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 400 Nm
MGHC140-088Frame: 140 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 470 Nm
MGHC140-100Frame: 140 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 380 Nm
MGHC140-110Frame: 140 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 475 Nm
MGHC140-140Frame: 140 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 365 Nm
MGHC140-154Frame: 140 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 480 Nm
MGHC140-160Frame: 140 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 370 Nm
MGHC140-200Frame: 140 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 375 Nm
MGHC140-220Frame: 140 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 480 Nm
MGHC140-280Frame: 140 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 385 Nm
MGHC140-400Frame: 140 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 235 Nm
MGHC170-004Frame: 170 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 790 Nm
MGHC170-005.5Frame: 170 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 735 Nm
MGHC170-016Frame: 170 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 890 Nm
MGHC170-020Frame: 170 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 860 Nm
MGHC170-022Frame: 170 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 770 Nm
MGHC170-027.5Frame: 170 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 775 Nm
MGHC170-028Frame: 170 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 820 Nm
MGHC170-038.5Frame: 170 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 785 Nm
MGHC170-040Frame: 170 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 650 Nm
MGHC170-055Frame: 170 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 795 Nm
MGHC170-064Frame: 170 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 745 Nm
MGHC170-088Frame: 170 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 800 Nm
MGHC170-100Frame: 170 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 705 Nm
MGHC170-110Frame: 170 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 810 Nm
MGHC170-140Frame: 170 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 680 Nm
MGHC170-154Frame: 170 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 815 Nm
MGHC170-160Frame: 170 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 670 Nm
MGHC170-200Frame: 170 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 655 Nm
MGHC170-220Frame: 170 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 825 Nm
MGHC170-280Frame: 170 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 655 Nm
MGHC170-400Frame: 170 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 675 Nm
MGHC240-004Frame: 240 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 1,885 Nm
MGHC240-005.5Frame: 240 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 1,635 Nm
MGHC240-016Frame: 240 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,980 Nm
MGHC240-020Frame: 240 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,995 Nm
MGHC240-022Frame: 240 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,710 Nm
MGHC240-027.5Frame: 240 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,720 Nm
MGHC240-028Frame: 240 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,015 Nm
MGHC240-038.5Frame: 240 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,740 Nm
MGHC240-040Frame: 240 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,610 Nm
MGHC240-055Frame: 240 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 1,740 Nm
MGHC240-064Frame: 240 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,850 Nm
MGHC240-088Frame: 240 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,780 Nm
MGHC240-100Frame: 240 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,760 Nm
MGHC240-110Frame: 240 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,790 Nm
MGHC240-140Frame: 240 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,700 Nm
MGHC240-154Frame: 240 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,805 Nm
MGHC240-160Frame: 240 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,680 Nm
MGHC240-200Frame: 240 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,645 Nm
MGHC240-220Frame: 240 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,820 Nm
MGHC240-280Frame: 240 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,595 Nm
MGHC240-400Frame: 240 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 1,590 Nm
MGHC285-004Frame: 285 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 2,920 Nm
MGHC285-005.5Frame: 285 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 2,535 Nm
MGHC285-016Frame: 285 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,055 Nm
MGHC285-020Frame: 285 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,080 Nm
MGHC285-022Frame: 285 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,640 Nm
MGHC285-027.5Frame: 285 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,660 Nm
MGHC285-028Frame: 285 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,110 Nm
MGHC285-038.5Frame: 285 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,690 Nm
MGHC285-040Frame: 285 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 3,145 Nm
MGHC285-055Frame: 285 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 2,715 Nm
MGHC285-064Frame: 285 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 3,040 Nm
MGHC285-088Frame: 285 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,720 Nm
MGHC285-100Frame: 285 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,900 Nm
MGHC285-110Frame: 285 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,760 Nm
MGHC285-140Frame: 285 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,810 Nm
MGHC285-154Frame: 285 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,785 Nm
MGHC285-160Frame: 285 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,775 Nm
MGHC285-200Frame: 285 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,715 Nm
MGHC285-220Frame: 285 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,810 Nm
MGHC285-280Frame: 285 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,640 Nm
MGHC285-400Frame: 285 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 2,645 Nm
MGHC320-004Frame: 320 | Ratio i: 4 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 5,380 Nm
MGHC320-005.5Frame: 320 | Ratio i: 5.5 | Stages: 1 | Backlash: <=3 arcmin | Nominal torque T2N: 4,580 Nm
MGHC320-016Frame: 320 | Ratio i: 16 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,615 Nm
MGHC320-020Frame: 320 | Ratio i: 20 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,660 Nm
MGHC320-022Frame: 320 | Ratio i: 22 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,755 Nm
MGHC320-027.5Frame: 320 | Ratio i: 27.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,785 Nm
MGHC320-028Frame: 320 | Ratio i: 28 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,720 Nm
MGHC320-038.5Frame: 320 | Ratio i: 38.5 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,830 Nm
MGHC320-040Frame: 320 | Ratio i: 40 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 5,780 Nm
MGHC320-055Frame: 320 | Ratio i: 55 | Stages: 2 | Backlash: <=4 arcmin | Nominal torque T2N: 4,875 Nm
MGHC320-064Frame: 320 | Ratio i: 64 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,840 Nm
MGHC320-088Frame: 320 | Ratio i: 88 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,920 Nm
MGHC320-100Frame: 320 | Ratio i: 100 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,780 Nm
MGHC320-110Frame: 320 | Ratio i: 110 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,945 Nm
MGHC320-140Frame: 320 | Ratio i: 140 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,595 Nm
MGHC320-154Frame: 320 | Ratio i: 154 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 4,980 Nm
MGHC320-160Frame: 320 | Ratio i: 160 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,530 Nm
MGHC320-200Frame: 320 | Ratio i: 200 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,420 Nm
MGHC320-220Frame: 320 | Ratio i: 220 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,020 Nm
MGHC320-280Frame: 320 | Ratio i: 280 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,265 Nm
MGHC320-400Frame: 320 | Ratio i: 400 | Stages: 3 | Backlash: <=4 arcmin | Nominal torque T2N: 5,375 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
