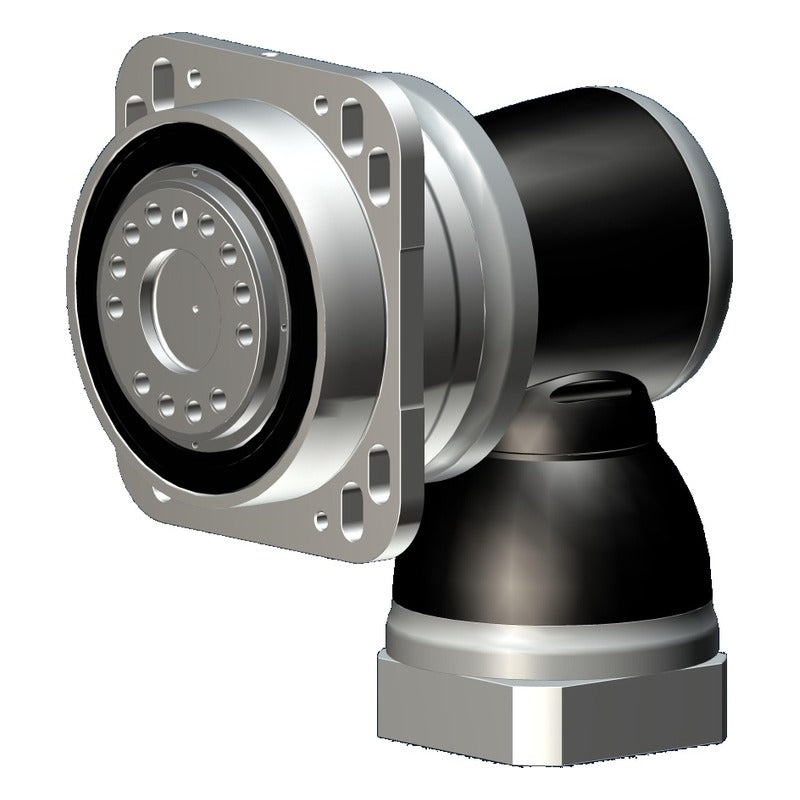

Apex Dynamics MGHCK Right-Angle Extra High Torque Gearboxes (115-320)

APEX Dynamics MGHCK series right-angle extra high torque hypoid-planetary gearboxes with curvic output, frame sizes 115 to 320, in 2-, 3- and 4-stage versions with ratios 4 to 5,500.

Key features

2-stage i=4-11 and 16-55 (all sizes); 3-stage i=64-385 and 4-stage i=400-5,500 (sizes 140-320)
Application direction code A/B/C/D sets the motor position at 6, 9, 12 or 3 o'clock
Curvic coupling output for direct, zero-backlash mounting of APEX MGH rack pinions
Backlash <=4 arcmin; torsional rigidity 27-1,275 Nm/arcmin
Specify motor make and model when ordering (code suffix /MOTOR); motor adapter matched to the motor
Not for the European market; European customers refer to the MGO/MGOH series; anti-rust cover optional

Specifications

Gearbox type	Right-angle hypoid-planetary, curvic output
Frame sizes	115 / 140 / 170 / 240 / 285 / 320
Backlash	<=4 arcmin
Emergency stop torque	2 x T2N
Max. acceleration torque	1.5 x T2N
Efficiency	>=95% (i=4-11), >=94% / >=92% / >=90%
Max. tilting moment	1,300 - 22,000 Nm
Operating temperature	-10 to +90 C
Protection	IP67
Lubrication	Lubricant, lifetime
Mounting position	All directions
Source	APEX Dynamics MGHK/MGHCK catalog, p. 20-37

MGHCK115-004-A		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 75 Nm
MGHCK115-004-B		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 75 Nm
MGHCK115-004-C		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 75 Nm
MGHCK115-004-D		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 75 Nm
MGHCK115-005.5-A		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 105 Nm
MGHCK115-005.5-B		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 105 Nm
MGHCK115-005.5-C		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 105 Nm
MGHCK115-005.5-D		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 105 Nm
MGHCK115-008-A		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 150 Nm
MGHCK115-008-B		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 150 Nm
MGHCK115-008-C		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 150 Nm
MGHCK115-008-D		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 150 Nm
MGHCK115-011-A		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 210 Nm
MGHCK115-011-B		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 210 Nm
MGHCK115-011-C		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 210 Nm
MGHCK115-011-D		Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 210 Nm
MGHCK115-016-A		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 240 Nm
MGHCK115-016-B		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 240 Nm
MGHCK115-016-C		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 240 Nm
MGHCK115-016-D		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 240 Nm
MGHCK115-020-A		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 230 Nm
MGHCK115-020-B		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 230 Nm
MGHCK115-020-C		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 230 Nm
MGHCK115-020-D		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 230 Nm
MGHCK115-022-A		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-022-B		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-022-C		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-022-D		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-027.5-A		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-027.5-B		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-027.5-C		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-027.5-D		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-028-A		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 220 Nm
MGHCK115-028-B		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 220 Nm
MGHCK115-028-C		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 220 Nm
MGHCK115-028-D		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 220 Nm
MGHCK115-038.5-A		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-038.5-B		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-038.5-C		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-038.5-D		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 245 Nm
MGHCK115-040-A		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 192 Nm
MGHCK115-040-B		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 192 Nm
MGHCK115-040-C		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 192 Nm
MGHCK115-040-D		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 192 Nm
MGHCK115-055-A		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 250 Nm
MGHCK115-055-B		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 250 Nm
MGHCK115-055-C		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 250 Nm
MGHCK115-055-D		Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 250 Nm
MGHCK140-004-A		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-004-B		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-004-C		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-004-D		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-005.5-A		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 440 Nm
MGHCK140-005.5-B		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 440 Nm
MGHCK140-005.5-C		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 440 Nm
MGHCK140-005.5-D		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 440 Nm
MGHCK140-008-A		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 525 Nm
MGHCK140-008-B		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 525 Nm
MGHCK140-008-C		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 525 Nm
MGHCK140-008-D		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 525 Nm
MGHCK140-011-A		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 455 Nm
MGHCK140-011-B		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 455 Nm
MGHCK140-011-C		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 455 Nm
MGHCK140-011-D		Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 455 Nm
MGHCK140-016-A		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 450 Nm
MGHCK140-016-B		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 450 Nm
MGHCK140-016-C		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 450 Nm
MGHCK140-016-D		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 450 Nm
MGHCK140-020-A		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 435 Nm
MGHCK140-020-B		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 435 Nm
MGHCK140-020-C		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 435 Nm
MGHCK140-020-D		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 435 Nm
MGHCK140-022-A		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 465 Nm
MGHCK140-022-B		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 465 Nm
MGHCK140-022-C		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 465 Nm
MGHCK140-022-D		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 465 Nm
MGHCK140-027.5-A		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 465 Nm
MGHCK140-027.5-B		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 465 Nm
MGHCK140-027.5-C		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 465 Nm
MGHCK140-027.5-D		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 465 Nm
MGHCK140-028-A		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 415 Nm
MGHCK140-028-B		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 415 Nm
MGHCK140-028-C		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 415 Nm
MGHCK140-028-D		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 415 Nm
MGHCK140-038.5-A		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 470 Nm
MGHCK140-038.5-B		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 470 Nm
MGHCK140-038.5-C		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 470 Nm
MGHCK140-038.5-D		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 470 Nm
MGHCK140-040-A		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-040-B		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-040-C		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-040-D		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-055-A		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 475 Nm
MGHCK140-055-B		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 475 Nm
MGHCK140-055-C		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 475 Nm
MGHCK140-055-D		Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 475 Nm
MGHCK140-064-A		Frame: 140 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 380 Nm
MGHCK140-064-B		Frame: 140 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 380 Nm
MGHCK140-064-C		Frame: 140 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 380 Nm
MGHCK140-064-D		Frame: 140 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 380 Nm
MGHCK140-088-A		Frame: 140 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-088-B		Frame: 140 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-088-C		Frame: 140 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-088-D		Frame: 140 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-100-A		Frame: 140 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 370 Nm
MGHCK140-100-B		Frame: 140 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 370 Nm
MGHCK140-100-C		Frame: 140 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 370 Nm
MGHCK140-100-D		Frame: 140 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 370 Nm
MGHCK140-110-A		Frame: 140 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-110-B		Frame: 140 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-110-C		Frame: 140 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-110-D		Frame: 140 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-137.5-A		Frame: 140 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-137.5-B		Frame: 140 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-137.5-C		Frame: 140 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-137.5-D		Frame: 140 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 480 Nm
MGHCK140-140-A		Frame: 140 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 370 Nm
MGHCK140-140-B		Frame: 140 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 370 Nm
MGHCK140-140-C		Frame: 140 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 370 Nm
MGHCK140-140-D		Frame: 140 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 370 Nm
MGHCK140-154-A		Frame: 140 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 485 Nm
MGHCK140-154-B		Frame: 140 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 485 Nm
MGHCK140-154-C		Frame: 140 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 485 Nm
MGHCK140-154-D		Frame: 140 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 485 Nm
MGHCK140-160-A		Frame: 140 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 380 Nm
MGHCK140-160-B		Frame: 140 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 380 Nm
MGHCK140-160-C		Frame: 140 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 380 Nm
MGHCK140-160-D		Frame: 140 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 380 Nm
MGHCK140-200-A		Frame: 140 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 390 Nm
MGHCK140-200-B		Frame: 140 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 390 Nm
MGHCK140-200-C		Frame: 140 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 390 Nm
MGHCK140-200-D		Frame: 140 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 390 Nm
MGHCK140-220-A		Frame: 140 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 490 Nm
MGHCK140-220-B		Frame: 140 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 490 Nm
MGHCK140-220-C		Frame: 140 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 490 Nm
MGHCK140-220-D		Frame: 140 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 490 Nm
MGHCK140-280-A		Frame: 140 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-280-B		Frame: 140 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-280-C		Frame: 140 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-280-D		Frame: 140 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-385-A		Frame: 140 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 495 Nm
MGHCK140-385-B		Frame: 140 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 495 Nm
MGHCK140-385-C		Frame: 140 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 495 Nm
MGHCK140-385-D		Frame: 140 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 495 Nm
MGHCK140-400-A		Frame: 140 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 390 Nm
MGHCK140-400-B		Frame: 140 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 390 Nm
MGHCK140-400-C		Frame: 140 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 390 Nm
MGHCK140-400-D		Frame: 140 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 390 Nm
MGHCK140-440-A		Frame: 140 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 450 Nm
MGHCK140-440-B		Frame: 140 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 450 Nm
MGHCK140-440-C		Frame: 140 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 450 Nm
MGHCK140-440-D		Frame: 140 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 450 Nm
MGHCK140-500-A		Frame: 140 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-500-B		Frame: 140 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-500-C		Frame: 140 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-500-D		Frame: 140 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 400 Nm
MGHCK140-550-A		Frame: 140 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 490 Nm
MGHCK140-550-B		Frame: 140 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 490 Nm
MGHCK140-550-C		Frame: 140 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 490 Nm
MGHCK140-550-D		Frame: 140 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 490 Nm
MGHCK140-700-A		Frame: 140 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 455 Nm
MGHCK140-700-B		Frame: 140 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 455 Nm
MGHCK140-700-C		Frame: 140 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 455 Nm
MGHCK140-700-D		Frame: 140 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 455 Nm
MGHCK140-770-A		Frame: 140 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 495 Nm
MGHCK140-770-B		Frame: 140 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 495 Nm
MGHCK140-770-C		Frame: 140 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 495 Nm
MGHCK140-770-D		Frame: 140 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 495 Nm
MGHCK140-1000-A		Frame: 140 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 525 Nm
MGHCK140-1000-B		Frame: 140 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 525 Nm
MGHCK140-1000-C		Frame: 140 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 525 Nm
MGHCK140-1000-D		Frame: 140 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 525 Nm
MGHCK140-1078-A		Frame: 140 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 500 Nm
MGHCK140-1078-B		Frame: 140 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 500 Nm
MGHCK140-1078-C		Frame: 140 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 500 Nm
MGHCK140-1078-D		Frame: 140 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 500 Nm
MGHCK140-1400-A		Frame: 140 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 540 Nm
MGHCK140-1400-B		Frame: 140 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 540 Nm
MGHCK140-1400-C		Frame: 140 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 540 Nm
MGHCK140-1400-D		Frame: 140 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 540 Nm
MGHCK140-1540-A		Frame: 140 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 500 Nm
MGHCK140-1540-B		Frame: 140 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 500 Nm
MGHCK140-1540-C		Frame: 140 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 500 Nm
MGHCK140-1540-D		Frame: 140 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 500 Nm
MGHCK140-1600-A		Frame: 140 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 565 Nm
MGHCK140-1600-B		Frame: 140 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 565 Nm
MGHCK140-1600-C		Frame: 140 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 565 Nm
MGHCK140-1600-D		Frame: 140 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 565 Nm
MGHCK140-2000-A		Frame: 140 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 565 Nm
MGHCK140-2000-B		Frame: 140 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 565 Nm
MGHCK140-2000-C		Frame: 140 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 565 Nm
MGHCK140-2000-D		Frame: 140 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 565 Nm
MGHCK140-2695-A		Frame: 140 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-2695-B		Frame: 140 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-2695-C		Frame: 140 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-2695-D		Frame: 140 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-2800-A		Frame: 140 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 540 Nm
MGHCK140-2800-B		Frame: 140 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 540 Nm
MGHCK140-2800-C		Frame: 140 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 540 Nm
MGHCK140-2800-D		Frame: 140 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 540 Nm
MGHCK140-3850-A		Frame: 140 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-3850-B		Frame: 140 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-3850-C		Frame: 140 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-3850-D		Frame: 140 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 510 Nm
MGHCK140-4000-A		Frame: 140 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 225 Nm
MGHCK140-4000-B		Frame: 140 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 225 Nm
MGHCK140-4000-C		Frame: 140 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 225 Nm
MGHCK140-4000-D		Frame: 140 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 225 Nm
MGHCK140-5500-A		Frame: 140 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 315 Nm
MGHCK140-5500-B		Frame: 140 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 315 Nm
MGHCK140-5500-C		Frame: 140 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 315 Nm
MGHCK140-5500-D		Frame: 140 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 315 Nm
MGHCK170-004-A		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-004-B		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-004-C		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-004-D		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-005.5-A		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 745 Nm
MGHCK170-005.5-B		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 745 Nm
MGHCK170-005.5-C		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 745 Nm
MGHCK170-005.5-D		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 745 Nm
MGHCK170-008-A		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-008-B		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-008-C		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-008-D		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-011-A		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 765 Nm
MGHCK170-011-B		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 765 Nm
MGHCK170-011-C		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 765 Nm
MGHCK170-011-D		Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 765 Nm
MGHCK170-016-A		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 840 Nm
MGHCK170-016-B		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 840 Nm
MGHCK170-016-C		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 840 Nm
MGHCK170-016-D		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 840 Nm
MGHCK170-020-A		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-020-B		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-020-C		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-020-D		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-022-A		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 780 Nm
MGHCK170-022-B		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 780 Nm
MGHCK170-022-C		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 780 Nm
MGHCK170-022-D		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 780 Nm
MGHCK170-027.5-A		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 785 Nm
MGHCK170-027.5-B		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 785 Nm
MGHCK170-027.5-C		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 785 Nm
MGHCK170-027.5-D		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 785 Nm
MGHCK170-028-A		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 775 Nm
MGHCK170-028-B		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 775 Nm
MGHCK170-028-C		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 775 Nm
MGHCK170-028-D		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 775 Nm
MGHCK170-038.5-A		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 795 Nm
MGHCK170-038.5-B		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 795 Nm
MGHCK170-038.5-C		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 795 Nm
MGHCK170-038.5-D		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 795 Nm
MGHCK170-040-A		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 740 Nm
MGHCK170-040-B		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 740 Nm
MGHCK170-040-C		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 740 Nm
MGHCK170-040-D		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 740 Nm
MGHCK170-055-A		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 805 Nm
MGHCK170-055-B		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 805 Nm
MGHCK170-055-C		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 805 Nm
MGHCK170-055-D		Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 805 Nm
MGHCK170-064-A		Frame: 170 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 700 Nm
MGHCK170-064-B		Frame: 170 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 700 Nm
MGHCK170-064-C		Frame: 170 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 700 Nm
MGHCK170-064-D		Frame: 170 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 700 Nm
MGHCK170-088-A		Frame: 170 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 815 Nm
MGHCK170-088-B		Frame: 170 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 815 Nm
MGHCK170-088-C		Frame: 170 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 815 Nm
MGHCK170-088-D		Frame: 170 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 815 Nm
MGHCK170-100-A		Frame: 170 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 670 Nm
MGHCK170-100-B		Frame: 170 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 670 Nm
MGHCK170-100-C		Frame: 170 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 670 Nm
MGHCK170-100-D		Frame: 170 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 670 Nm
MGHCK170-110-A		Frame: 170 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 820 Nm
MGHCK170-110-B		Frame: 170 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 820 Nm
MGHCK170-110-C		Frame: 170 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 820 Nm
MGHCK170-110-D		Frame: 170 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 820 Nm
MGHCK170-137.5-A		Frame: 170 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-137.5-B		Frame: 170 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-137.5-C		Frame: 170 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-137.5-D		Frame: 170 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-140-A		Frame: 170 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 650 Nm
MGHCK170-140-B		Frame: 170 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 650 Nm
MGHCK170-140-C		Frame: 170 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 650 Nm
MGHCK170-140-D		Frame: 170 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 650 Nm
MGHCK170-154-A		Frame: 170 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-154-B		Frame: 170 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-154-C		Frame: 170 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-154-D		Frame: 170 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-160-A		Frame: 170 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 655 Nm
MGHCK170-160-B		Frame: 170 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 655 Nm
MGHCK170-160-C		Frame: 170 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 655 Nm
MGHCK170-160-D		Frame: 170 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 655 Nm
MGHCK170-200-A		Frame: 170 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 665 Nm
MGHCK170-200-B		Frame: 170 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 665 Nm
MGHCK170-200-C		Frame: 170 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 665 Nm
MGHCK170-200-D		Frame: 170 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 665 Nm
MGHCK170-220-A		Frame: 170 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 835 Nm
MGHCK170-220-B		Frame: 170 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 835 Nm
MGHCK170-220-C		Frame: 170 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 835 Nm
MGHCK170-220-D		Frame: 170 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 835 Nm
MGHCK170-280-A		Frame: 170 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 690 Nm
MGHCK170-280-B		Frame: 170 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 690 Nm
MGHCK170-280-C		Frame: 170 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 690 Nm
MGHCK170-280-D		Frame: 170 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 690 Nm
MGHCK170-385-A		Frame: 170 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 850 Nm
MGHCK170-385-B		Frame: 170 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 850 Nm
MGHCK170-385-C		Frame: 170 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 850 Nm
MGHCK170-385-D		Frame: 170 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 850 Nm
MGHCK170-400-A		Frame: 170 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 675 Nm
MGHCK170-400-B		Frame: 170 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 675 Nm
MGHCK170-400-C		Frame: 170 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 675 Nm
MGHCK170-400-D		Frame: 170 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 675 Nm
MGHCK170-440-A		Frame: 170 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 835 Nm
MGHCK170-440-B		Frame: 170 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 835 Nm
MGHCK170-440-C		Frame: 170 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 835 Nm
MGHCK170-440-D		Frame: 170 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 835 Nm
MGHCK170-500-A		Frame: 170 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 715 Nm
MGHCK170-500-B		Frame: 170 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 715 Nm
MGHCK170-500-C		Frame: 170 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 715 Nm
MGHCK170-500-D		Frame: 170 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 715 Nm
MGHCK170-550-A		Frame: 170 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-550-B		Frame: 170 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-550-C		Frame: 170 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-550-D		Frame: 170 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-700-A		Frame: 170 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-700-B		Frame: 170 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-700-C		Frame: 170 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-700-D		Frame: 170 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 825 Nm
MGHCK170-770-A		Frame: 170 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 850 Nm
MGHCK170-770-B		Frame: 170 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 850 Nm
MGHCK170-770-C		Frame: 170 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 850 Nm
MGHCK170-770-D		Frame: 170 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 850 Nm
MGHCK170-1000-A		Frame: 170 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-1000-B		Frame: 170 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-1000-C		Frame: 170 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-1000-D		Frame: 170 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-1078-A		Frame: 170 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 860 Nm
MGHCK170-1078-B		Frame: 170 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 860 Nm
MGHCK170-1078-C		Frame: 170 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 860 Nm
MGHCK170-1078-D		Frame: 170 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 860 Nm
MGHCK170-1400-A		Frame: 170 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-1400-B		Frame: 170 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-1400-C		Frame: 170 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-1400-D		Frame: 170 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-1540-A		Frame: 170 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 870 Nm
MGHCK170-1540-B		Frame: 170 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 870 Nm
MGHCK170-1540-C		Frame: 170 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 870 Nm
MGHCK170-1540-D		Frame: 170 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 870 Nm
MGHCK170-1600-A		Frame: 170 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-1600-B		Frame: 170 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-1600-C		Frame: 170 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-1600-D		Frame: 170 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-2000-A		Frame: 170 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-2000-B		Frame: 170 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-2000-C		Frame: 170 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-2000-D		Frame: 170 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 810 Nm
MGHCK170-2695-A		Frame: 170 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 880 Nm
MGHCK170-2695-B		Frame: 170 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 880 Nm
MGHCK170-2695-C		Frame: 170 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 880 Nm
MGHCK170-2695-D		Frame: 170 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 880 Nm
MGHCK170-2800-A		Frame: 170 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-2800-B		Frame: 170 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-2800-C		Frame: 170 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-2800-D		Frame: 170 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
MGHCK170-3850-A		Frame: 170 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 980 Nm
MGHCK170-3850-B		Frame: 170 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 980 Nm
MGHCK170-3850-C		Frame: 170 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 980 Nm
MGHCK170-3850-D		Frame: 170 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 980 Nm
MGHCK170-4000-A		Frame: 170 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 650 Nm
MGHCK170-4000-B		Frame: 170 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 650 Nm
MGHCK170-4000-C		Frame: 170 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 650 Nm
MGHCK170-4000-D		Frame: 170 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 650 Nm
MGHCK170-5500-A		Frame: 170 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 895 Nm
MGHCK170-5500-B		Frame: 170 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 895 Nm
MGHCK170-5500-C		Frame: 170 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 895 Nm
MGHCK170-5500-D		Frame: 170 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 895 Nm
MGHCK240-004-A		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,728 Nm
MGHCK240-004-B		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,728 Nm
MGHCK240-004-C		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,728 Nm
MGHCK240-004-D		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,728 Nm
MGHCK240-005.5-A		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,665 Nm
MGHCK240-005.5-B		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,665 Nm
MGHCK240-005.5-C		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,665 Nm
MGHCK240-005.5-D		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,665 Nm
MGHCK240-008-A		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,584 Nm
MGHCK240-008-B		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,584 Nm
MGHCK240-008-C		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,584 Nm
MGHCK240-008-D		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,584 Nm
MGHCK240-011-A		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,710 Nm
MGHCK240-011-B		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,710 Nm
MGHCK240-011-C		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,710 Nm
MGHCK240-011-D		Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,710 Nm
MGHCK240-016-A		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-016-B		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-016-C		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-016-D		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-020-A		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-020-B		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-020-C		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-020-D		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-022-A		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,740 Nm
MGHCK240-022-B		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,740 Nm
MGHCK240-022-C		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,740 Nm
MGHCK240-022-D		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,740 Nm
MGHCK240-027.5-A		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,750 Nm
MGHCK240-027.5-B		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,750 Nm
MGHCK240-027.5-C		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,750 Nm
MGHCK240-027.5-D		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,750 Nm
MGHCK240-028-A		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-028-B		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-028-C		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-028-D		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-038.5-A		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,770 Nm
MGHCK240-038.5-B		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,770 Nm
MGHCK240-038.5-C		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,770 Nm
MGHCK240-038.5-D		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,770 Nm
MGHCK240-040-A		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,725 Nm
MGHCK240-040-B		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,725 Nm
MGHCK240-040-C		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,725 Nm
MGHCK240-040-D		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,725 Nm
MGHCK240-055-A		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,785 Nm
MGHCK240-055-B		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,785 Nm
MGHCK240-055-C		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,785 Nm
MGHCK240-055-D		Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,785 Nm
MGHCK240-064-A		Frame: 240 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,770 Nm
MGHCK240-064-B		Frame: 240 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,770 Nm
MGHCK240-064-C		Frame: 240 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,770 Nm
MGHCK240-064-D		Frame: 240 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,770 Nm
MGHCK240-088-A		Frame: 240 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-088-B		Frame: 240 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-088-C		Frame: 240 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-088-D		Frame: 240 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,800 Nm
MGHCK240-100-A		Frame: 240 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,695 Nm
MGHCK240-100-B		Frame: 240 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,695 Nm
MGHCK240-100-C		Frame: 240 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,695 Nm
MGHCK240-100-D		Frame: 240 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,695 Nm
MGHCK240-110-A		Frame: 240 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,810 Nm
MGHCK240-110-B		Frame: 240 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,810 Nm
MGHCK240-110-C		Frame: 240 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,810 Nm
MGHCK240-110-D		Frame: 240 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,810 Nm
MGHCK240-137.5-A		Frame: 240 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,820 Nm
MGHCK240-137.5-B		Frame: 240 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,820 Nm
MGHCK240-137.5-C		Frame: 240 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,820 Nm
MGHCK240-137.5-D		Frame: 240 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,820 Nm
MGHCK240-140-A		Frame: 240 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,640 Nm
MGHCK240-140-B		Frame: 240 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,640 Nm
MGHCK240-140-C		Frame: 240 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,640 Nm
MGHCK240-140-D		Frame: 240 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,640 Nm
MGHCK240-154-A		Frame: 240 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,825 Nm
MGHCK240-154-B		Frame: 240 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,825 Nm
MGHCK240-154-C		Frame: 240 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,825 Nm
MGHCK240-154-D		Frame: 240 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,825 Nm
MGHCK240-160-A		Frame: 240 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,620 Nm
MGHCK240-160-B		Frame: 240 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,620 Nm
MGHCK240-160-C		Frame: 240 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,620 Nm
MGHCK240-160-D		Frame: 240 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,620 Nm
MGHCK240-200-A		Frame: 240 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,585 Nm
MGHCK240-200-B		Frame: 240 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,585 Nm
MGHCK240-200-C		Frame: 240 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,585 Nm
MGHCK240-200-D		Frame: 240 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,585 Nm
MGHCK240-220-A		Frame: 240 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-220-B		Frame: 240 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-220-C		Frame: 240 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-220-D		Frame: 240 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-280-A		Frame: 240 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,605 Nm
MGHCK240-280-B		Frame: 240 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,605 Nm
MGHCK240-280-C		Frame: 240 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,605 Nm
MGHCK240-280-D		Frame: 240 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,605 Nm
MGHCK240-385-A		Frame: 240 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,845 Nm
MGHCK240-385-B		Frame: 240 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,845 Nm
MGHCK240-385-C		Frame: 240 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,845 Nm
MGHCK240-385-D		Frame: 240 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,845 Nm
MGHCK240-400-A		Frame: 240 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,565 Nm
MGHCK240-400-B		Frame: 240 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,565 Nm
MGHCK240-400-C		Frame: 240 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,565 Nm
MGHCK240-400-D		Frame: 240 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,565 Nm
MGHCK240-440-A		Frame: 240 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-440-B		Frame: 240 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-440-C		Frame: 240 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-440-D		Frame: 240 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-500-A		Frame: 240 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,635 Nm
MGHCK240-500-B		Frame: 240 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,635 Nm
MGHCK240-500-C		Frame: 240 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,635 Nm
MGHCK240-500-D		Frame: 240 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,635 Nm
MGHCK240-550-A		Frame: 240 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,860 Nm
MGHCK240-550-B		Frame: 240 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,860 Nm
MGHCK240-550-C		Frame: 240 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,860 Nm
MGHCK240-550-D		Frame: 240 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,860 Nm
MGHCK240-700-A		Frame: 240 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,850 Nm
MGHCK240-700-B		Frame: 240 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,850 Nm
MGHCK240-700-C		Frame: 240 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,850 Nm
MGHCK240-700-D		Frame: 240 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,850 Nm
MGHCK240-770-A		Frame: 240 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,870 Nm
MGHCK240-770-B		Frame: 240 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,870 Nm
MGHCK240-770-C		Frame: 240 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,870 Nm
MGHCK240-770-D		Frame: 240 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,870 Nm
MGHCK240-1000-A		Frame: 240 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,100 Nm
MGHCK240-1000-B		Frame: 240 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,100 Nm
MGHCK240-1000-C		Frame: 240 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,100 Nm
MGHCK240-1000-D		Frame: 240 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,100 Nm
MGHCK240-1078-A		Frame: 240 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,890 Nm
MGHCK240-1078-B		Frame: 240 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,890 Nm
MGHCK240-1078-C		Frame: 240 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,890 Nm
MGHCK240-1078-D		Frame: 240 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,890 Nm
MGHCK240-1400-A		Frame: 240 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,220 Nm
MGHCK240-1400-B		Frame: 240 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,220 Nm
MGHCK240-1400-C		Frame: 240 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,220 Nm
MGHCK240-1400-D		Frame: 240 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,220 Nm
MGHCK240-1540-A		Frame: 240 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,910 Nm
MGHCK240-1540-B		Frame: 240 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,910 Nm
MGHCK240-1540-C		Frame: 240 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,910 Nm
MGHCK240-1540-D		Frame: 240 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,910 Nm
MGHCK240-1600-A		Frame: 240 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,225 Nm
MGHCK240-1600-B		Frame: 240 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,225 Nm
MGHCK240-1600-C		Frame: 240 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,225 Nm
MGHCK240-1600-D		Frame: 240 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,225 Nm
MGHCK240-2000-A		Frame: 240 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,240 Nm
MGHCK240-2000-B		Frame: 240 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,240 Nm
MGHCK240-2000-C		Frame: 240 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,240 Nm
MGHCK240-2000-D		Frame: 240 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,240 Nm
MGHCK240-2695-A		Frame: 240 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,935 Nm
MGHCK240-2695-B		Frame: 240 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,935 Nm
MGHCK240-2695-C		Frame: 240 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,935 Nm
MGHCK240-2695-D		Frame: 240 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,935 Nm
MGHCK240-2800-A		Frame: 240 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,225 Nm
MGHCK240-2800-B		Frame: 240 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,225 Nm
MGHCK240-2800-C		Frame: 240 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,225 Nm
MGHCK240-2800-D		Frame: 240 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,225 Nm
MGHCK240-3850-A		Frame: 240 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,610 Nm
MGHCK240-3850-B		Frame: 240 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,610 Nm
MGHCK240-3850-C		Frame: 240 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,610 Nm
MGHCK240-3850-D		Frame: 240 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,610 Nm
MGHCK240-4000-A		Frame: 240 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-4000-B		Frame: 240 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-4000-C		Frame: 240 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-4000-D		Frame: 240 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,840 Nm
MGHCK240-5500-A		Frame: 240 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,980 Nm
MGHCK240-5500-B		Frame: 240 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,980 Nm
MGHCK240-5500-C		Frame: 240 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,980 Nm
MGHCK240-5500-D		Frame: 240 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,980 Nm
MGHCK285-004-A		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,805 Nm
MGHCK285-004-B		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,805 Nm
MGHCK285-004-C		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,805 Nm
MGHCK285-004-D		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,805 Nm
MGHCK285-005.5-A		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,590 Nm
MGHCK285-005.5-B		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,590 Nm
MGHCK285-005.5-C		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,590 Nm
MGHCK285-005.5-D		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,590 Nm
MGHCK285-008-A		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,610 Nm
MGHCK285-008-B		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,610 Nm
MGHCK285-008-C		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,610 Nm
MGHCK285-008-D		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,610 Nm
MGHCK285-011-A		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,655 Nm
MGHCK285-011-B		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,655 Nm
MGHCK285-011-C		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,655 Nm
MGHCK285-011-D		Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,655 Nm
MGHCK285-016-A		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,015 Nm
MGHCK285-016-B		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,015 Nm
MGHCK285-016-C		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,015 Nm
MGHCK285-016-D		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,015 Nm
MGHCK285-020-A		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,015 Nm
MGHCK285-020-B		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,015 Nm
MGHCK285-020-C		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,015 Nm
MGHCK285-020-D		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,015 Nm
MGHCK285-022-A		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,685 Nm
MGHCK285-022-B		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,685 Nm
MGHCK285-022-C		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,685 Nm
MGHCK285-022-D		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,685 Nm
MGHCK285-027.5-A		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,700 Nm
MGHCK285-027.5-B		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,700 Nm
MGHCK285-027.5-C		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,700 Nm
MGHCK285-027.5-D		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,700 Nm
MGHCK285-028-A		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,872 Nm
MGHCK285-028-B		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,872 Nm
MGHCK285-028-C		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,872 Nm
MGHCK285-028-D		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,872 Nm
MGHCK285-038.5-A		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,574 Nm
MGHCK285-038.5-B		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,574 Nm
MGHCK285-038.5-C		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,574 Nm
MGHCK285-038.5-D		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,574 Nm
MGHCK285-040-A		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,728 Nm
MGHCK285-040-B		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,728 Nm
MGHCK285-040-C		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,728 Nm
MGHCK285-040-D		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,728 Nm
MGHCK285-055-A		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,376 Nm
MGHCK285-055-B		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,376 Nm
MGHCK285-055-C		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,376 Nm
MGHCK285-055-D		Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,376 Nm
MGHCK285-064-A		Frame: 285 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,880 Nm
MGHCK285-064-B		Frame: 285 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,880 Nm
MGHCK285-064-C		Frame: 285 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,880 Nm
MGHCK285-064-D		Frame: 285 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,880 Nm
MGHCK285-088-A		Frame: 285 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,185 Nm
MGHCK285-088-B		Frame: 285 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,185 Nm
MGHCK285-088-C		Frame: 285 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,185 Nm
MGHCK285-088-D		Frame: 285 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,185 Nm
MGHCK285-100-A		Frame: 285 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,760 Nm
MGHCK285-100-B		Frame: 285 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,760 Nm
MGHCK285-100-C		Frame: 285 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,760 Nm
MGHCK285-100-D		Frame: 285 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,760 Nm
MGHCK285-110-A		Frame: 285 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,800 Nm
MGHCK285-110-B		Frame: 285 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,800 Nm
MGHCK285-110-C		Frame: 285 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,800 Nm
MGHCK285-110-D		Frame: 285 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,800 Nm
MGHCK285-137.5-A		Frame: 285 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,815 Nm
MGHCK285-137.5-B		Frame: 285 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,815 Nm
MGHCK285-137.5-C		Frame: 285 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,815 Nm
MGHCK285-137.5-D		Frame: 285 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,815 Nm
MGHCK285-140-A		Frame: 285 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,680 Nm
MGHCK285-140-B		Frame: 285 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,680 Nm
MGHCK285-140-C		Frame: 285 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,680 Nm
MGHCK285-140-D		Frame: 285 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,680 Nm
MGHCK285-154-A		Frame: 285 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,820 Nm
MGHCK285-154-B		Frame: 285 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,820 Nm
MGHCK285-154-C		Frame: 285 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,820 Nm
MGHCK285-154-D		Frame: 285 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,820 Nm
MGHCK285-160-A		Frame: 285 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,650 Nm
MGHCK285-160-B		Frame: 285 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,650 Nm
MGHCK285-160-C		Frame: 285 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,650 Nm
MGHCK285-160-D		Frame: 285 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,650 Nm
MGHCK285-200-A		Frame: 285 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,600 Nm
MGHCK285-200-B		Frame: 285 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,600 Nm
MGHCK285-200-C		Frame: 285 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,600 Nm
MGHCK285-200-D		Frame: 285 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,600 Nm
MGHCK285-220-A		Frame: 285 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,850 Nm
MGHCK285-220-B		Frame: 285 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,850 Nm
MGHCK285-220-C		Frame: 285 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,850 Nm
MGHCK285-220-D		Frame: 285 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,850 Nm
MGHCK285-280-A		Frame: 285 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,755 Nm
MGHCK285-280-B		Frame: 285 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,755 Nm
MGHCK285-280-C		Frame: 285 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,755 Nm
MGHCK285-280-D		Frame: 285 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,755 Nm
MGHCK285-385-A		Frame: 285 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,890 Nm
MGHCK285-385-B		Frame: 285 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,890 Nm
MGHCK285-385-C		Frame: 285 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,890 Nm
MGHCK285-385-D		Frame: 285 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,890 Nm
MGHCK285-400-A		Frame: 285 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,605 Nm
MGHCK285-400-B		Frame: 285 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,605 Nm
MGHCK285-400-C		Frame: 285 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,605 Nm
MGHCK285-400-D		Frame: 285 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,605 Nm
MGHCK285-440-A		Frame: 285 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,840 Nm
MGHCK285-440-B		Frame: 285 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,840 Nm
MGHCK285-440-C		Frame: 285 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,840 Nm
MGHCK285-440-D		Frame: 285 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,840 Nm
MGHCK285-500-A		Frame: 285 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,725 Nm
MGHCK285-500-B		Frame: 285 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,725 Nm
MGHCK285-500-C		Frame: 285 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,725 Nm
MGHCK285-500-D		Frame: 285 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,725 Nm
MGHCK285-550-A		Frame: 285 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,870 Nm
MGHCK285-550-B		Frame: 285 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,870 Nm
MGHCK285-550-C		Frame: 285 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,870 Nm
MGHCK285-550-D		Frame: 285 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,870 Nm
MGHCK285-700-A		Frame: 285 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,040 Nm
MGHCK285-700-B		Frame: 285 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,040 Nm
MGHCK285-700-C		Frame: 285 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,040 Nm
MGHCK285-700-D		Frame: 285 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,040 Nm
MGHCK285-770-A		Frame: 285 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,895 Nm
MGHCK285-770-B		Frame: 285 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,895 Nm
MGHCK285-770-C		Frame: 285 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,895 Nm
MGHCK285-770-D		Frame: 285 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,895 Nm
MGHCK285-1000-A		Frame: 285 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,395 Nm
MGHCK285-1000-B		Frame: 285 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,395 Nm
MGHCK285-1000-C		Frame: 285 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,395 Nm
MGHCK285-1000-D		Frame: 285 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,395 Nm
MGHCK285-1078-A		Frame: 285 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,920 Nm
MGHCK285-1078-B		Frame: 285 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,920 Nm
MGHCK285-1078-C		Frame: 285 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,920 Nm
MGHCK285-1078-D		Frame: 285 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,920 Nm
MGHCK285-1400-A		Frame: 285 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,430 Nm
MGHCK285-1400-B		Frame: 285 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,430 Nm
MGHCK285-1400-C		Frame: 285 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,430 Nm
MGHCK285-1400-D		Frame: 285 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,430 Nm
MGHCK285-1540-A		Frame: 285 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,945 Nm
MGHCK285-1540-B		Frame: 285 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,945 Nm
MGHCK285-1540-C		Frame: 285 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,945 Nm
MGHCK285-1540-D		Frame: 285 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,945 Nm
MGHCK285-1600-A		Frame: 285 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,435 Nm
MGHCK285-1600-B		Frame: 285 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,435 Nm
MGHCK285-1600-C		Frame: 285 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,435 Nm
MGHCK285-1600-D		Frame: 285 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,435 Nm
MGHCK285-2000-A		Frame: 285 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,455 Nm
MGHCK285-2000-B		Frame: 285 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,455 Nm
MGHCK285-2000-C		Frame: 285 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,455 Nm
MGHCK285-2000-D		Frame: 285 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,455 Nm
MGHCK285-2695-A		Frame: 285 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,980 Nm
MGHCK285-2695-B		Frame: 285 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,980 Nm
MGHCK285-2695-C		Frame: 285 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,980 Nm
MGHCK285-2695-D		Frame: 285 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,980 Nm
MGHCK285-2800-A		Frame: 285 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,480 Nm
MGHCK285-2800-B		Frame: 285 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,480 Nm
MGHCK285-2800-C		Frame: 285 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,480 Nm
MGHCK285-2800-D		Frame: 285 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,480 Nm
MGHCK285-3850-A		Frame: 285 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,995 Nm
MGHCK285-3850-B		Frame: 285 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,995 Nm
MGHCK285-3850-C		Frame: 285 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,995 Nm
MGHCK285-3850-D		Frame: 285 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,995 Nm
MGHCK285-4000-A		Frame: 285 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,515 Nm
MGHCK285-4000-B		Frame: 285 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,515 Nm
MGHCK285-4000-C		Frame: 285 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,515 Nm
MGHCK285-4000-D		Frame: 285 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,515 Nm
MGHCK285-5500-A		Frame: 285 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,110 Nm
MGHCK285-5500-B		Frame: 285 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,110 Nm
MGHCK285-5500-C		Frame: 285 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,110 Nm
MGHCK285-5500-D		Frame: 285 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,110 Nm
MGHCK320-004-A		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,545 Nm
MGHCK320-004-B		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,545 Nm
MGHCK320-004-C		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,545 Nm
MGHCK320-004-D		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,545 Nm
MGHCK320-005.5-A		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,700 Nm
MGHCK320-005.5-B		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,700 Nm
MGHCK320-005.5-C		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,700 Nm
MGHCK320-005.5-D		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,700 Nm
MGHCK320-008-A		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,680 Nm
MGHCK320-008-B		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,680 Nm
MGHCK320-008-C		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,680 Nm
MGHCK320-008-D		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,680 Nm
MGHCK320-011-A		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,800 Nm
MGHCK320-011-B		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,800 Nm
MGHCK320-011-C		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,800 Nm
MGHCK320-011-D		Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,800 Nm
MGHCK320-016-A		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,935 Nm
MGHCK320-016-B		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,935 Nm
MGHCK320-016-C		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,935 Nm
MGHCK320-016-D		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,935 Nm
MGHCK320-020-A		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,935 Nm
MGHCK320-020-B		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,935 Nm
MGHCK320-020-C		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,935 Nm
MGHCK320-020-D		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,935 Nm
MGHCK320-022-A		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,815 Nm
MGHCK320-022-B		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,815 Nm
MGHCK320-022-C		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,815 Nm
MGHCK320-022-D		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,815 Nm
MGHCK320-027.5-A		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,840 Nm
MGHCK320-027.5-B		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,840 Nm
MGHCK320-027.5-C		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,840 Nm
MGHCK320-027.5-D		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,840 Nm
MGHCK320-028-A		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,600 Nm
MGHCK320-028-B		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,600 Nm
MGHCK320-028-C		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,600 Nm
MGHCK320-028-D		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,600 Nm
MGHCK320-038.5-A		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,885 Nm
MGHCK320-038.5-B		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,885 Nm
MGHCK320-038.5-C		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,885 Nm
MGHCK320-038.5-D		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,885 Nm
MGHCK320-040-A		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,880 Nm
MGHCK320-040-B		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,880 Nm
MGHCK320-040-C		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,880 Nm
MGHCK320-040-D		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,880 Nm
MGHCK320-055-A		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,790 Nm
MGHCK320-055-B		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,790 Nm
MGHCK320-055-C		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,790 Nm
MGHCK320-055-D		Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,790 Nm
MGHCK320-064-A		Frame: 320 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,760 Nm
MGHCK320-064-B		Frame: 320 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,760 Nm
MGHCK320-064-C		Frame: 320 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,760 Nm
MGHCK320-064-D		Frame: 320 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,760 Nm
MGHCK320-088-A		Frame: 320 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,970 Nm
MGHCK320-088-B		Frame: 320 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,970 Nm
MGHCK320-088-C		Frame: 320 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,970 Nm
MGHCK320-088-D		Frame: 320 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,970 Nm
MGHCK320-100-A		Frame: 320 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,520 Nm
MGHCK320-100-B		Frame: 320 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,520 Nm
MGHCK320-100-C		Frame: 320 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,520 Nm
MGHCK320-100-D		Frame: 320 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,520 Nm
MGHCK320-110-A		Frame: 320 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,990 Nm
MGHCK320-110-B		Frame: 320 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,990 Nm
MGHCK320-110-C		Frame: 320 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,990 Nm
MGHCK320-110-D		Frame: 320 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,990 Nm
MGHCK320-137.5-A		Frame: 320 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,020 Nm
MGHCK320-137.5-B		Frame: 320 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,020 Nm
MGHCK320-137.5-C		Frame: 320 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,020 Nm
MGHCK320-137.5-D		Frame: 320 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,020 Nm
MGHCK320-140-A		Frame: 320 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,360 Nm
MGHCK320-140-B		Frame: 320 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,360 Nm
MGHCK320-140-C		Frame: 320 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,360 Nm
MGHCK320-140-D		Frame: 320 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,360 Nm
MGHCK320-154-A		Frame: 320 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,035 Nm
MGHCK320-154-B		Frame: 320 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,035 Nm
MGHCK320-154-C		Frame: 320 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,035 Nm
MGHCK320-154-D		Frame: 320 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,035 Nm
MGHCK320-160-A		Frame: 320 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,300 Nm
MGHCK320-160-B		Frame: 320 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,300 Nm
MGHCK320-160-C		Frame: 320 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,300 Nm
MGHCK320-160-D		Frame: 320 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,300 Nm
MGHCK320-200-A		Frame: 320 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,200 Nm
MGHCK320-200-B		Frame: 320 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,200 Nm
MGHCK320-200-C		Frame: 320 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,200 Nm
MGHCK320-200-D		Frame: 320 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,200 Nm
MGHCK320-220-A		Frame: 320 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,070 Nm
MGHCK320-220-B		Frame: 320 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,070 Nm
MGHCK320-220-C		Frame: 320 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,070 Nm
MGHCK320-220-D		Frame: 320 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,070 Nm
MGHCK320-280-A		Frame: 320 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,490 Nm
MGHCK320-280-B		Frame: 320 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,490 Nm
MGHCK320-280-C		Frame: 320 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,490 Nm
MGHCK320-280-D		Frame: 320 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,490 Nm
MGHCK320-385-A		Frame: 320 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,130 Nm
MGHCK320-385-B		Frame: 320 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,130 Nm
MGHCK320-385-C		Frame: 320 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,130 Nm
MGHCK320-385-D		Frame: 320 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,130 Nm
MGHCK320-400-A		Frame: 320 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,300 Nm
MGHCK320-400-B		Frame: 320 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,300 Nm
MGHCK320-400-C		Frame: 320 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,300 Nm
MGHCK320-400-D		Frame: 320 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,300 Nm
MGHCK320-440-A		Frame: 320 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,060 Nm
MGHCK320-440-B		Frame: 320 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,060 Nm
MGHCK320-440-C		Frame: 320 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,060 Nm
MGHCK320-440-D		Frame: 320 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,060 Nm
MGHCK320-500-A		Frame: 320 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,490 Nm
MGHCK320-500-B		Frame: 320 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,490 Nm
MGHCK320-500-C		Frame: 320 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,490 Nm
MGHCK320-500-D		Frame: 320 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,490 Nm
MGHCK320-550-A		Frame: 320 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,110 Nm
MGHCK320-550-B		Frame: 320 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,110 Nm
MGHCK320-550-C		Frame: 320 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,110 Nm
MGHCK320-550-D		Frame: 320 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,110 Nm
MGHCK320-700-A		Frame: 320 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,905 Nm
MGHCK320-700-B		Frame: 320 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,905 Nm
MGHCK320-700-C		Frame: 320 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,905 Nm
MGHCK320-700-D		Frame: 320 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,905 Nm
MGHCK320-770-A		Frame: 320 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,150 Nm
MGHCK320-770-B		Frame: 320 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,150 Nm
MGHCK320-770-C		Frame: 320 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,150 Nm
MGHCK320-770-D		Frame: 320 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,150 Nm
MGHCK320-1000-A		Frame: 320 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-1000-B		Frame: 320 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-1000-C		Frame: 320 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-1000-D		Frame: 320 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-1078-A		Frame: 320 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,180 Nm
MGHCK320-1078-B		Frame: 320 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,180 Nm
MGHCK320-1078-C		Frame: 320 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,180 Nm
MGHCK320-1078-D		Frame: 320 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,180 Nm
MGHCK320-1400-A		Frame: 320 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-1400-B		Frame: 320 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-1400-C		Frame: 320 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-1400-D		Frame: 320 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-1540-A		Frame: 320 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,220 Nm
MGHCK320-1540-B		Frame: 320 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,220 Nm
MGHCK320-1540-C		Frame: 320 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,220 Nm
MGHCK320-1540-D		Frame: 320 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,220 Nm
MGHCK320-1600-A		Frame: 320 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,760 Nm
MGHCK320-1600-B		Frame: 320 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,760 Nm
MGHCK320-1600-C		Frame: 320 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,760 Nm
MGHCK320-1600-D		Frame: 320 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,760 Nm
MGHCK320-2000-A		Frame: 320 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-2000-B		Frame: 320 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-2000-C		Frame: 320 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-2000-D		Frame: 320 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-2695-A		Frame: 320 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,275 Nm
MGHCK320-2695-B		Frame: 320 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,275 Nm
MGHCK320-2695-C		Frame: 320 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,275 Nm
MGHCK320-2695-D		Frame: 320 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,275 Nm
MGHCK320-2800-A		Frame: 320 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-2800-B		Frame: 320 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-2800-C		Frame: 320 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-2800-D		Frame: 320 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-3850-A		Frame: 320 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,365 Nm
MGHCK320-3850-B		Frame: 320 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,365 Nm
MGHCK320-3850-C		Frame: 320 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,365 Nm
MGHCK320-3850-D		Frame: 320 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,365 Nm
MGHCK320-4000-A		Frame: 320 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-4000-B		Frame: 320 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-4000-C		Frame: 320 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-4000-D		Frame: 320 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,815 Nm
MGHCK320-5500-A		Frame: 320 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,515 Nm
MGHCK320-5500-B		Frame: 320 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,515 Nm
MGHCK320-5500-C		Frame: 320 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,515 Nm
MGHCK320-5500-D		Frame: 320 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,515 Nm

Planetary GearboxesApex Dynamics

868 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics MGHCK Right-Angle Extra High Torque Gearboxes (115-320)

Brand Apex Dynamics·Planetary Gearboxes

Available part numbers (868)

MGHCK115-004-A, MGHCK115-004-B, MGHCK115-004-C, MGHCK115-004-D, MGHCK115-005.5-A, MGHCK115-005.5-B, MGHCK115-005.5-C, MGHCK115-005.5-D, MGHCK115-008-A, MGHCK115-008-B + 858 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MGHCK115-004-A	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 75 Nm
	MGHCK115-004-B	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 75 Nm
	MGHCK115-004-C	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 75 Nm
	MGHCK115-004-D	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 75 Nm
	MGHCK115-005.5-A	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 105 Nm
	MGHCK115-005.5-B	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 105 Nm
	MGHCK115-005.5-C	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 105 Nm
	MGHCK115-005.5-D	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 105 Nm
	MGHCK115-008-A	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 150 Nm
	MGHCK115-008-B	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 150 Nm
	MGHCK115-008-C	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 150 Nm
	MGHCK115-008-D	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 150 Nm
	MGHCK115-011-A	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 210 Nm
	MGHCK115-011-B	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 210 Nm
	MGHCK115-011-C	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 210 Nm
	MGHCK115-011-D	Frame: 115 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 210 Nm
	MGHCK115-016-A	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 240 Nm
	MGHCK115-016-B	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 240 Nm
	MGHCK115-016-C	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 240 Nm
	MGHCK115-016-D	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 240 Nm
	MGHCK115-020-A	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 230 Nm
	MGHCK115-020-B	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 230 Nm
	MGHCK115-020-C	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 230 Nm
	MGHCK115-020-D	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 230 Nm
	MGHCK115-022-A	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-022-B	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-022-C	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-022-D	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-027.5-A	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-027.5-B	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-027.5-C	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-027.5-D	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-028-A	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 220 Nm
	MGHCK115-028-B	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 220 Nm
	MGHCK115-028-C	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 220 Nm
	MGHCK115-028-D	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 220 Nm
	MGHCK115-038.5-A	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-038.5-B	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-038.5-C	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-038.5-D	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 245 Nm
	MGHCK115-040-A	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 192 Nm
	MGHCK115-040-B	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 192 Nm
	MGHCK115-040-C	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 192 Nm
	MGHCK115-040-D	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 192 Nm
	MGHCK115-055-A	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 250 Nm
	MGHCK115-055-B	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 250 Nm
	MGHCK115-055-C	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 250 Nm
	MGHCK115-055-D	Frame: 115 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 250 Nm
	MGHCK140-004-A	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-004-B	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-004-C	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-004-D	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-005.5-A	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 440 Nm
	MGHCK140-005.5-B	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 440 Nm
	MGHCK140-005.5-C	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 440 Nm
	MGHCK140-005.5-D	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 440 Nm
	MGHCK140-008-A	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 525 Nm
	MGHCK140-008-B	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 525 Nm
	MGHCK140-008-C	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 525 Nm
	MGHCK140-008-D	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 525 Nm
	MGHCK140-011-A	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 455 Nm
	MGHCK140-011-B	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 455 Nm
	MGHCK140-011-C	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 455 Nm
	MGHCK140-011-D	Frame: 140 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 455 Nm
	MGHCK140-016-A	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 450 Nm
	MGHCK140-016-B	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 450 Nm
	MGHCK140-016-C	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 450 Nm
	MGHCK140-016-D	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 450 Nm
	MGHCK140-020-A	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 435 Nm
	MGHCK140-020-B	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 435 Nm
	MGHCK140-020-C	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 435 Nm
	MGHCK140-020-D	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 435 Nm
	MGHCK140-022-A	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 465 Nm
	MGHCK140-022-B	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 465 Nm
	MGHCK140-022-C	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 465 Nm
	MGHCK140-022-D	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 465 Nm
	MGHCK140-027.5-A	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 465 Nm
	MGHCK140-027.5-B	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 465 Nm
	MGHCK140-027.5-C	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 465 Nm
	MGHCK140-027.5-D	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 465 Nm
	MGHCK140-028-A	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 415 Nm
	MGHCK140-028-B	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 415 Nm
	MGHCK140-028-C	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 415 Nm
	MGHCK140-028-D	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 415 Nm
	MGHCK140-038.5-A	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 470 Nm
	MGHCK140-038.5-B	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 470 Nm
	MGHCK140-038.5-C	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 470 Nm
	MGHCK140-038.5-D	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 470 Nm
	MGHCK140-040-A	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-040-B	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-040-C	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-040-D	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-055-A	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 475 Nm
	MGHCK140-055-B	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 475 Nm
	MGHCK140-055-C	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 475 Nm
	MGHCK140-055-D	Frame: 140 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 475 Nm
	MGHCK140-064-A	Frame: 140 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 380 Nm
	MGHCK140-064-B	Frame: 140 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 380 Nm
	MGHCK140-064-C	Frame: 140 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 380 Nm
	MGHCK140-064-D	Frame: 140 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 380 Nm
	MGHCK140-088-A	Frame: 140 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-088-B	Frame: 140 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-088-C	Frame: 140 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-088-D	Frame: 140 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-100-A	Frame: 140 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 370 Nm
	MGHCK140-100-B	Frame: 140 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 370 Nm
	MGHCK140-100-C	Frame: 140 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 370 Nm
	MGHCK140-100-D	Frame: 140 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 370 Nm
	MGHCK140-110-A	Frame: 140 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-110-B	Frame: 140 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-110-C	Frame: 140 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-110-D	Frame: 140 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-137.5-A	Frame: 140 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-137.5-B	Frame: 140 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-137.5-C	Frame: 140 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-137.5-D	Frame: 140 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 480 Nm
	MGHCK140-140-A	Frame: 140 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 370 Nm
	MGHCK140-140-B	Frame: 140 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 370 Nm
	MGHCK140-140-C	Frame: 140 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 370 Nm
	MGHCK140-140-D	Frame: 140 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 370 Nm
	MGHCK140-154-A	Frame: 140 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 485 Nm
	MGHCK140-154-B	Frame: 140 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 485 Nm
	MGHCK140-154-C	Frame: 140 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 485 Nm
	MGHCK140-154-D	Frame: 140 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 485 Nm
	MGHCK140-160-A	Frame: 140 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 380 Nm
	MGHCK140-160-B	Frame: 140 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 380 Nm
	MGHCK140-160-C	Frame: 140 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 380 Nm
	MGHCK140-160-D	Frame: 140 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 380 Nm
	MGHCK140-200-A	Frame: 140 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 390 Nm
	MGHCK140-200-B	Frame: 140 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 390 Nm
	MGHCK140-200-C	Frame: 140 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 390 Nm
	MGHCK140-200-D	Frame: 140 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 390 Nm
	MGHCK140-220-A	Frame: 140 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 490 Nm
	MGHCK140-220-B	Frame: 140 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 490 Nm
	MGHCK140-220-C	Frame: 140 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 490 Nm
	MGHCK140-220-D	Frame: 140 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 490 Nm
	MGHCK140-280-A	Frame: 140 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-280-B	Frame: 140 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-280-C	Frame: 140 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-280-D	Frame: 140 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-385-A	Frame: 140 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 495 Nm
	MGHCK140-385-B	Frame: 140 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 495 Nm
	MGHCK140-385-C	Frame: 140 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 495 Nm
	MGHCK140-385-D	Frame: 140 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 495 Nm
	MGHCK140-400-A	Frame: 140 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 390 Nm
	MGHCK140-400-B	Frame: 140 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 390 Nm
	MGHCK140-400-C	Frame: 140 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 390 Nm
	MGHCK140-400-D	Frame: 140 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 390 Nm
	MGHCK140-440-A	Frame: 140 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 450 Nm
	MGHCK140-440-B	Frame: 140 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 450 Nm
	MGHCK140-440-C	Frame: 140 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 450 Nm
	MGHCK140-440-D	Frame: 140 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 450 Nm
	MGHCK140-500-A	Frame: 140 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-500-B	Frame: 140 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-500-C	Frame: 140 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-500-D	Frame: 140 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 400 Nm
	MGHCK140-550-A	Frame: 140 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 490 Nm
	MGHCK140-550-B	Frame: 140 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 490 Nm
	MGHCK140-550-C	Frame: 140 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 490 Nm
	MGHCK140-550-D	Frame: 140 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 490 Nm
	MGHCK140-700-A	Frame: 140 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 455 Nm
	MGHCK140-700-B	Frame: 140 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 455 Nm
	MGHCK140-700-C	Frame: 140 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 455 Nm
	MGHCK140-700-D	Frame: 140 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 455 Nm
	MGHCK140-770-A	Frame: 140 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 495 Nm
	MGHCK140-770-B	Frame: 140 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 495 Nm
	MGHCK140-770-C	Frame: 140 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 495 Nm
	MGHCK140-770-D	Frame: 140 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 495 Nm
	MGHCK140-1000-A	Frame: 140 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 525 Nm
	MGHCK140-1000-B	Frame: 140 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 525 Nm
	MGHCK140-1000-C	Frame: 140 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 525 Nm
	MGHCK140-1000-D	Frame: 140 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 525 Nm
	MGHCK140-1078-A	Frame: 140 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 500 Nm
	MGHCK140-1078-B	Frame: 140 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 500 Nm
	MGHCK140-1078-C	Frame: 140 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 500 Nm
	MGHCK140-1078-D	Frame: 140 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 500 Nm
	MGHCK140-1400-A	Frame: 140 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 540 Nm
	MGHCK140-1400-B	Frame: 140 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 540 Nm
	MGHCK140-1400-C	Frame: 140 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 540 Nm
	MGHCK140-1400-D	Frame: 140 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 540 Nm
	MGHCK140-1540-A	Frame: 140 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 500 Nm
	MGHCK140-1540-B	Frame: 140 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 500 Nm
	MGHCK140-1540-C	Frame: 140 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 500 Nm
	MGHCK140-1540-D	Frame: 140 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 500 Nm
	MGHCK140-1600-A	Frame: 140 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 565 Nm
	MGHCK140-1600-B	Frame: 140 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 565 Nm
	MGHCK140-1600-C	Frame: 140 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 565 Nm
	MGHCK140-1600-D	Frame: 140 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 565 Nm
	MGHCK140-2000-A	Frame: 140 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 565 Nm
	MGHCK140-2000-B	Frame: 140 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 565 Nm
	MGHCK140-2000-C	Frame: 140 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 565 Nm
	MGHCK140-2000-D	Frame: 140 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 565 Nm
	MGHCK140-2695-A	Frame: 140 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-2695-B	Frame: 140 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-2695-C	Frame: 140 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-2695-D	Frame: 140 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-2800-A	Frame: 140 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 540 Nm
	MGHCK140-2800-B	Frame: 140 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 540 Nm
	MGHCK140-2800-C	Frame: 140 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 540 Nm
	MGHCK140-2800-D	Frame: 140 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 540 Nm
	MGHCK140-3850-A	Frame: 140 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-3850-B	Frame: 140 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-3850-C	Frame: 140 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-3850-D	Frame: 140 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 510 Nm
	MGHCK140-4000-A	Frame: 140 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 225 Nm
	MGHCK140-4000-B	Frame: 140 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 225 Nm
	MGHCK140-4000-C	Frame: 140 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 225 Nm
	MGHCK140-4000-D	Frame: 140 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 225 Nm
	MGHCK140-5500-A	Frame: 140 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 315 Nm
	MGHCK140-5500-B	Frame: 140 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 315 Nm
	MGHCK140-5500-C	Frame: 140 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 315 Nm
	MGHCK140-5500-D	Frame: 140 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 315 Nm
	MGHCK170-004-A	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-004-B	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-004-C	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-004-D	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-005.5-A	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 745 Nm
	MGHCK170-005.5-B	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 745 Nm
	MGHCK170-005.5-C	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 745 Nm
	MGHCK170-005.5-D	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 745 Nm
	MGHCK170-008-A	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-008-B	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-008-C	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-008-D	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-011-A	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 765 Nm
	MGHCK170-011-B	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 765 Nm
	MGHCK170-011-C	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 765 Nm
	MGHCK170-011-D	Frame: 170 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 765 Nm
	MGHCK170-016-A	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 840 Nm
	MGHCK170-016-B	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 840 Nm
	MGHCK170-016-C	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 840 Nm
	MGHCK170-016-D	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 840 Nm
	MGHCK170-020-A	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-020-B	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-020-C	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-020-D	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-022-A	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 780 Nm
	MGHCK170-022-B	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 780 Nm
	MGHCK170-022-C	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 780 Nm
	MGHCK170-022-D	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 780 Nm
	MGHCK170-027.5-A	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 785 Nm
	MGHCK170-027.5-B	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 785 Nm
	MGHCK170-027.5-C	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 785 Nm
	MGHCK170-027.5-D	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 785 Nm
	MGHCK170-028-A	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 775 Nm
	MGHCK170-028-B	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 775 Nm
	MGHCK170-028-C	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 775 Nm
	MGHCK170-028-D	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 775 Nm
	MGHCK170-038.5-A	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 795 Nm
	MGHCK170-038.5-B	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 795 Nm
	MGHCK170-038.5-C	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 795 Nm
	MGHCK170-038.5-D	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 795 Nm
	MGHCK170-040-A	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 740 Nm
	MGHCK170-040-B	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 740 Nm
	MGHCK170-040-C	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 740 Nm
	MGHCK170-040-D	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 740 Nm
	MGHCK170-055-A	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 805 Nm
	MGHCK170-055-B	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 805 Nm
	MGHCK170-055-C	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 805 Nm
	MGHCK170-055-D	Frame: 170 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 805 Nm
	MGHCK170-064-A	Frame: 170 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 700 Nm
	MGHCK170-064-B	Frame: 170 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 700 Nm
	MGHCK170-064-C	Frame: 170 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 700 Nm
	MGHCK170-064-D	Frame: 170 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 700 Nm
	MGHCK170-088-A	Frame: 170 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 815 Nm
	MGHCK170-088-B	Frame: 170 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 815 Nm
	MGHCK170-088-C	Frame: 170 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 815 Nm
	MGHCK170-088-D	Frame: 170 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 815 Nm
	MGHCK170-100-A	Frame: 170 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 670 Nm
	MGHCK170-100-B	Frame: 170 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 670 Nm
	MGHCK170-100-C	Frame: 170 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 670 Nm
	MGHCK170-100-D	Frame: 170 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 670 Nm
	MGHCK170-110-A	Frame: 170 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 820 Nm
	MGHCK170-110-B	Frame: 170 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 820 Nm
	MGHCK170-110-C	Frame: 170 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 820 Nm
	MGHCK170-110-D	Frame: 170 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 820 Nm
	MGHCK170-137.5-A	Frame: 170 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-137.5-B	Frame: 170 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-137.5-C	Frame: 170 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-137.5-D	Frame: 170 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-140-A	Frame: 170 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 650 Nm
	MGHCK170-140-B	Frame: 170 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 650 Nm
	MGHCK170-140-C	Frame: 170 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 650 Nm
	MGHCK170-140-D	Frame: 170 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 650 Nm
	MGHCK170-154-A	Frame: 170 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-154-B	Frame: 170 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-154-C	Frame: 170 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-154-D	Frame: 170 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-160-A	Frame: 170 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 655 Nm
	MGHCK170-160-B	Frame: 170 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 655 Nm
	MGHCK170-160-C	Frame: 170 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 655 Nm
	MGHCK170-160-D	Frame: 170 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 655 Nm
	MGHCK170-200-A	Frame: 170 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 665 Nm
	MGHCK170-200-B	Frame: 170 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 665 Nm
	MGHCK170-200-C	Frame: 170 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 665 Nm
	MGHCK170-200-D	Frame: 170 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 665 Nm
	MGHCK170-220-A	Frame: 170 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 835 Nm
	MGHCK170-220-B	Frame: 170 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 835 Nm
	MGHCK170-220-C	Frame: 170 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 835 Nm
	MGHCK170-220-D	Frame: 170 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 835 Nm
	MGHCK170-280-A	Frame: 170 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 690 Nm
	MGHCK170-280-B	Frame: 170 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 690 Nm
	MGHCK170-280-C	Frame: 170 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 690 Nm
	MGHCK170-280-D	Frame: 170 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 690 Nm
	MGHCK170-385-A	Frame: 170 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 850 Nm
	MGHCK170-385-B	Frame: 170 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 850 Nm
	MGHCK170-385-C	Frame: 170 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 850 Nm
	MGHCK170-385-D	Frame: 170 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 850 Nm
	MGHCK170-400-A	Frame: 170 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 675 Nm
	MGHCK170-400-B	Frame: 170 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 675 Nm
	MGHCK170-400-C	Frame: 170 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 675 Nm
	MGHCK170-400-D	Frame: 170 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 675 Nm
	MGHCK170-440-A	Frame: 170 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 835 Nm
	MGHCK170-440-B	Frame: 170 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 835 Nm
	MGHCK170-440-C	Frame: 170 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 835 Nm
	MGHCK170-440-D	Frame: 170 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 835 Nm
	MGHCK170-500-A	Frame: 170 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 715 Nm
	MGHCK170-500-B	Frame: 170 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 715 Nm
	MGHCK170-500-C	Frame: 170 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 715 Nm
	MGHCK170-500-D	Frame: 170 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 715 Nm
	MGHCK170-550-A	Frame: 170 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-550-B	Frame: 170 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-550-C	Frame: 170 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-550-D	Frame: 170 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-700-A	Frame: 170 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-700-B	Frame: 170 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-700-C	Frame: 170 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-700-D	Frame: 170 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 825 Nm
	MGHCK170-770-A	Frame: 170 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 850 Nm
	MGHCK170-770-B	Frame: 170 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 850 Nm
	MGHCK170-770-C	Frame: 170 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 850 Nm
	MGHCK170-770-D	Frame: 170 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 850 Nm
	MGHCK170-1000-A	Frame: 170 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-1000-B	Frame: 170 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-1000-C	Frame: 170 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-1000-D	Frame: 170 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-1078-A	Frame: 170 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 860 Nm
	MGHCK170-1078-B	Frame: 170 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 860 Nm
	MGHCK170-1078-C	Frame: 170 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 860 Nm
	MGHCK170-1078-D	Frame: 170 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 860 Nm
	MGHCK170-1400-A	Frame: 170 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-1400-B	Frame: 170 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-1400-C	Frame: 170 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-1400-D	Frame: 170 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-1540-A	Frame: 170 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 870 Nm
	MGHCK170-1540-B	Frame: 170 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 870 Nm
	MGHCK170-1540-C	Frame: 170 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 870 Nm
	MGHCK170-1540-D	Frame: 170 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 870 Nm
	MGHCK170-1600-A	Frame: 170 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-1600-B	Frame: 170 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-1600-C	Frame: 170 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-1600-D	Frame: 170 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-2000-A	Frame: 170 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-2000-B	Frame: 170 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-2000-C	Frame: 170 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-2000-D	Frame: 170 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 810 Nm
	MGHCK170-2695-A	Frame: 170 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 880 Nm
	MGHCK170-2695-B	Frame: 170 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 880 Nm
	MGHCK170-2695-C	Frame: 170 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 880 Nm
	MGHCK170-2695-D	Frame: 170 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 880 Nm
	MGHCK170-2800-A	Frame: 170 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-2800-B	Frame: 170 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-2800-C	Frame: 170 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-2800-D	Frame: 170 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 845 Nm
	MGHCK170-3850-A	Frame: 170 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 980 Nm
	MGHCK170-3850-B	Frame: 170 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 980 Nm
	MGHCK170-3850-C	Frame: 170 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 980 Nm
	MGHCK170-3850-D	Frame: 170 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 980 Nm
	MGHCK170-4000-A	Frame: 170 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 650 Nm
	MGHCK170-4000-B	Frame: 170 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 650 Nm
	MGHCK170-4000-C	Frame: 170 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 650 Nm
	MGHCK170-4000-D	Frame: 170 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 650 Nm
	MGHCK170-5500-A	Frame: 170 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 895 Nm
	MGHCK170-5500-B	Frame: 170 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 895 Nm
	MGHCK170-5500-C	Frame: 170 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 895 Nm
	MGHCK170-5500-D	Frame: 170 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 895 Nm
	MGHCK240-004-A	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,728 Nm
	MGHCK240-004-B	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,728 Nm
	MGHCK240-004-C	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,728 Nm
	MGHCK240-004-D	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,728 Nm
	MGHCK240-005.5-A	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,665 Nm
	MGHCK240-005.5-B	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,665 Nm
	MGHCK240-005.5-C	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,665 Nm
	MGHCK240-005.5-D	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,665 Nm
	MGHCK240-008-A	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,584 Nm
	MGHCK240-008-B	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,584 Nm
	MGHCK240-008-C	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,584 Nm
	MGHCK240-008-D	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,584 Nm
	MGHCK240-011-A	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,710 Nm
	MGHCK240-011-B	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,710 Nm
	MGHCK240-011-C	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,710 Nm
	MGHCK240-011-D	Frame: 240 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,710 Nm
	MGHCK240-016-A	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-016-B	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-016-C	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-016-D	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-020-A	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-020-B	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-020-C	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-020-D	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-022-A	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,740 Nm
	MGHCK240-022-B	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,740 Nm
	MGHCK240-022-C	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,740 Nm
	MGHCK240-022-D	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,740 Nm
	MGHCK240-027.5-A	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,750 Nm
	MGHCK240-027.5-B	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,750 Nm
	MGHCK240-027.5-C	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,750 Nm
	MGHCK240-027.5-D	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,750 Nm
	MGHCK240-028-A	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-028-B	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-028-C	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-028-D	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-038.5-A	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,770 Nm
	MGHCK240-038.5-B	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,770 Nm
	MGHCK240-038.5-C	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,770 Nm
	MGHCK240-038.5-D	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,770 Nm
	MGHCK240-040-A	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,725 Nm
	MGHCK240-040-B	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,725 Nm
	MGHCK240-040-C	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,725 Nm
	MGHCK240-040-D	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,725 Nm
	MGHCK240-055-A	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,785 Nm
	MGHCK240-055-B	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,785 Nm
	MGHCK240-055-C	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,785 Nm
	MGHCK240-055-D	Frame: 240 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,785 Nm
	MGHCK240-064-A	Frame: 240 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,770 Nm
	MGHCK240-064-B	Frame: 240 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,770 Nm
	MGHCK240-064-C	Frame: 240 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,770 Nm
	MGHCK240-064-D	Frame: 240 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,770 Nm
	MGHCK240-088-A	Frame: 240 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-088-B	Frame: 240 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-088-C	Frame: 240 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-088-D	Frame: 240 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,800 Nm
	MGHCK240-100-A	Frame: 240 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,695 Nm
	MGHCK240-100-B	Frame: 240 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,695 Nm
	MGHCK240-100-C	Frame: 240 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,695 Nm
	MGHCK240-100-D	Frame: 240 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,695 Nm
	MGHCK240-110-A	Frame: 240 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,810 Nm
	MGHCK240-110-B	Frame: 240 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,810 Nm
	MGHCK240-110-C	Frame: 240 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,810 Nm
	MGHCK240-110-D	Frame: 240 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,810 Nm
	MGHCK240-137.5-A	Frame: 240 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,820 Nm
	MGHCK240-137.5-B	Frame: 240 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,820 Nm
	MGHCK240-137.5-C	Frame: 240 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,820 Nm
	MGHCK240-137.5-D	Frame: 240 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,820 Nm
	MGHCK240-140-A	Frame: 240 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,640 Nm
	MGHCK240-140-B	Frame: 240 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,640 Nm
	MGHCK240-140-C	Frame: 240 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,640 Nm
	MGHCK240-140-D	Frame: 240 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,640 Nm
	MGHCK240-154-A	Frame: 240 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,825 Nm
	MGHCK240-154-B	Frame: 240 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,825 Nm
	MGHCK240-154-C	Frame: 240 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,825 Nm
	MGHCK240-154-D	Frame: 240 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,825 Nm
	MGHCK240-160-A	Frame: 240 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,620 Nm
	MGHCK240-160-B	Frame: 240 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,620 Nm
	MGHCK240-160-C	Frame: 240 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,620 Nm
	MGHCK240-160-D	Frame: 240 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,620 Nm
	MGHCK240-200-A	Frame: 240 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,585 Nm
	MGHCK240-200-B	Frame: 240 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,585 Nm
	MGHCK240-200-C	Frame: 240 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,585 Nm
	MGHCK240-200-D	Frame: 240 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,585 Nm
	MGHCK240-220-A	Frame: 240 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-220-B	Frame: 240 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-220-C	Frame: 240 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-220-D	Frame: 240 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-280-A	Frame: 240 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,605 Nm
	MGHCK240-280-B	Frame: 240 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,605 Nm
	MGHCK240-280-C	Frame: 240 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,605 Nm
	MGHCK240-280-D	Frame: 240 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,605 Nm
	MGHCK240-385-A	Frame: 240 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,845 Nm
	MGHCK240-385-B	Frame: 240 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,845 Nm
	MGHCK240-385-C	Frame: 240 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,845 Nm
	MGHCK240-385-D	Frame: 240 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,845 Nm
	MGHCK240-400-A	Frame: 240 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,565 Nm
	MGHCK240-400-B	Frame: 240 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,565 Nm
	MGHCK240-400-C	Frame: 240 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,565 Nm
	MGHCK240-400-D	Frame: 240 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,565 Nm
	MGHCK240-440-A	Frame: 240 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-440-B	Frame: 240 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-440-C	Frame: 240 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-440-D	Frame: 240 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-500-A	Frame: 240 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,635 Nm
	MGHCK240-500-B	Frame: 240 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,635 Nm
	MGHCK240-500-C	Frame: 240 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,635 Nm
	MGHCK240-500-D	Frame: 240 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,635 Nm
	MGHCK240-550-A	Frame: 240 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,860 Nm
	MGHCK240-550-B	Frame: 240 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,860 Nm
	MGHCK240-550-C	Frame: 240 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,860 Nm
	MGHCK240-550-D	Frame: 240 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,860 Nm
	MGHCK240-700-A	Frame: 240 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,850 Nm
	MGHCK240-700-B	Frame: 240 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,850 Nm
	MGHCK240-700-C	Frame: 240 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,850 Nm
	MGHCK240-700-D	Frame: 240 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,850 Nm
	MGHCK240-770-A	Frame: 240 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,870 Nm
	MGHCK240-770-B	Frame: 240 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,870 Nm
	MGHCK240-770-C	Frame: 240 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,870 Nm
	MGHCK240-770-D	Frame: 240 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,870 Nm
	MGHCK240-1000-A	Frame: 240 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,100 Nm
	MGHCK240-1000-B	Frame: 240 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,100 Nm
	MGHCK240-1000-C	Frame: 240 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,100 Nm
	MGHCK240-1000-D	Frame: 240 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,100 Nm
	MGHCK240-1078-A	Frame: 240 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,890 Nm
	MGHCK240-1078-B	Frame: 240 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,890 Nm
	MGHCK240-1078-C	Frame: 240 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,890 Nm
	MGHCK240-1078-D	Frame: 240 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,890 Nm
	MGHCK240-1400-A	Frame: 240 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,220 Nm
	MGHCK240-1400-B	Frame: 240 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,220 Nm
	MGHCK240-1400-C	Frame: 240 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,220 Nm
	MGHCK240-1400-D	Frame: 240 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,220 Nm
	MGHCK240-1540-A	Frame: 240 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,910 Nm
	MGHCK240-1540-B	Frame: 240 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,910 Nm
	MGHCK240-1540-C	Frame: 240 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,910 Nm
	MGHCK240-1540-D	Frame: 240 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,910 Nm
	MGHCK240-1600-A	Frame: 240 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,225 Nm
	MGHCK240-1600-B	Frame: 240 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,225 Nm
	MGHCK240-1600-C	Frame: 240 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,225 Nm
	MGHCK240-1600-D	Frame: 240 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,225 Nm
	MGHCK240-2000-A	Frame: 240 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,240 Nm
	MGHCK240-2000-B	Frame: 240 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,240 Nm
	MGHCK240-2000-C	Frame: 240 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,240 Nm
	MGHCK240-2000-D	Frame: 240 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,240 Nm
	MGHCK240-2695-A	Frame: 240 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,935 Nm
	MGHCK240-2695-B	Frame: 240 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,935 Nm
	MGHCK240-2695-C	Frame: 240 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,935 Nm
	MGHCK240-2695-D	Frame: 240 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,935 Nm
	MGHCK240-2800-A	Frame: 240 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,225 Nm
	MGHCK240-2800-B	Frame: 240 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,225 Nm
	MGHCK240-2800-C	Frame: 240 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,225 Nm
	MGHCK240-2800-D	Frame: 240 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,225 Nm
	MGHCK240-3850-A	Frame: 240 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,610 Nm
	MGHCK240-3850-B	Frame: 240 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,610 Nm
	MGHCK240-3850-C	Frame: 240 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,610 Nm
	MGHCK240-3850-D	Frame: 240 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,610 Nm
	MGHCK240-4000-A	Frame: 240 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-4000-B	Frame: 240 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-4000-C	Frame: 240 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-4000-D	Frame: 240 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,840 Nm
	MGHCK240-5500-A	Frame: 240 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,980 Nm
	MGHCK240-5500-B	Frame: 240 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,980 Nm
	MGHCK240-5500-C	Frame: 240 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,980 Nm
	MGHCK240-5500-D	Frame: 240 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,980 Nm
	MGHCK285-004-A	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,805 Nm
	MGHCK285-004-B	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,805 Nm
	MGHCK285-004-C	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,805 Nm
	MGHCK285-004-D	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,805 Nm
	MGHCK285-005.5-A	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,590 Nm
	MGHCK285-005.5-B	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,590 Nm
	MGHCK285-005.5-C	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,590 Nm
	MGHCK285-005.5-D	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,590 Nm
	MGHCK285-008-A	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,610 Nm
	MGHCK285-008-B	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,610 Nm
	MGHCK285-008-C	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,610 Nm
	MGHCK285-008-D	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,610 Nm
	MGHCK285-011-A	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,655 Nm
	MGHCK285-011-B	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,655 Nm
	MGHCK285-011-C	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,655 Nm
	MGHCK285-011-D	Frame: 285 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,655 Nm
	MGHCK285-016-A	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,015 Nm
	MGHCK285-016-B	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,015 Nm
	MGHCK285-016-C	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,015 Nm
	MGHCK285-016-D	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,015 Nm
	MGHCK285-020-A	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,015 Nm
	MGHCK285-020-B	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,015 Nm
	MGHCK285-020-C	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,015 Nm
	MGHCK285-020-D	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,015 Nm
	MGHCK285-022-A	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,685 Nm
	MGHCK285-022-B	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,685 Nm
	MGHCK285-022-C	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,685 Nm
	MGHCK285-022-D	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,685 Nm
	MGHCK285-027.5-A	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,700 Nm
	MGHCK285-027.5-B	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,700 Nm
	MGHCK285-027.5-C	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,700 Nm
	MGHCK285-027.5-D	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,700 Nm
	MGHCK285-028-A	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,872 Nm
	MGHCK285-028-B	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,872 Nm
	MGHCK285-028-C	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,872 Nm
	MGHCK285-028-D	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,872 Nm
	MGHCK285-038.5-A	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,574 Nm
	MGHCK285-038.5-B	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,574 Nm
	MGHCK285-038.5-C	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,574 Nm
	MGHCK285-038.5-D	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,574 Nm
	MGHCK285-040-A	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 1,728 Nm
	MGHCK285-040-B	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 1,728 Nm
	MGHCK285-040-C	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 1,728 Nm
	MGHCK285-040-D	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 1,728 Nm
	MGHCK285-055-A	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,376 Nm
	MGHCK285-055-B	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,376 Nm
	MGHCK285-055-C	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,376 Nm
	MGHCK285-055-D	Frame: 285 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,376 Nm
	MGHCK285-064-A	Frame: 285 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,880 Nm
	MGHCK285-064-B	Frame: 285 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,880 Nm
	MGHCK285-064-C	Frame: 285 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,880 Nm
	MGHCK285-064-D	Frame: 285 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,880 Nm
	MGHCK285-088-A	Frame: 285 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,185 Nm
	MGHCK285-088-B	Frame: 285 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,185 Nm
	MGHCK285-088-C	Frame: 285 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,185 Nm
	MGHCK285-088-D	Frame: 285 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,185 Nm
	MGHCK285-100-A	Frame: 285 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,760 Nm
	MGHCK285-100-B	Frame: 285 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,760 Nm
	MGHCK285-100-C	Frame: 285 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,760 Nm
	MGHCK285-100-D	Frame: 285 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,760 Nm
	MGHCK285-110-A	Frame: 285 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,800 Nm
	MGHCK285-110-B	Frame: 285 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,800 Nm
	MGHCK285-110-C	Frame: 285 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,800 Nm
	MGHCK285-110-D	Frame: 285 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,800 Nm
	MGHCK285-137.5-A	Frame: 285 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,815 Nm
	MGHCK285-137.5-B	Frame: 285 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,815 Nm
	MGHCK285-137.5-C	Frame: 285 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,815 Nm
	MGHCK285-137.5-D	Frame: 285 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,815 Nm
	MGHCK285-140-A	Frame: 285 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,680 Nm
	MGHCK285-140-B	Frame: 285 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,680 Nm
	MGHCK285-140-C	Frame: 285 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,680 Nm
	MGHCK285-140-D	Frame: 285 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,680 Nm
	MGHCK285-154-A	Frame: 285 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,820 Nm
	MGHCK285-154-B	Frame: 285 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,820 Nm
	MGHCK285-154-C	Frame: 285 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,820 Nm
	MGHCK285-154-D	Frame: 285 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,820 Nm
	MGHCK285-160-A	Frame: 285 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,650 Nm
	MGHCK285-160-B	Frame: 285 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,650 Nm
	MGHCK285-160-C	Frame: 285 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,650 Nm
	MGHCK285-160-D	Frame: 285 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,650 Nm
	MGHCK285-200-A	Frame: 285 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,600 Nm
	MGHCK285-200-B	Frame: 285 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,600 Nm
	MGHCK285-200-C	Frame: 285 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,600 Nm
	MGHCK285-200-D	Frame: 285 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,600 Nm
	MGHCK285-220-A	Frame: 285 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,850 Nm
	MGHCK285-220-B	Frame: 285 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,850 Nm
	MGHCK285-220-C	Frame: 285 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,850 Nm
	MGHCK285-220-D	Frame: 285 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,850 Nm
	MGHCK285-280-A	Frame: 285 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,755 Nm
	MGHCK285-280-B	Frame: 285 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,755 Nm
	MGHCK285-280-C	Frame: 285 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,755 Nm
	MGHCK285-280-D	Frame: 285 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,755 Nm
	MGHCK285-385-A	Frame: 285 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,890 Nm
	MGHCK285-385-B	Frame: 285 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,890 Nm
	MGHCK285-385-C	Frame: 285 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,890 Nm
	MGHCK285-385-D	Frame: 285 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,890 Nm
	MGHCK285-400-A	Frame: 285 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,605 Nm
	MGHCK285-400-B	Frame: 285 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,605 Nm
	MGHCK285-400-C	Frame: 285 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,605 Nm
	MGHCK285-400-D	Frame: 285 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,605 Nm
	MGHCK285-440-A	Frame: 285 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,840 Nm
	MGHCK285-440-B	Frame: 285 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,840 Nm
	MGHCK285-440-C	Frame: 285 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,840 Nm
	MGHCK285-440-D	Frame: 285 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,840 Nm
	MGHCK285-500-A	Frame: 285 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,725 Nm
	MGHCK285-500-B	Frame: 285 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,725 Nm
	MGHCK285-500-C	Frame: 285 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,725 Nm
	MGHCK285-500-D	Frame: 285 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,725 Nm
	MGHCK285-550-A	Frame: 285 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,870 Nm
	MGHCK285-550-B	Frame: 285 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,870 Nm
	MGHCK285-550-C	Frame: 285 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,870 Nm
	MGHCK285-550-D	Frame: 285 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,870 Nm
	MGHCK285-700-A	Frame: 285 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,040 Nm
	MGHCK285-700-B	Frame: 285 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,040 Nm
	MGHCK285-700-C	Frame: 285 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,040 Nm
	MGHCK285-700-D	Frame: 285 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,040 Nm
	MGHCK285-770-A	Frame: 285 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,895 Nm
	MGHCK285-770-B	Frame: 285 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,895 Nm
	MGHCK285-770-C	Frame: 285 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,895 Nm
	MGHCK285-770-D	Frame: 285 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,895 Nm
	MGHCK285-1000-A	Frame: 285 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,395 Nm
	MGHCK285-1000-B	Frame: 285 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,395 Nm
	MGHCK285-1000-C	Frame: 285 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,395 Nm
	MGHCK285-1000-D	Frame: 285 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,395 Nm
	MGHCK285-1078-A	Frame: 285 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,920 Nm
	MGHCK285-1078-B	Frame: 285 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,920 Nm
	MGHCK285-1078-C	Frame: 285 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,920 Nm
	MGHCK285-1078-D	Frame: 285 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,920 Nm
	MGHCK285-1400-A	Frame: 285 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,430 Nm
	MGHCK285-1400-B	Frame: 285 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,430 Nm
	MGHCK285-1400-C	Frame: 285 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,430 Nm
	MGHCK285-1400-D	Frame: 285 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,430 Nm
	MGHCK285-1540-A	Frame: 285 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,945 Nm
	MGHCK285-1540-B	Frame: 285 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,945 Nm
	MGHCK285-1540-C	Frame: 285 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,945 Nm
	MGHCK285-1540-D	Frame: 285 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,945 Nm
	MGHCK285-1600-A	Frame: 285 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,435 Nm
	MGHCK285-1600-B	Frame: 285 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,435 Nm
	MGHCK285-1600-C	Frame: 285 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,435 Nm
	MGHCK285-1600-D	Frame: 285 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,435 Nm
	MGHCK285-2000-A	Frame: 285 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,455 Nm
	MGHCK285-2000-B	Frame: 285 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,455 Nm
	MGHCK285-2000-C	Frame: 285 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,455 Nm
	MGHCK285-2000-D	Frame: 285 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,455 Nm
	MGHCK285-2695-A	Frame: 285 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,980 Nm
	MGHCK285-2695-B	Frame: 285 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,980 Nm
	MGHCK285-2695-C	Frame: 285 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,980 Nm
	MGHCK285-2695-D	Frame: 285 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,980 Nm
	MGHCK285-2800-A	Frame: 285 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,480 Nm
	MGHCK285-2800-B	Frame: 285 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,480 Nm
	MGHCK285-2800-C	Frame: 285 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,480 Nm
	MGHCK285-2800-D	Frame: 285 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,480 Nm
	MGHCK285-3850-A	Frame: 285 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,995 Nm
	MGHCK285-3850-B	Frame: 285 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,995 Nm
	MGHCK285-3850-C	Frame: 285 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,995 Nm
	MGHCK285-3850-D	Frame: 285 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,995 Nm
	MGHCK285-4000-A	Frame: 285 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,515 Nm
	MGHCK285-4000-B	Frame: 285 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,515 Nm
	MGHCK285-4000-C	Frame: 285 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,515 Nm
	MGHCK285-4000-D	Frame: 285 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,515 Nm
	MGHCK285-5500-A	Frame: 285 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,110 Nm
	MGHCK285-5500-B	Frame: 285 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,110 Nm
	MGHCK285-5500-C	Frame: 285 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,110 Nm
	MGHCK285-5500-D	Frame: 285 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,110 Nm
	MGHCK320-004-A	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,545 Nm
	MGHCK320-004-B	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,545 Nm
	MGHCK320-004-C	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,545 Nm
	MGHCK320-004-D	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 4 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,545 Nm
	MGHCK320-005.5-A	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,700 Nm
	MGHCK320-005.5-B	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,700 Nm
	MGHCK320-005.5-C	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,700 Nm
	MGHCK320-005.5-D	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 5.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,700 Nm
	MGHCK320-008-A	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,680 Nm
	MGHCK320-008-B	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,680 Nm
	MGHCK320-008-C	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,680 Nm
	MGHCK320-008-D	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 8 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,680 Nm
	MGHCK320-011-A	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,800 Nm
	MGHCK320-011-B	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,800 Nm
	MGHCK320-011-C	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,800 Nm
	MGHCK320-011-D	Frame: 320 \| Version: 2-stage i=4-11 \| Ratio i: 11 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,800 Nm
	MGHCK320-016-A	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,935 Nm
	MGHCK320-016-B	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,935 Nm
	MGHCK320-016-C	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,935 Nm
	MGHCK320-016-D	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 16 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,935 Nm
	MGHCK320-020-A	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,935 Nm
	MGHCK320-020-B	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,935 Nm
	MGHCK320-020-C	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,935 Nm
	MGHCK320-020-D	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 20 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,935 Nm
	MGHCK320-022-A	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,815 Nm
	MGHCK320-022-B	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,815 Nm
	MGHCK320-022-C	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,815 Nm
	MGHCK320-022-D	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 22 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,815 Nm
	MGHCK320-027.5-A	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,840 Nm
	MGHCK320-027.5-B	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,840 Nm
	MGHCK320-027.5-C	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,840 Nm
	MGHCK320-027.5-D	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 27.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,840 Nm
	MGHCK320-028-A	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,600 Nm
	MGHCK320-028-B	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,600 Nm
	MGHCK320-028-C	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,600 Nm
	MGHCK320-028-D	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 28 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,600 Nm
	MGHCK320-038.5-A	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,885 Nm
	MGHCK320-038.5-B	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,885 Nm
	MGHCK320-038.5-C	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,885 Nm
	MGHCK320-038.5-D	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 38.5 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,885 Nm
	MGHCK320-040-A	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 2,880 Nm
	MGHCK320-040-B	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 2,880 Nm
	MGHCK320-040-C	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 2,880 Nm
	MGHCK320-040-D	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 40 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 2,880 Nm
	MGHCK320-055-A	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: A 6 o'clock \| Nominal torque T2N: 3,790 Nm
	MGHCK320-055-B	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: B 9 o'clock \| Nominal torque T2N: 3,790 Nm
	MGHCK320-055-C	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: C 12 o'clock \| Nominal torque T2N: 3,790 Nm
	MGHCK320-055-D	Frame: 320 \| Version: 2-stage i=16-55 \| Ratio i: 55 \| Stages: 2 \| Direction: D 3 o'clock \| Nominal torque T2N: 3,790 Nm
	MGHCK320-064-A	Frame: 320 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,760 Nm
	MGHCK320-064-B	Frame: 320 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,760 Nm
	MGHCK320-064-C	Frame: 320 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,760 Nm
	MGHCK320-064-D	Frame: 320 \| Version: 3-stage \| Ratio i: 64 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,760 Nm
	MGHCK320-088-A	Frame: 320 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,970 Nm
	MGHCK320-088-B	Frame: 320 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,970 Nm
	MGHCK320-088-C	Frame: 320 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,970 Nm
	MGHCK320-088-D	Frame: 320 \| Version: 3-stage \| Ratio i: 88 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,970 Nm
	MGHCK320-100-A	Frame: 320 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,520 Nm
	MGHCK320-100-B	Frame: 320 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,520 Nm
	MGHCK320-100-C	Frame: 320 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,520 Nm
	MGHCK320-100-D	Frame: 320 \| Version: 3-stage \| Ratio i: 100 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,520 Nm
	MGHCK320-110-A	Frame: 320 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 4,990 Nm
	MGHCK320-110-B	Frame: 320 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 4,990 Nm
	MGHCK320-110-C	Frame: 320 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 4,990 Nm
	MGHCK320-110-D	Frame: 320 \| Version: 3-stage \| Ratio i: 110 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 4,990 Nm
	MGHCK320-137.5-A	Frame: 320 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,020 Nm
	MGHCK320-137.5-B	Frame: 320 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,020 Nm
	MGHCK320-137.5-C	Frame: 320 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,020 Nm
	MGHCK320-137.5-D	Frame: 320 \| Version: 3-stage \| Ratio i: 137.5 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,020 Nm
	MGHCK320-140-A	Frame: 320 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,360 Nm
	MGHCK320-140-B	Frame: 320 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,360 Nm
	MGHCK320-140-C	Frame: 320 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,360 Nm
	MGHCK320-140-D	Frame: 320 \| Version: 3-stage \| Ratio i: 140 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,360 Nm
	MGHCK320-154-A	Frame: 320 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,035 Nm
	MGHCK320-154-B	Frame: 320 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,035 Nm
	MGHCK320-154-C	Frame: 320 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,035 Nm
	MGHCK320-154-D	Frame: 320 \| Version: 3-stage \| Ratio i: 154 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,035 Nm
	MGHCK320-160-A	Frame: 320 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,300 Nm
	MGHCK320-160-B	Frame: 320 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,300 Nm
	MGHCK320-160-C	Frame: 320 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,300 Nm
	MGHCK320-160-D	Frame: 320 \| Version: 3-stage \| Ratio i: 160 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,300 Nm
	MGHCK320-200-A	Frame: 320 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,200 Nm
	MGHCK320-200-B	Frame: 320 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,200 Nm
	MGHCK320-200-C	Frame: 320 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,200 Nm
	MGHCK320-200-D	Frame: 320 \| Version: 3-stage \| Ratio i: 200 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,200 Nm
	MGHCK320-220-A	Frame: 320 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,070 Nm
	MGHCK320-220-B	Frame: 320 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,070 Nm
	MGHCK320-220-C	Frame: 320 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,070 Nm
	MGHCK320-220-D	Frame: 320 \| Version: 3-stage \| Ratio i: 220 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,070 Nm
	MGHCK320-280-A	Frame: 320 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,490 Nm
	MGHCK320-280-B	Frame: 320 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,490 Nm
	MGHCK320-280-C	Frame: 320 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,490 Nm
	MGHCK320-280-D	Frame: 320 \| Version: 3-stage \| Ratio i: 280 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,490 Nm
	MGHCK320-385-A	Frame: 320 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,130 Nm
	MGHCK320-385-B	Frame: 320 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,130 Nm
	MGHCK320-385-C	Frame: 320 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,130 Nm
	MGHCK320-385-D	Frame: 320 \| Version: 3-stage \| Ratio i: 385 \| Stages: 3 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,130 Nm
	MGHCK320-400-A	Frame: 320 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,300 Nm
	MGHCK320-400-B	Frame: 320 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,300 Nm
	MGHCK320-400-C	Frame: 320 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,300 Nm
	MGHCK320-400-D	Frame: 320 \| Version: 4-stage \| Ratio i: 400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,300 Nm
	MGHCK320-440-A	Frame: 320 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,060 Nm
	MGHCK320-440-B	Frame: 320 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,060 Nm
	MGHCK320-440-C	Frame: 320 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,060 Nm
	MGHCK320-440-D	Frame: 320 \| Version: 4-stage \| Ratio i: 440 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,060 Nm
	MGHCK320-500-A	Frame: 320 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,490 Nm
	MGHCK320-500-B	Frame: 320 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,490 Nm
	MGHCK320-500-C	Frame: 320 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,490 Nm
	MGHCK320-500-D	Frame: 320 \| Version: 4-stage \| Ratio i: 500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,490 Nm
	MGHCK320-550-A	Frame: 320 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,110 Nm
	MGHCK320-550-B	Frame: 320 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,110 Nm
	MGHCK320-550-C	Frame: 320 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,110 Nm
	MGHCK320-550-D	Frame: 320 \| Version: 4-stage \| Ratio i: 550 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,110 Nm
	MGHCK320-700-A	Frame: 320 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,905 Nm
	MGHCK320-700-B	Frame: 320 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,905 Nm
	MGHCK320-700-C	Frame: 320 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,905 Nm
	MGHCK320-700-D	Frame: 320 \| Version: 4-stage \| Ratio i: 700 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,905 Nm
	MGHCK320-770-A	Frame: 320 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,150 Nm
	MGHCK320-770-B	Frame: 320 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,150 Nm
	MGHCK320-770-C	Frame: 320 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,150 Nm
	MGHCK320-770-D	Frame: 320 \| Version: 4-stage \| Ratio i: 770 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,150 Nm
	MGHCK320-1000-A	Frame: 320 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-1000-B	Frame: 320 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-1000-C	Frame: 320 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-1000-D	Frame: 320 \| Version: 4-stage \| Ratio i: 1,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-1078-A	Frame: 320 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,180 Nm
	MGHCK320-1078-B	Frame: 320 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,180 Nm
	MGHCK320-1078-C	Frame: 320 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,180 Nm
	MGHCK320-1078-D	Frame: 320 \| Version: 4-stage \| Ratio i: 1,078 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,180 Nm
	MGHCK320-1400-A	Frame: 320 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-1400-B	Frame: 320 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-1400-C	Frame: 320 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-1400-D	Frame: 320 \| Version: 4-stage \| Ratio i: 1,400 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-1540-A	Frame: 320 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,220 Nm
	MGHCK320-1540-B	Frame: 320 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,220 Nm
	MGHCK320-1540-C	Frame: 320 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,220 Nm
	MGHCK320-1540-D	Frame: 320 \| Version: 4-stage \| Ratio i: 1,540 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,220 Nm
	MGHCK320-1600-A	Frame: 320 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,760 Nm
	MGHCK320-1600-B	Frame: 320 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,760 Nm
	MGHCK320-1600-C	Frame: 320 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,760 Nm
	MGHCK320-1600-D	Frame: 320 \| Version: 4-stage \| Ratio i: 1,600 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,760 Nm
	MGHCK320-2000-A	Frame: 320 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-2000-B	Frame: 320 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-2000-C	Frame: 320 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-2000-D	Frame: 320 \| Version: 4-stage \| Ratio i: 2,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-2695-A	Frame: 320 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,275 Nm
	MGHCK320-2695-B	Frame: 320 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,275 Nm
	MGHCK320-2695-C	Frame: 320 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,275 Nm
	MGHCK320-2695-D	Frame: 320 \| Version: 4-stage \| Ratio i: 2,695 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,275 Nm
	MGHCK320-2800-A	Frame: 320 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-2800-B	Frame: 320 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-2800-C	Frame: 320 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-2800-D	Frame: 320 \| Version: 4-stage \| Ratio i: 2,800 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-3850-A	Frame: 320 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,365 Nm
	MGHCK320-3850-B	Frame: 320 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,365 Nm
	MGHCK320-3850-C	Frame: 320 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,365 Nm
	MGHCK320-3850-D	Frame: 320 \| Version: 4-stage \| Ratio i: 3,850 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,365 Nm
	MGHCK320-4000-A	Frame: 320 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-4000-B	Frame: 320 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-4000-C	Frame: 320 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-4000-D	Frame: 320 \| Version: 4-stage \| Ratio i: 4,000 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,815 Nm
	MGHCK320-5500-A	Frame: 320 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: A 6 o'clock \| Nominal torque T2N: 5,515 Nm
	MGHCK320-5500-B	Frame: 320 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: B 9 o'clock \| Nominal torque T2N: 5,515 Nm
	MGHCK320-5500-C	Frame: 320 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: C 12 o'clock \| Nominal torque T2N: 5,515 Nm
	MGHCK320-5500-D	Frame: 320 \| Version: 4-stage \| Ratio i: 5,500 \| Stages: 4 \| Direction: D 3 o'clock \| Nominal torque T2N: 5,515 Nm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Apex Dynamics MGHCK Right-Angle Extra High Torque Gearboxes (115-320)
